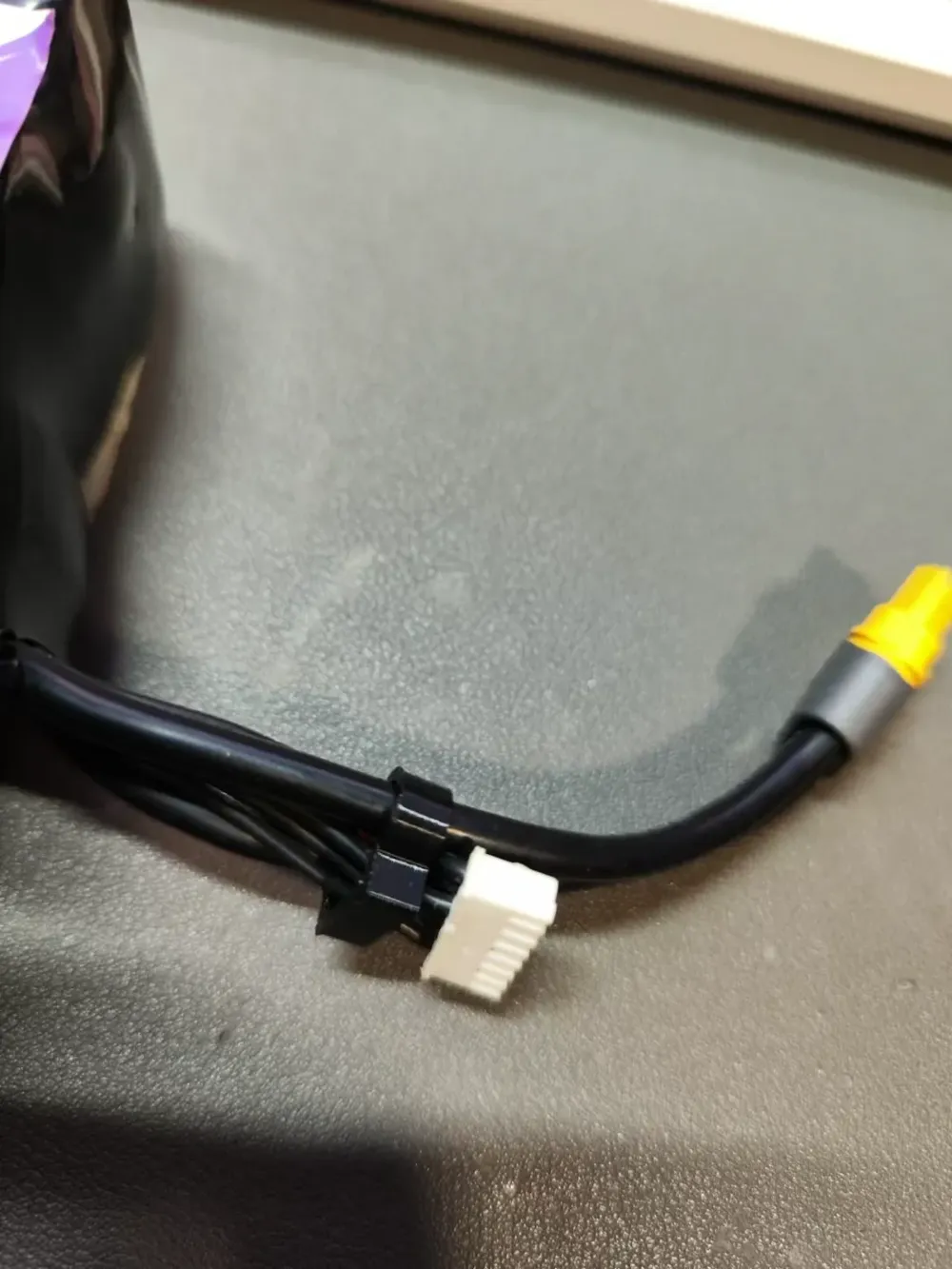

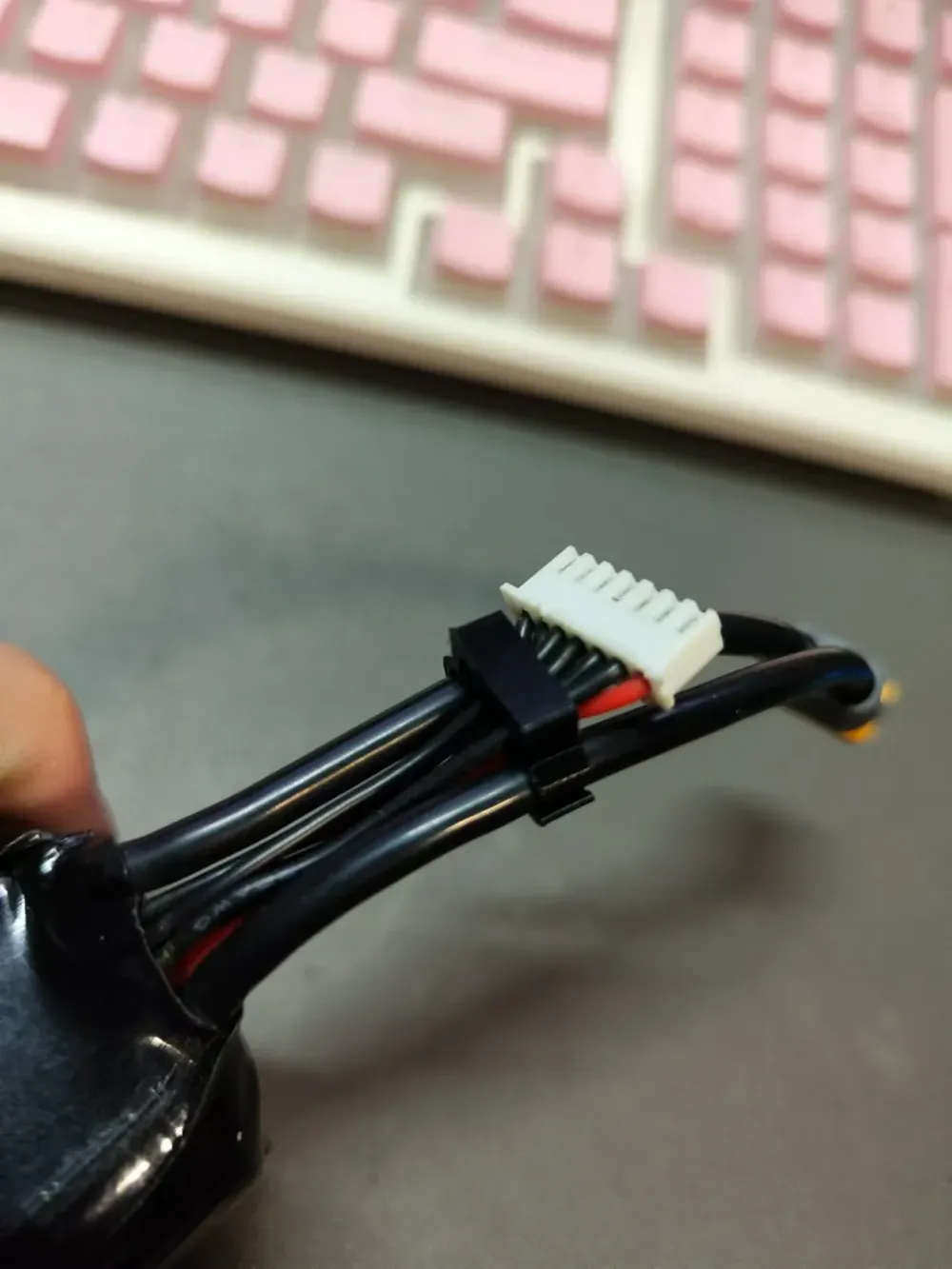

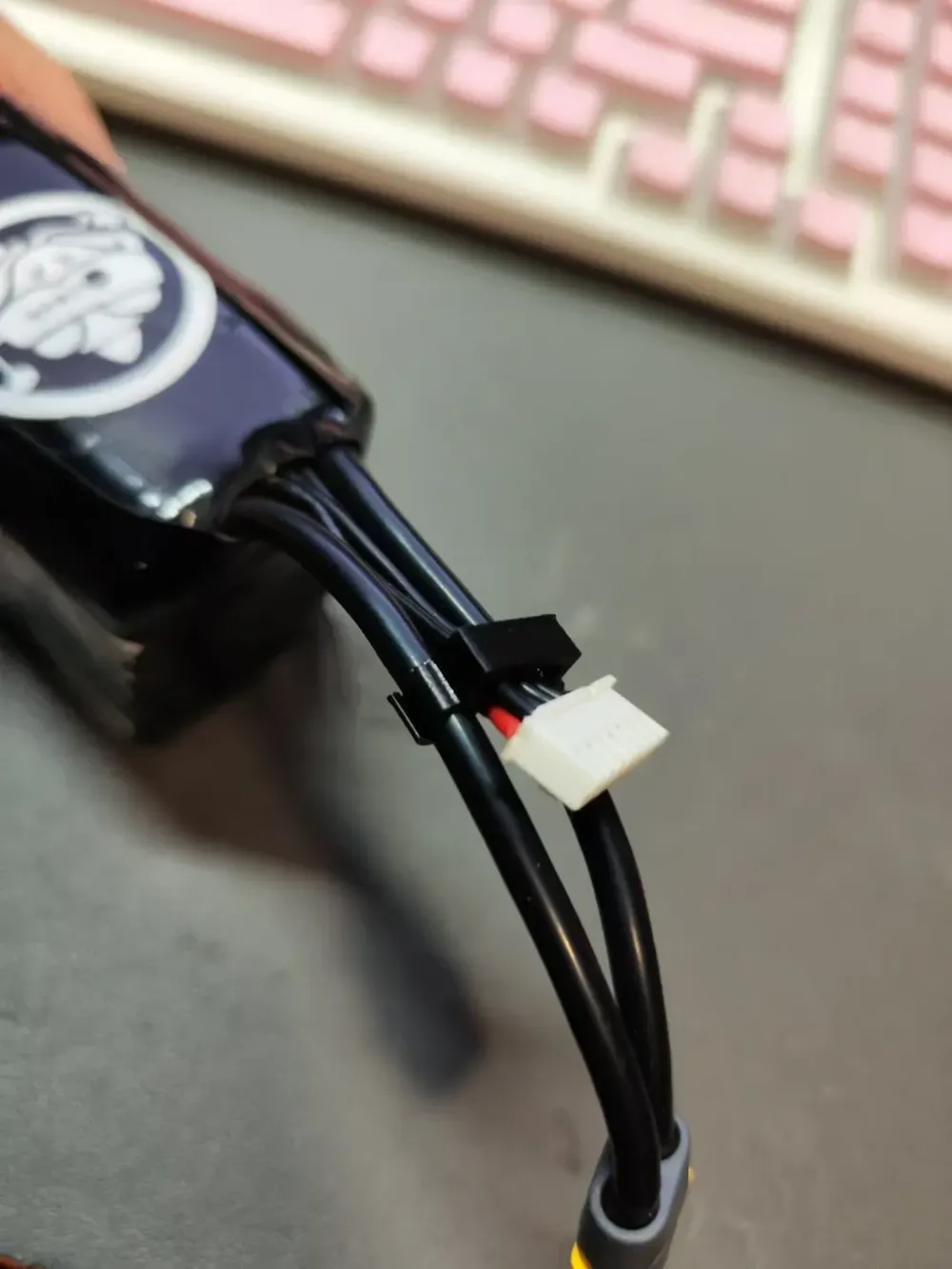

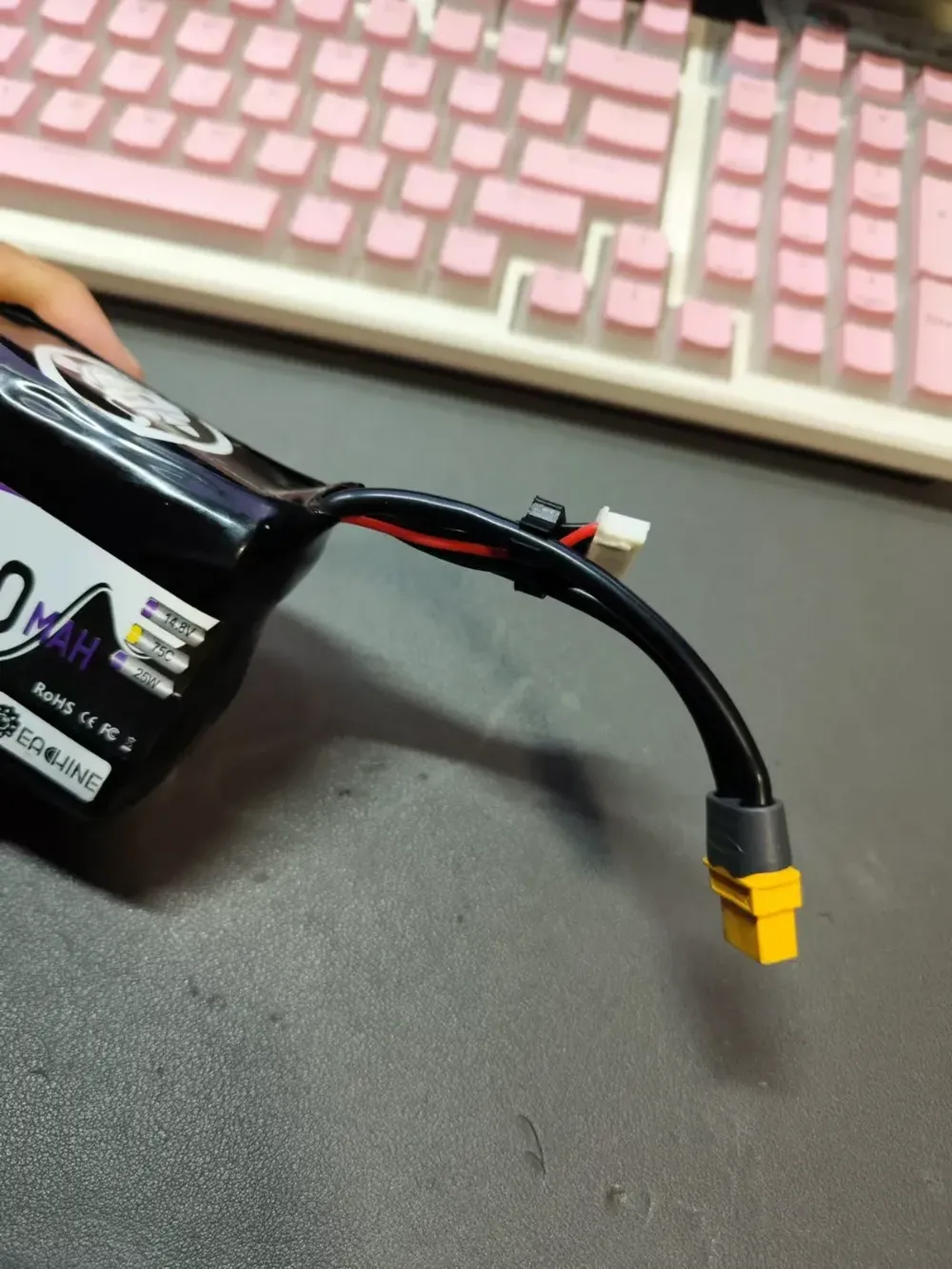

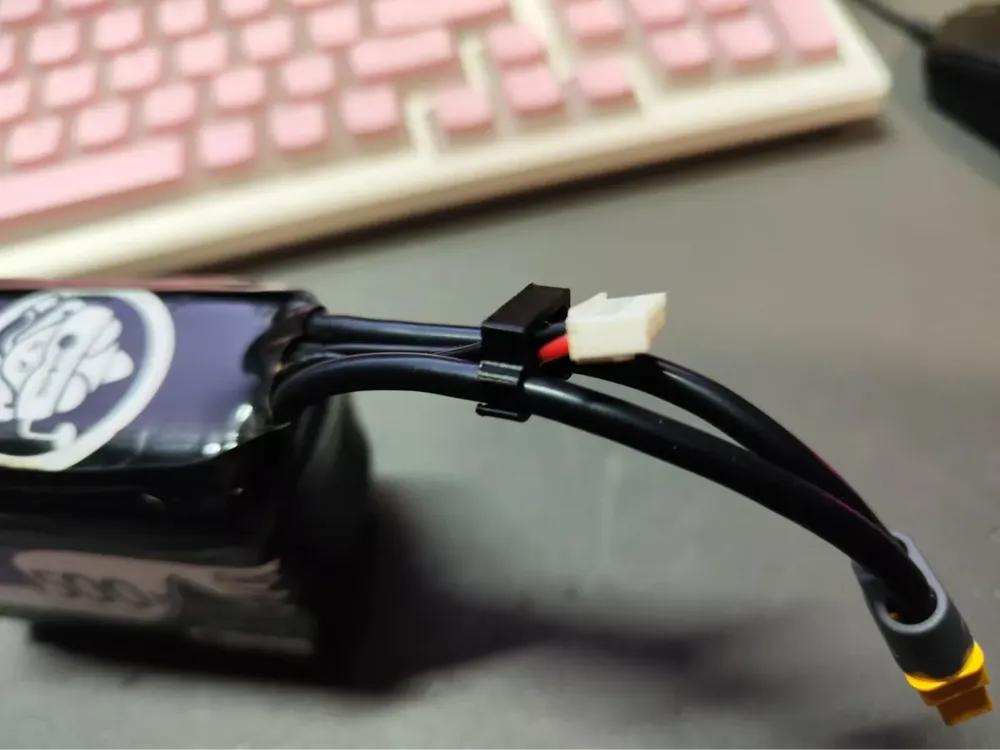

The protective sleeve integrates the balance lead and power cable, effectively protecting the drone battery balance lead from propeller strikes. Its simple design weighs less than 2g, having no impact on flight feel.

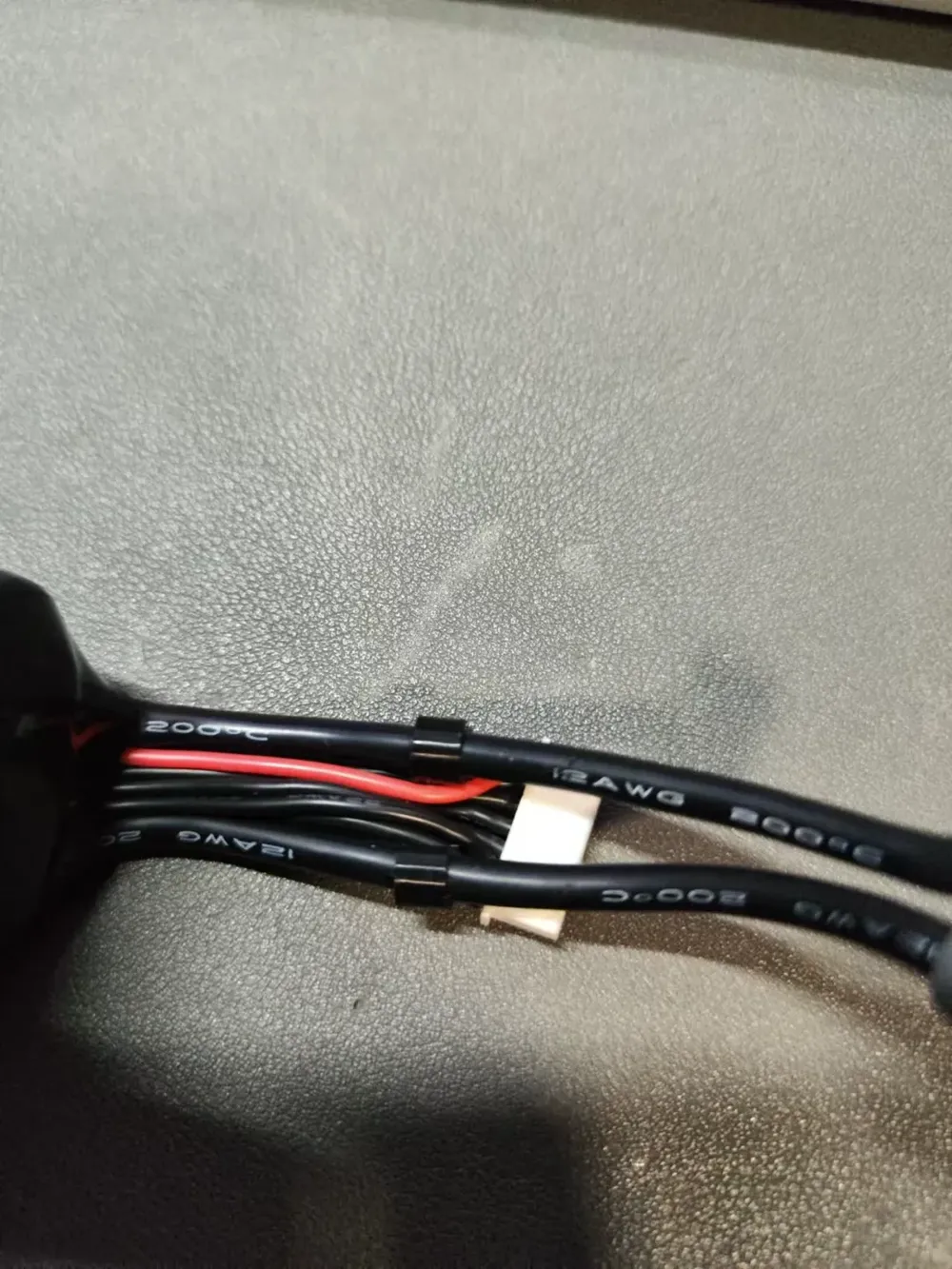

This print is compatible with 12AWG power cables. The hole diameter is 2.5mm, and can be adjusted slightly larger or smaller to fit various cable types.

If you find this helpful, please download and support, thank you.

Comment & Rating (10)

@marinisi

Print Profile

0.2mm layer, 2 walls, 15% infill

👍

@FPV_Lars

Print Profile

0.2mm layer, 2 walls, 15% infill

top

@Kikerv

Print Profile

0.2mm layer, 2 walls, 15% infill

I printed it with the TPU profile and the part was loose I decided to print it in ABS, and now it holds much better
