Fixdry Double-NT1 Desiccant Tray

A compact desiccant tray for the Fixdry Double-NT1 that can securely hold silica gel beads.

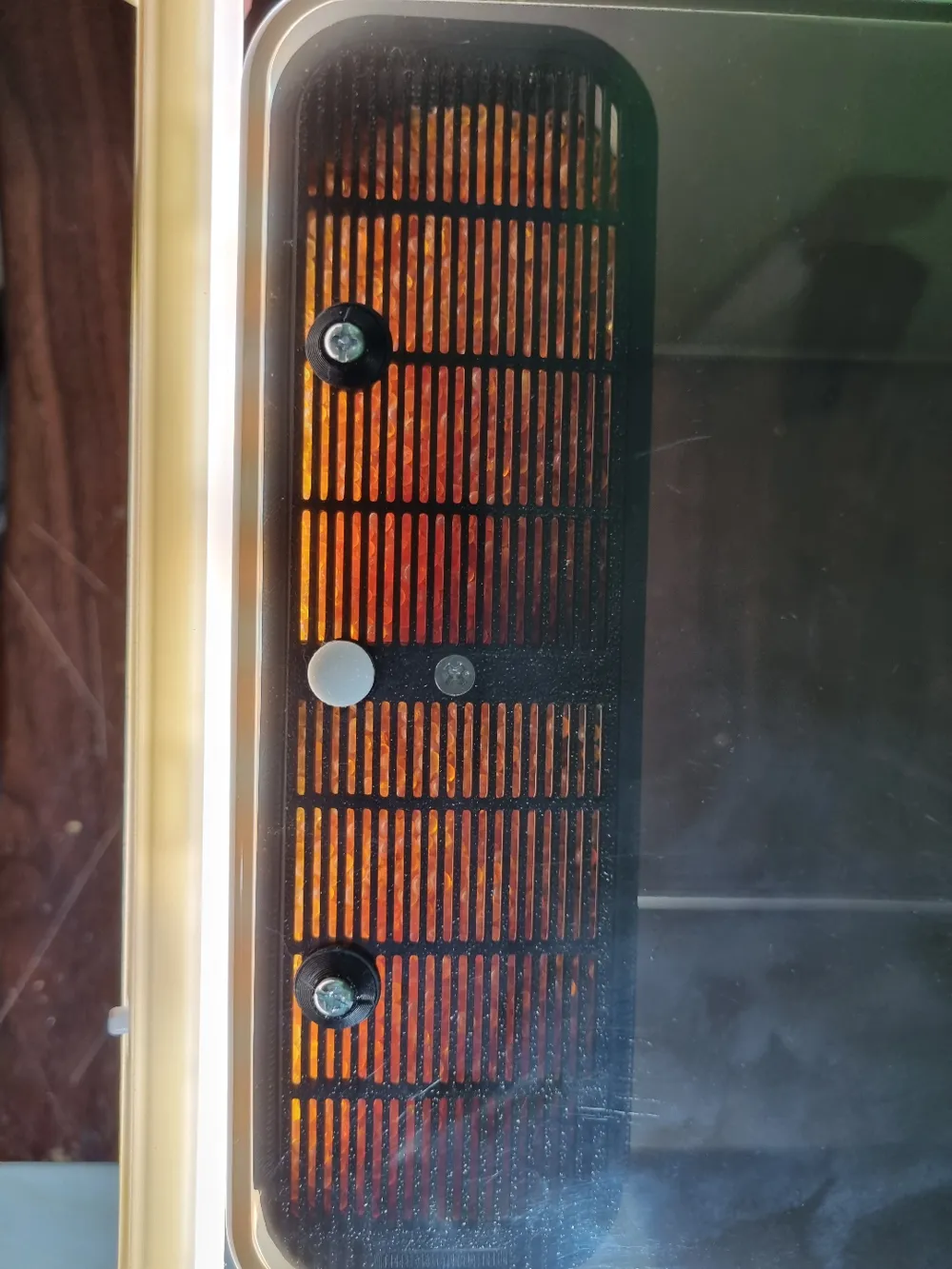

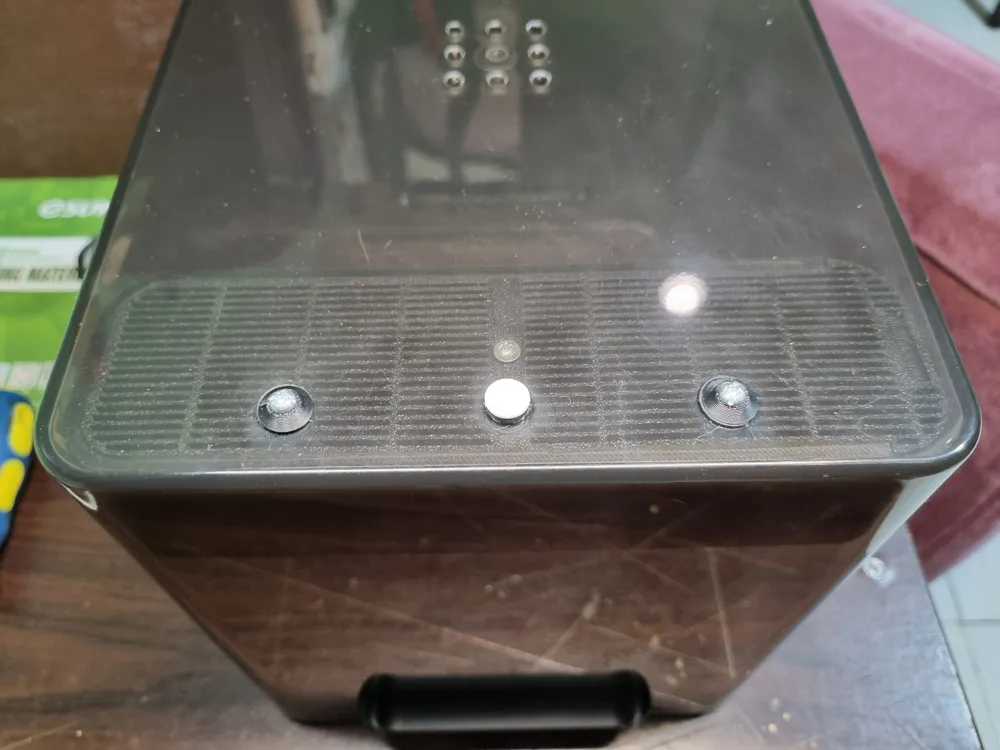

The gaps are about 1.2mm so small silica gel beads will not spill. This uses the 2 holes at the top of the dryer so mind where you will place it.

Required hardware are:

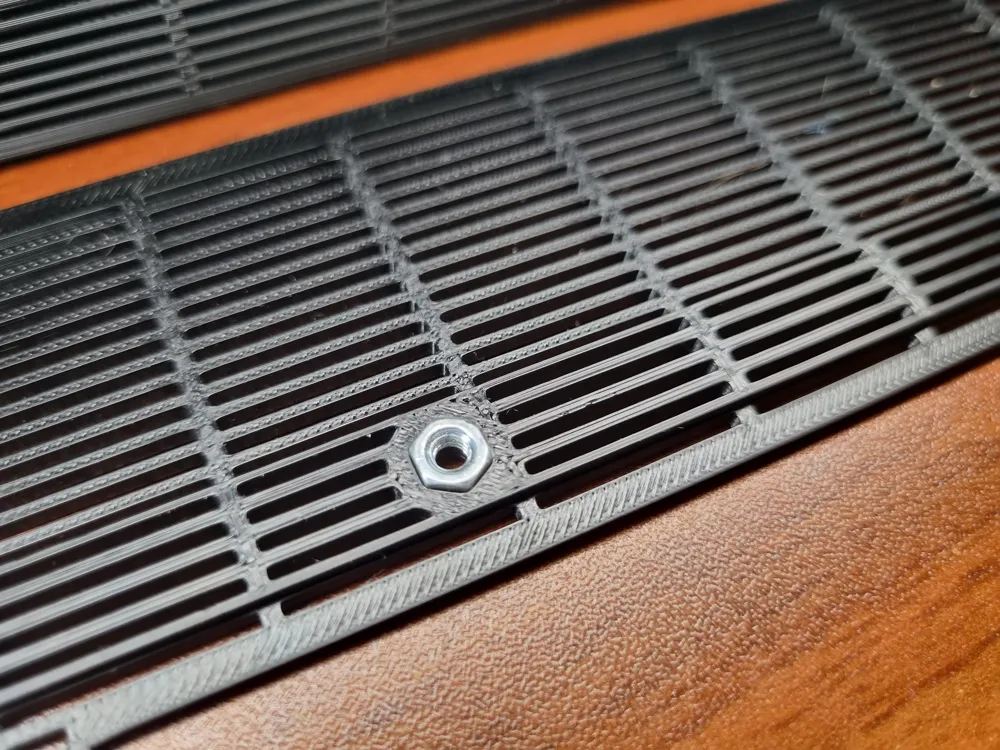

• 2x M3x12 bolts and nuts, or any size as long as bolt diameter is ≤3.2mm, length is ≤12mm, and nut width is ≤6mm

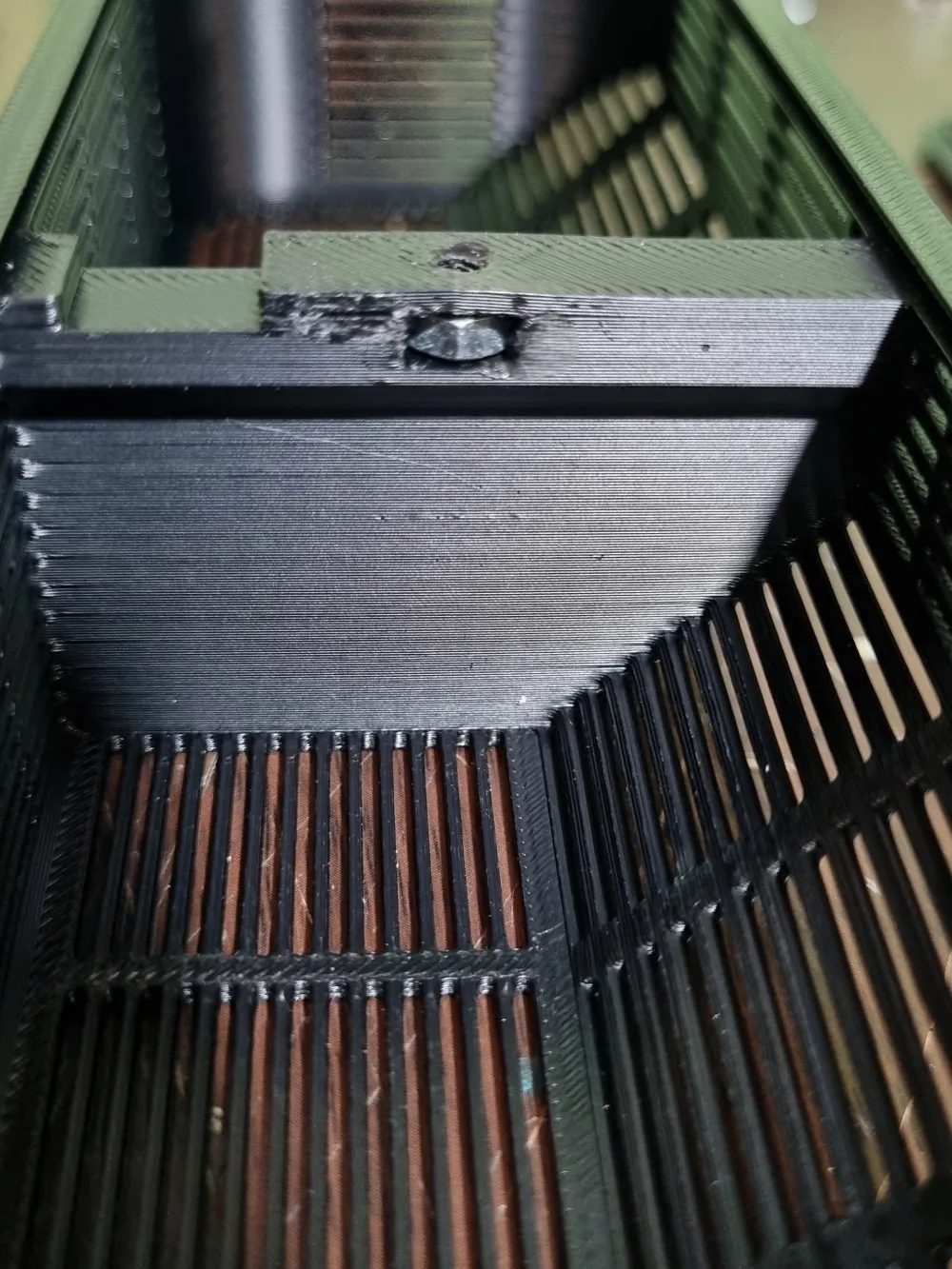

• 1x M3x8 bolt and nut, or any size as mentioned above except bolt length should be around 8mm, any longer or shorter might not work. This is for locking the lid with the container to avoid spilling silica gel beads if lid got detached. Skip this if you plan on using silica gel packets instead.

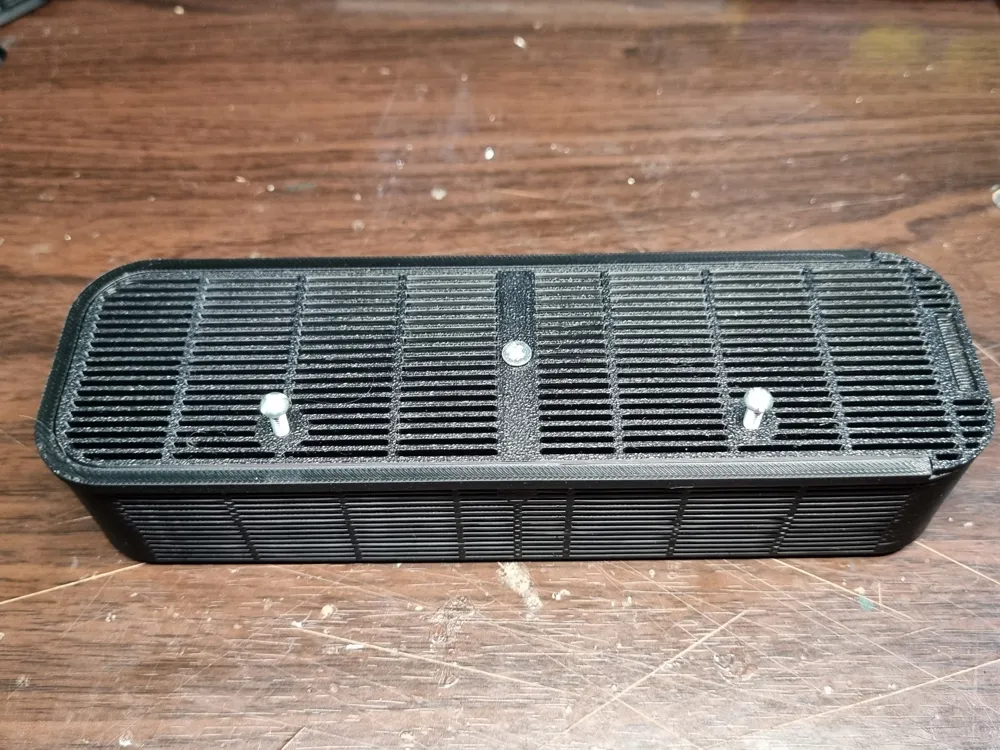

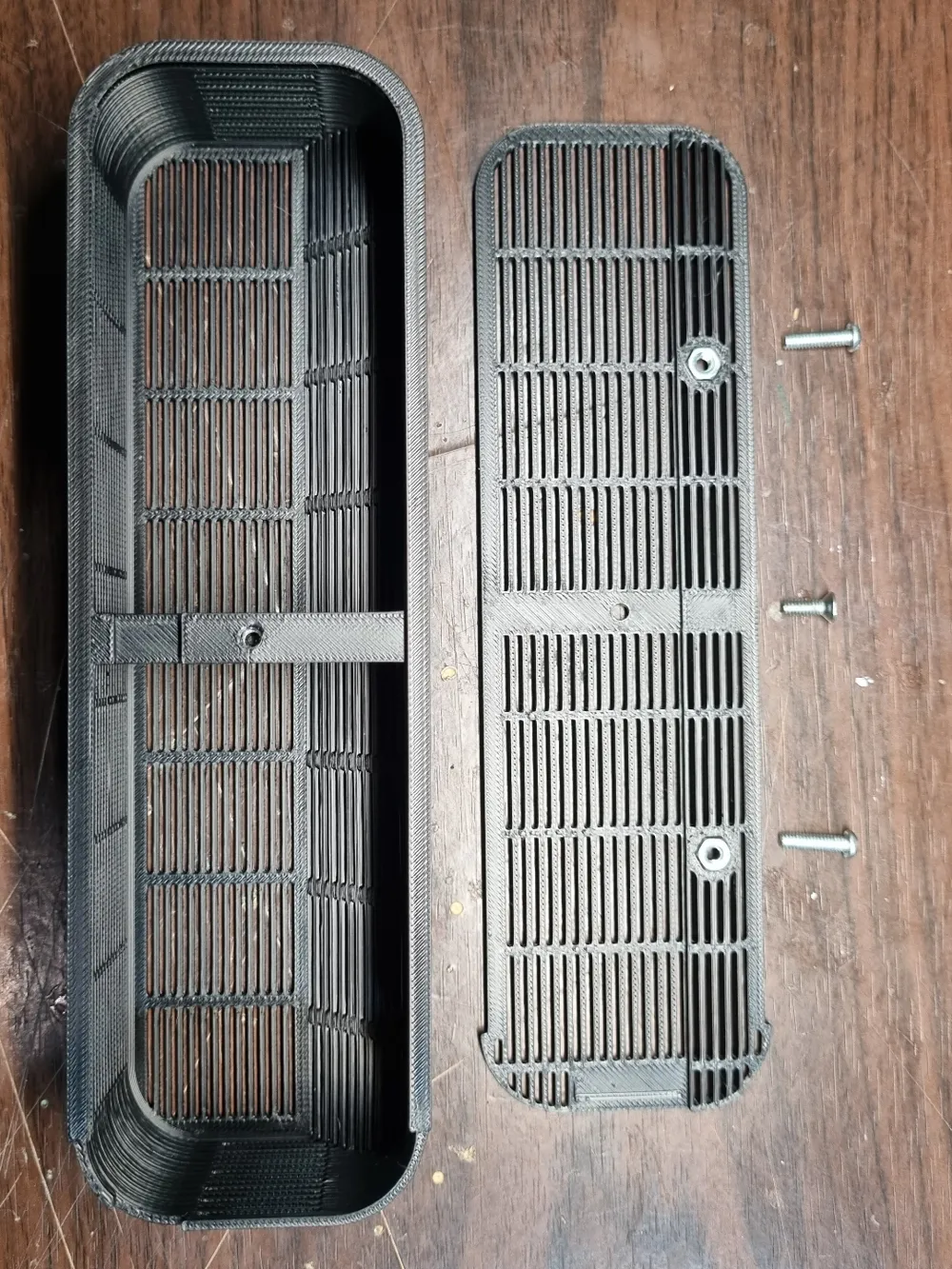

  I provided the step file so you can easily adjust the holes. See the images on how it looks assembled.

I printed in ABS as the dryer can reach up to 70° C (and maybe more when it offshoots).
