Metabo Mitre and Bevel Saw Extension
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.2 h
1 plate
Open in Bambu Studio
Boost
46
180
5
1
56
20
Released
Bill of Materials
List other parts
- Linsenkopfschraube M3 x 2:
- Mutter M3 x 2:
Description
Content has been automatically translated.

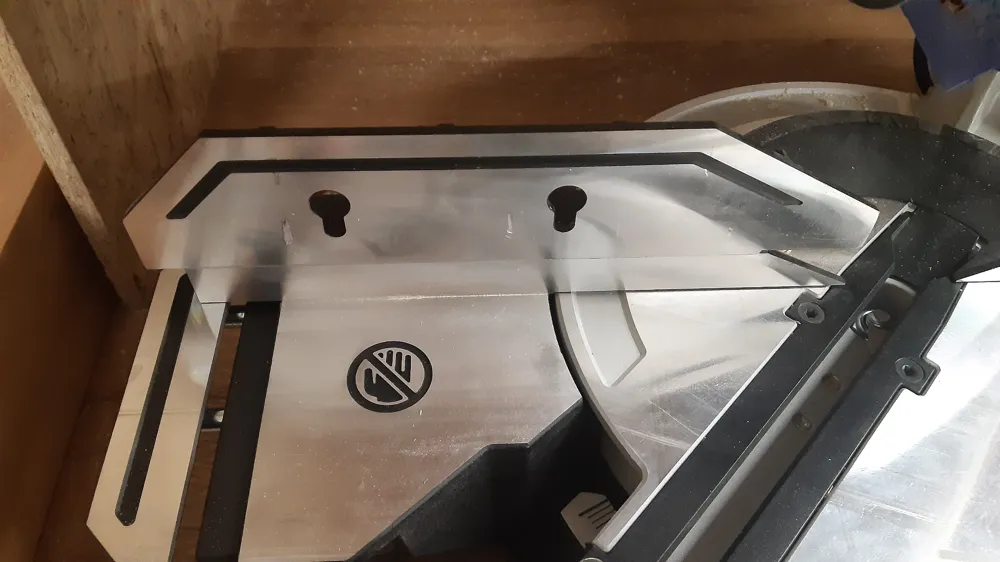

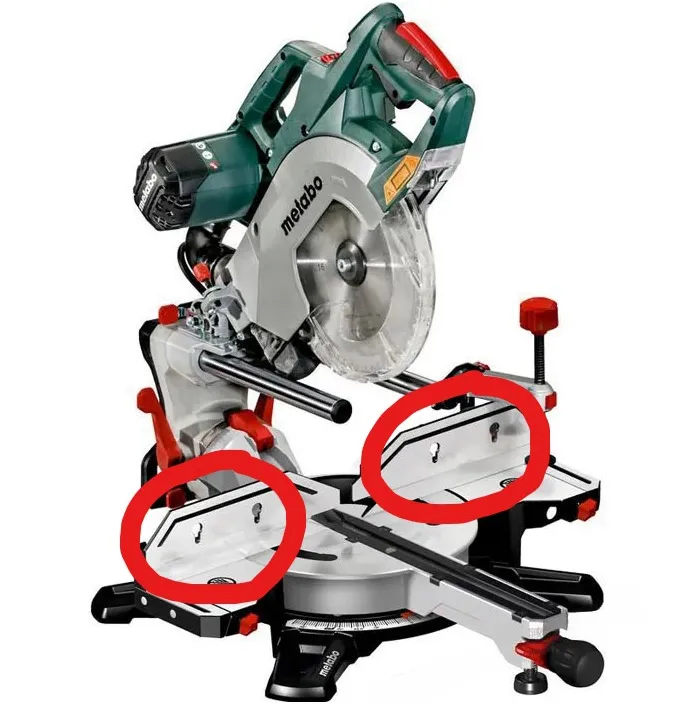

Every better saw has these two elongated slots on the fence. Unfortunately, I couldn't find anything describing what this is called or where to get such an extension.

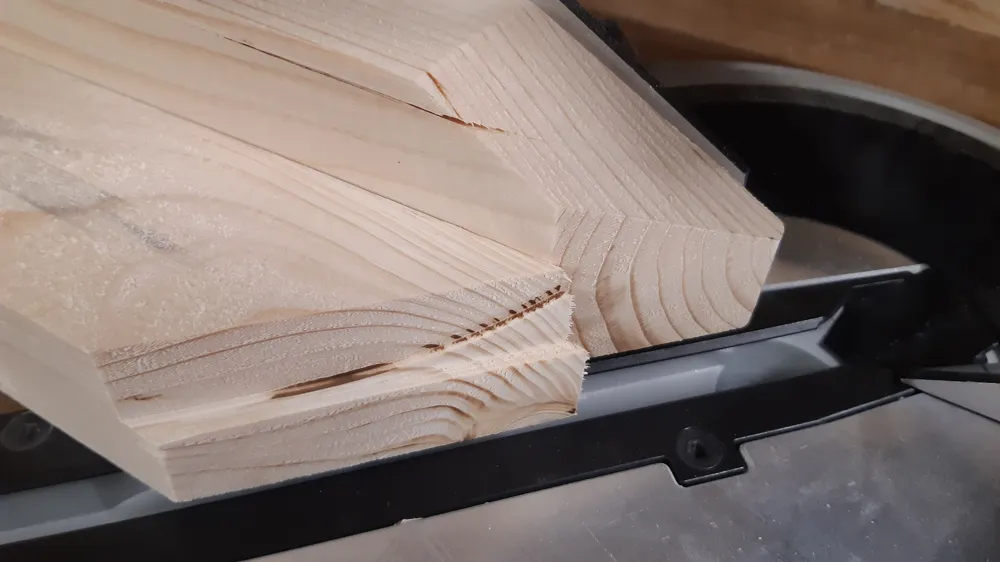

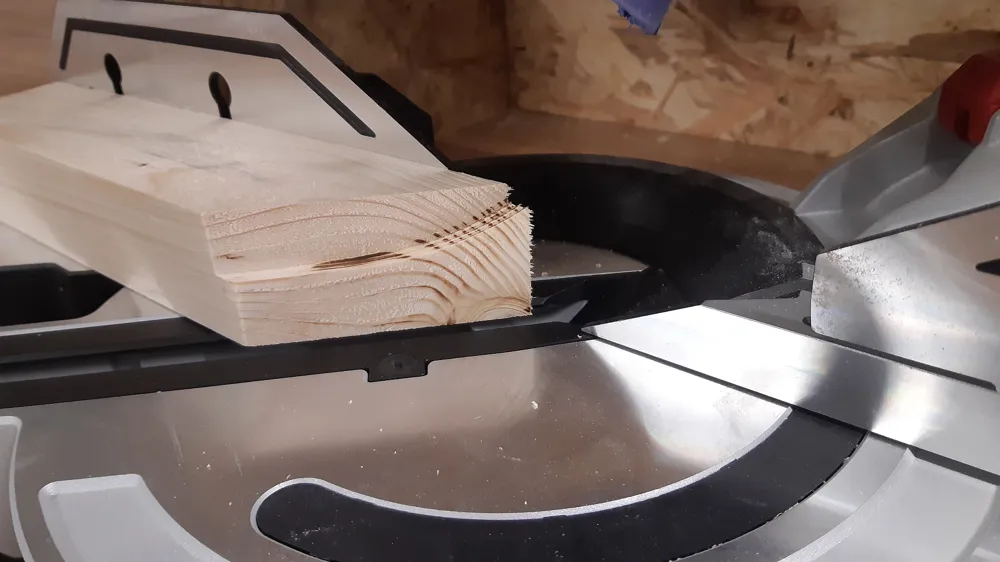

The problem is that when making a miter cut and also wanting to connect a timber, the remaining web always remains on the wood.

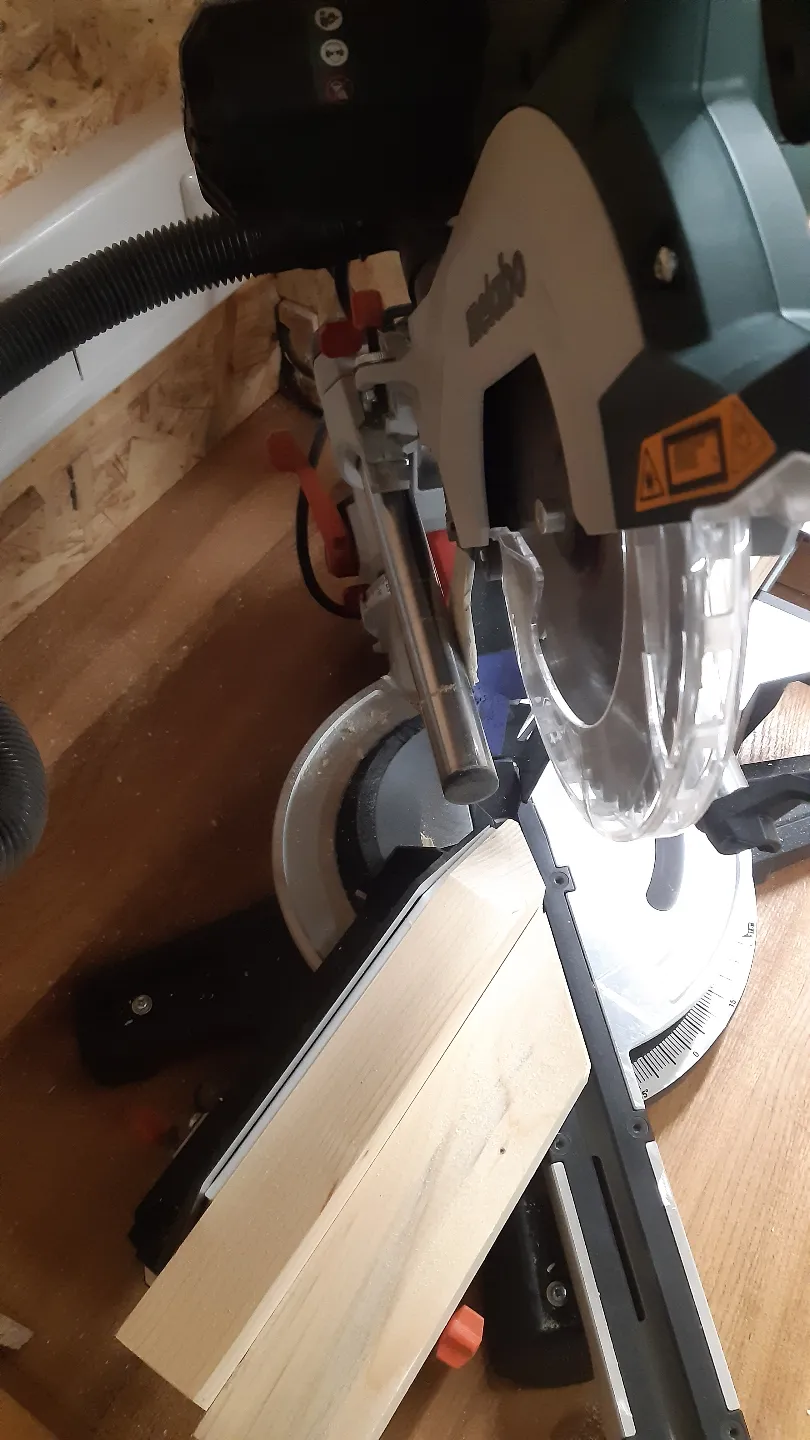

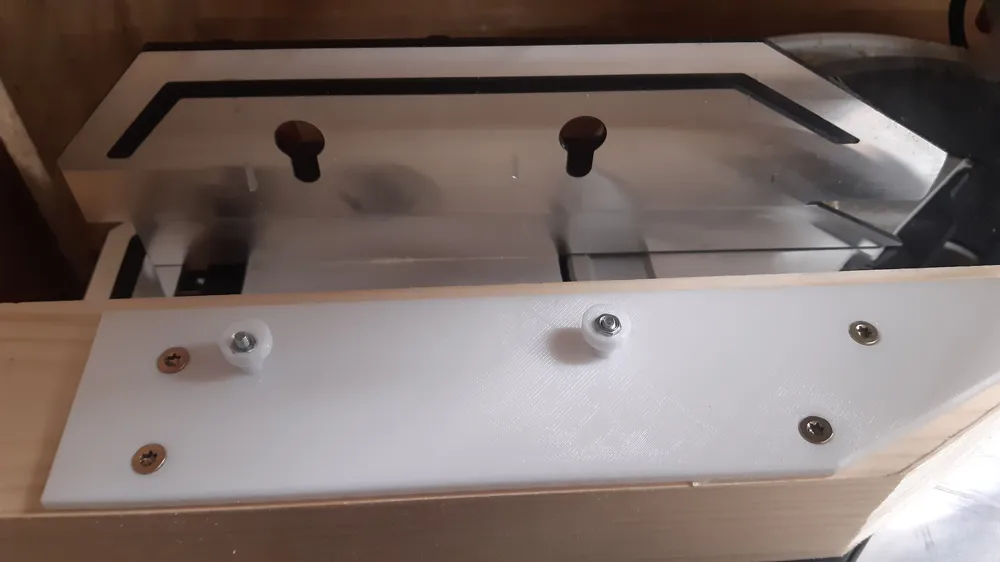

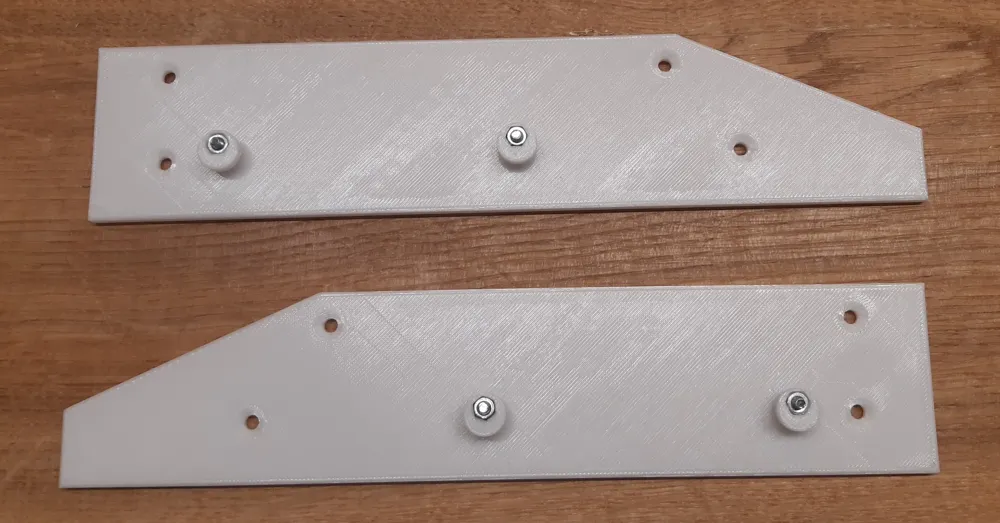

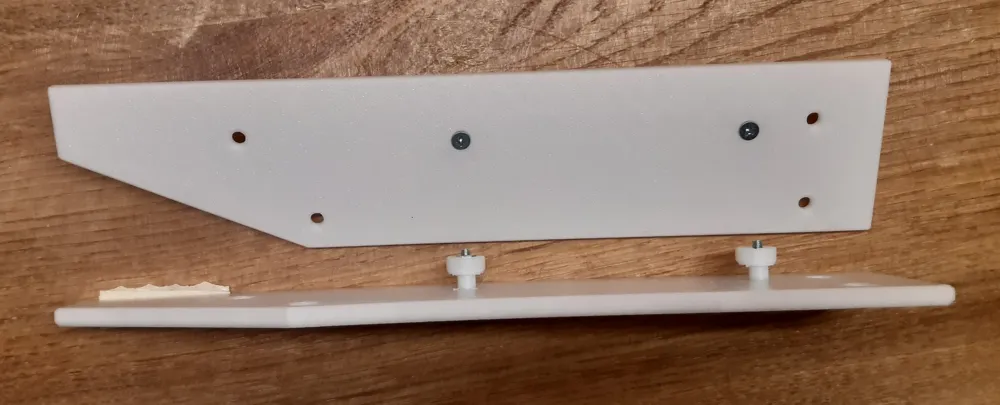

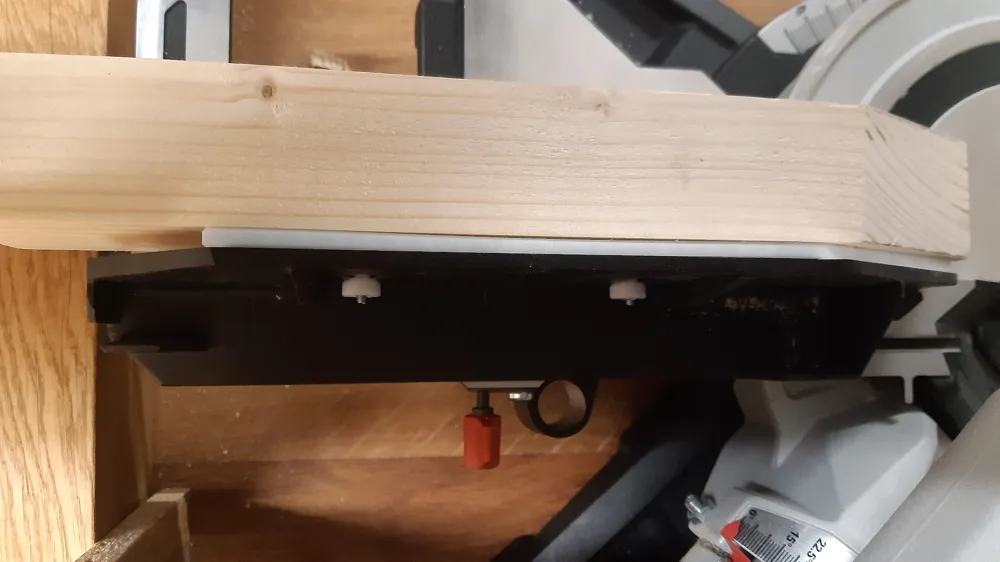

I have created two mounts to mount a timber there to bypass this effect.
I hope the pictures show what I mean!

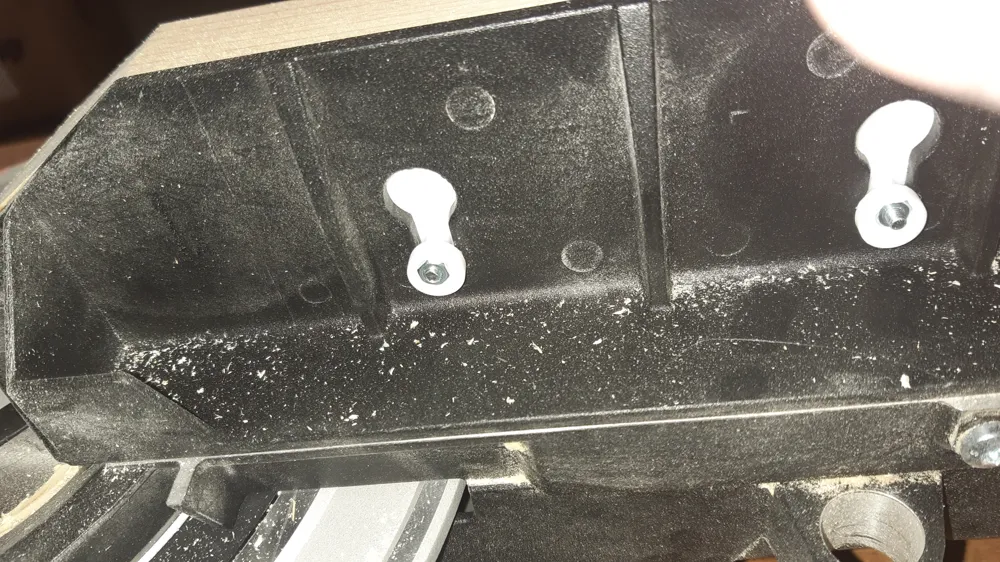

To increase the stability of the hanger bracket, it is necessary to use an M3 countersunk screw with an M3 nut. Otherwise, this will break very easily!
