Description

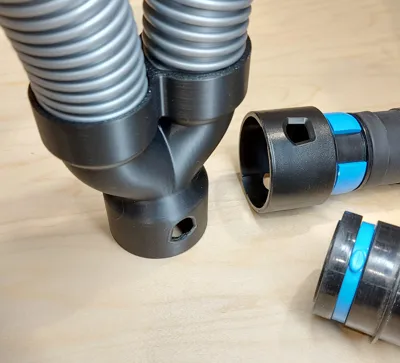

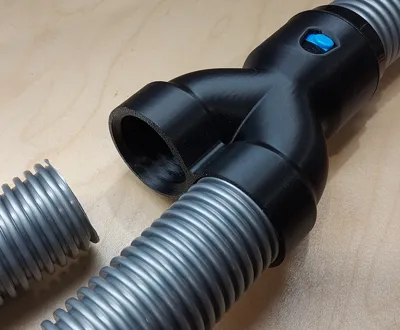

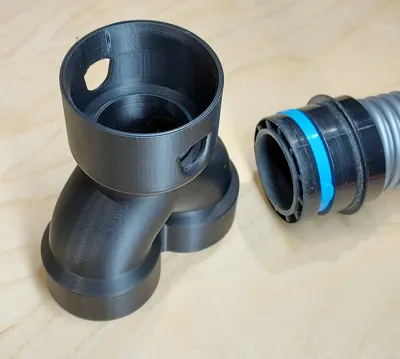

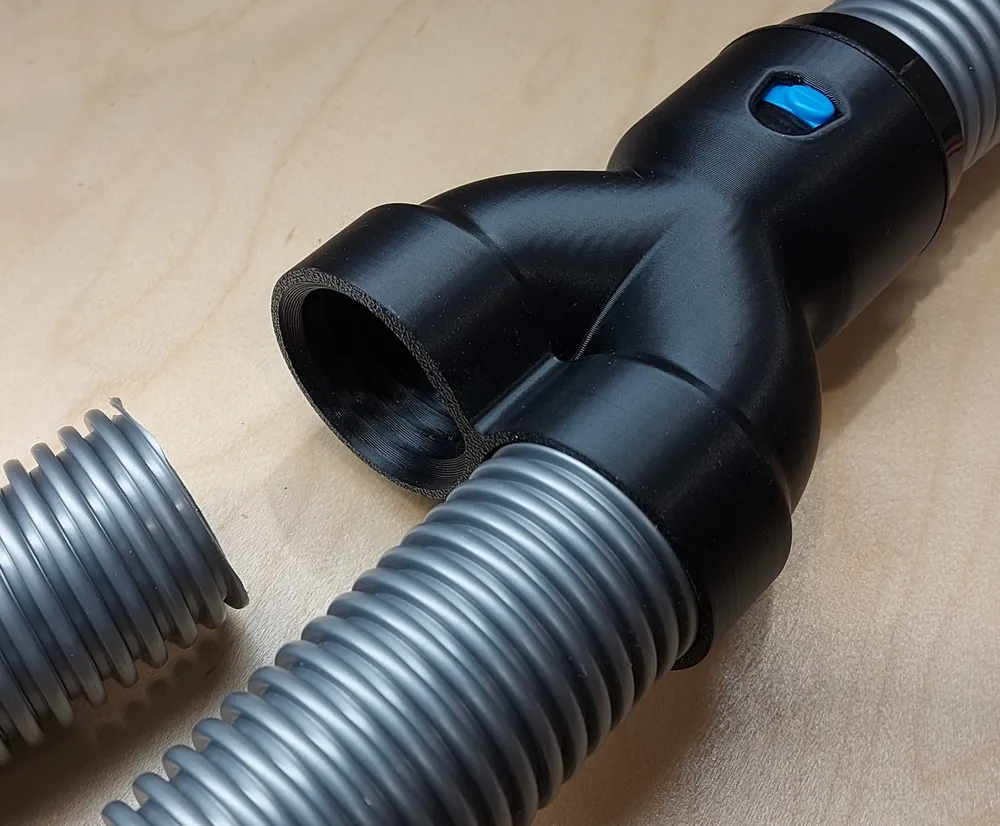

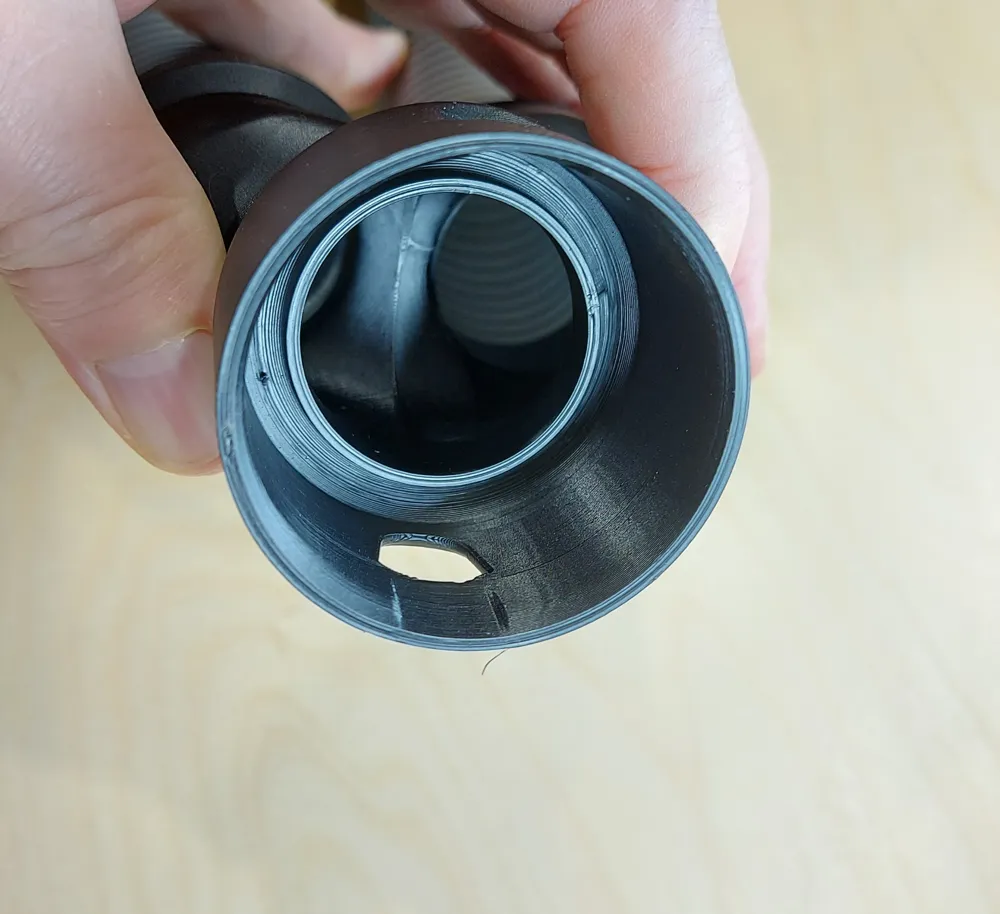

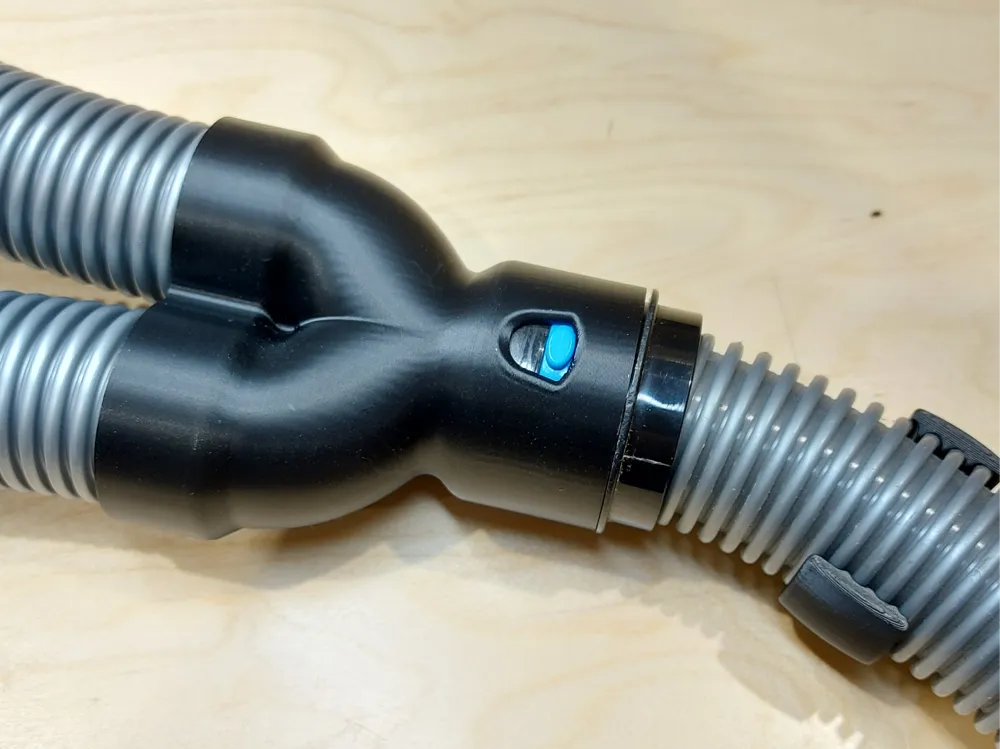

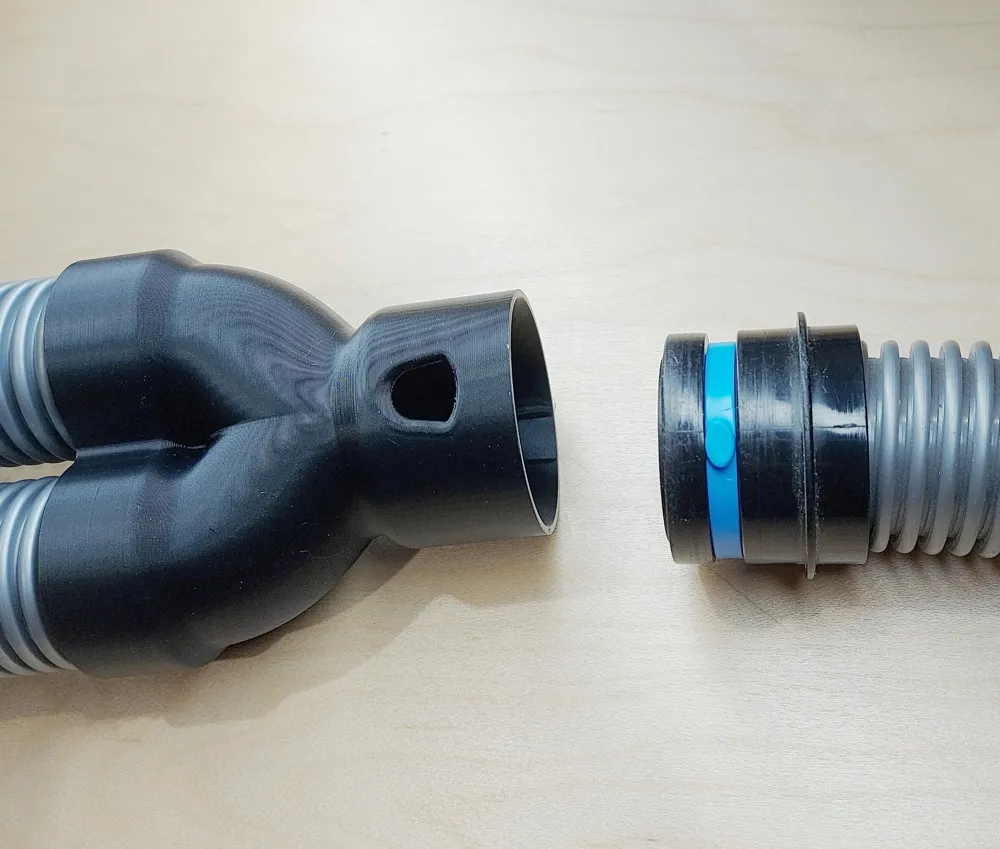

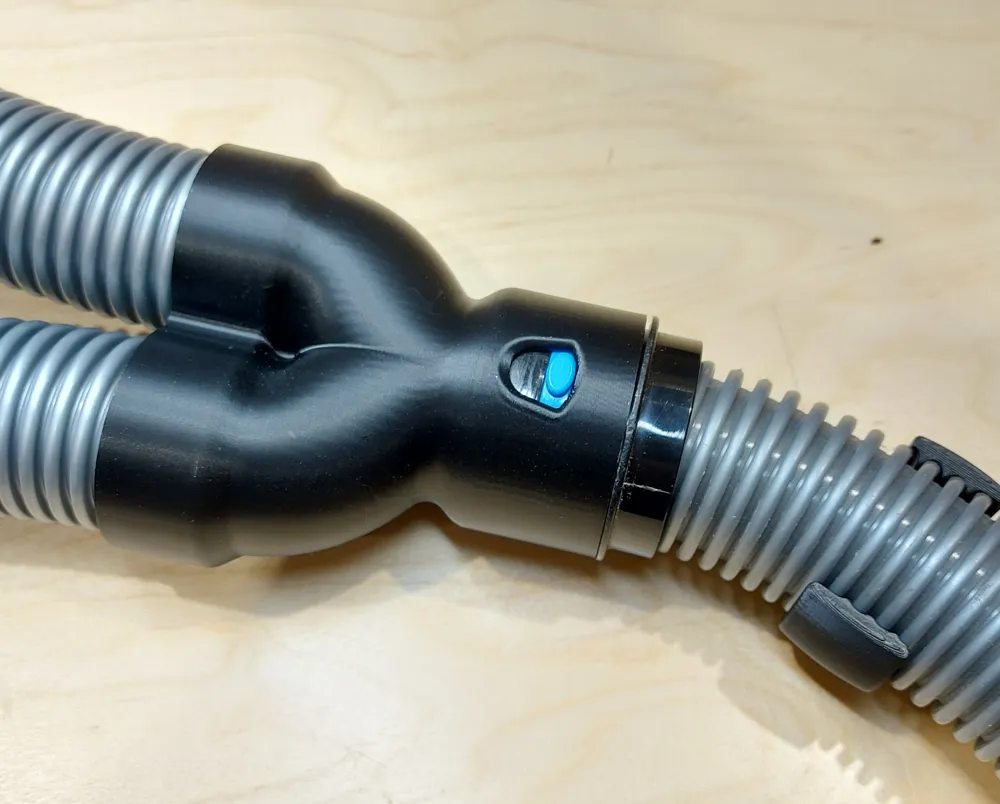

This hose adapter clips onto the Cen-Tec vacuum hose system and splits a 40mm hose in two, to optimize for dust collection. e.g.: When using a hose to collect dust on a router table or a band saw, wherever you need to suck in two places at the same time.

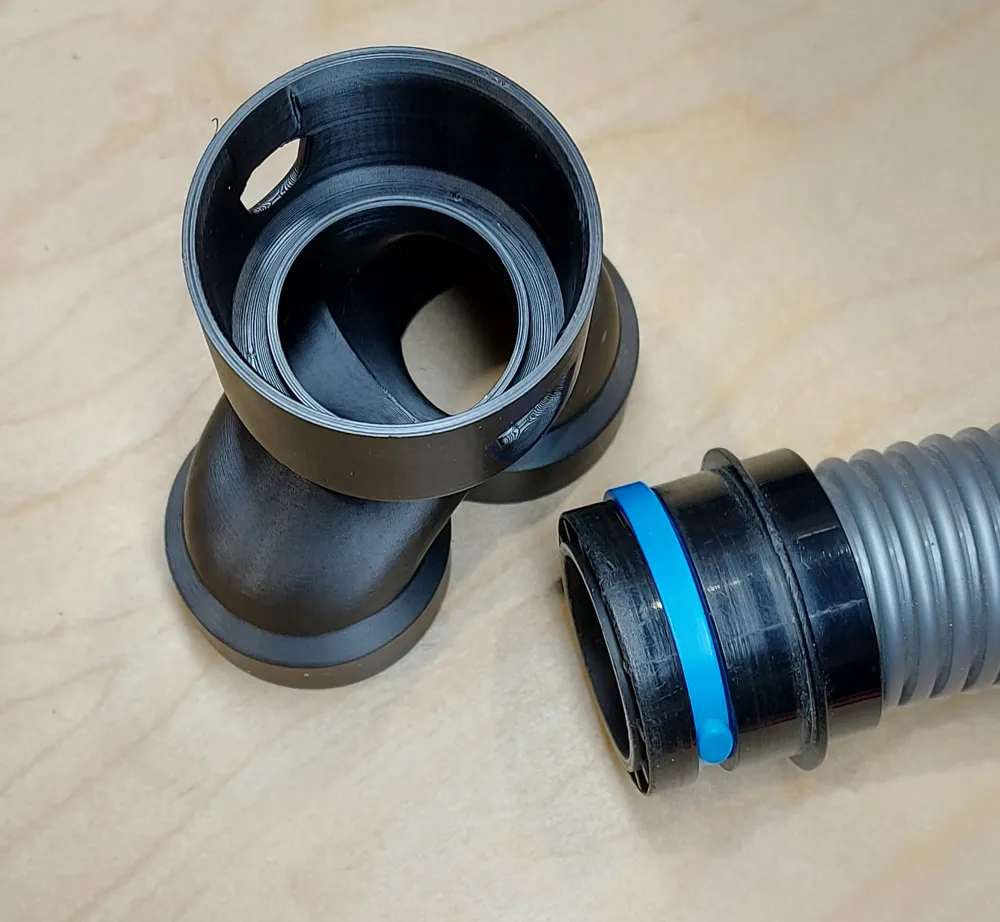

This 3DP version of the splitter and hose clips also allows a Cen-Tec or Bosh vacuum hose joint to swivel, mitigating tension build-up in your hose.

The part prints without support.

router dust collection

Comment & Rating (24)

@user_1666119428

printed great and fits well, only trouble is it’s for my Evolution table saw and the pipe to the blade threads the other way!!!

The designer has replied

@user_1765744671

bummer on the pipe threading angle. I ended up cutting bits if my center hose. making me wish I bought the longer one. thanks for the picks they look good. if you mirrored the part and printed again would the threads be reversed and che center clip unaffected?

@veloma

Print Profile

V1 0.2mm layer, 3 walls, 20% infill

(Edited)

@user_345915041

any chance of a 3-way version with blast gates? I'd love to have 3 different sized sanders hooked up to my cen-tec at once and just switch which gate is open

The designer has replied

@user_1765744671

The 3 way is not on the roadmap, the blast gates version has been started, but I've been too busy to finish it. Thanks for your interest.

(Edited)

@user_2193206181

Print Profile

V1 0.2mm layer, 3 walls, 20% infill

perfect fit!! Great print

@user_470920592

Print Profile

V1 0.2mm layer, 3 walls, 20% infill

Printed fine without supports

@Rmedias

Print Profile

V1 0.2mm layer, 3 walls, 20% infill

Good profile, works well on Centec tubing.

@emgeekay

Print Profile

V1 0.2mm layer, 3 walls, 20% infill

Perfect for dust collection above and below the router. Thank you.

@Gavin_robinson

Boosted

Print Profile

V1 0.2mm layer, 3 walls, 20% infill

Nice and easy print

@user_3176948538

Print Profile

V1 0.2mm layer, 3 walls, 20% infill

Super Druck

@user_3939830569

Print Profile

V1 0.2mm layer, 3 walls, 20% infill

Perfect fit, works perfectly for what i needed.
