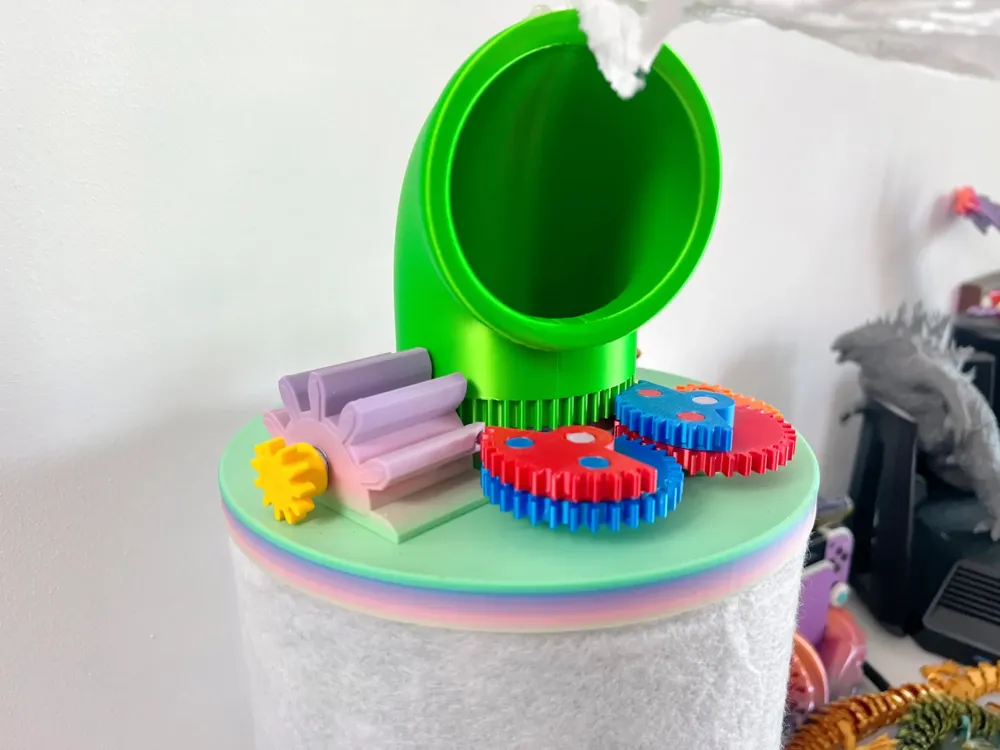

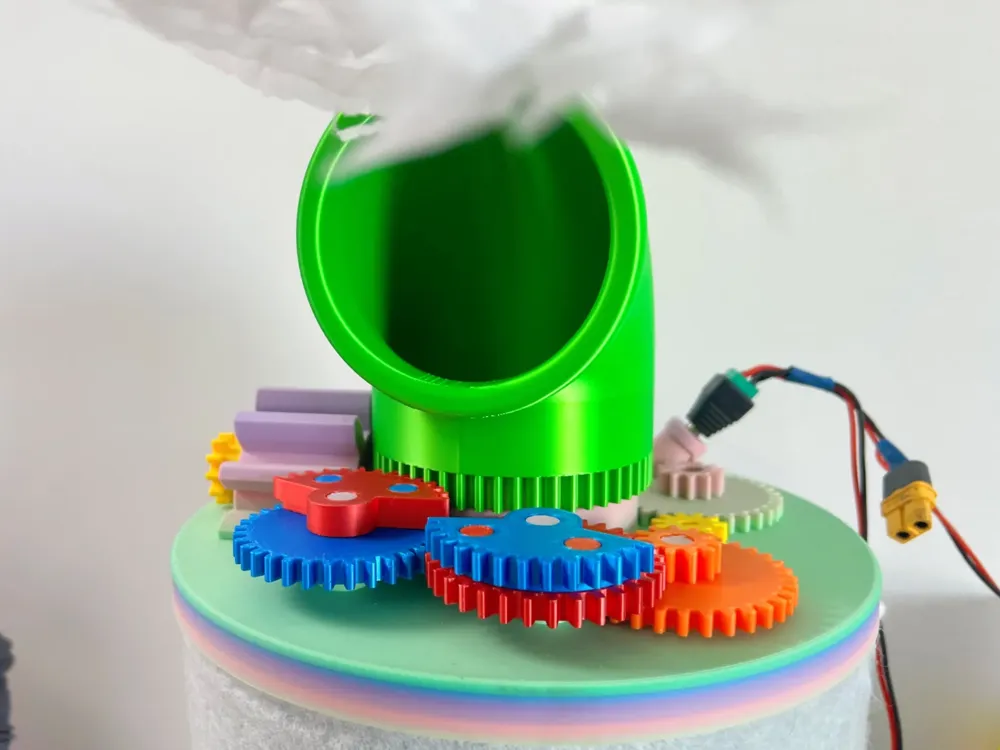

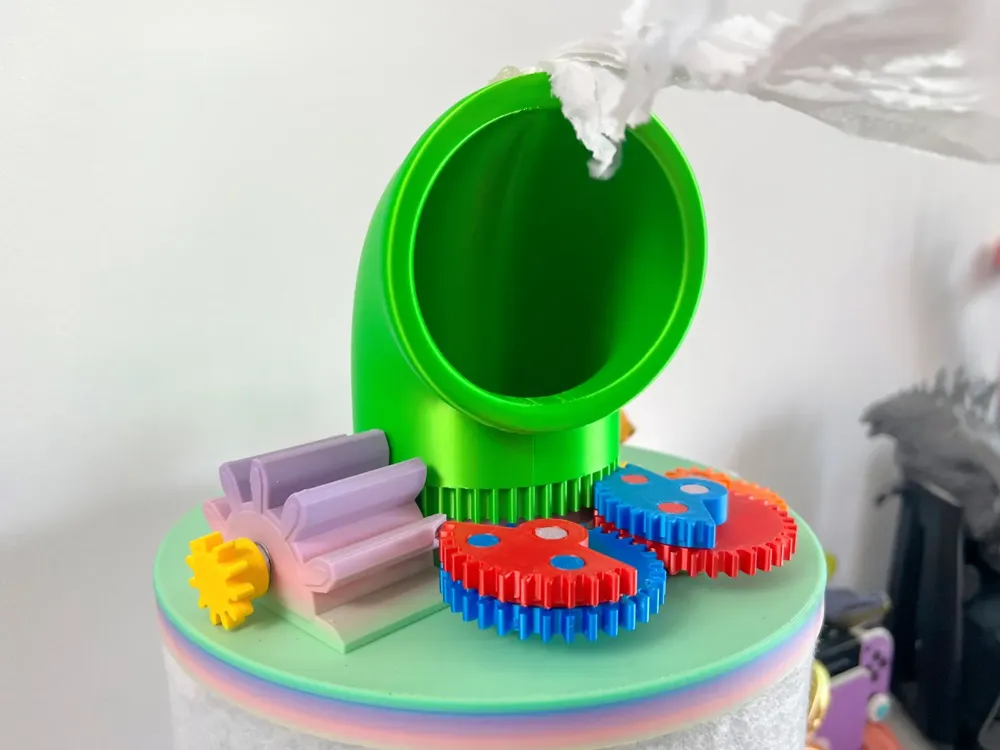

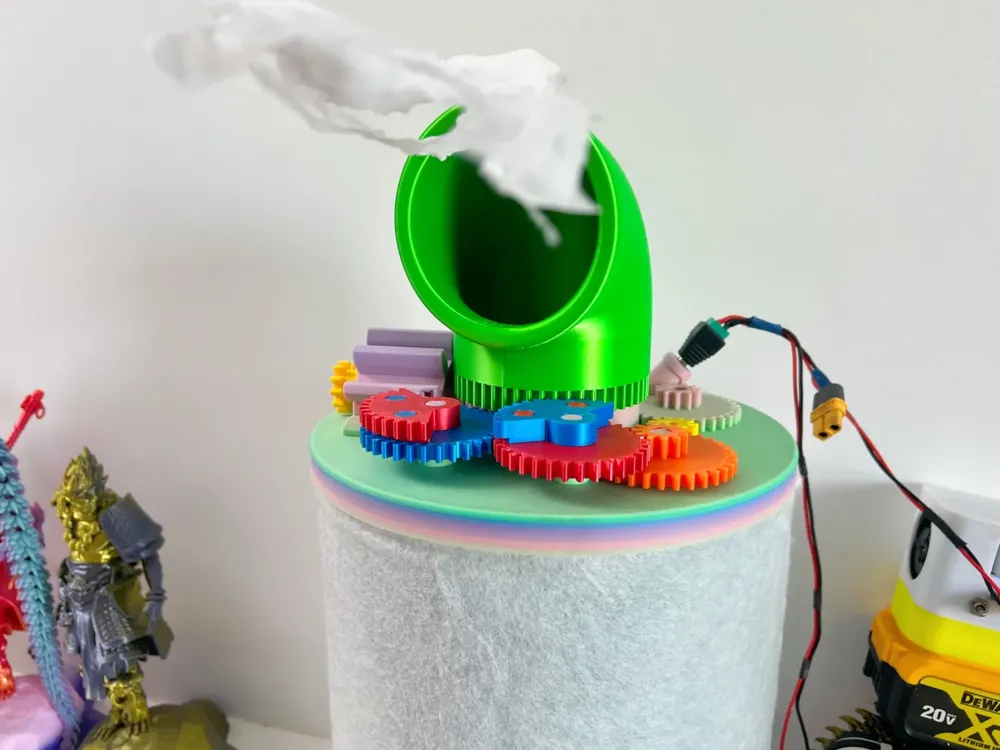

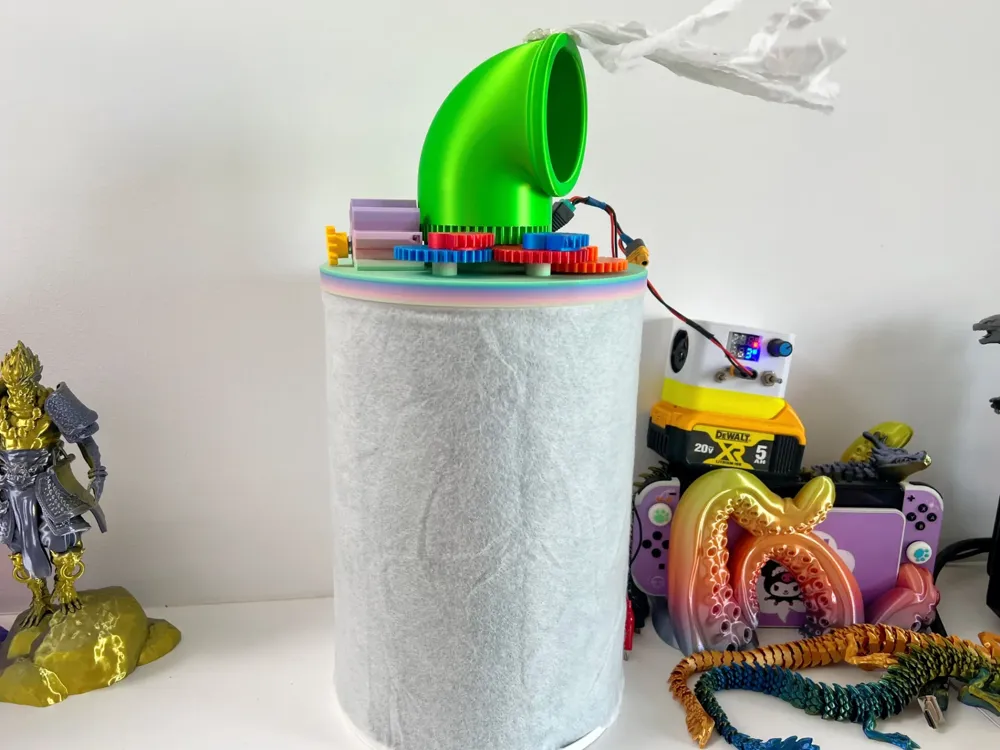

Industrial-style Gear Air Purifier with Oscillation and Adjustable Airflow, Xiaomi Filter Adapter Version
Print Profile(3)
Description
An exceptionally economical air purifier
Compatible with Xiaomi filters

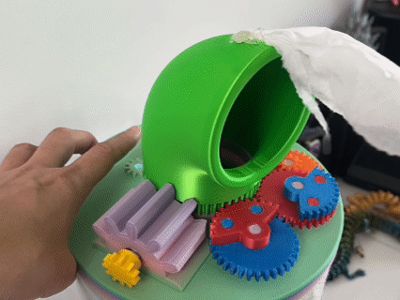

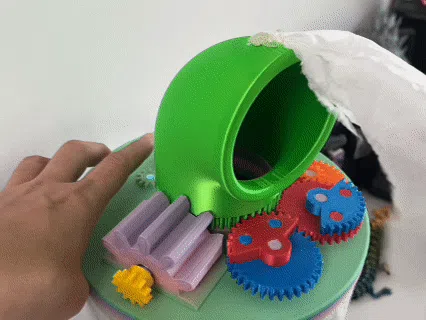

Oscillating function
Adjustable airflow
Stylish design
I'm not skilled in image editing or copywriting

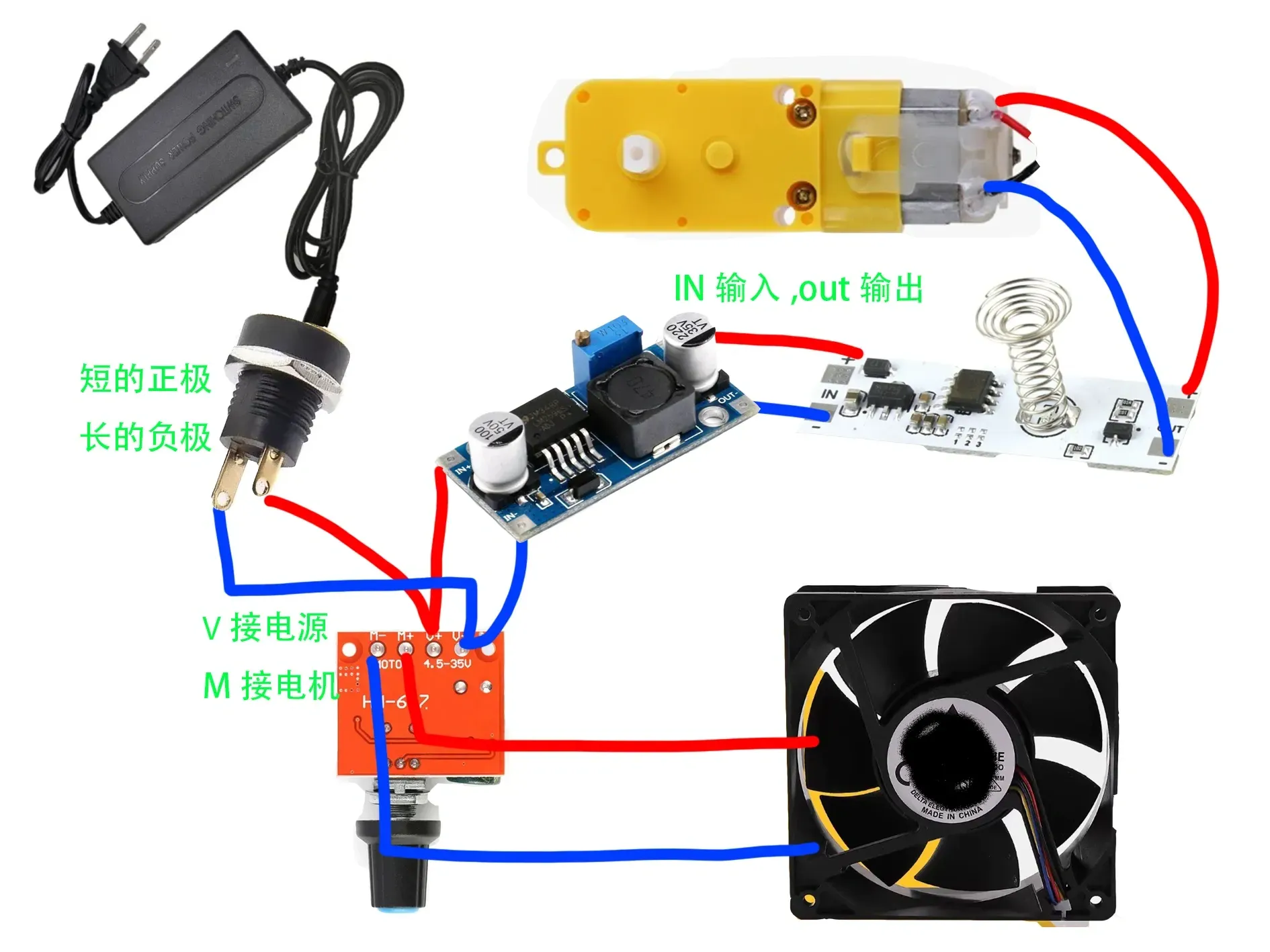

Assembly instructions are included in the images

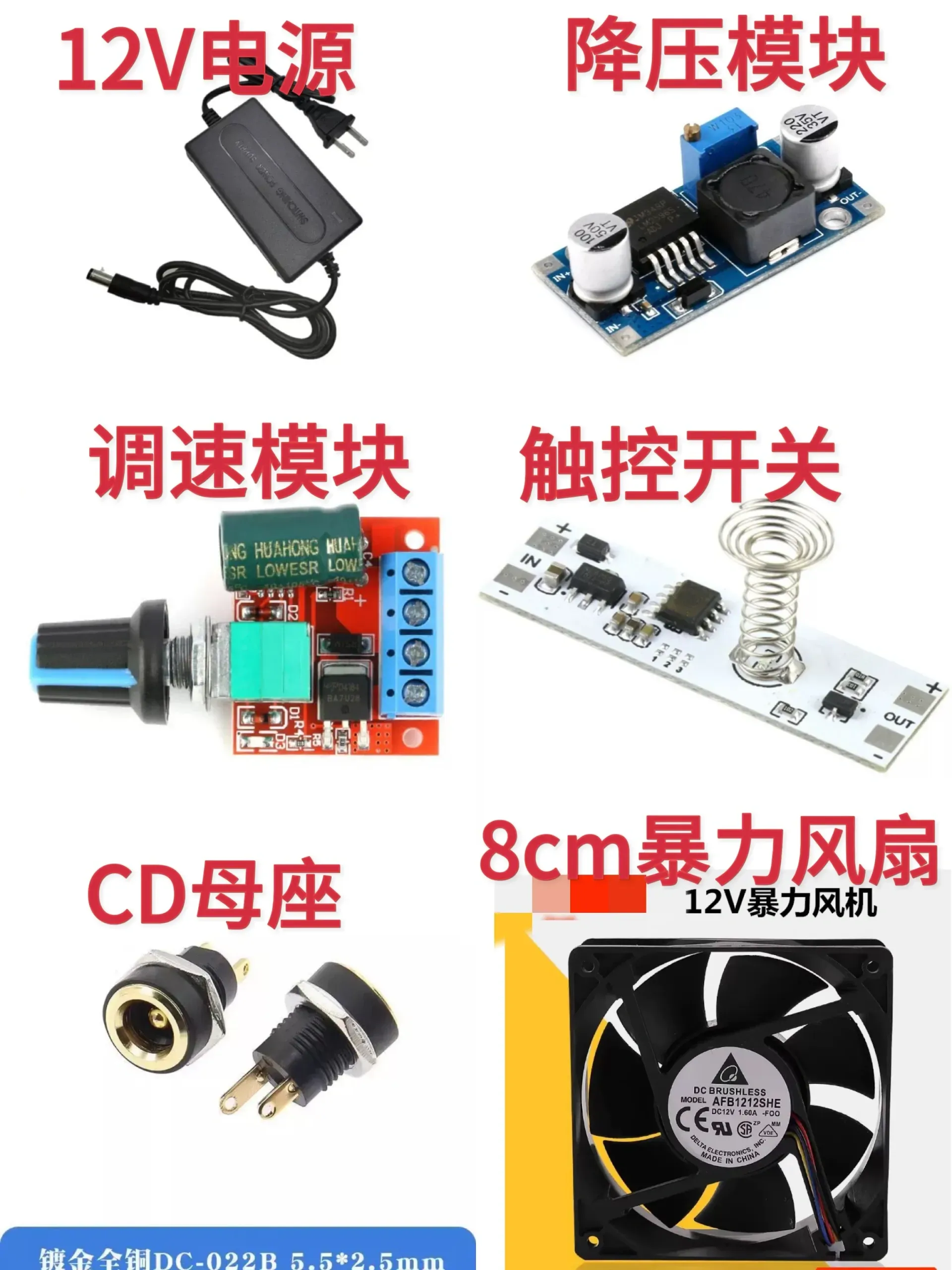

Bill of Materials:
Xiaomi filter
12V power supply (select amperage based on fan wattage)
8CM high-performance fan (choose a high-amperage one for optimal performance)
DC power jack (5.5*2.5)
Speed control module (refer to image for selection)
Step-down module (a 12V to 5V converter is most convenient)
Touch switch (5V version)
Reduction motor (disassemble one from a Toolless Kit)

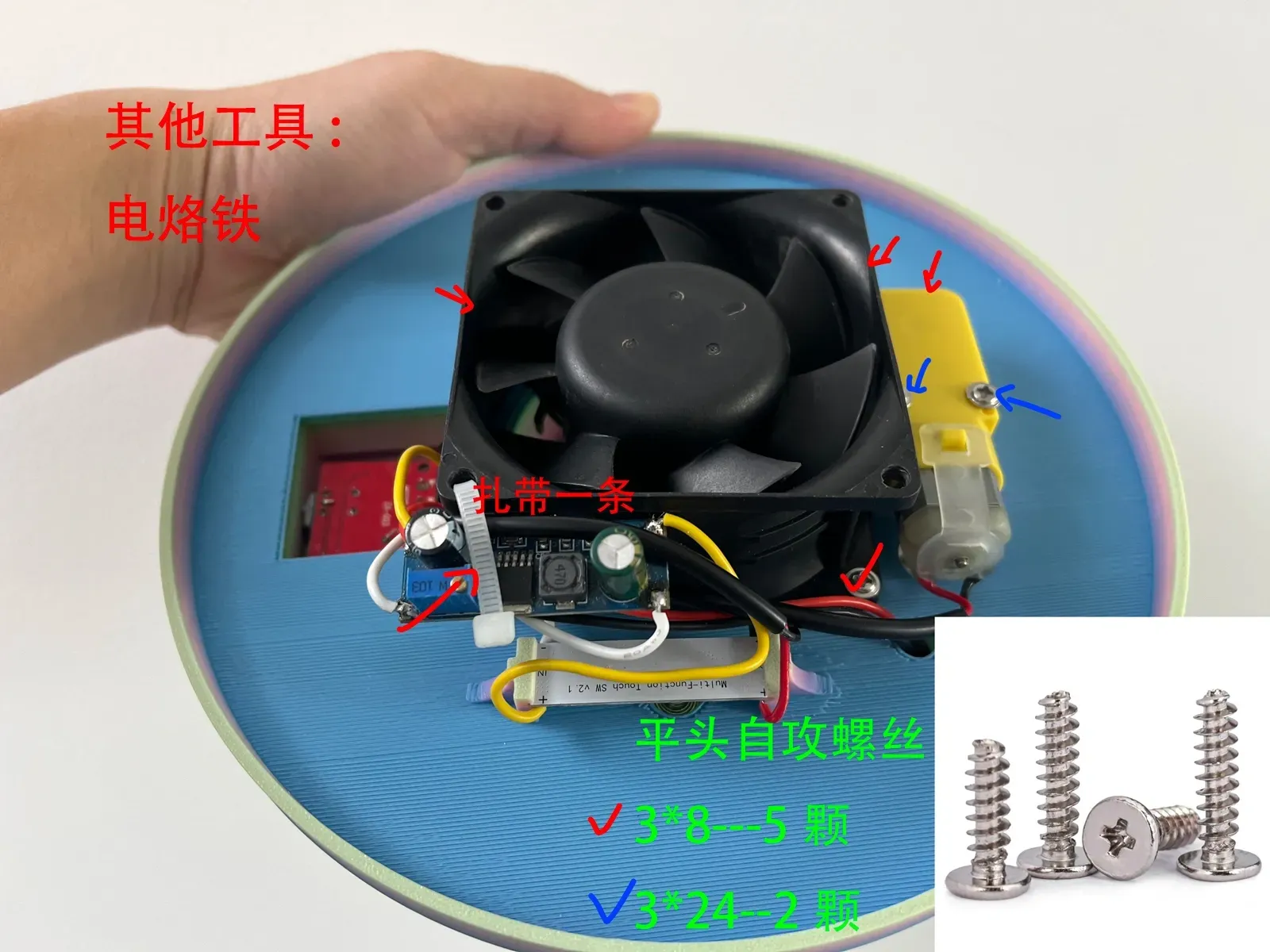

Hardware:
3*8 flat head self-tapping screws*5
3*24 flat head self-tapping screws*2
All materials are readily available, common components
Easy to purchase
Extremely simple assembly
Simplicity itself
Regarding printing:
It is recommended to print the entire outer shell directly, support structures are already optimized
Individual part printing is configured for gears and other small components, facilitating a streamlined process; users without AMS can individually arrange and print each part
Unless highly experienced, avoid modifying the data; this is a hard-learned lesson

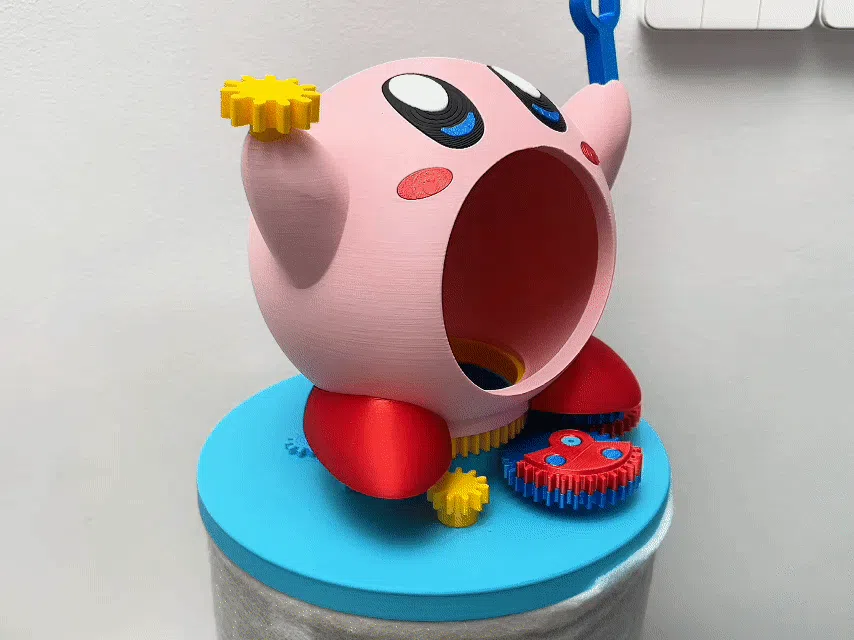

If you dislike this model, consider my other design, Star Kirby, available on my profile page
Consider following my work if you enjoy it
Boost Me (for free)
A small rocket would be greatly appreciated!
