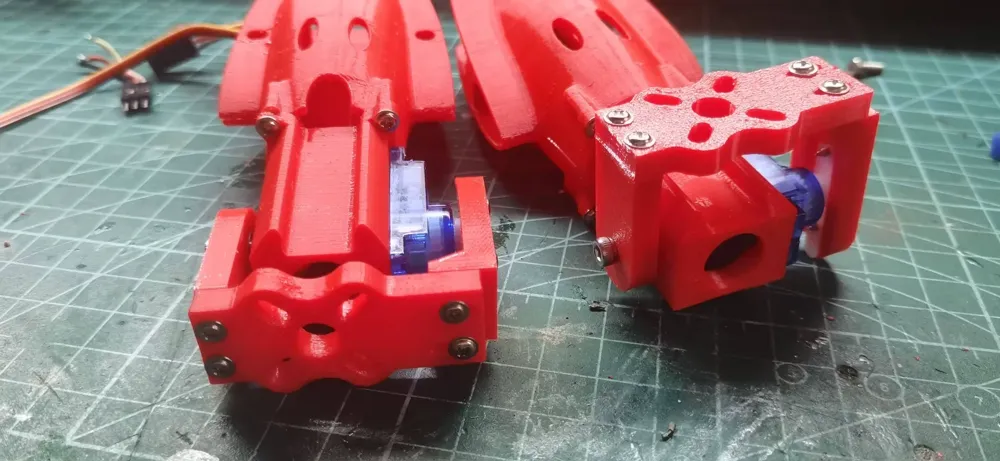

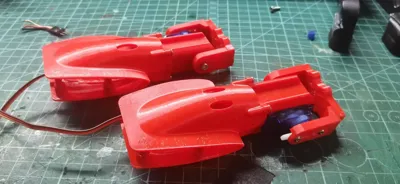

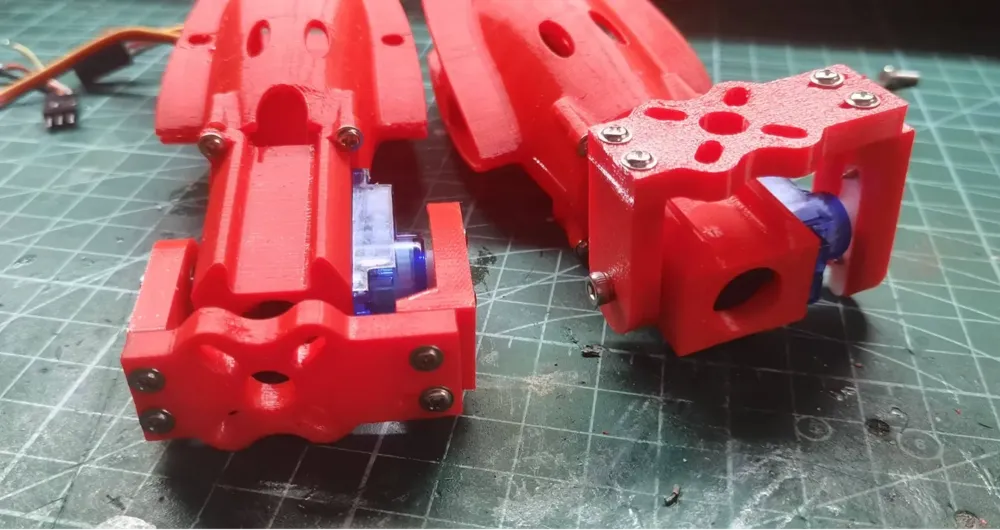

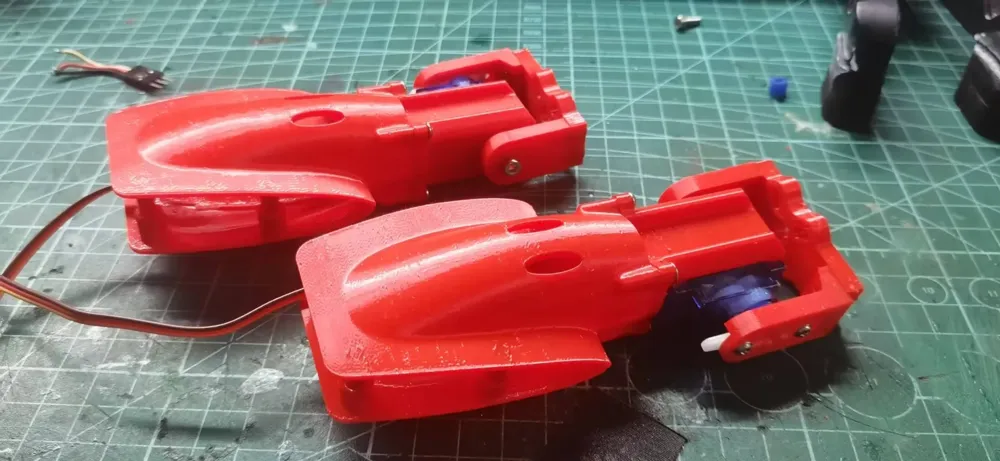

Dongfeng F80 Elevon Motor Mount
Print Profile(1)
Description

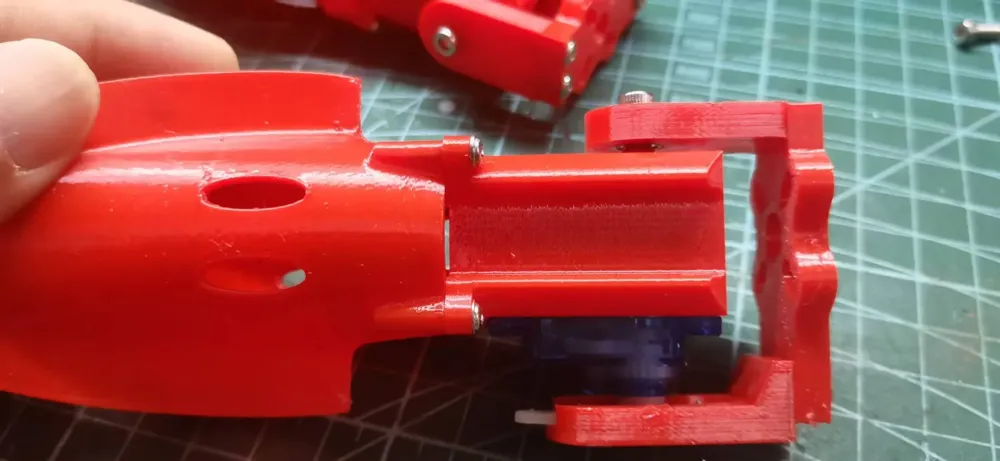

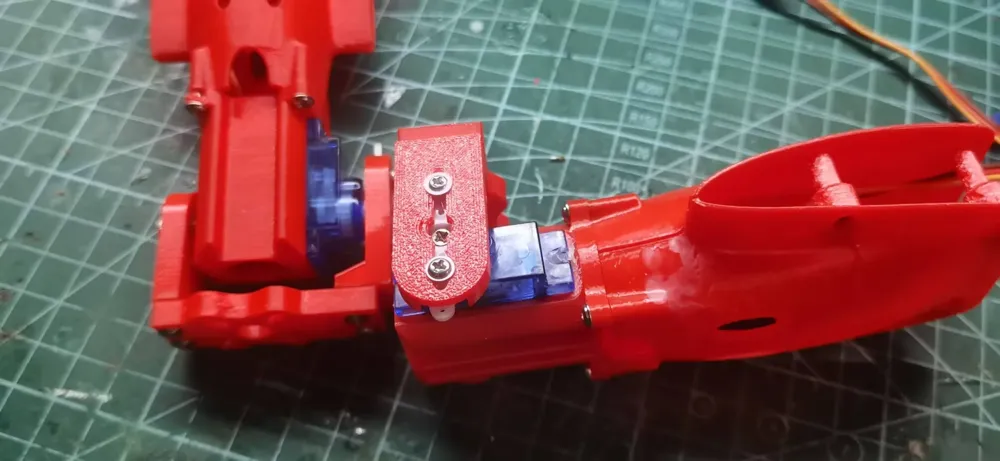

This improved version, compared to online models, features an appropriately enlarged servo hole and reinforced surrounding structure. This addresses the cracking issue caused by overly tight servo openings in some online versions.
Compatible with 9g blue servos, with dimensions of 12*23mm.

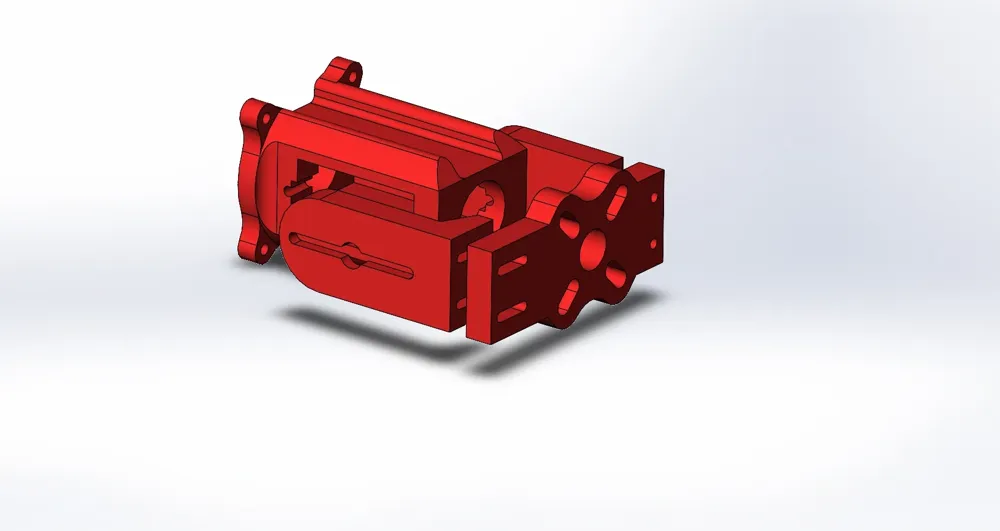

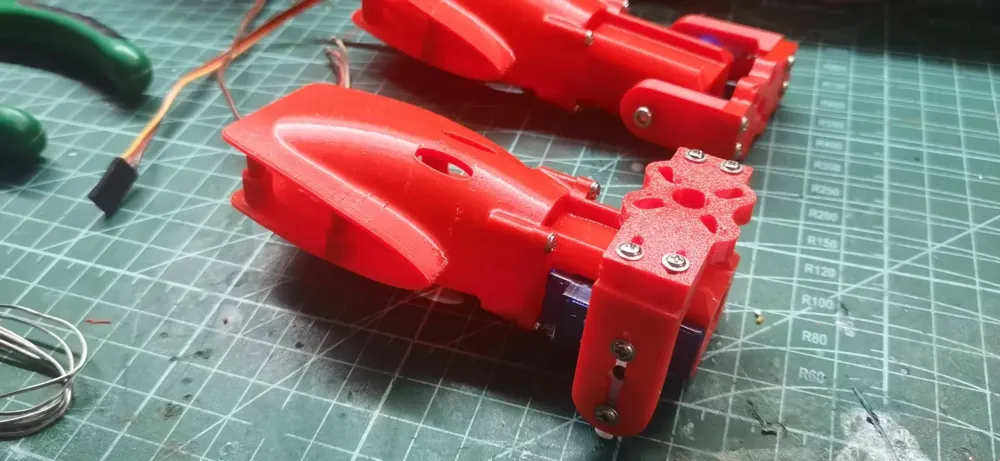

The motor mount is compatible with motor mounting holes from 16*16mm to 19*19mm.

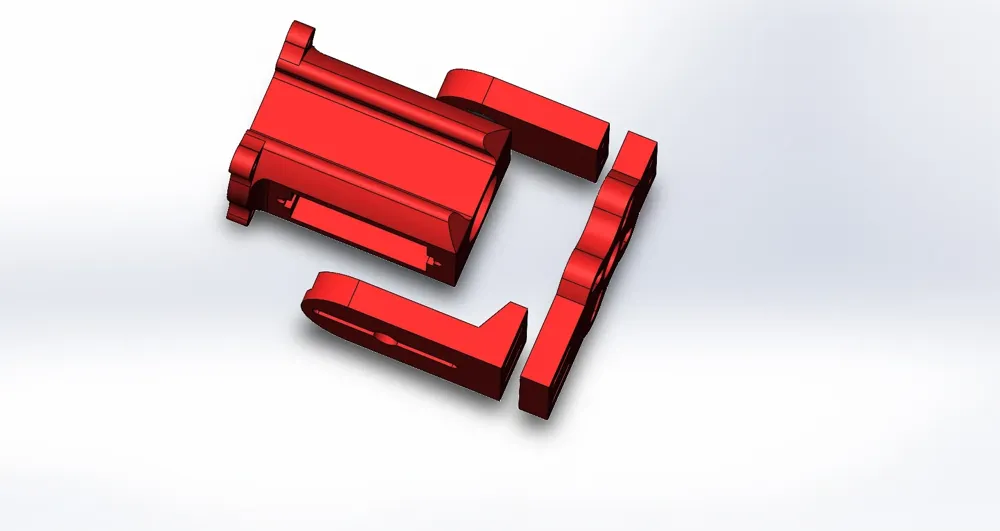

For the tilting section, 3*7*3mm bearings are optional. If bearings are not used, the small circle in the file can be used as a substitute.
