Snapfit USB Sockets for Dynavin (D9-DF56)

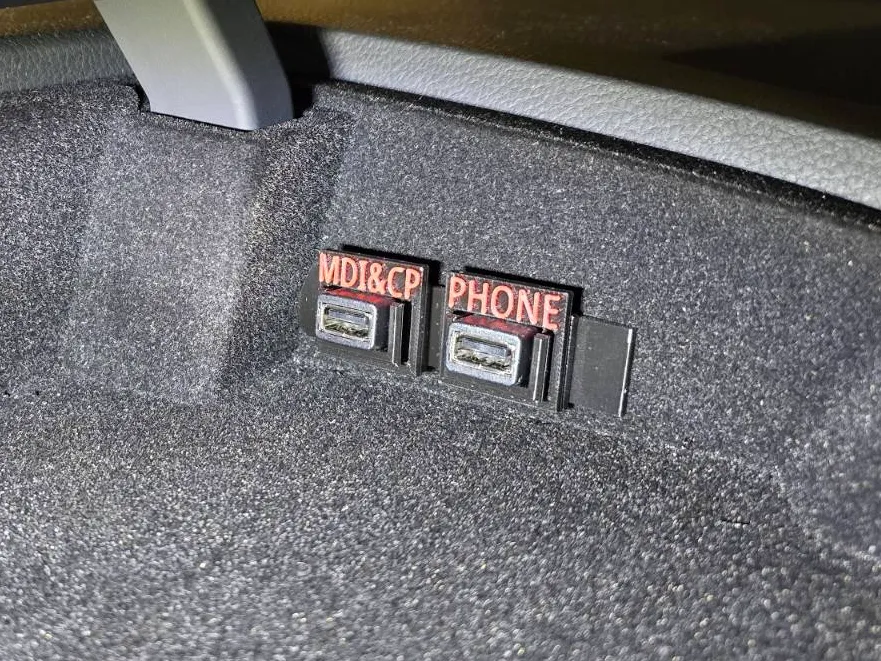

USB sockets for a Dynavin car radio (D9-DF56), to be mounted in the center storage box of a Seat Alhambra or VW Sharan (7N model).

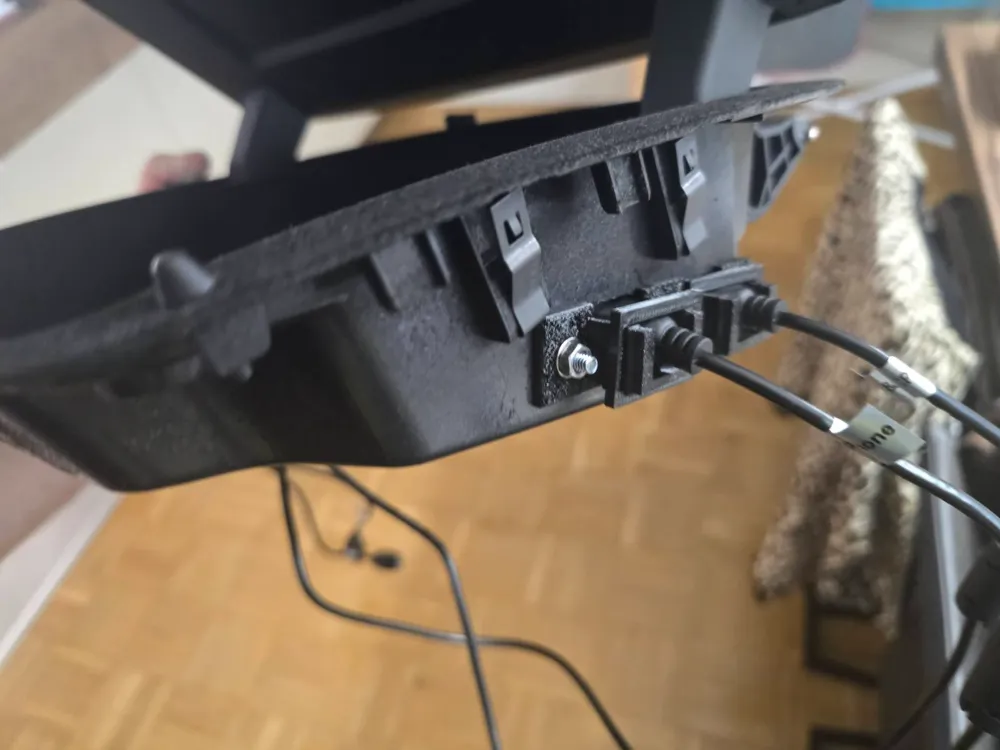

The picture from the backside was from a first draft version with a screw, but this was not possible to assemble and thread it back into the dashboard. Therefor I made a second version with a snapfit, which fits into the screw holes (Unfortunatelly I forget to made photos).

Additionally there is also a drill and cutting guide included.

Assembly instruction:

• Disassemble the center box (2 screws, but if you are unsure, just search for Youtube videos on how to remove the Sharam/Alhambra Radio)
• Use the cutting guide to mark and cut out the openings
• Draw the USB cables through the openings
• Re-Assemble the center box back into the dashboard (should be easy with just the 2 cables dangling around for the moment)
• Attach and assemble the USB sockets with the printed model and the clips (shall be secured afterwards)
• Gently push the assembled socket into the openings until the hocks snap into the drill holes
• done :)
