Hitachi Battery Rack 18v 1, 2, 3 and 4 Bays

Wall or ceiling mounted battery rack to suit Hitachi 18v batteries

Updated to fix issue of the batteries being to close together
Updated 2024 to optimize for vertical printing.

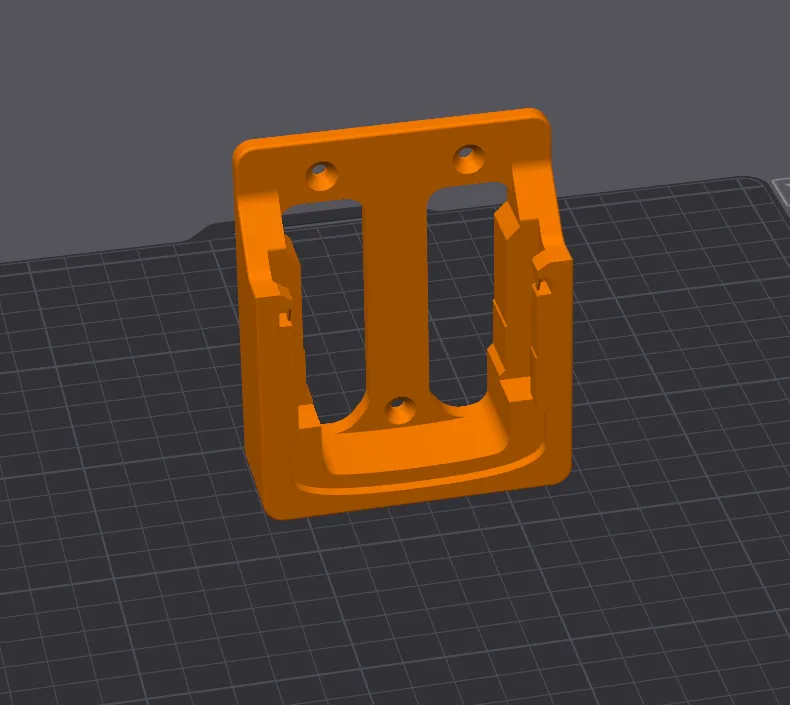

I recommend printing these standing up as pictured, I can fit 6 double racks upright in my X1 Carbon.

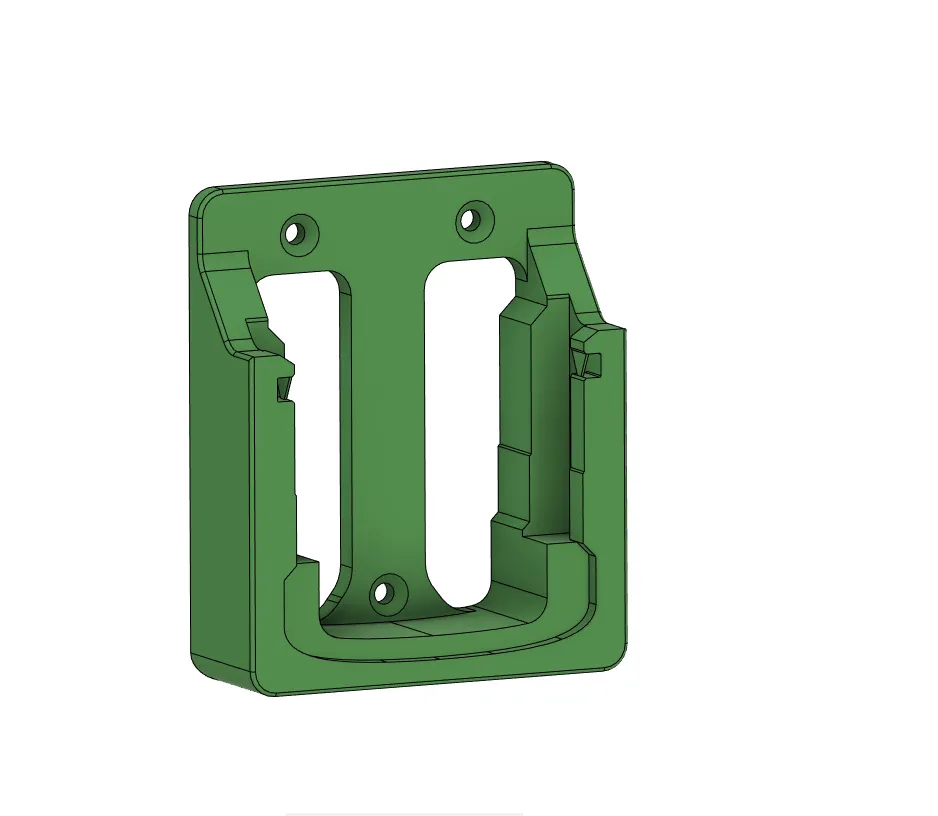

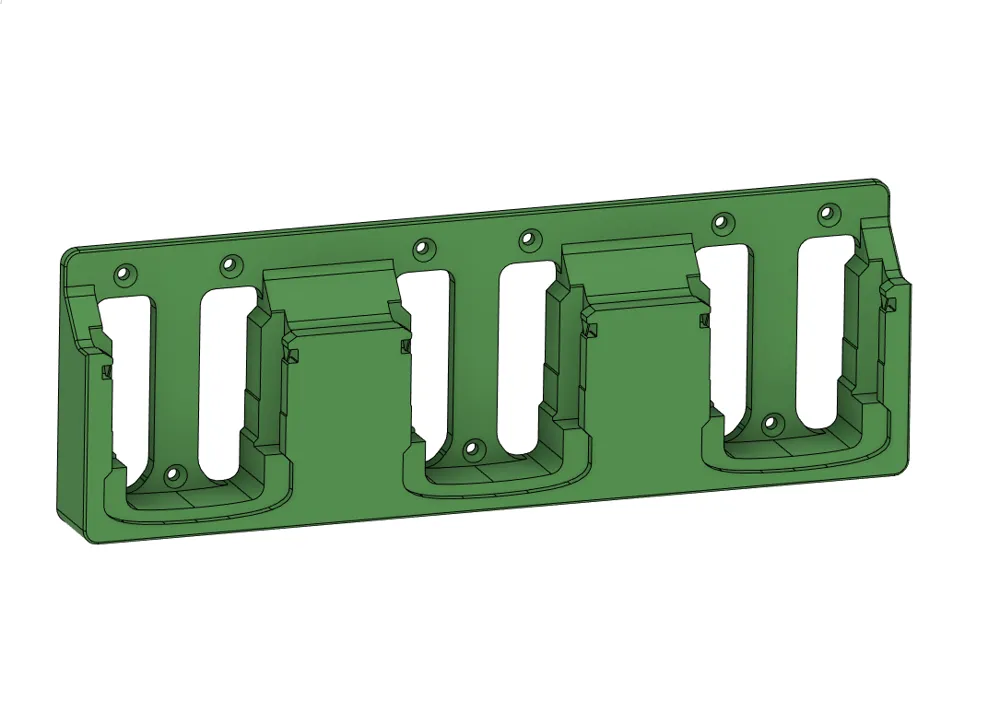

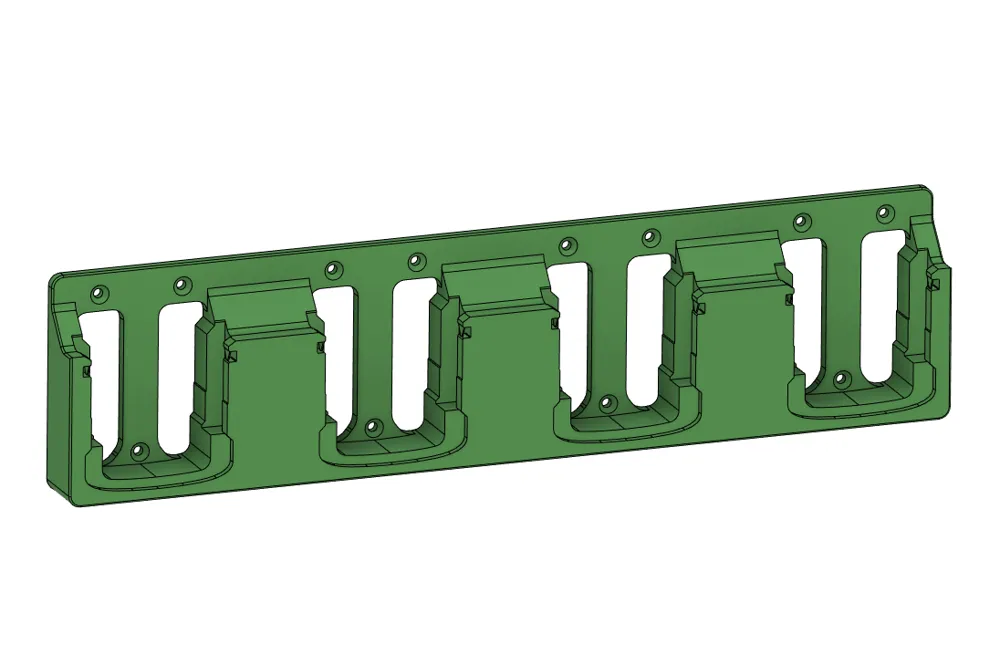

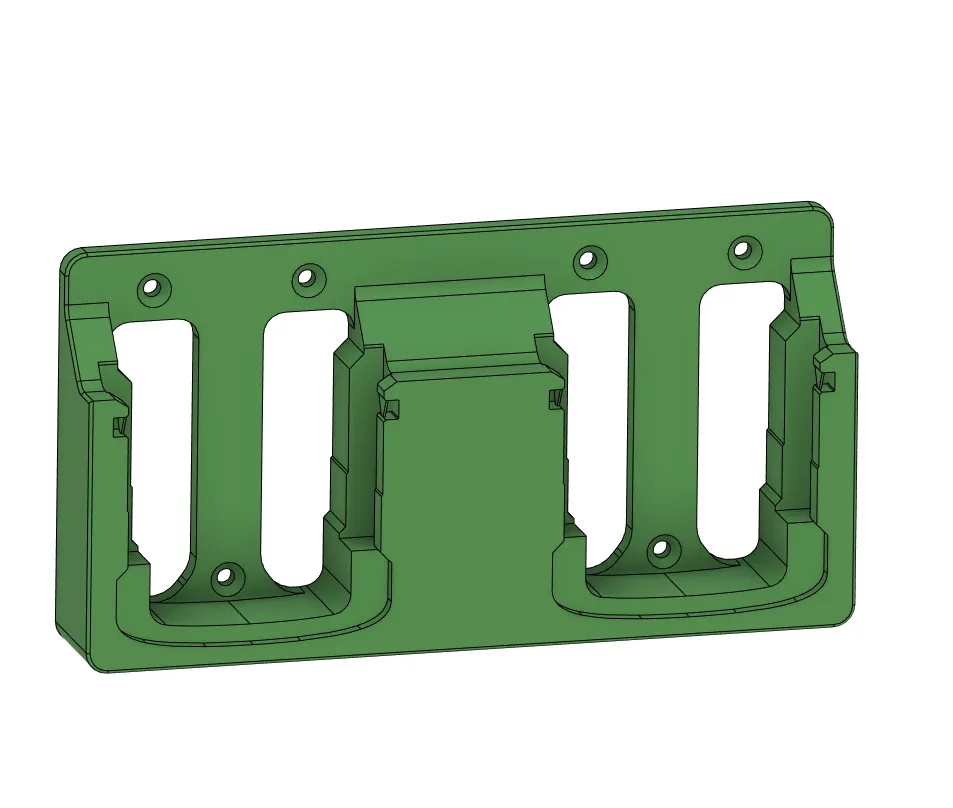

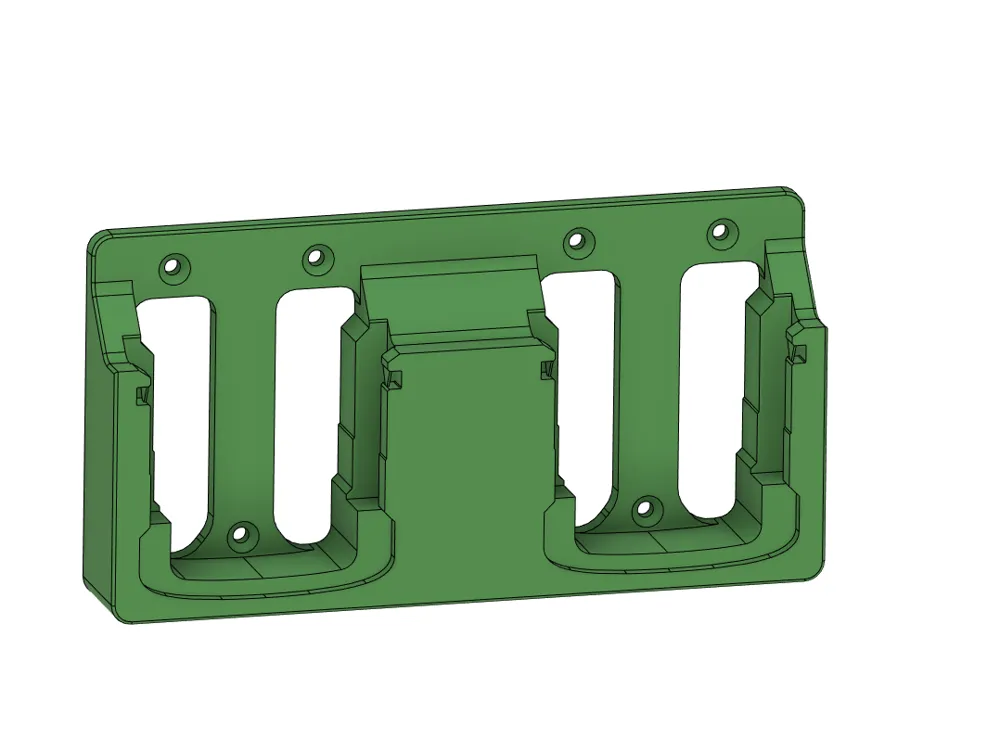

Available in single, double, triple or quad. The quad is too large for Bambu printers but the OBJ is available.

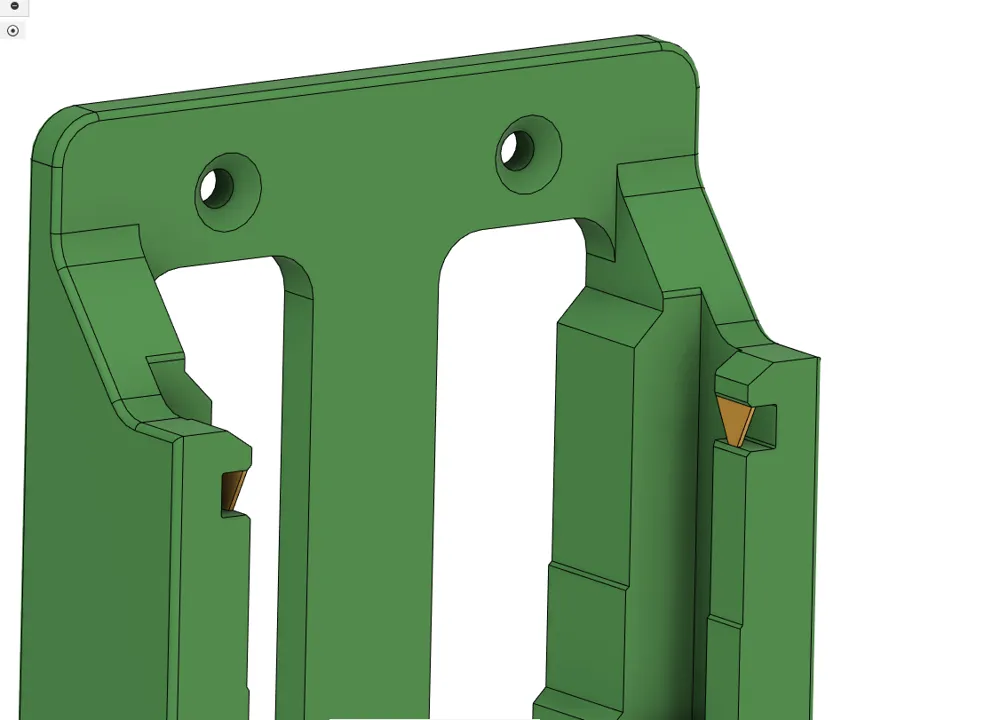

When printed vertical there is a tiny amount of support built in to the model. This can be easily removed, See support in picture (in yellow), extra support is not needed. If you are printing it flat a small amount of support needed in the slot,

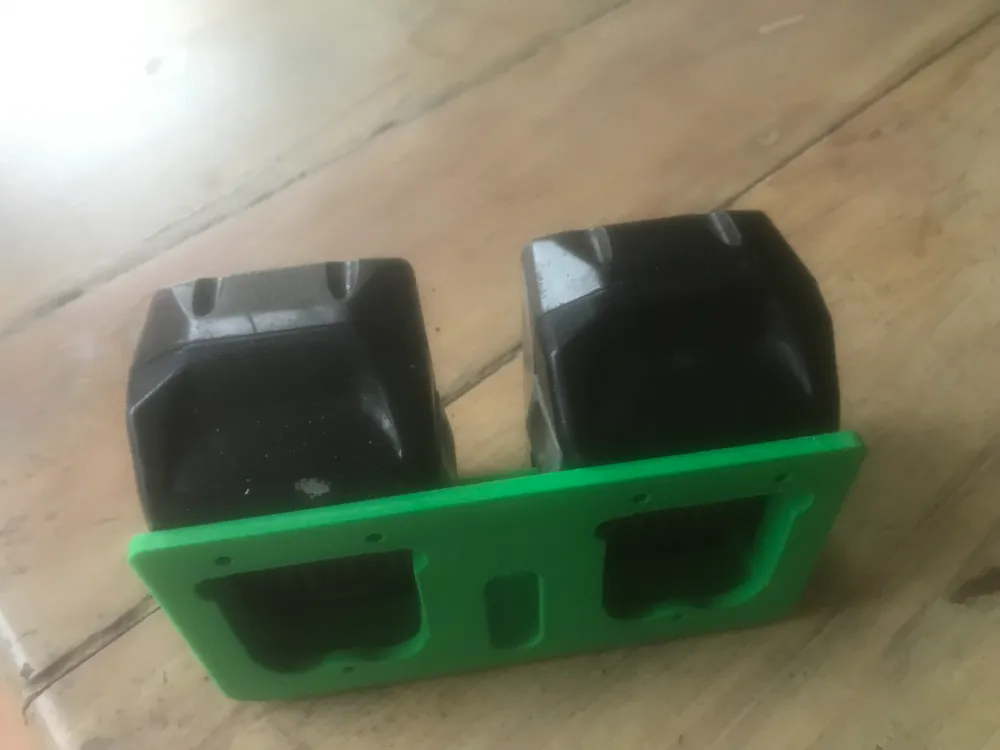

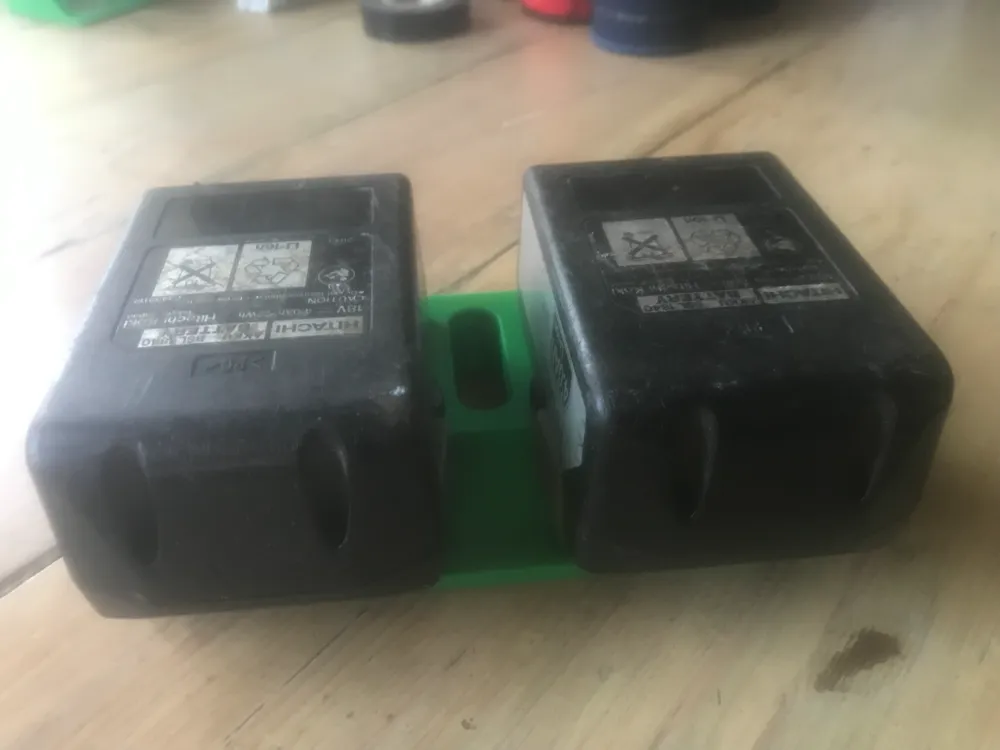

Printed in PLA and mounted in my work truck, have been working well for over 2 years so far. Have also printed in ABS with great success. I use 3 walls and 8% infill.

I also have Makita and Milwaukee
