Canon RF 100-400mm F5.6-8 IS USM Lens Collar
IP Report
Print Profile(1)
0.24mm layer, 8 walls, 20% infill
Designer
5.6 h
2 plates
Open in Bambu Studio
Boost
27
91
6
7
89
44
Released
Description
Also check my squared hood for RF 100-400
https://makerworld.com/en/models/501716#profileId-416824

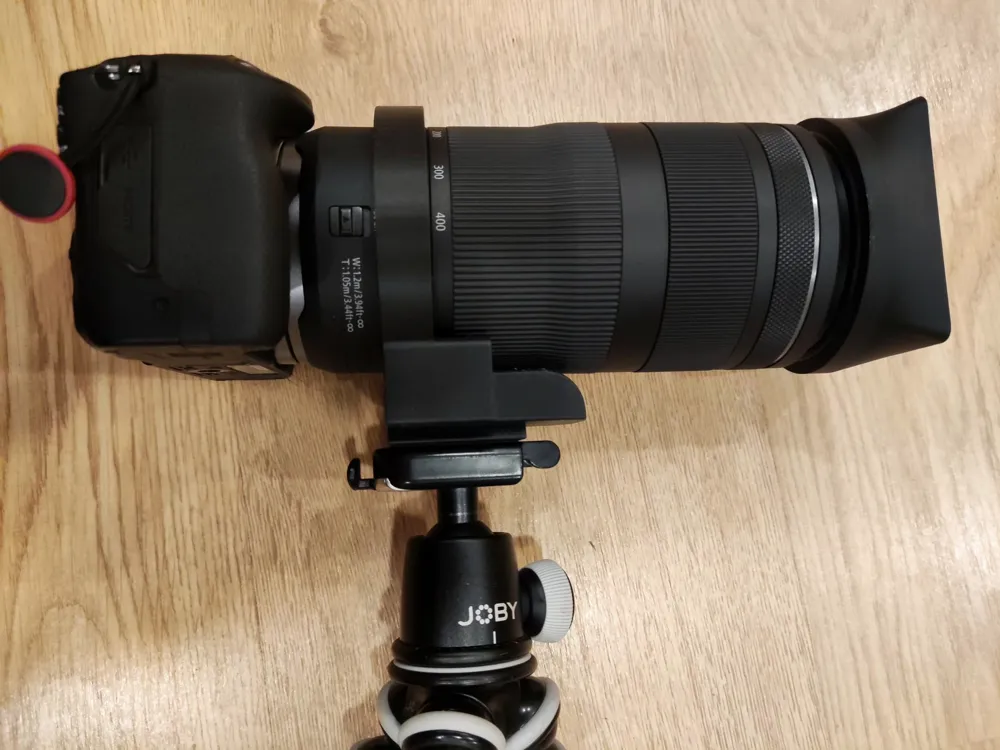

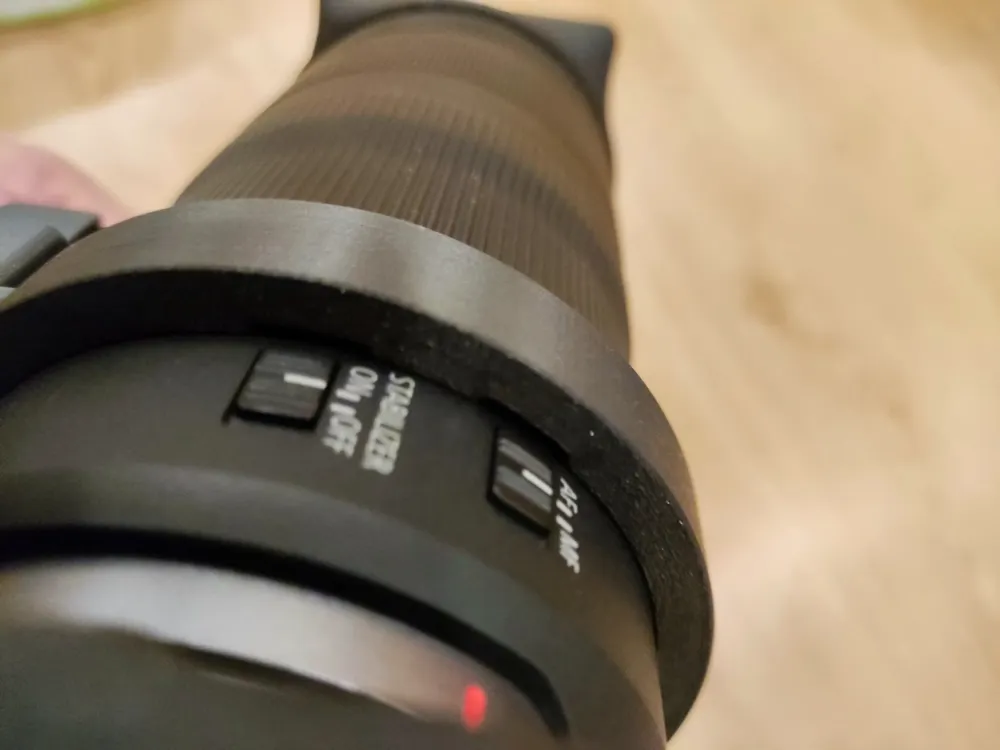

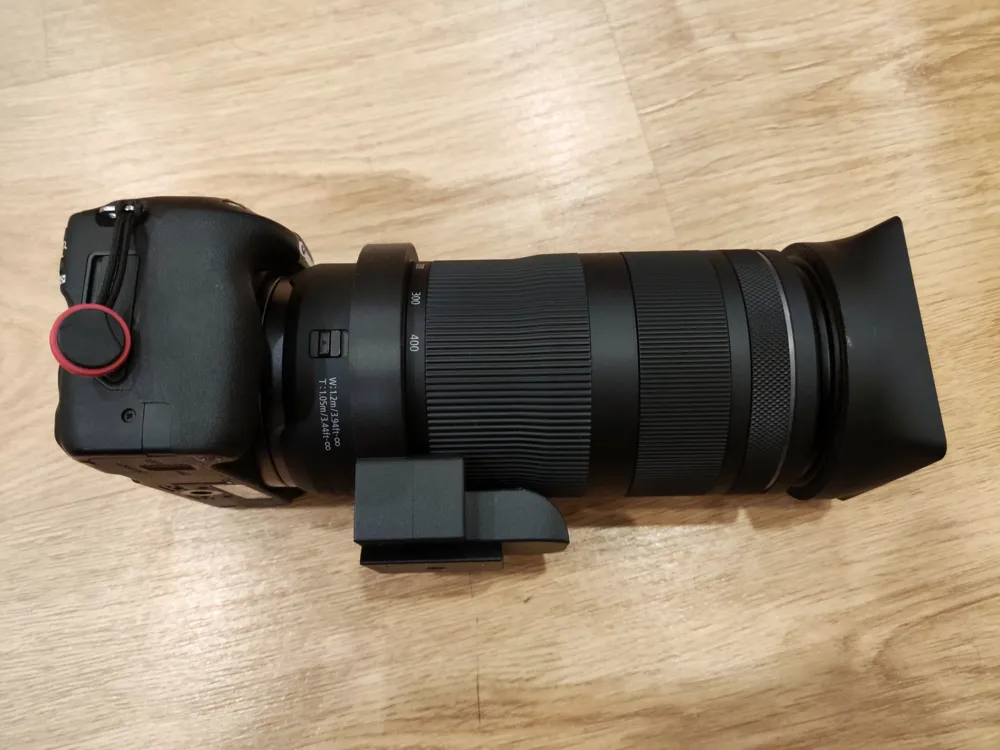

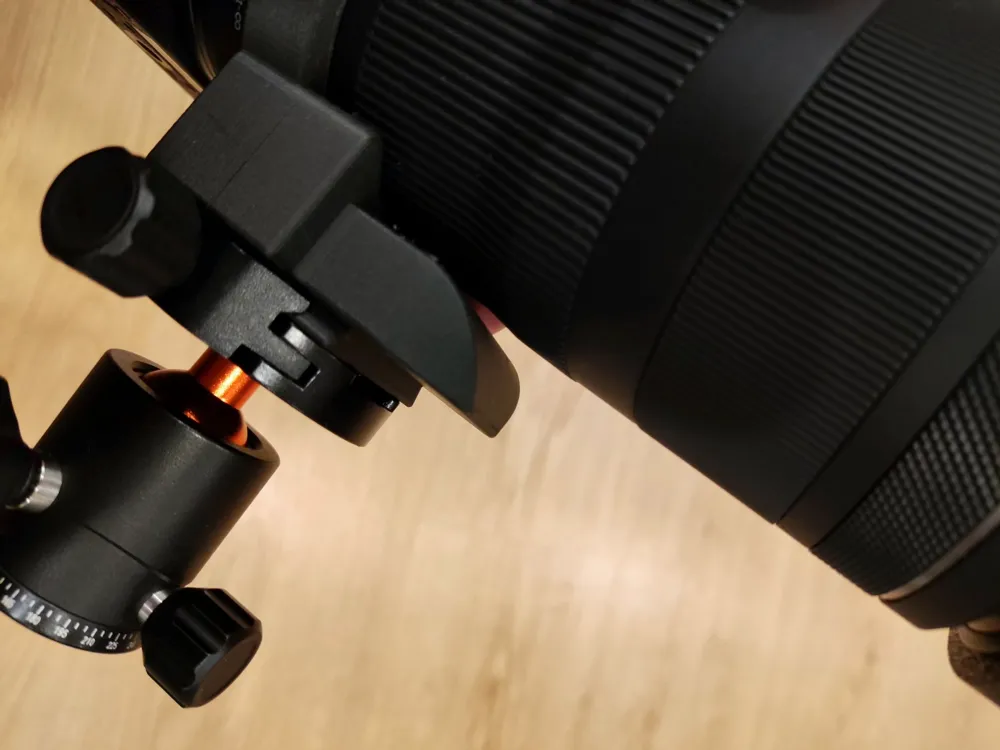

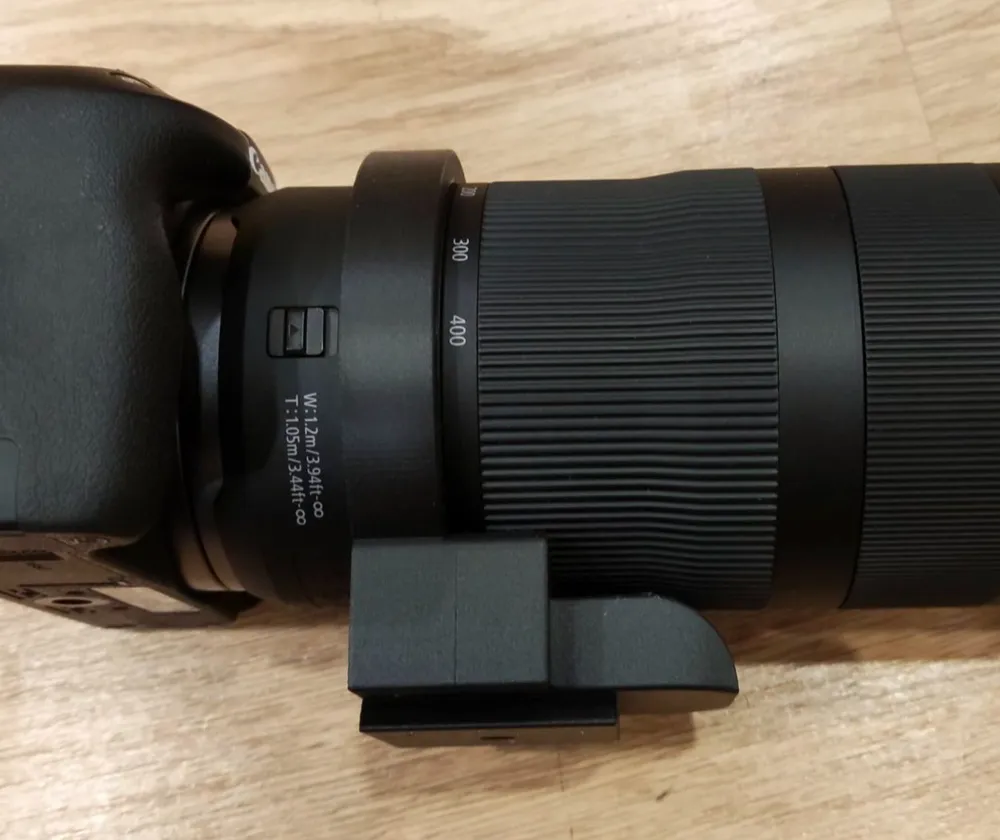

A collar with arca swiss and normal screw tripod mount for Canon RF 100-400.

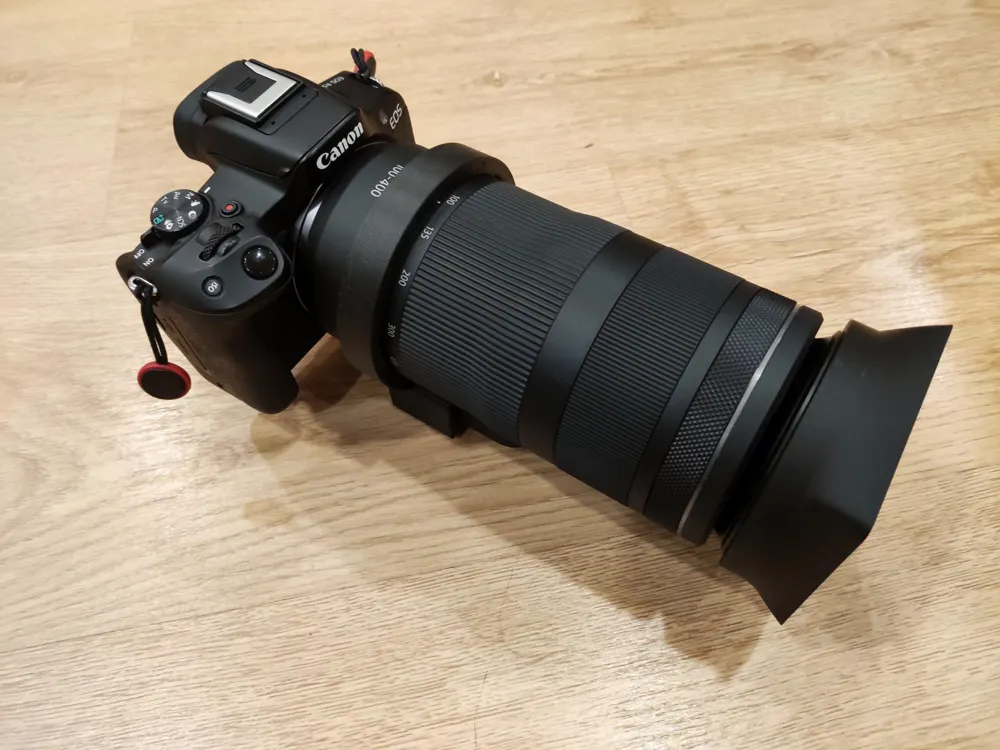

It is not like it is 100% necessary, but the setup with an R50 is more balanced and rigid when mounting the tripod or monopod in the lens mount.
To tighten it is needed a screw and nut, I choose an hexagonal M5x30 and a regular nut, but similar length and size should work. I printed also a screw cover for easier manual tightening.
https://cad.onshape.com/documents/5d18ed6b1f9db3f1e782a95c/w/8fca11dbca3a78bdb81f015e/e/d475e217251ad9de75587af9
