Toniebox dock - display your Tonie collection

Version 2 now available (get the 3mf)!

• Same as original (330mm wide), but with slightly shallower cutouts for magnetic tape (1.5mm down from 3mm).
• Double-sided option available! Toniebox in the middle, display on either side.
• Modelled dovetail, no need to make a dovetail cut in the slicer. (3mf only)
• Tolerance test to check the dovetail on your printer.
• Extra-wide option (400mm wide - STL only)

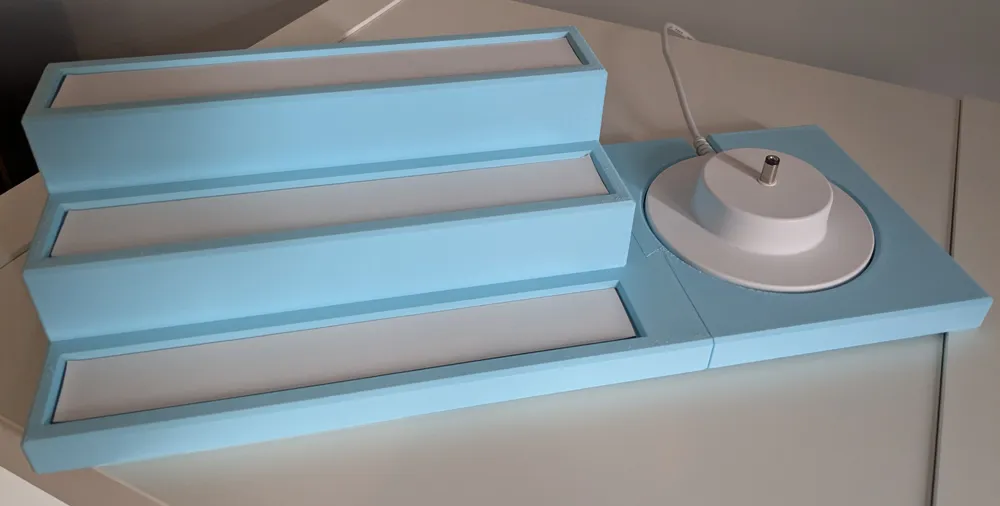

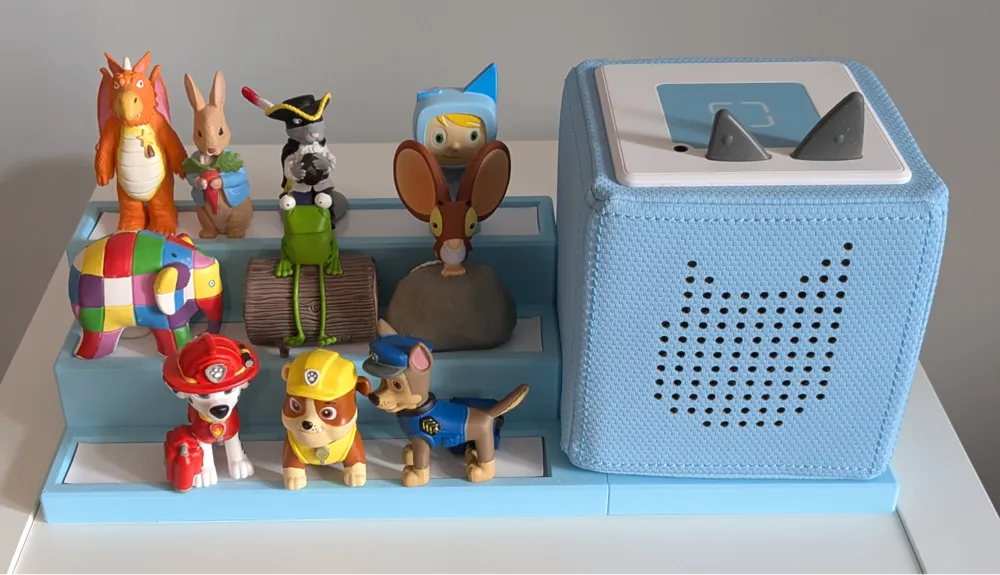

A simple dock and display stand for your Toniebox and around 10-12 Tonies. The total width is 330mm, designed to fit an IKEA Kallax shelf.

I used 3M FerroFlex 25mm-wide self-adhesive ferrous strips as a surface for the magnets in the Tonies to stick to.

Provided is a 3MF, pre-cut with the slicer's dovetail join. There's also an STL to cut as you like - or not, if you have a large-format printer! I printed this at 0.24mm layers with Bambu PLA Matte - you can definitely get away with thicker layers when using matte filament! For regular PLA, I'd probably want to use 0.20mm.

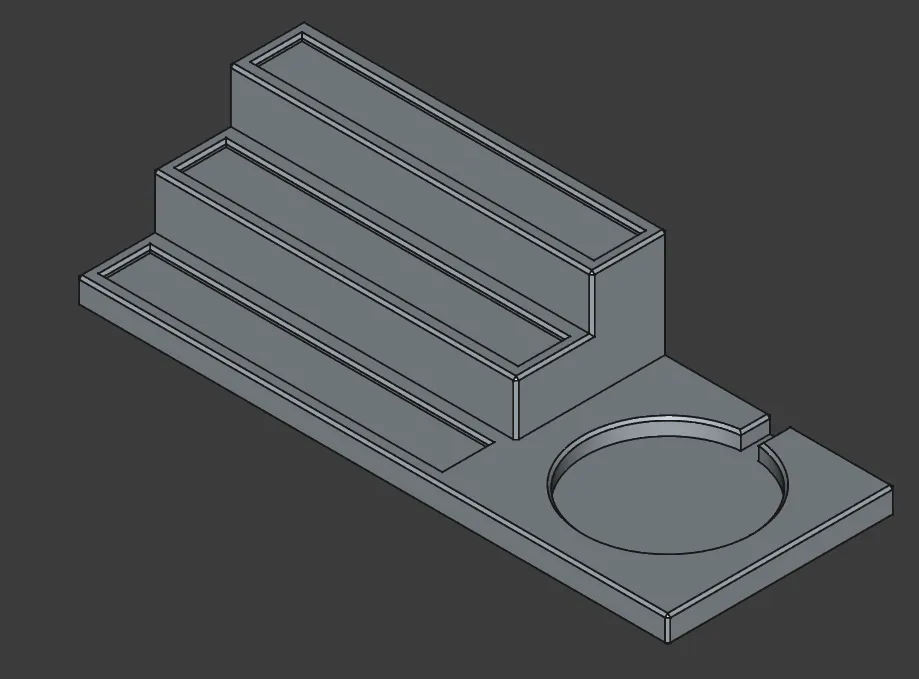

I used this as a project to learn the basics of FreeCAD - so feedback and suggestions are most welcome!
