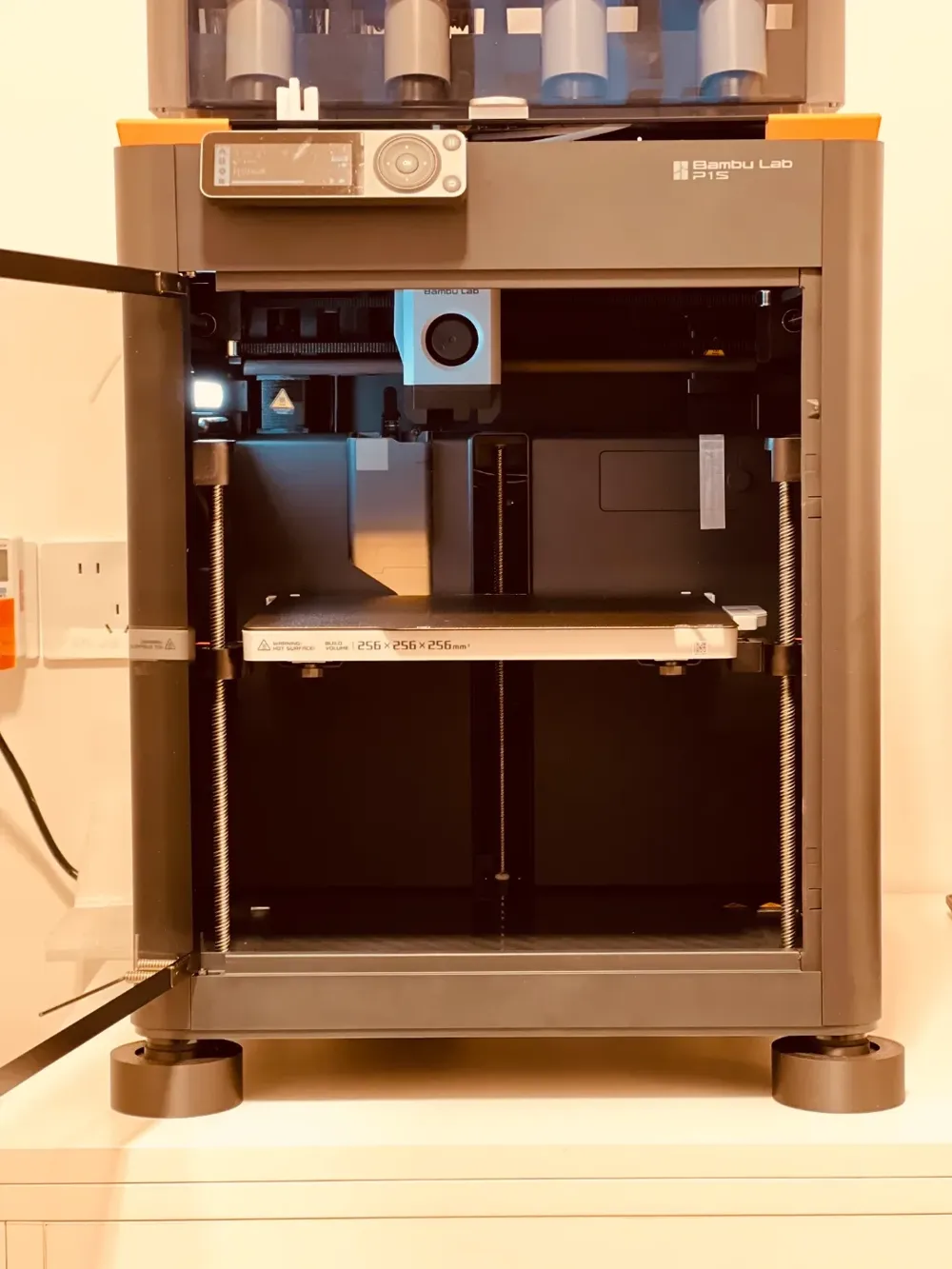

P1,X1 抗震脚垫 P1,X1 Vibration Absorbing Foot. NO TPU.
Print Profile(1)
Description
Disinclined to print with TPU, owing to its propensity for nozzle clogging, I designed this shock-absorbing foot, printable exclusively with PLA

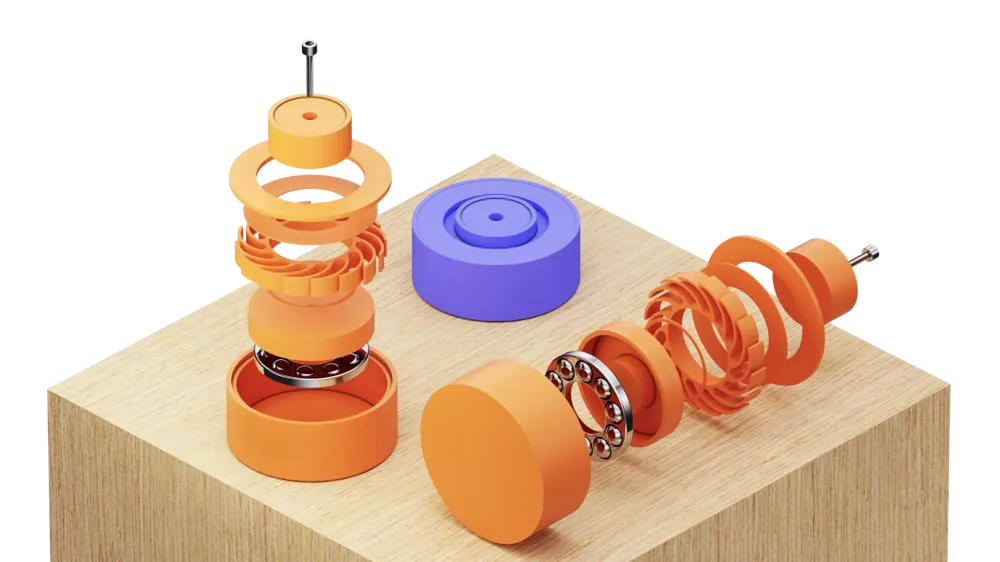

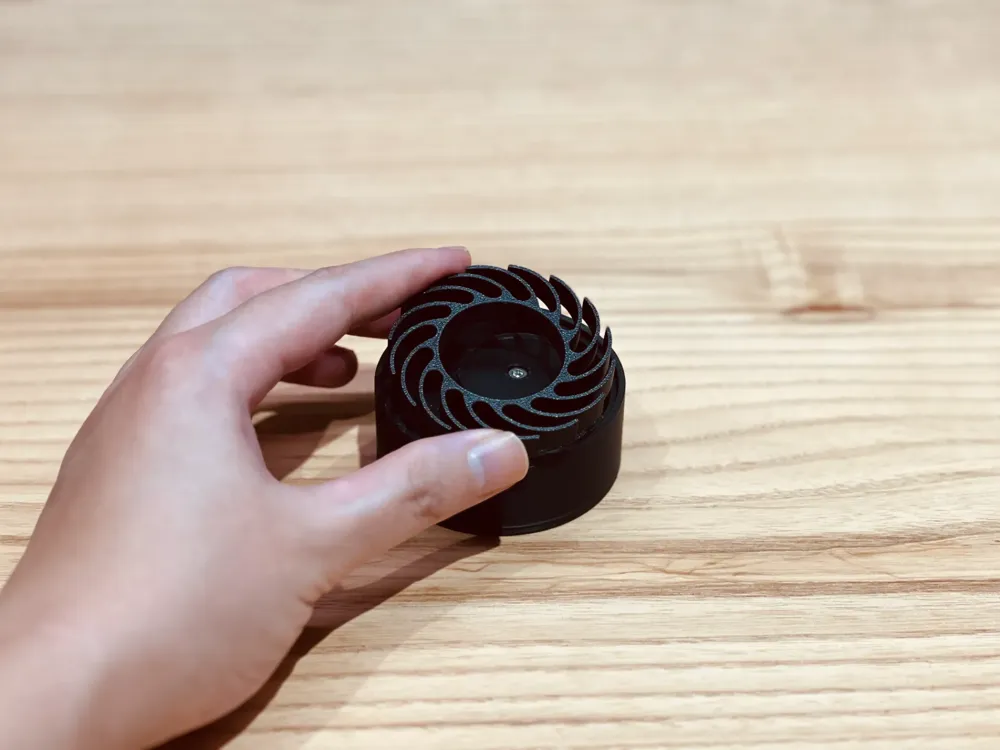

Employing a flexible structure minimizes the impact of lateral movement on printer vibration, thereby enhancing longevity

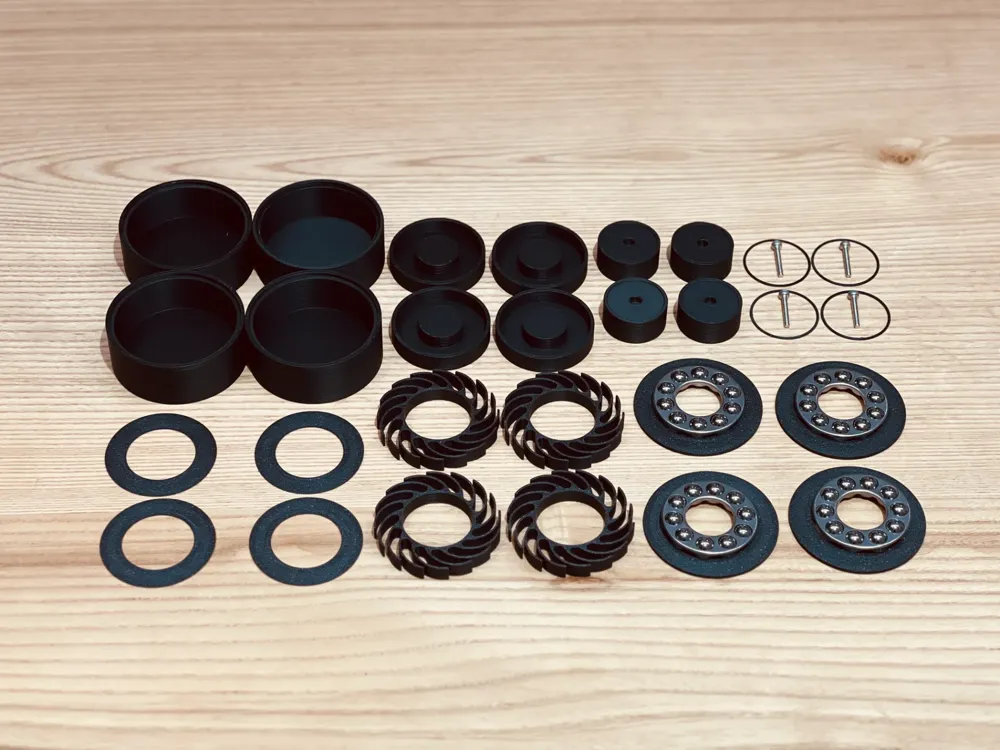

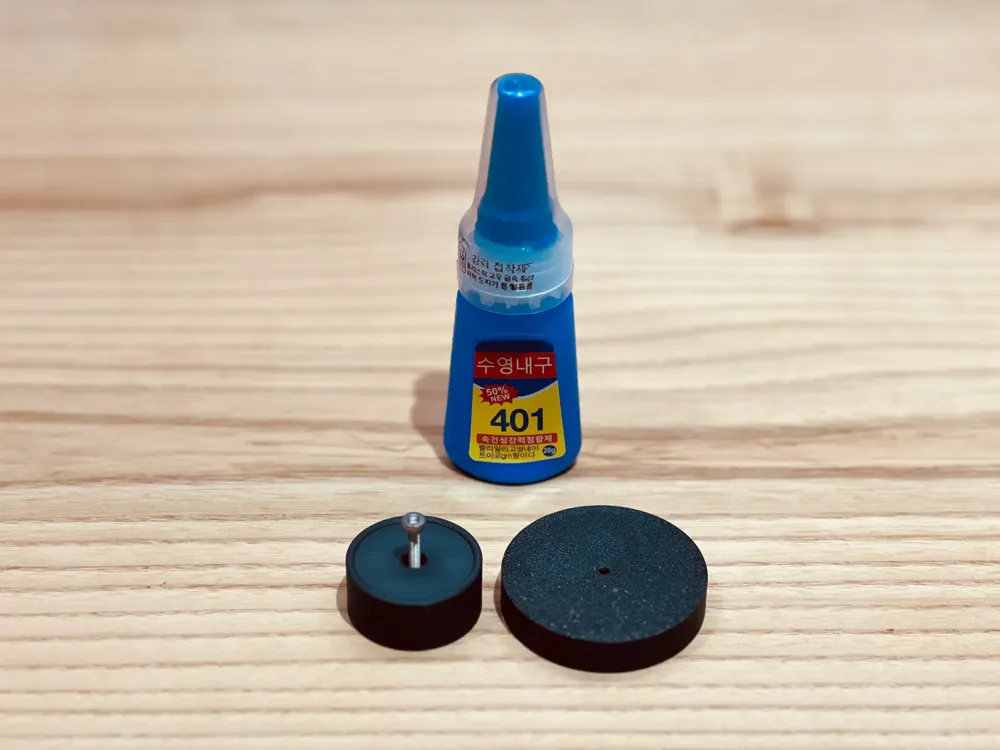

Assembly necessitates four M3-20 screws, four 51304 bearings, and super glue
An electric screwdriver is highly recommended; manual tightening proves rather laborious

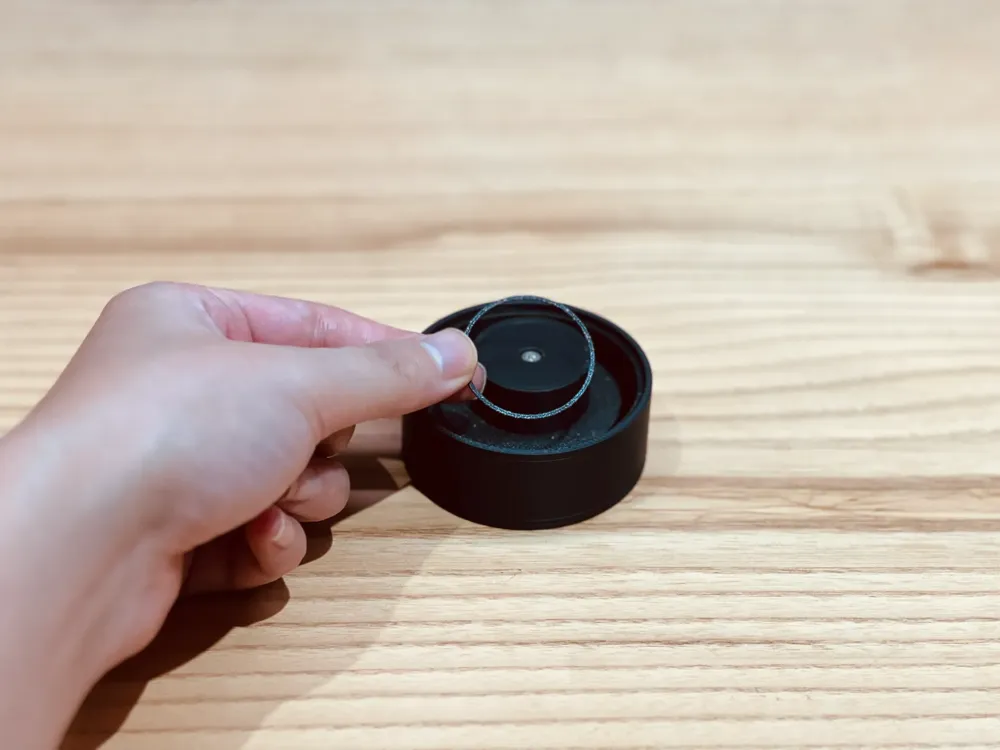

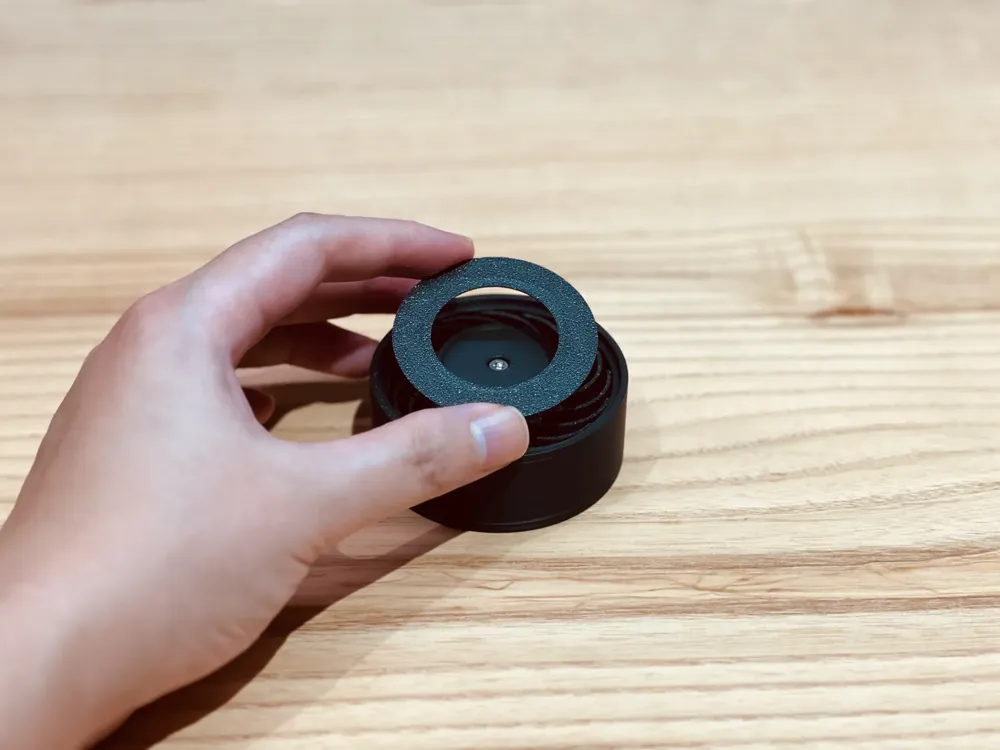

The dust cover is press-fit, obviating the need for adhesive

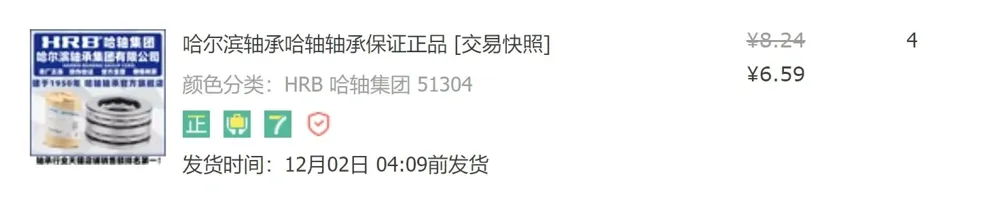

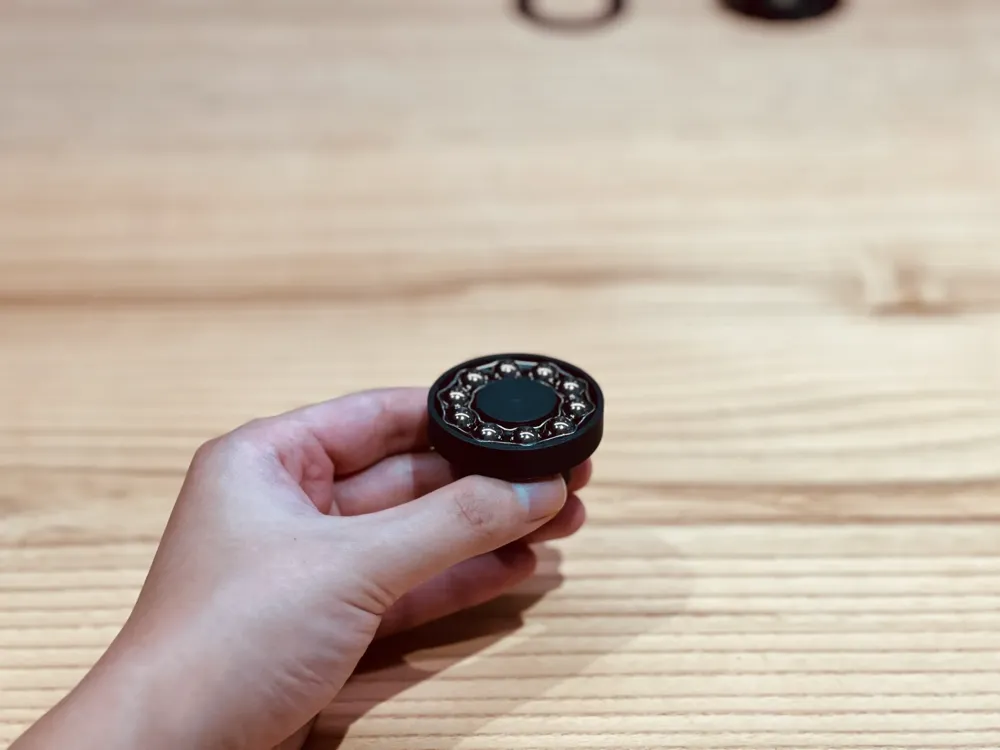

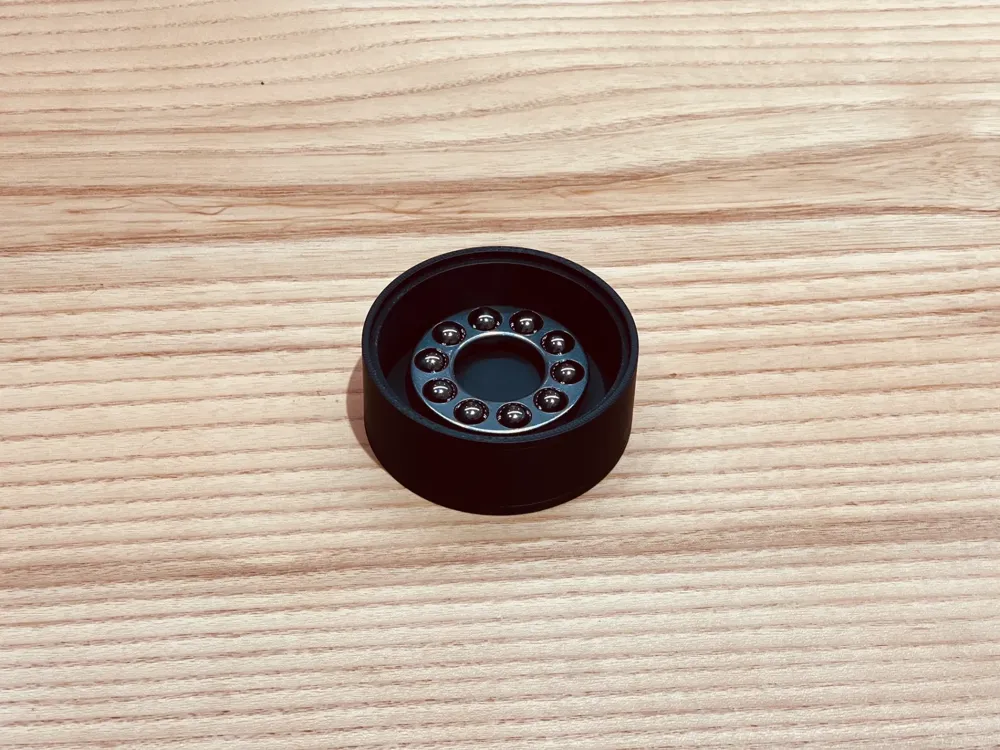

Bearing connection details
https://detail.tmall.com/item.htm?_u=333eeblu86d1&id=671485875970&spm=a1z09.2.0.0.22b42e8dMBi1rv

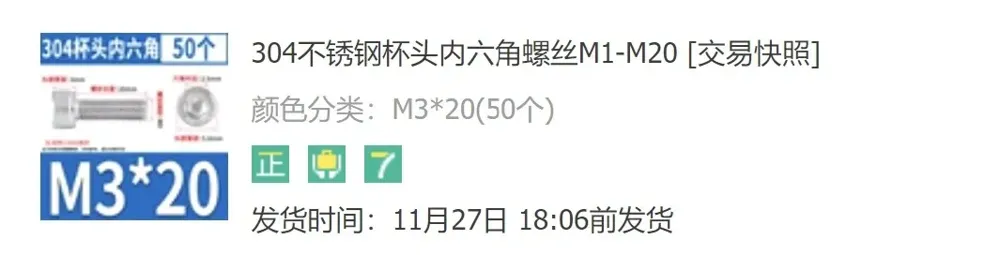

M3-20 screw connection details
https://detail.tmall.com/item.htm?_u=333eeblu8808&id=645870121563&spm=a1z09.2.0.0.22b42e8dMBi1rv

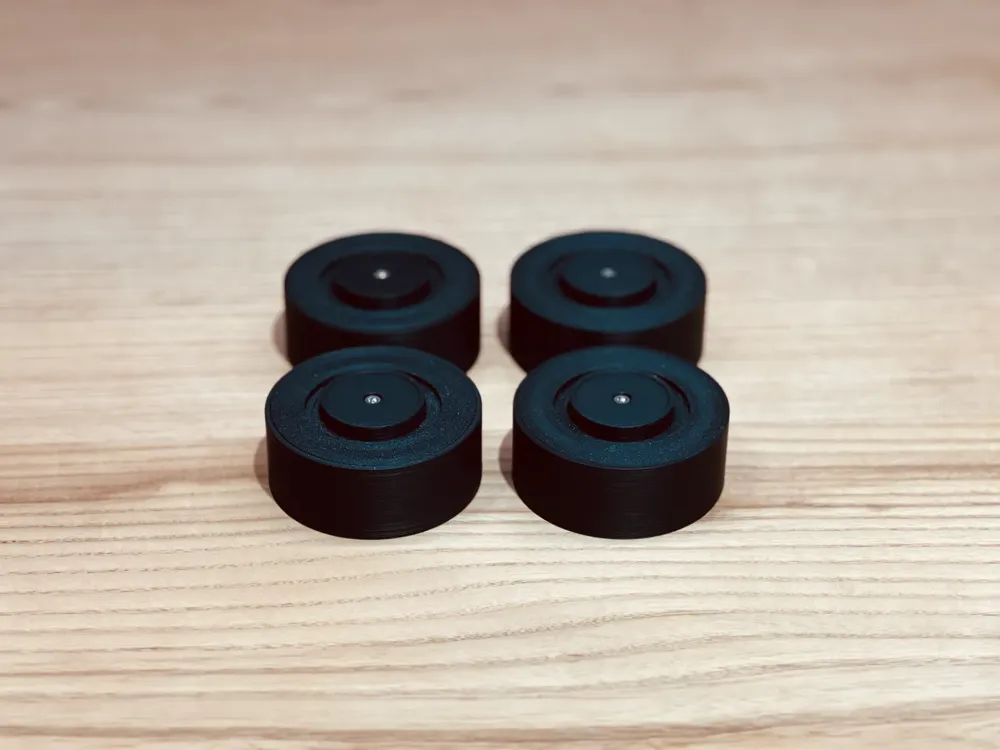

This vibration-dampening foot is designed for single-material PLA printing The compliant mechanism mitigates the printer's lateral movement, extending its operational lifespan
Assembly requires four M3-20 screws, four 51304 bearings, and super glue
