15€ Ikea AMS and Drybox with spool mount

Print Profile(2)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L
A1 mini

0.2mm layer, 3 walls, 15% infill
0.2mm layer, 3 walls, 15% infill
Designer
8.6 h
1 plate
4.9(9)

PETG Plate spool holder: 0.16mm layer, 4 walls, 15% infill
PETG Plate spool holder: 0.16mm layer, 4 walls, 15% infill
Designer
3.7 h
1 plate
4.7(6)

Open in Bambu Studio
Boost
76
228
25
13
133
31
Released

Description

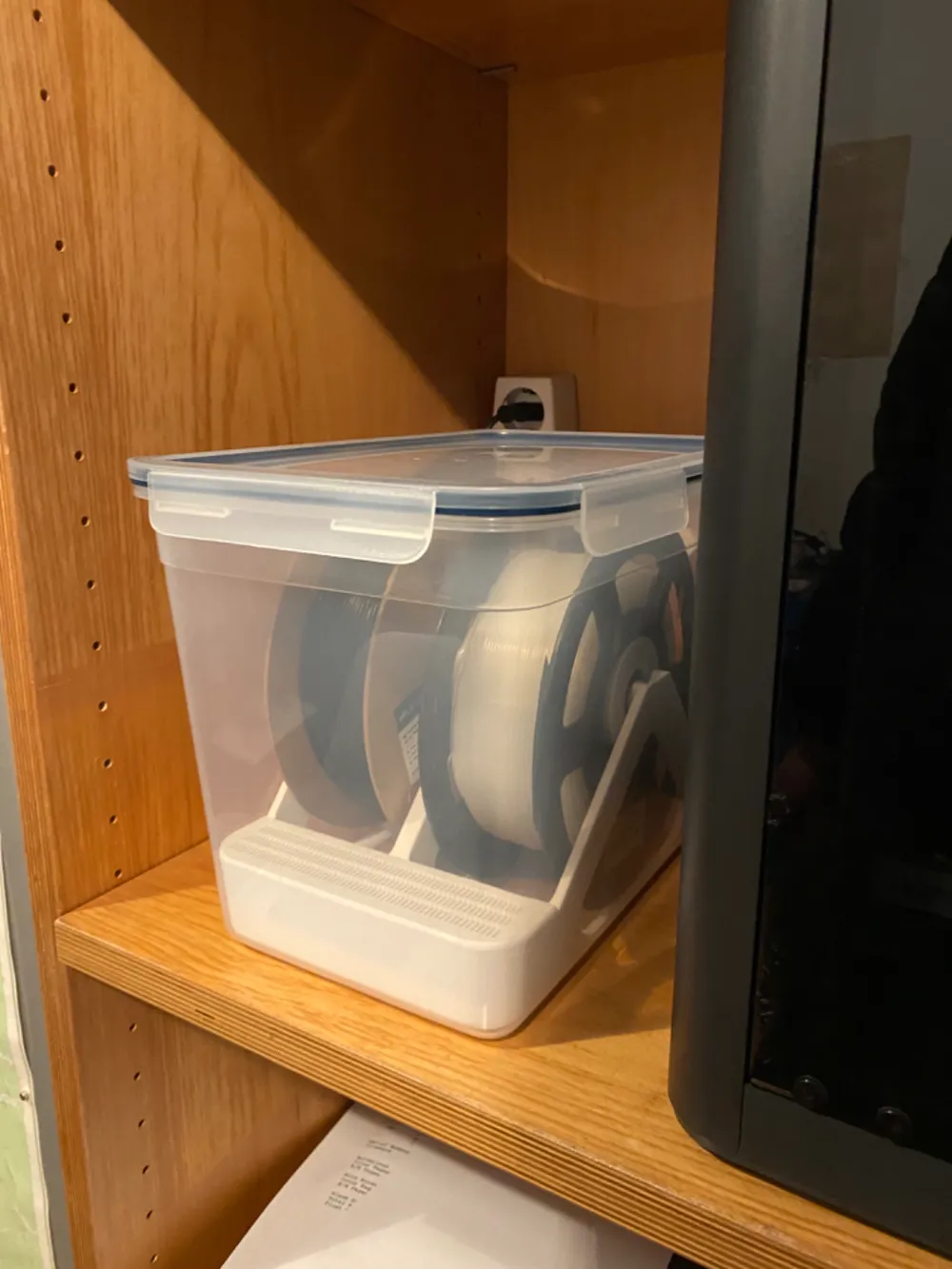

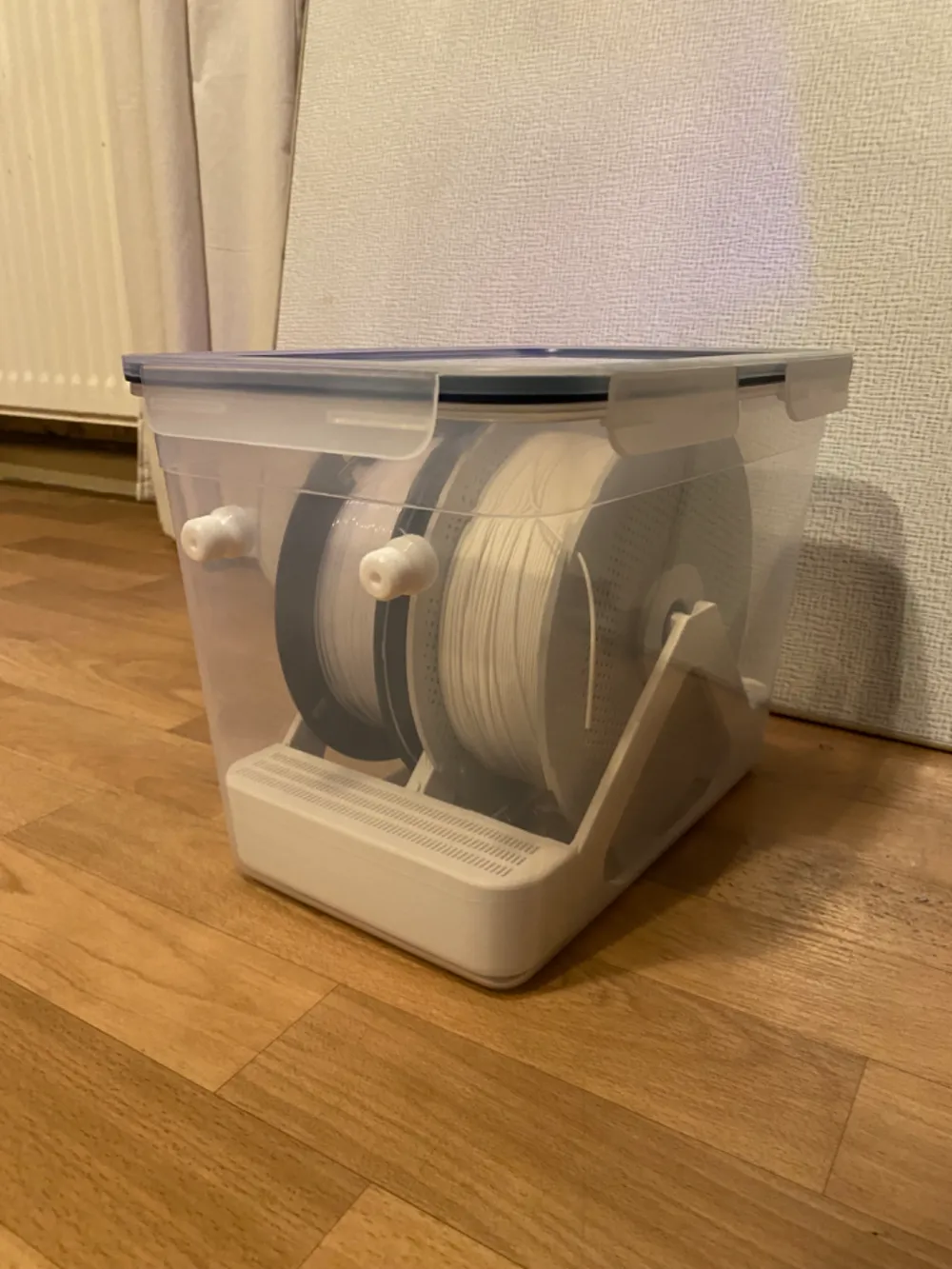

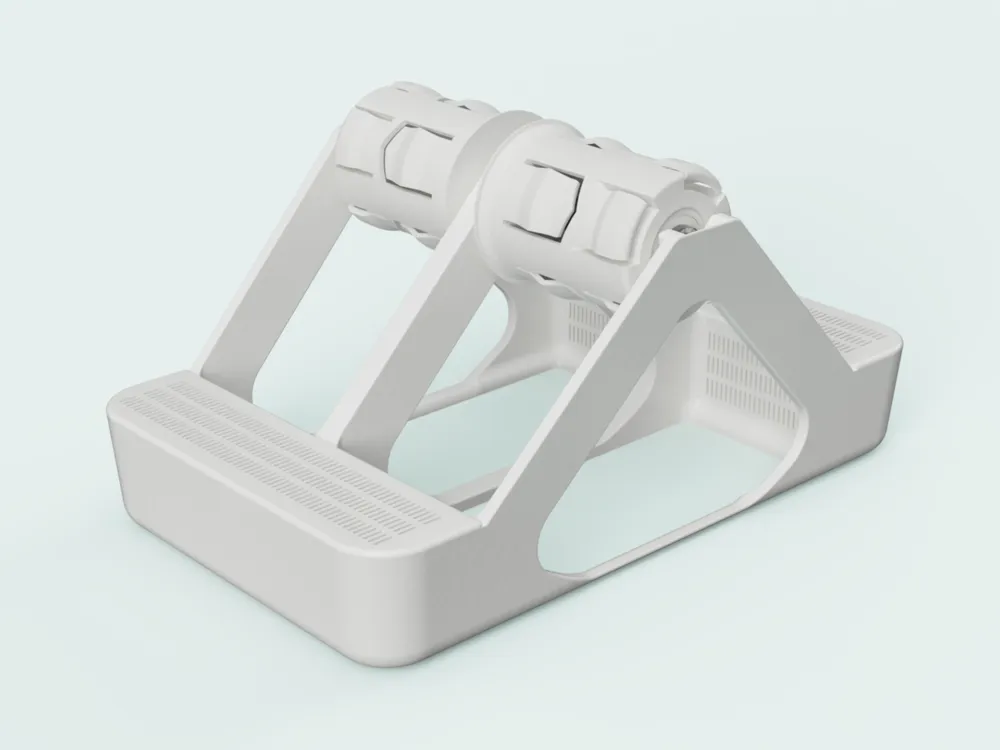

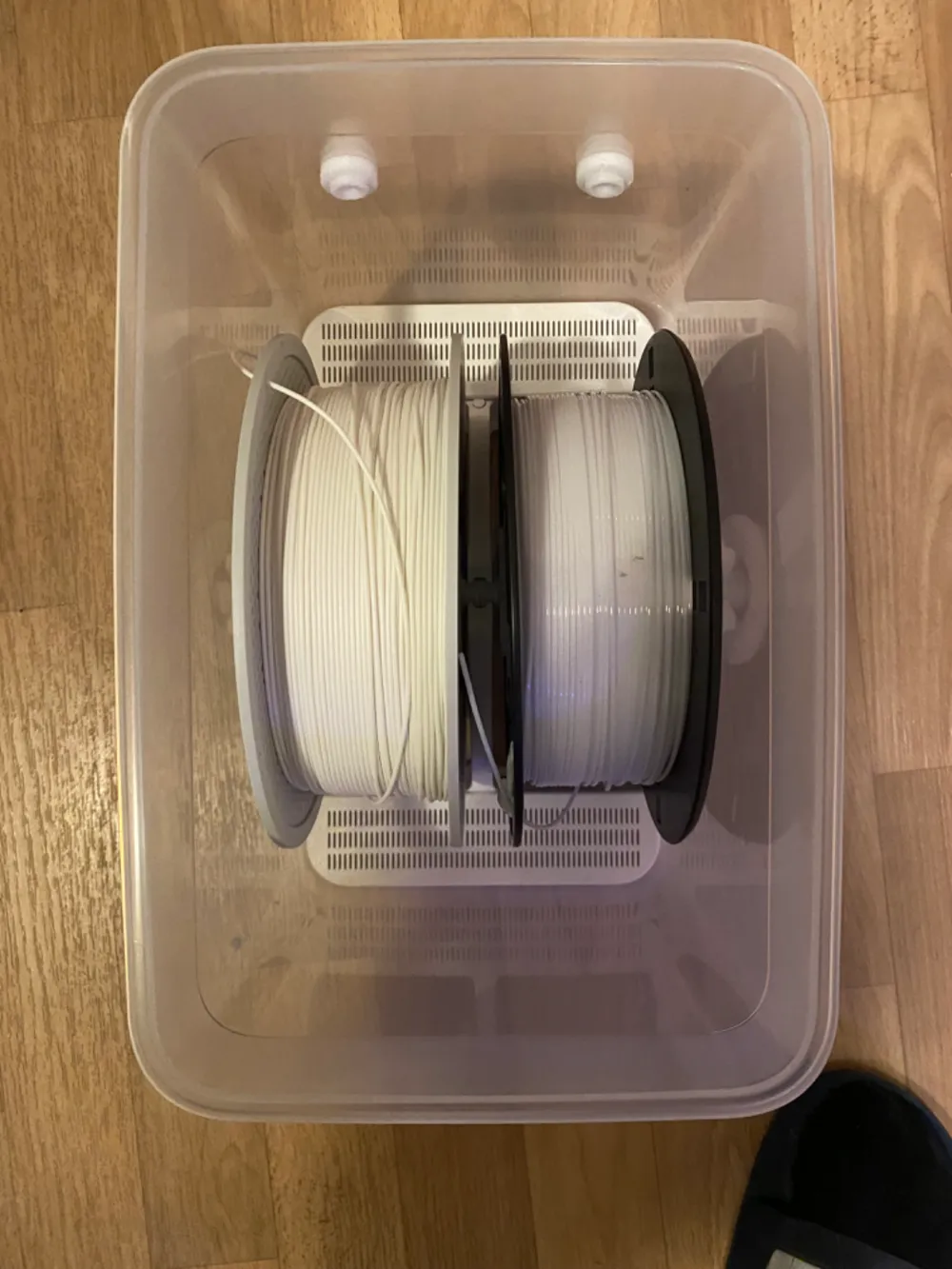

Drybox to supply two filament spools next to the 3D printer. I used an Ikea 365+ 10.6 litre storage container as the box. The holder fits in there so well that it doesn't need to be glued.

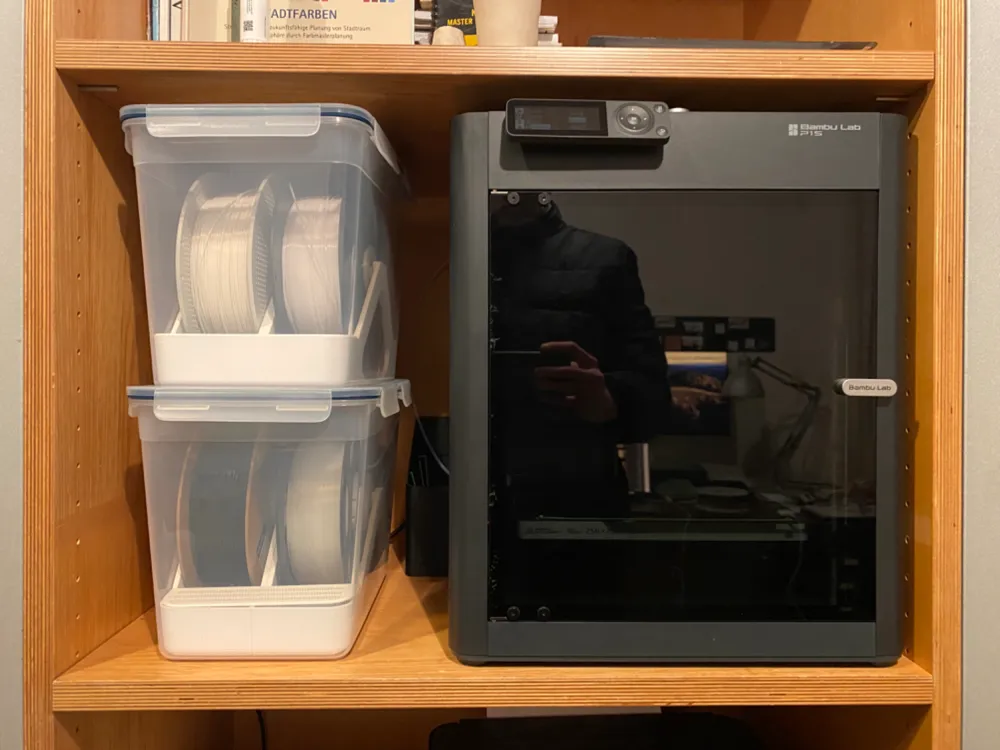

I designed the dry box so that I can use the printer without AMS in the cabinet. Now I no longer have to reach round the back to change the bobbins and I save on depth. Two Ikea boxes stacked on top of each other are the same size as the P1S. The holder can be printed with PLA, the spools should be printed with PETG. I used a part from Golub17 as a holder for the PTFE tube.

The drying box is fairly airtight thanks to the large seals at the top and the two compartments for silica gel keep the humidity inside low.


Purchased parts:

4x 6001 Bearings

Silica Gel


Other print parts:

https://makerworld.com/de/models/501070#profileId-416128

https://makerworld.com/de/models/498656#profileId-413286



Feel free to comment if you have any questions, suggestions or ideas for improvement. :))



If you like the design, I would be happy if you give me a boost!
