N100 Compact Network Enclosure
Print Profile(1)
Description

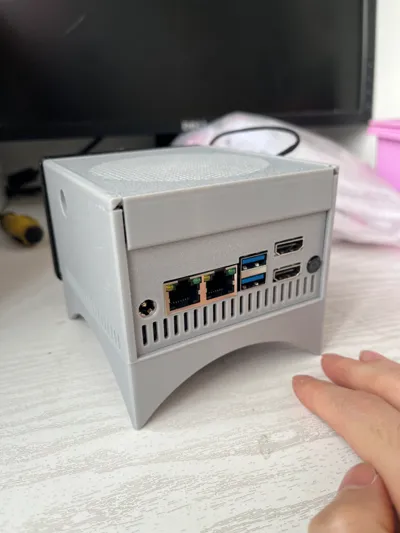

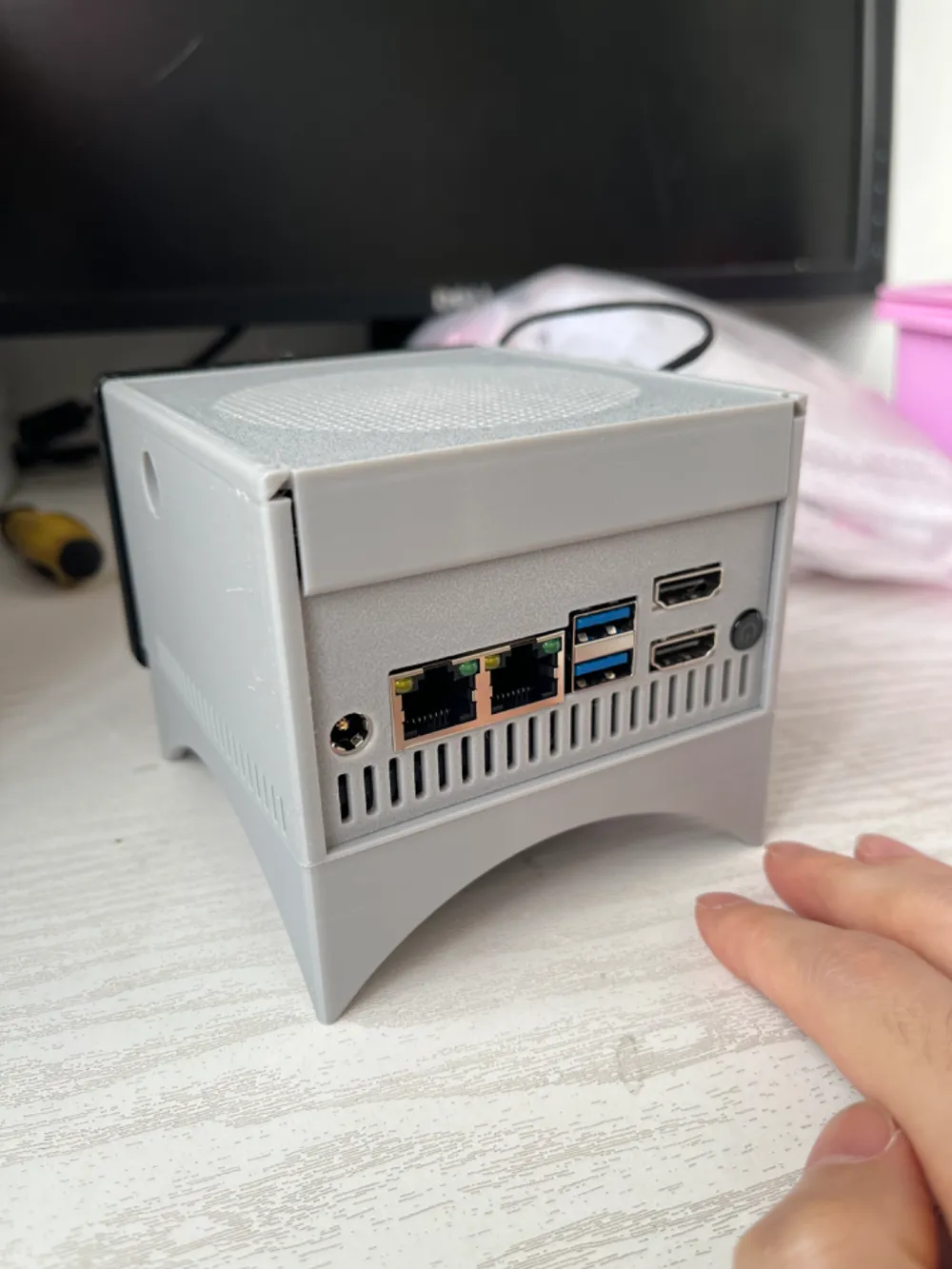

Changwang P5V3 all-flash NAS mini chassis.
One 8010 fan on the top and one on the bottom.
Simply secure it to the base using the included screws.
No additional screws required. I dislike an excess of screws.
The top is secured with clips.
Installation steps:

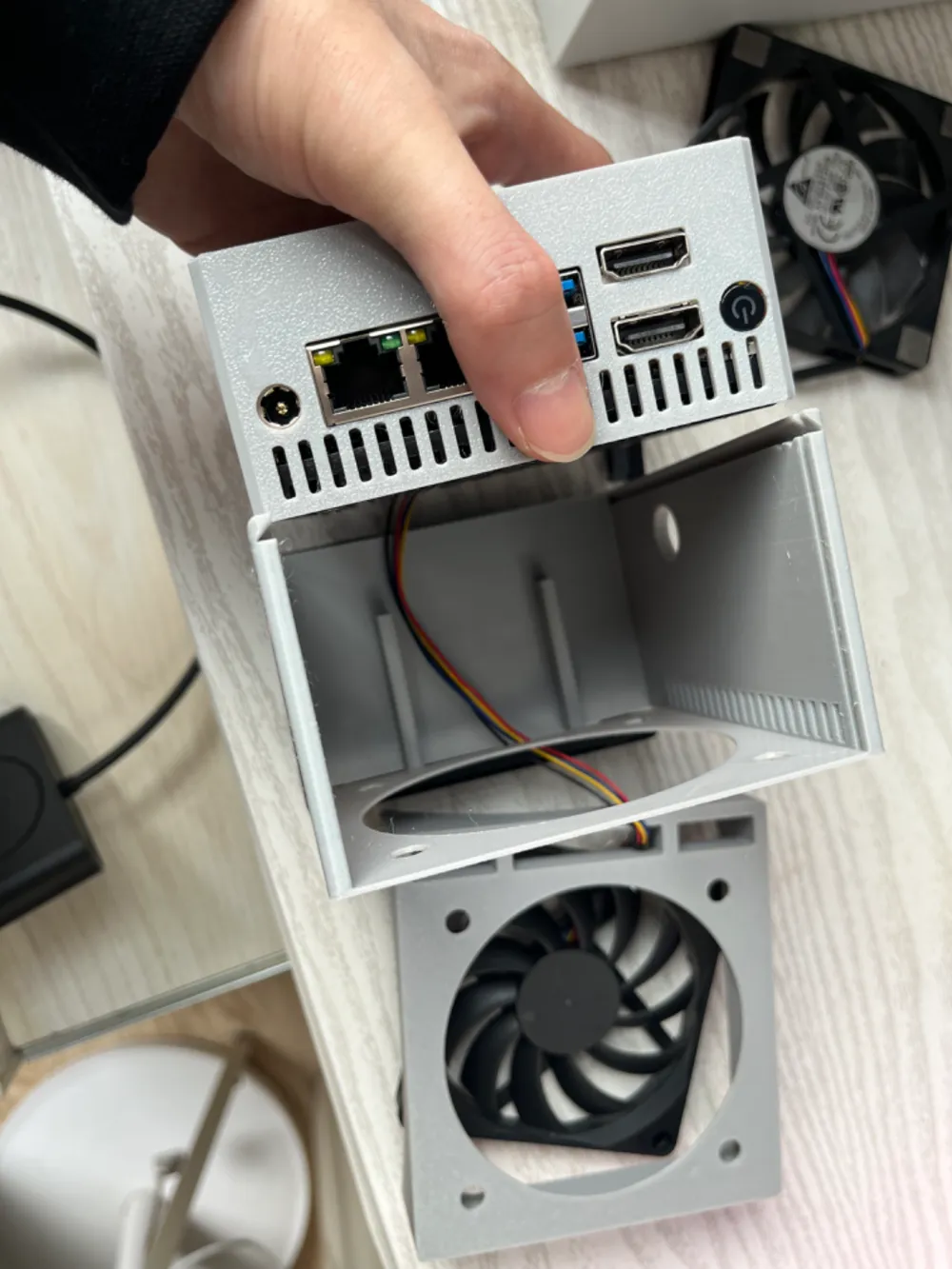

- Connect the fan power supplies to the motherboard first. Route the bottom fan's power cable through the chassis base.
- Install the motherboard and backplane into the chassis.

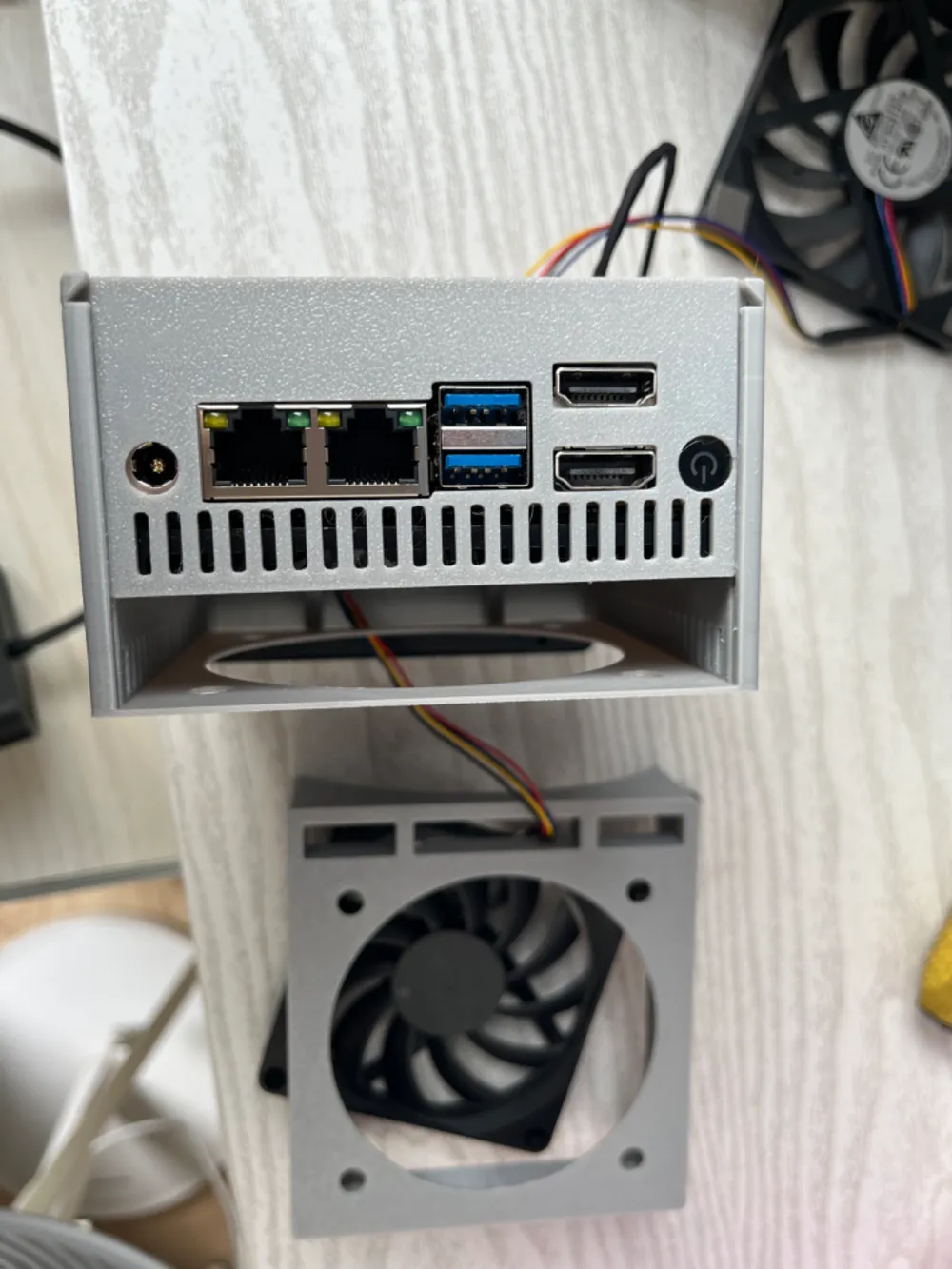

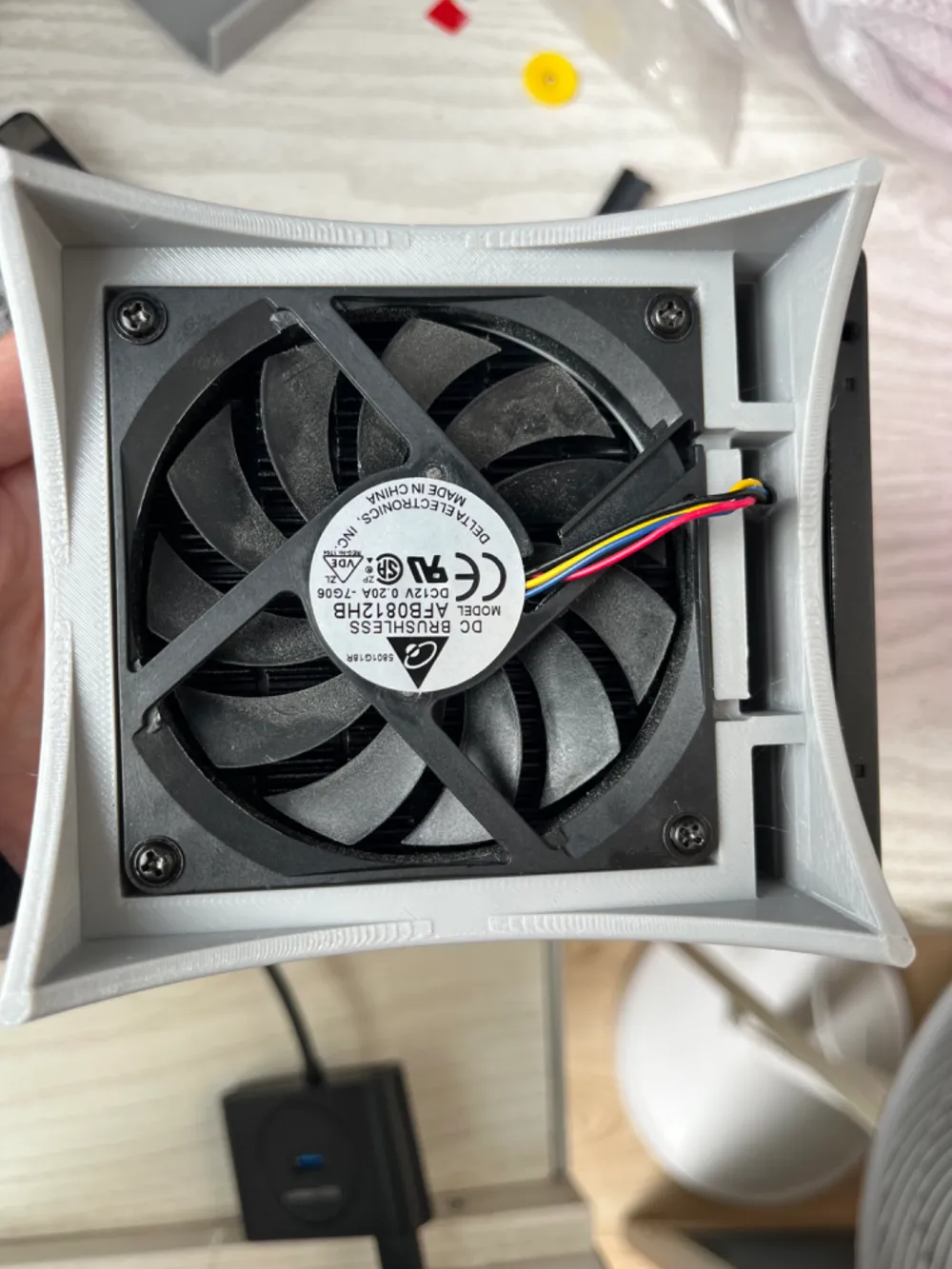

- Install the base cover and fan, securing with four screws. Screws are included.

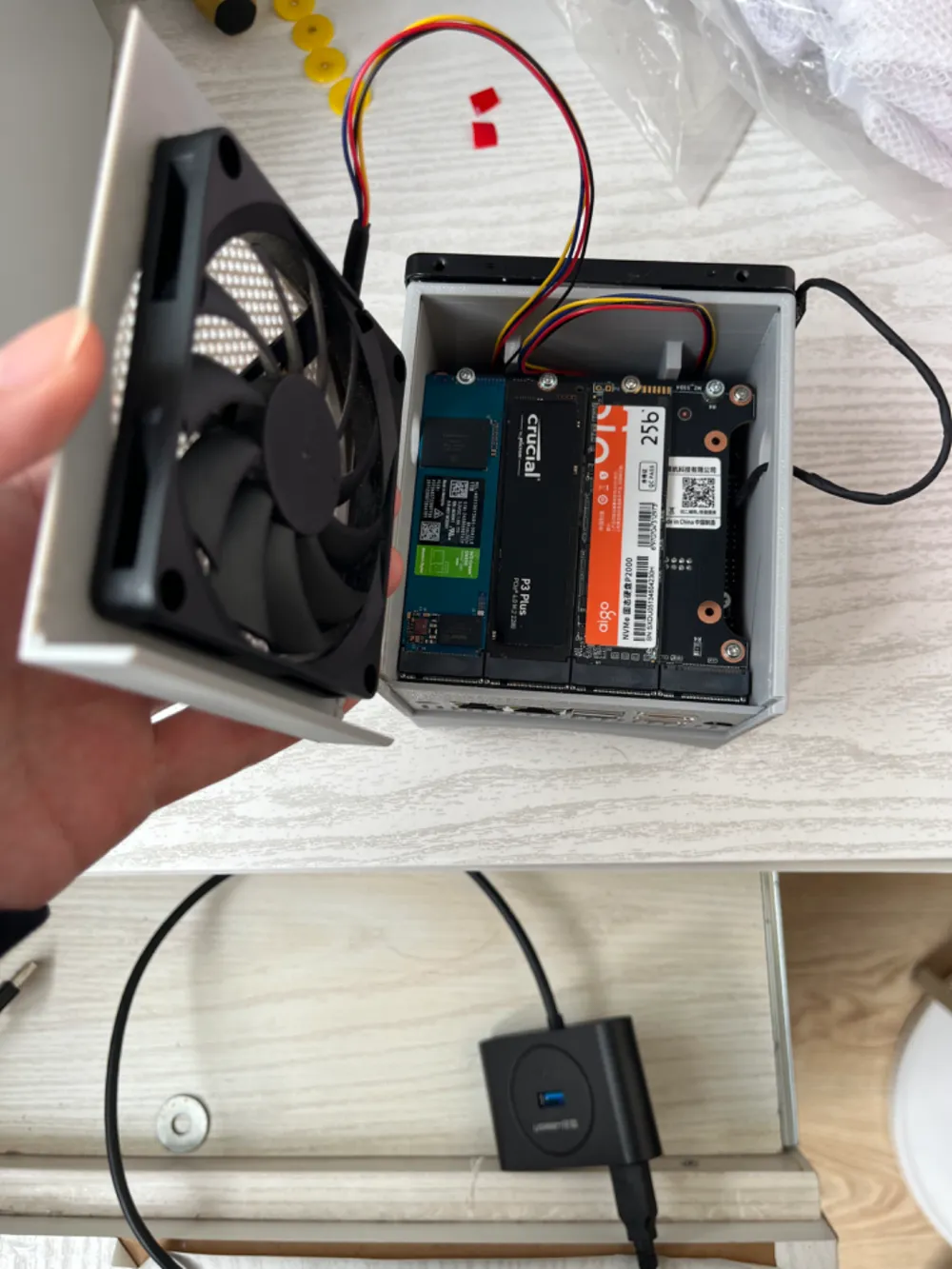

- Install the top cover and fan. The fan is directly adhered to the top cover using double-sided tape.
Leave a comment with any questions.

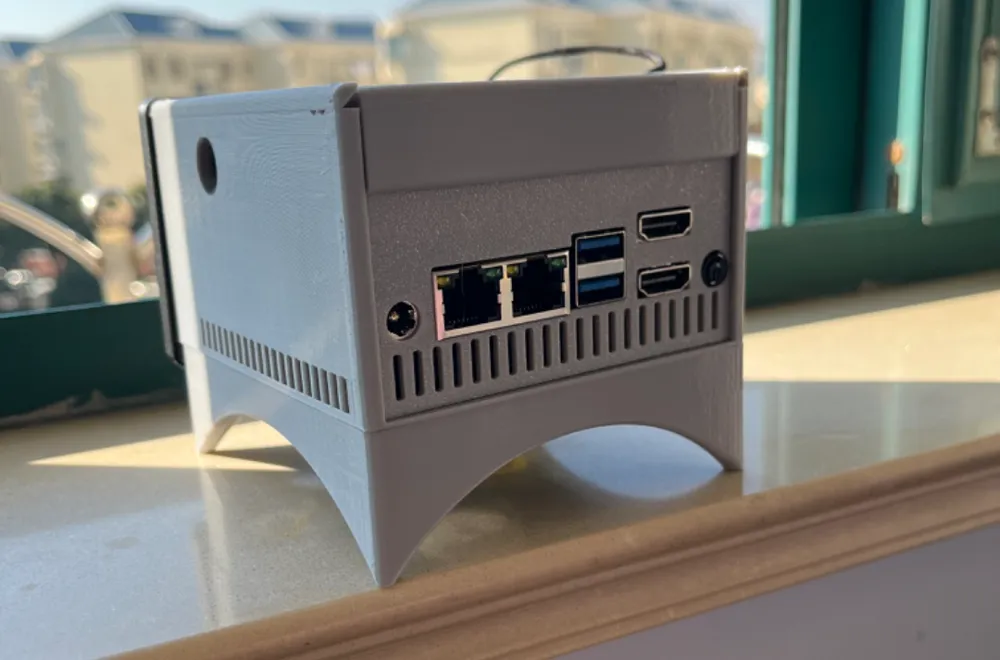

New optional base:
N100 Changwang mini chassis base from jianxuesheng2009 - Maker World
