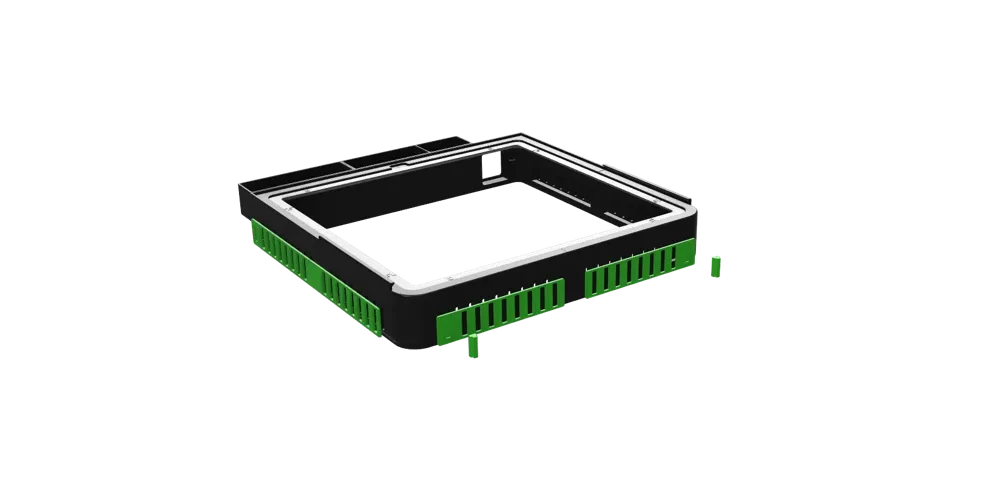

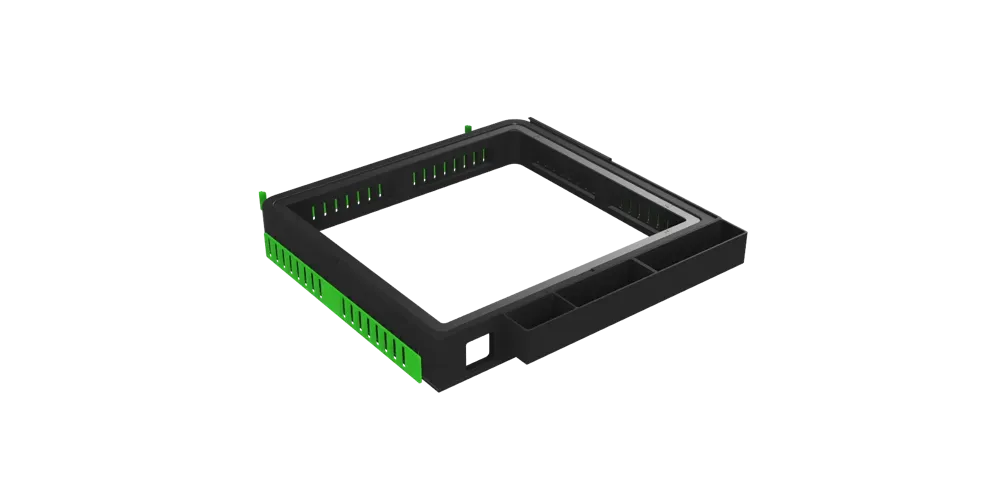

Bambu P1S riser with push-pull functionality, cooling knob switch, tool box, Xiaomi thermometer, and light strip bracket accessories
Print Profile(1)
Description
Boost Me (for free)
This is my first upload, and it took considerable time to create. Your support would be greatly appreciated.
After reviewing numerous riser designs without finding one to my liking, I decided to create my own—one with cooling vents, a sliding glass panel, space for a Xiaomi thermometer, LED strip accommodation, and tool storage. I am quite pleased with the result.
Installation video tutorial:
Important considerations:
1. Inserting the heat dissipation baffle into the main body may feel too shallow. This is because the baffle slot within the main body includes a small support. Forcefully insert the baffle to break the support before removing it.

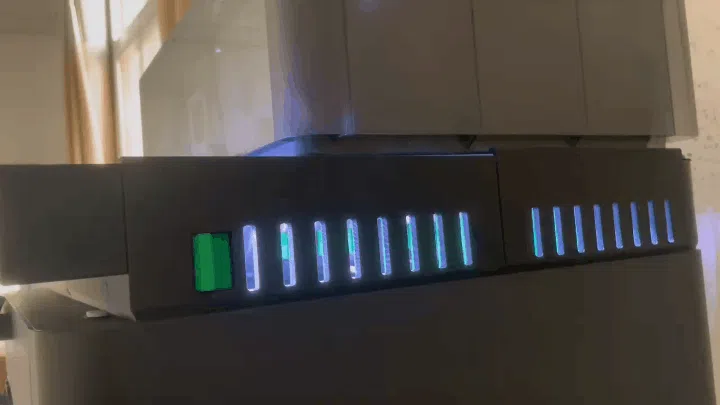

2. Secure the heat dissipation knob switch with adhesive within the switch slot to prevent it from falling out. The slot alone does not provide sufficient securement.
3. The sliding glass panel on top of the main frame may feel excessively smooth. I purchased self-adhesive felt online, cutting it to 1cm width and applying it to add friction and prevent scratches on the glass over time. This step is optional.
4. If the LED strip bracket does not align correctly after installation—one side being too long, the other too short—it is installed incorrectly. Swap the two components.
5. The LED strip has two different angled corners; ensure the correct corner is installed in each position.

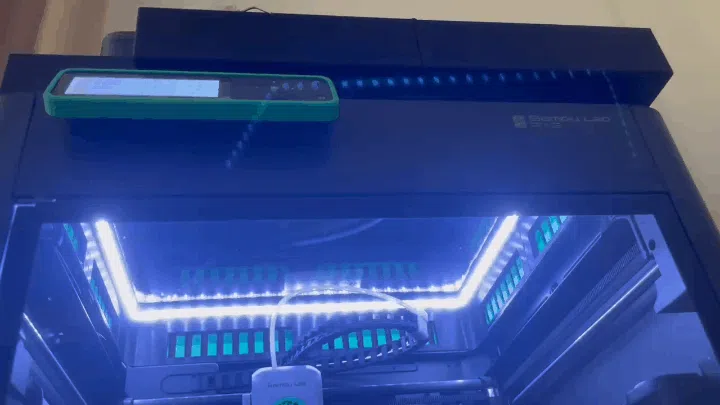

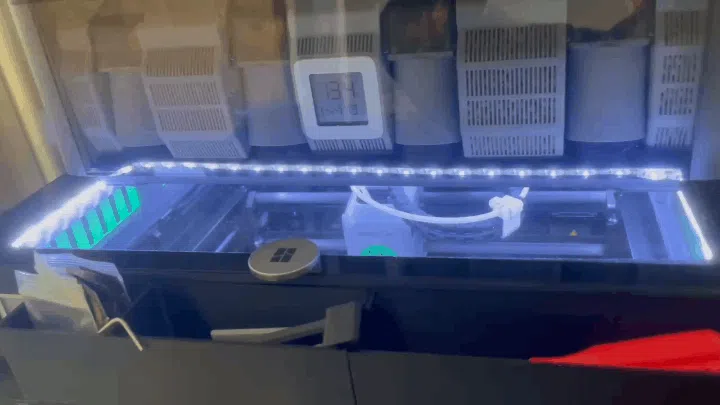

6. The LED strip is a 5V strip; the wires should be fed through the slot and connected to the LED strip's main board.
