Wheel for Air Compressor
Print Profile(1)
Description

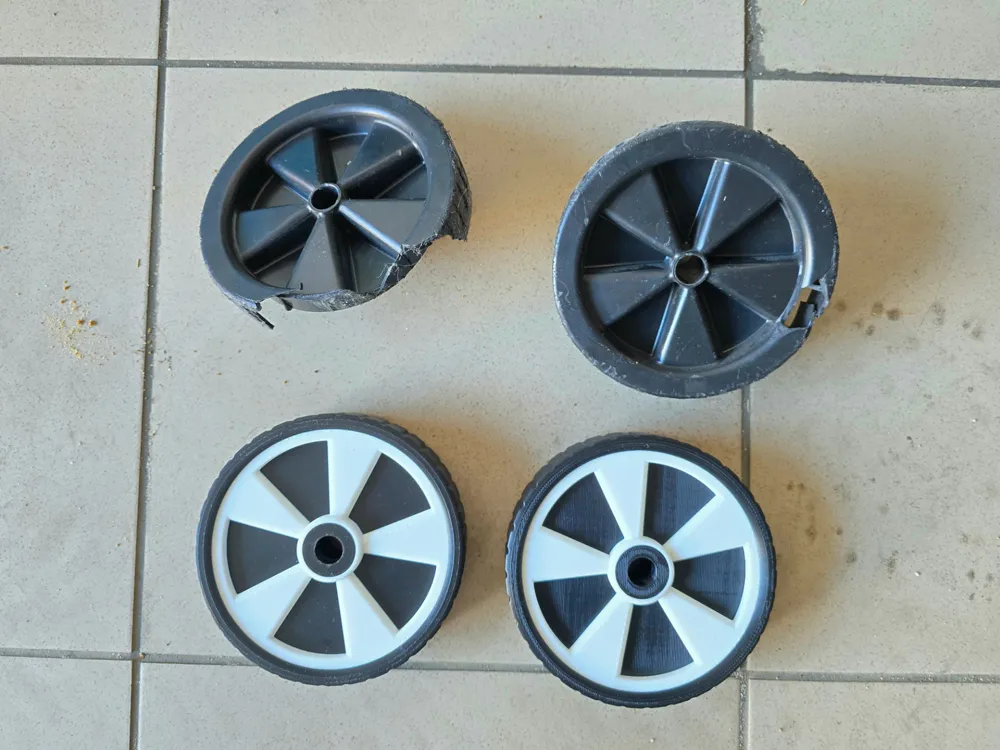

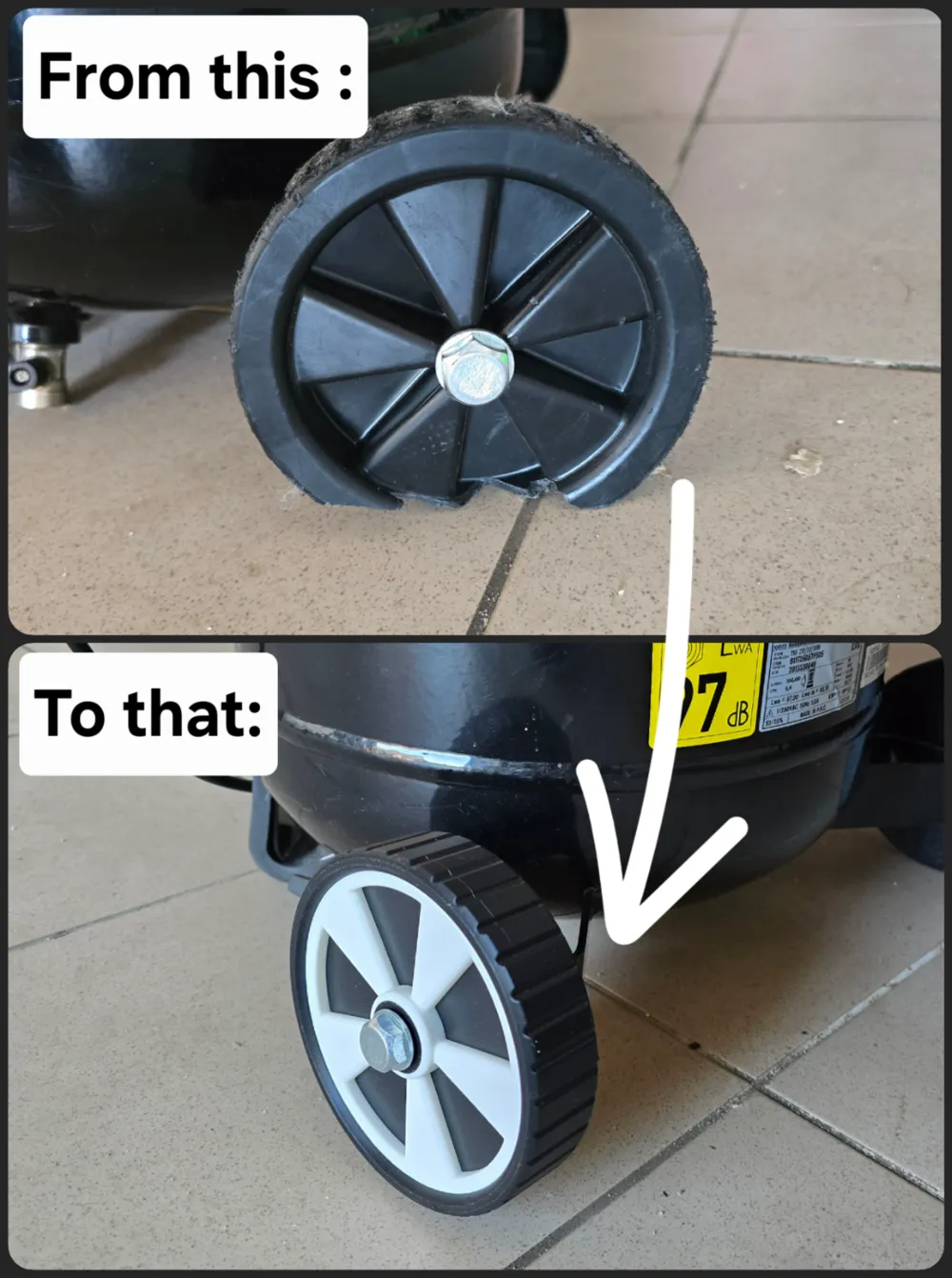

A robust wheel I designed for my Stanley air compressor. The original one broke easily while moving the compressor, so I had to create something more durable.

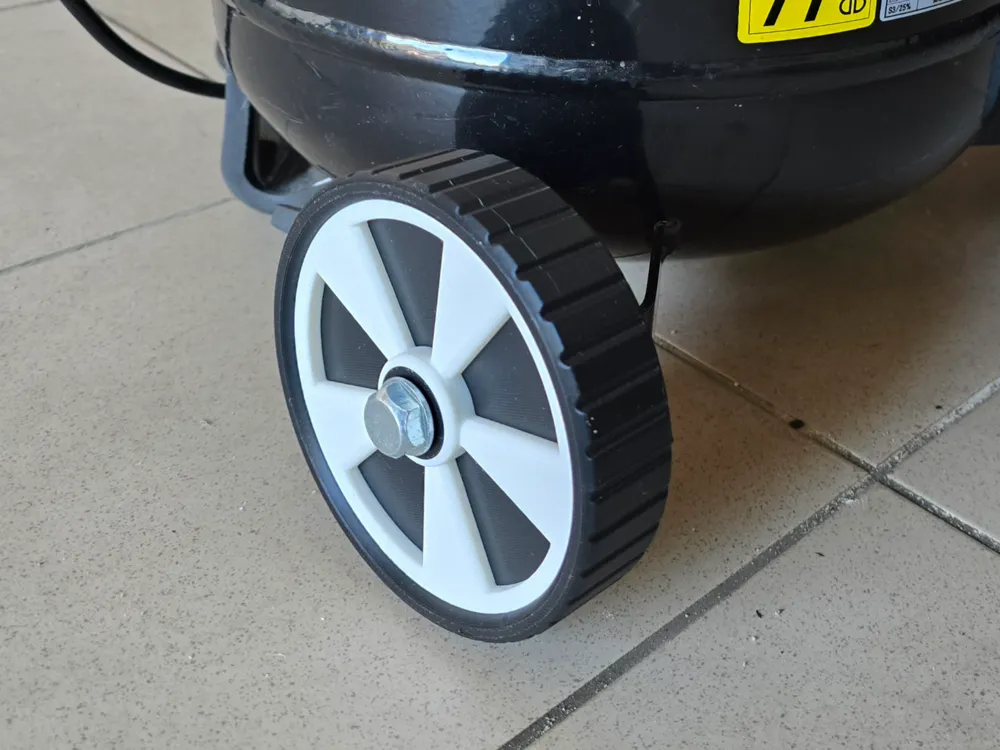

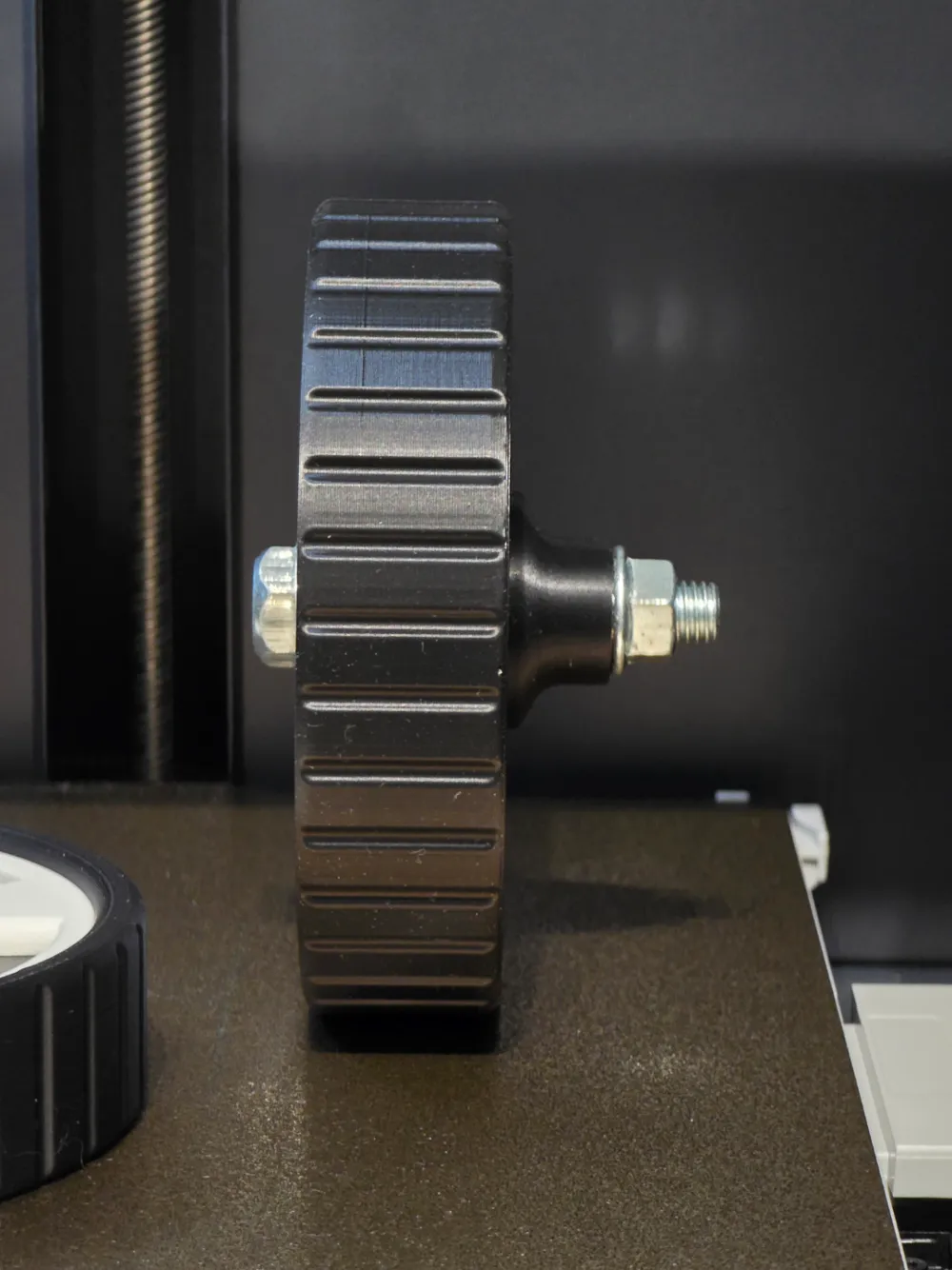

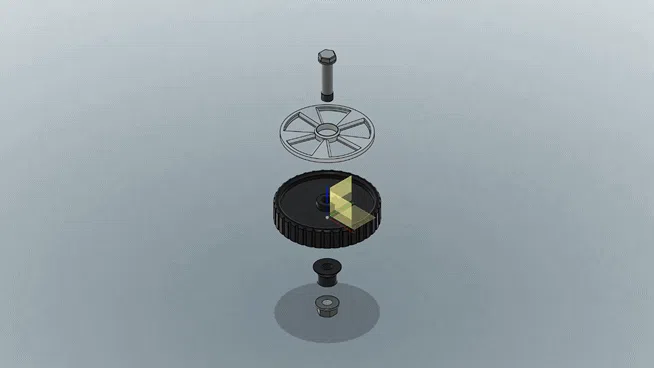

The wheel is 125mm in diameter and 30mm wide. Inner whole for bolt diameter is 13mm. A wheel cap is included for a nicer look, you just press this onto the wheel. I also designed a spacer to fit the wheel onto the original bolt (I didn’t want to make the wheel too wide). Additionally, with the spacer, I hope this wheel will meet the needs of more people.

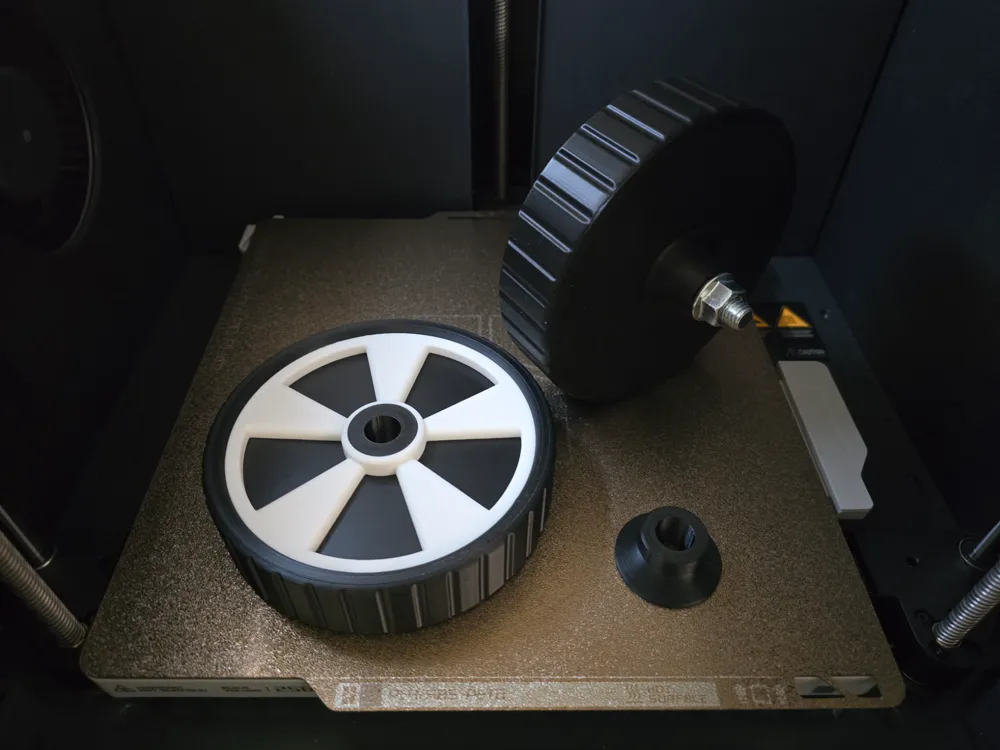

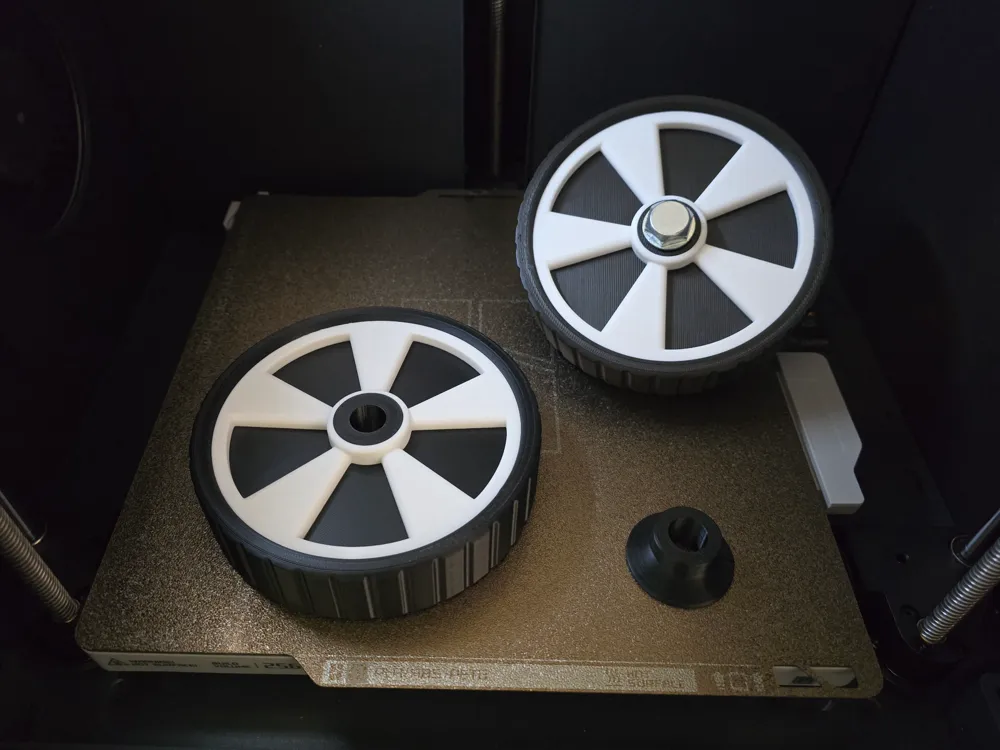

I made the wheel and spacer in PETG HF (8 outer walls, 20% gyroid infill), and the wheel cap in PLA Basic (3 outer walls, 10% gyroid infill).
