AMS Dry Pods Wide, Narrow, Hygro Trays & Funnel V3

                                Want to keep your AMS filaments safe and dry from humidity ???

For the AMS 2 pro check this model : https://makerworld.com/en/models/1261779-dry-pods-ams-2-pro-with-funnel#profileId-1286535

There are several models of these boxes,  but i think this is the most complete and best reinforced setup with 2 different funnels for filling the boxes and different versions to mount the hygrometer in the right orientation.

0,2 layer height rectilineair infill,

Complete setup for your AMS with almost 500 grams of silica…..

Profile is setup with a brim to make sure the pieces will stick to your plate.

Hygrometer used: Thlevel Digitale minithermometer en hygrometer met lcd-scherm, 3 stuks, meet temperatuur en luchtvochtigheid, voor koelkast, aquarium, -50°C~+70°C (3 stuks B) : Amazon.nl: Huisdierbenodigdheden on AMAZON for €10,99

Plate 1 :  has the 5 pods for the front of your ams, IF your hygrometer has different slots than the pod in plate 1 delete this pod in the left bar under the TAB objects and print the pod with different mounting slots from the second profile .

Plate 2 has:

•  2 containers for using silica beads in the bottom of your ams instead of the standard CACL2 bags from bambu. Also funnels for easy filling the pod's of plate 1.



• 4 feeder saver's that prevent wearing you're original feeders from filament rubbing

Plate 3 are  : the 4 feeders for the newer (after 08/23 ) AMS  with numbers for the slots.

the feeder buttons are for the newer AMS

For the used side pieces check my other model :   https://makerworld.com/en/models/206776#profileId-226905

30/01/2025 Added strips in rear side of the wide boxes for better printability and strenght , and changed to 0,2 layer height for faster printing.

6/3/25 added the newer style feeders and removed the caps for the buttons of the AMS.

26/11/25 reuploaded the seethrough pod..

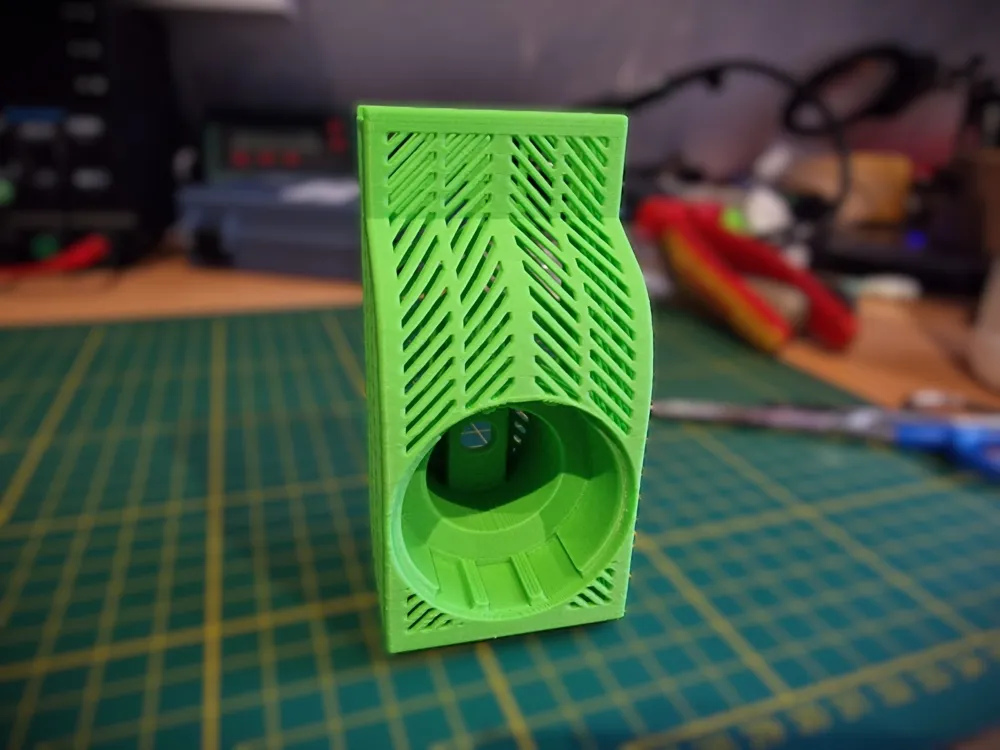

Check the 3rd profile for the SEETHROUGH hygrometer POD. if you prefer that box for measuring less silica humidity.
