RifRaf Terraforming Mars 3D Tiles BASE GAME

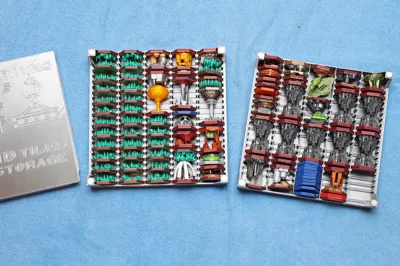

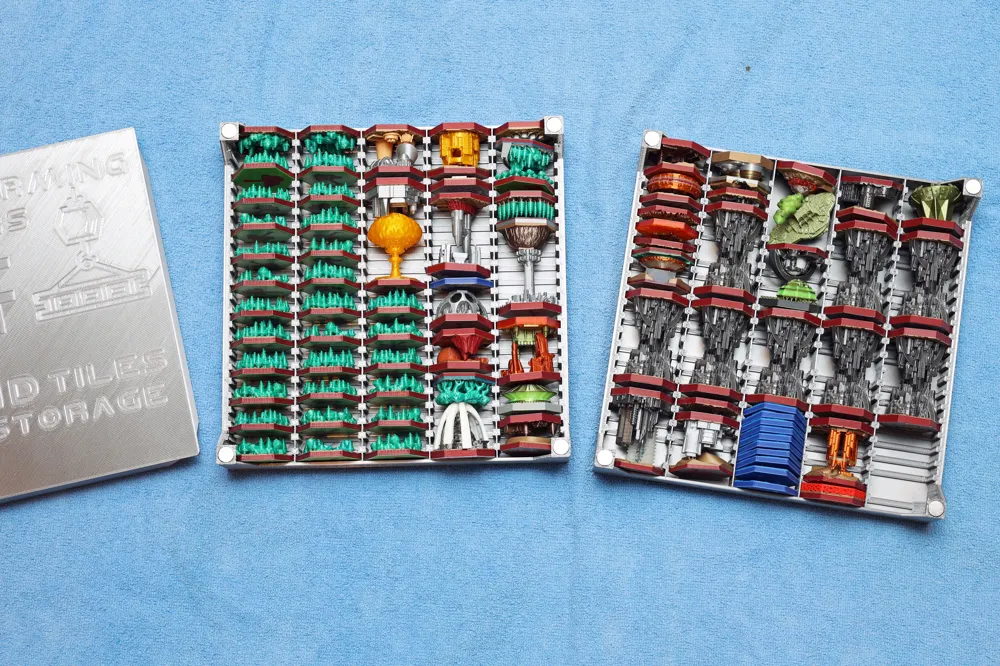

All the tiles for the expansions Including NEW Srtorage trays are also posted now, check my other posts.

Posted now (August of 2025) are the Automa, Prelude2, new trays and Promo expansions, see my other posts!

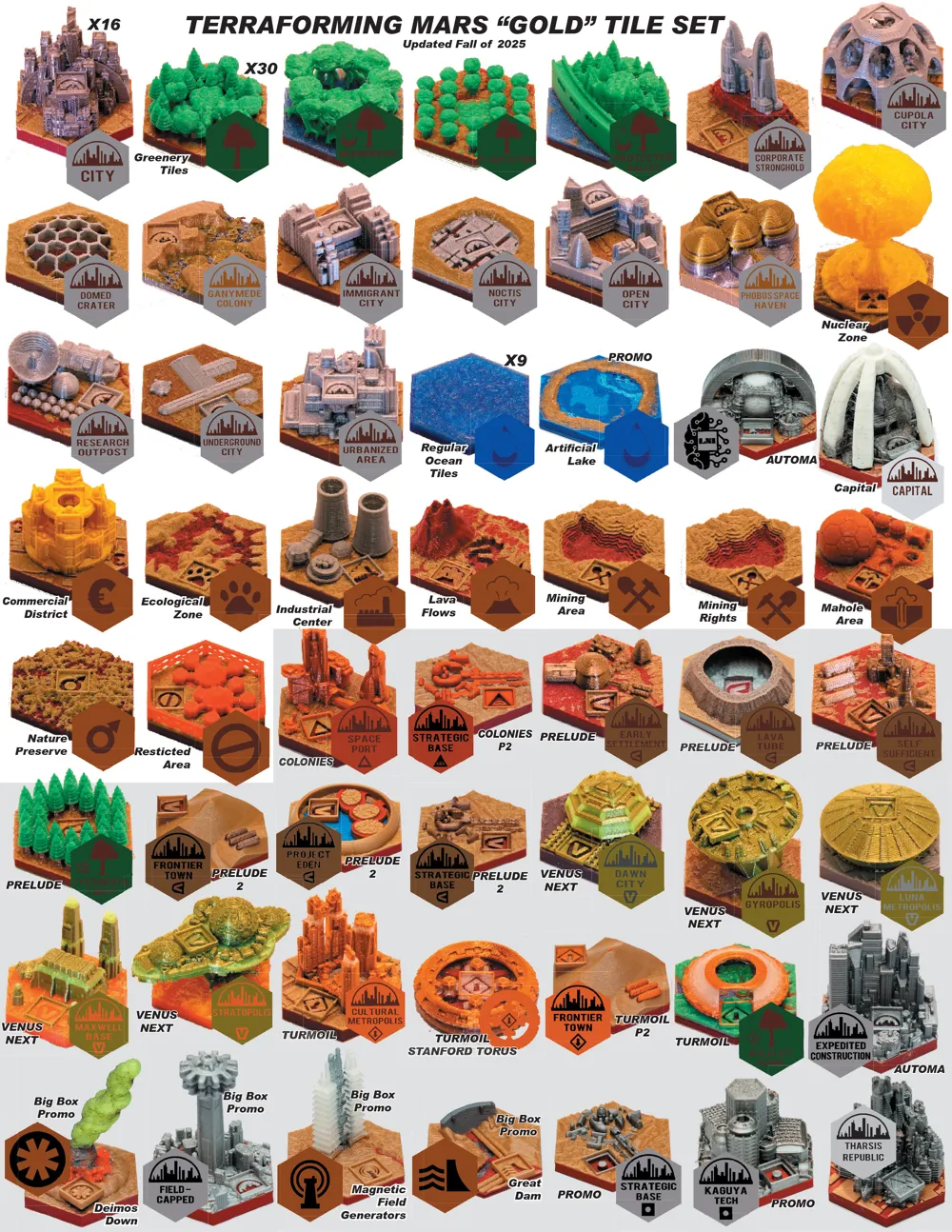

Be sure and download the last picture jpeg, it is the “cheat” sheet “Master tile page” for a reference to all the tiles.

If you like these, please give me a BOOST!… Thanks!

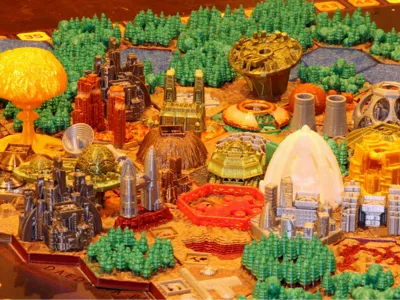

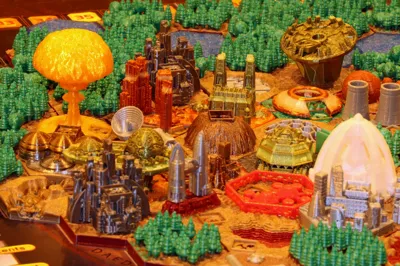

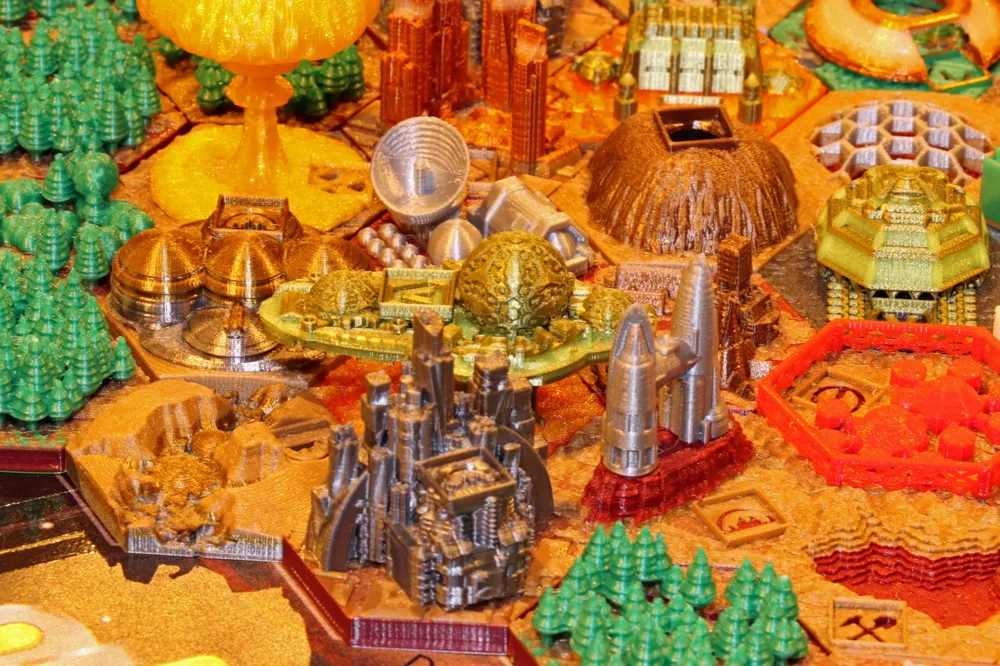

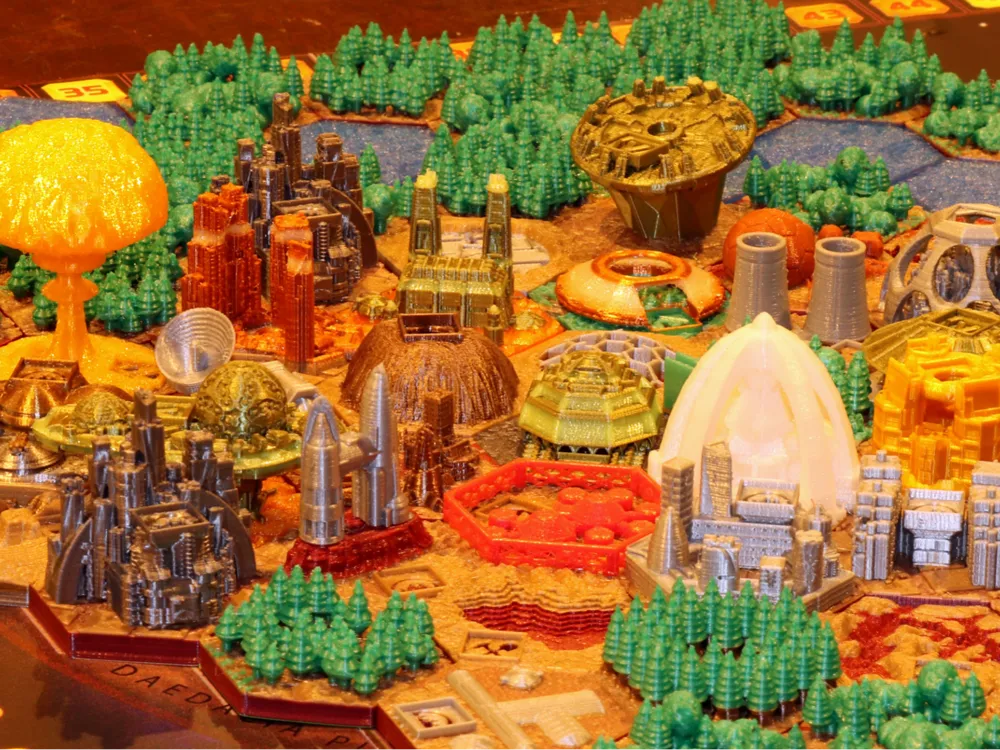

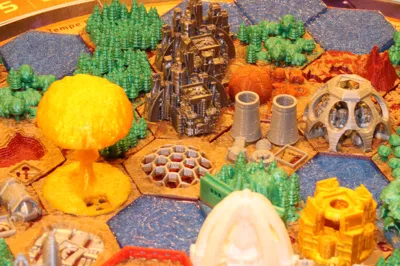

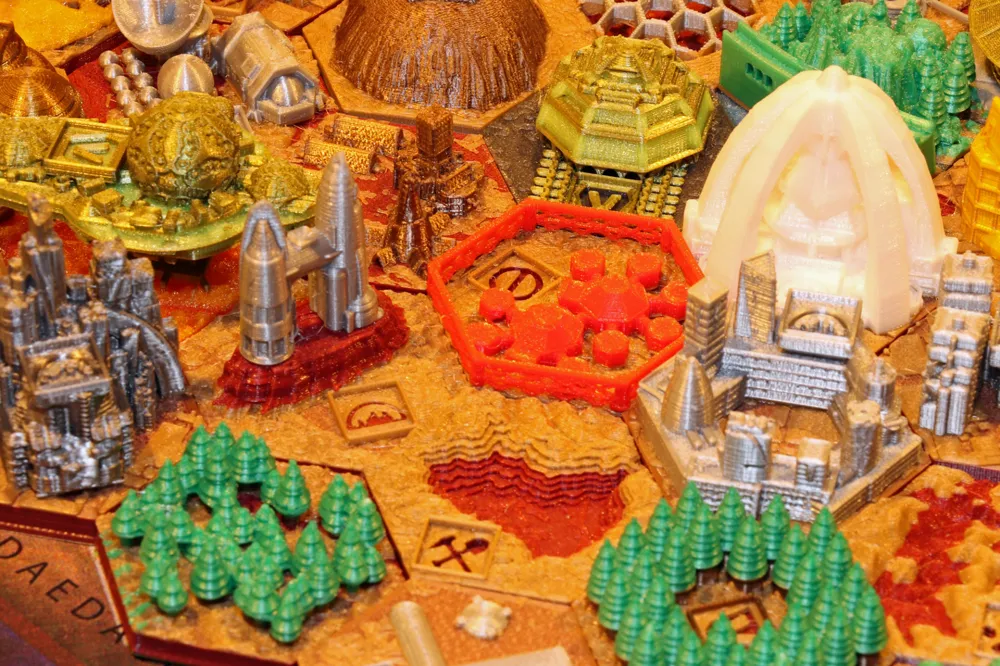

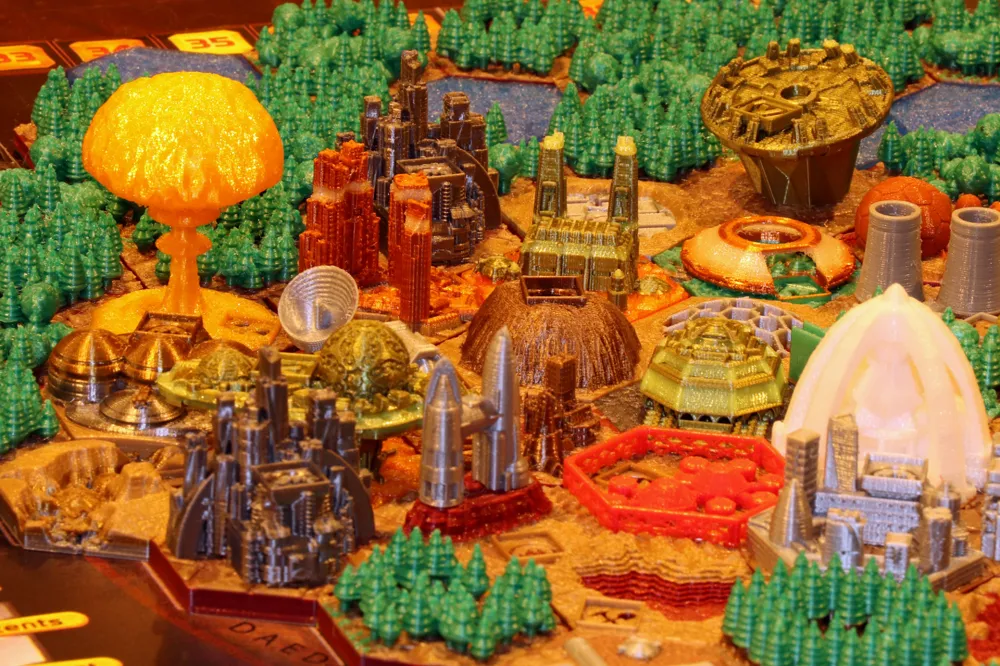

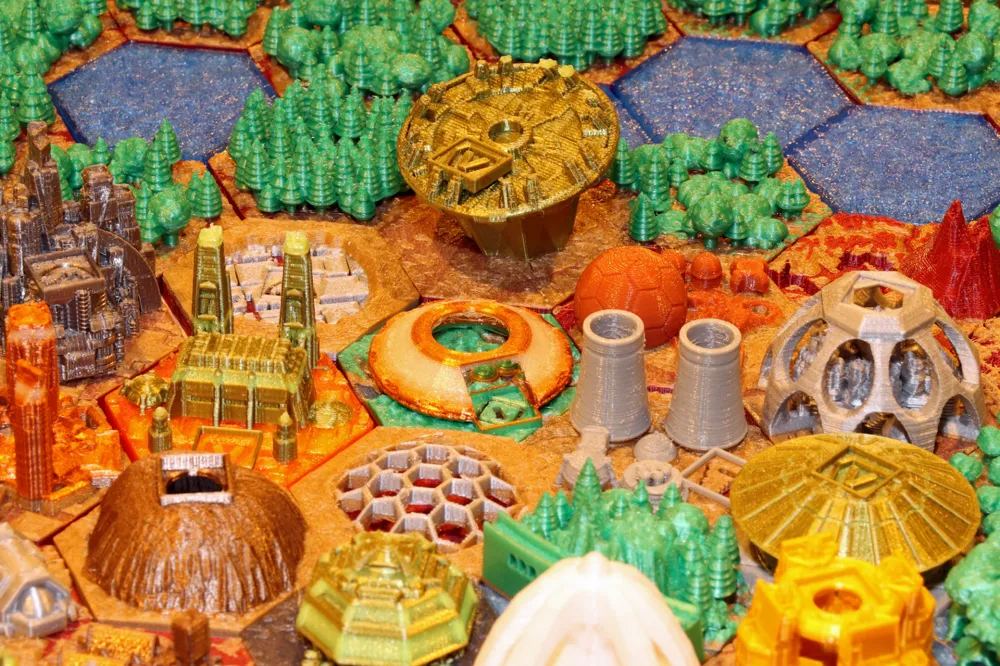

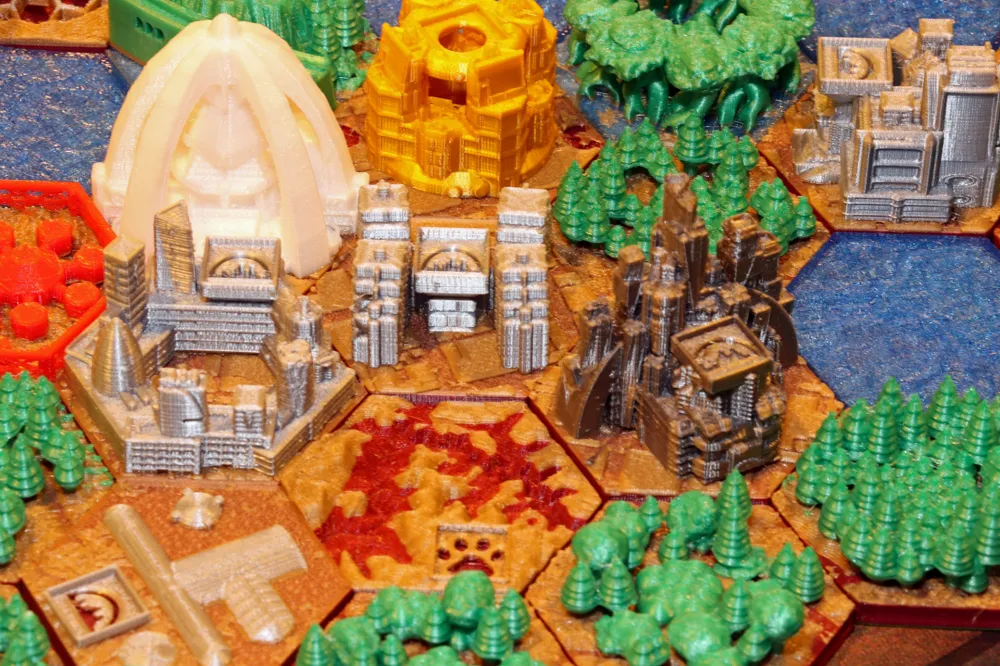

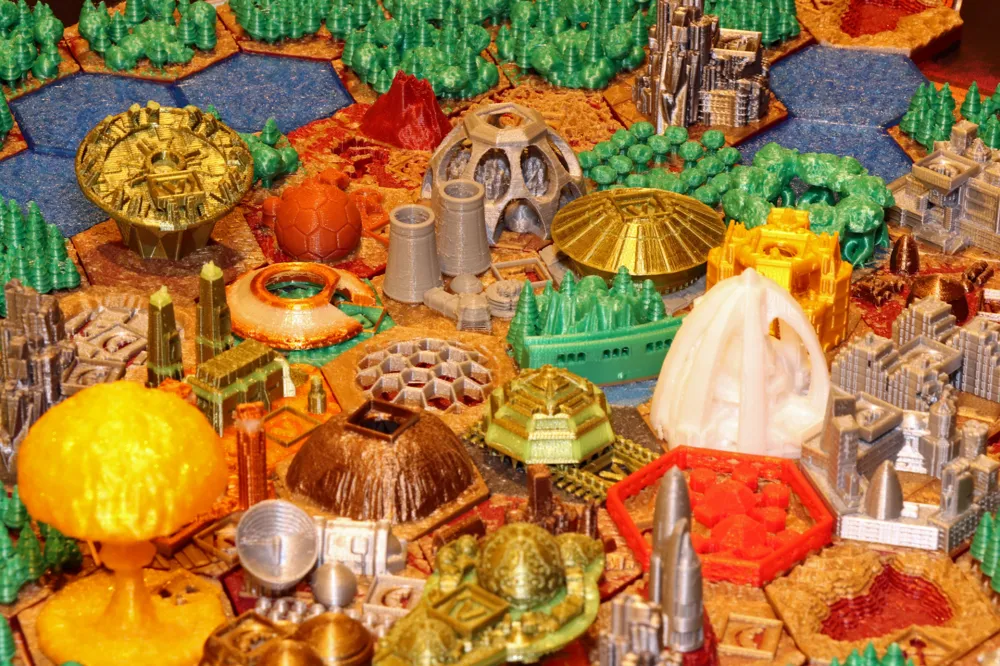

Here is my take on Terraforming Mars tiles. Printed on a single extrusion printer, done with multiple layer changes for each tile in many different colors of PLA. The only thing I had to paint was the silver on Noctis City, and Ganymede, and I highlighted the Nuclear and Lava tiles. It has the "cheater" inlay method of a quick color change after the first layer to get a nice inlay. Non Commercial means print away for your own or your friends use but don't be posting for sale on the internet, Thanks. Check out my other posts too!

Yes, all these tiles STILL printed on a single extrusion printer!

Yes, all the color is added by simple filament layer changes.

Check out my soon to be posted expansion tiles for all the expansions.

-I used over 20 different rolls of filament color,(yes, it costs me a small fortune!), all the “city” tiles are “metallic” in color (with the exception of Commercial District that is Gold), all the expansions (posted separately) have their own “metallic” color to distinguish them from each other. Note that Phobus Space Haven, Ganymede, Luna Metropolis, Dawn City, Stratopolis, and Maxwell Base are printed WITHOUT any red/brown base filament as all these tiles are not “Martian” and take place on moons and other planets.
You can make as many tiles as you want here's what I made that seems to work:

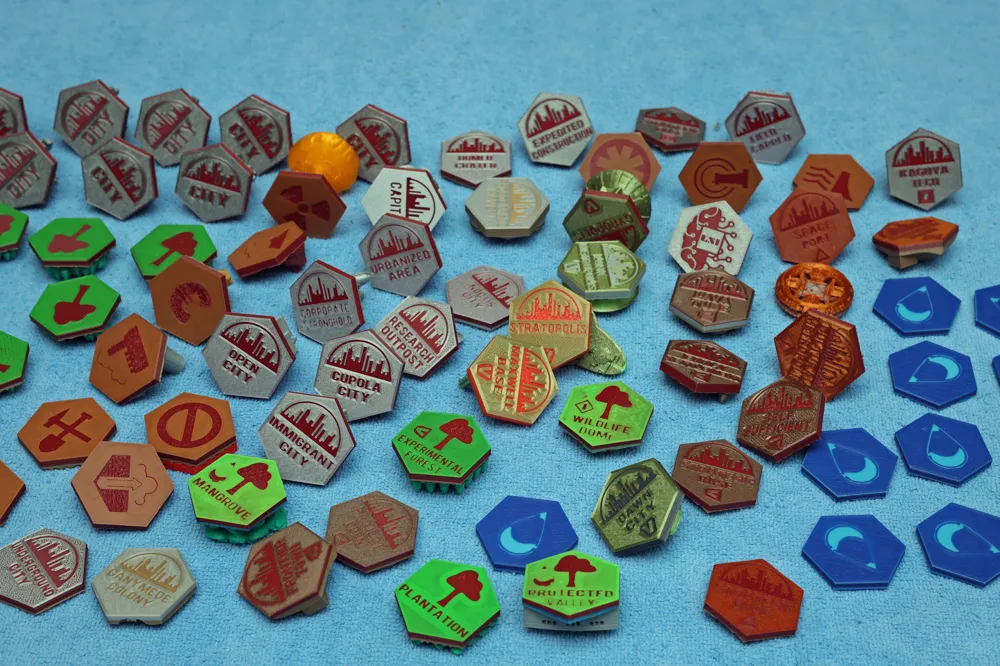

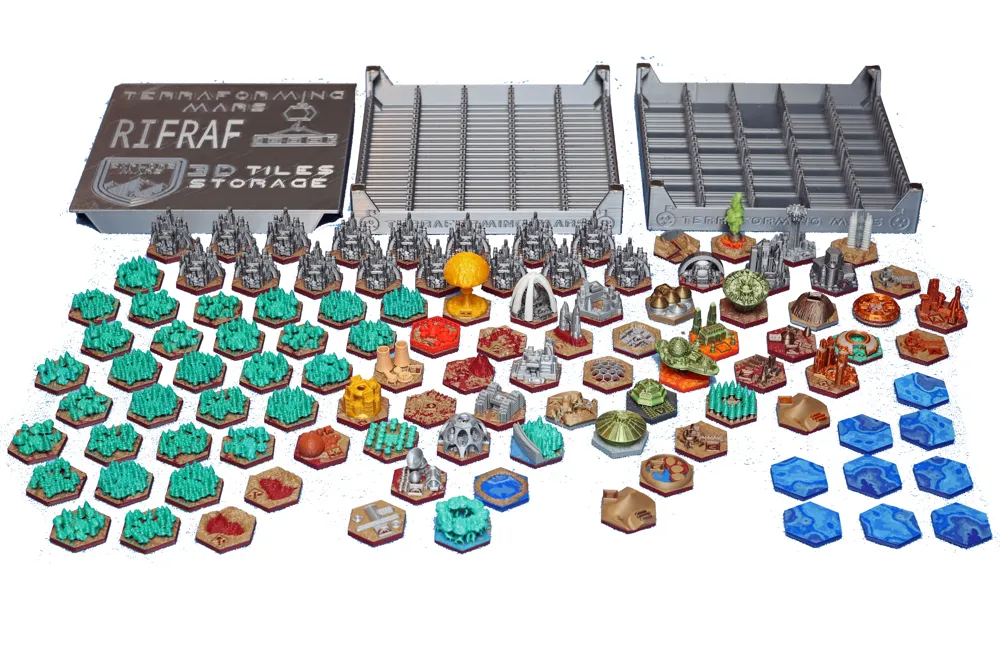

RifRaf TM tiles:
-30 Greenery Trees
-3 Bonus Greenery (Planation, Protected, Mangrove)
-16 TM Generic Cities
-11 Special Brown Card (includes Capital)
-11 Silver Cities
-9 Ocean tiles
80 Total RifRaf TM FULL BASE TILE SET

For All Tiles as they are in the pictures, .20 first layer .15mm layer heights, I used a .25mm nozzle.

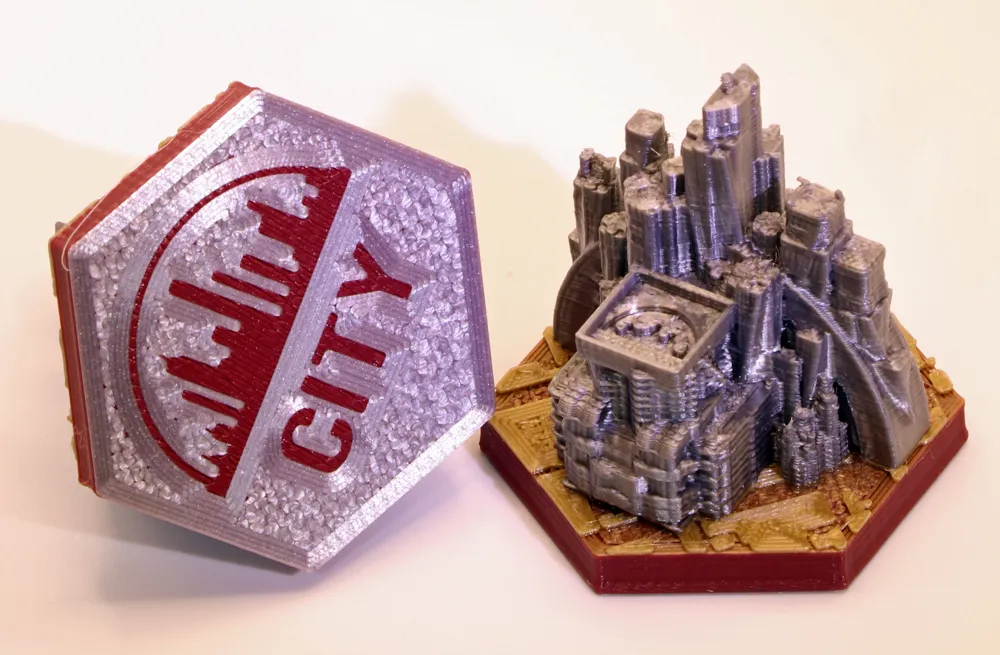

-Generic City .2 Silver, .35 Red/Brown, 4.55 Golden, 5.15 Silver
-Generic Tree+Plantation .2 Green, .35 Red/Brown, 3.65 Golden, 4.7 Light Green
-Ocean .2 Light Blue .35 Trans Blue. Or variations of Blue on the upper layers.

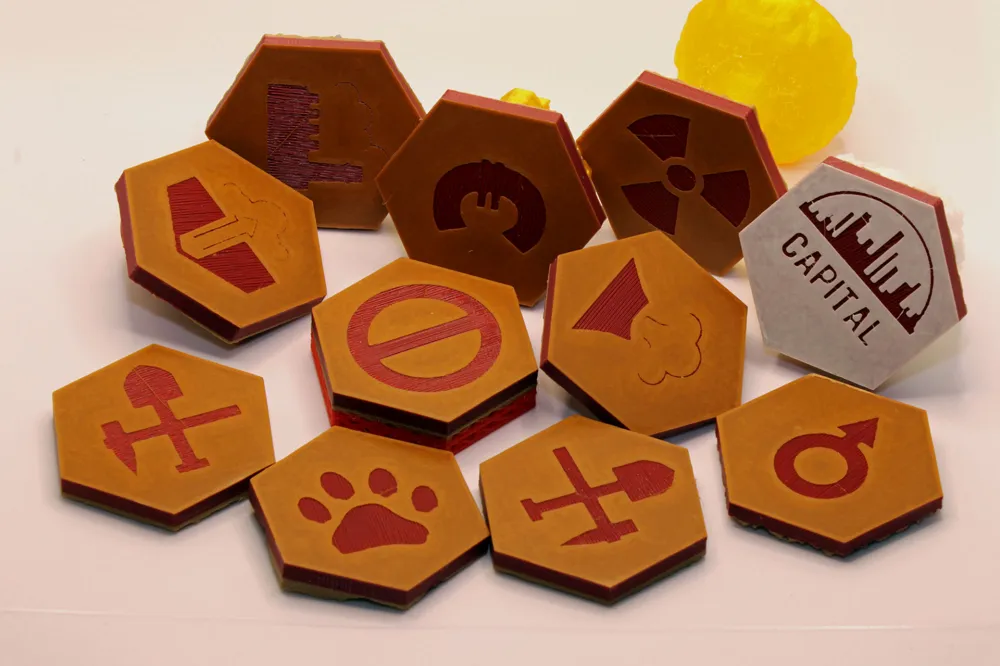

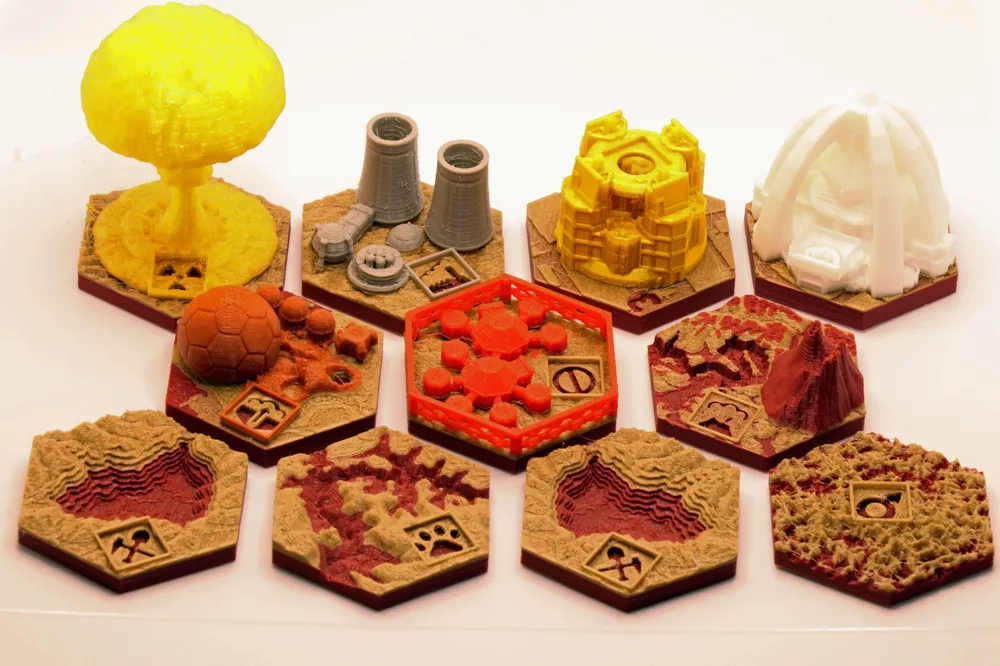

-Special Tiles: I used a Golden or Copper color for the main base tops
-Restricted Area .2 Brown, .35 Red/Brown, 3.35 Golden, 4.85 Red
-Nuclear Zone .2 Brown, .35 Red/Brown, 3.5 Golden, 4.85 Trans Orange
-Industrial Center .2 Brown, .35 Red/Brown, 3.35 Golden, 5.0 Grey
-Commercial District .2 Brown, .35 Red/Brown, 4.55 Golden, 5.15 Gold
-Mohole Area .2 Brown, .35 Red/Brown, 4.4 Golden, 5.6 Brown/Coffee
-Capital .2 Brown, .35 Red/Brown, 4.55 Golden, 5.15 Silk White
-Mining Rights .2 Brown, .35 Red/Brown, 3.5 Golden
-Mining Area .2 Brown, .35 Red/Brown, 3.5 Golden
-Ecological Zone .2 Brown, .35 Red/Brown, 3.5 Golden
-Natural Preserve .2 Brown, .35 Red/Brown, 3.5 Golden
-Lava Flows .2 Brown, .35 Red/Brown, 3.8 Gloden, 4.4 Red/Brown

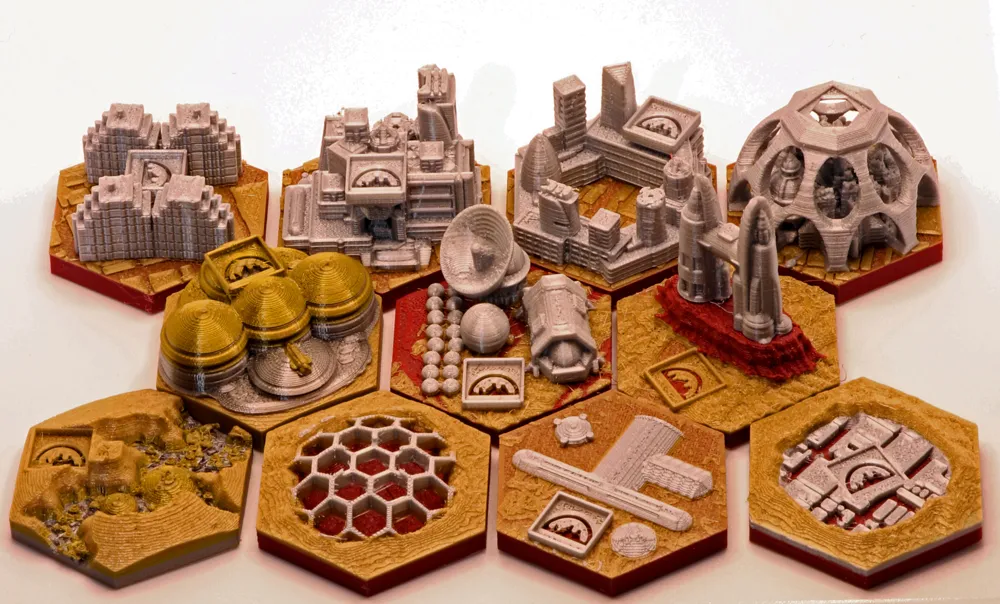

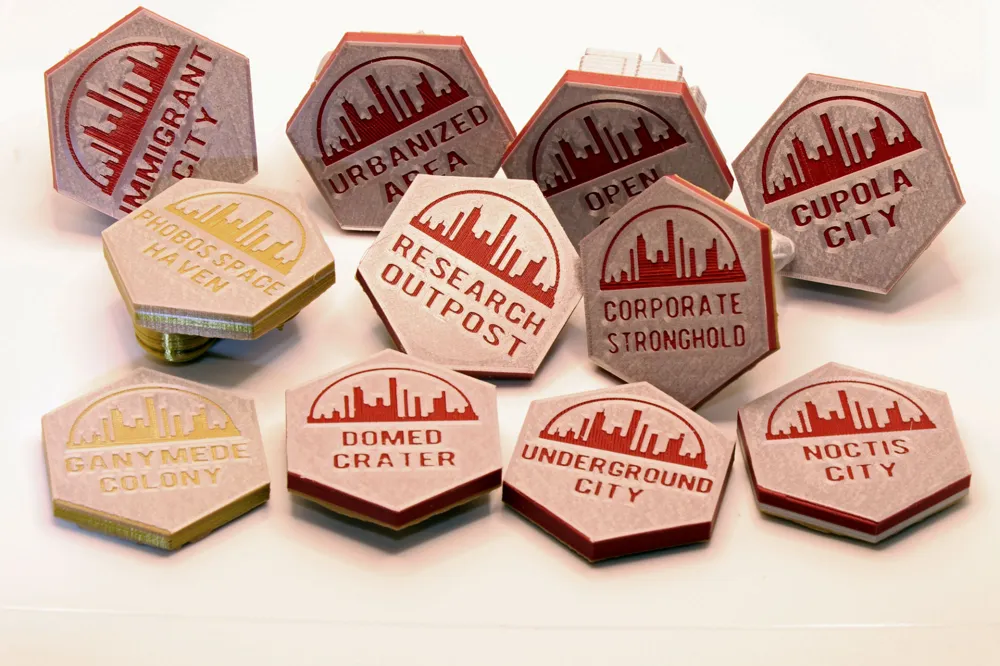

Special City Tiles from Cards:
-Open City .2 Silver, .35 Red/Brown, 4.55 Golden, 5.15 Silver
-Corporate Stronghold .2 Silver, .35 Red/Brown, 3.35 Golden, 4.85 Red/Brown, 9.9 Silver
-Urbanized Area .2 Silver, .35 Red/Brown, 4.55 Golden, 5.15 Silver
-Immigrant City .2 Silver, .35 Red/Brown, 4.55 Golden, 5.15 Silver
-Cupola City .2 Silver, .35 Red/Brown, 4.55 Golden, 5.15 Silver
-Research Outpost .2 Silver, .35 Red/Brown, 3.65 Golden, 5.0 Silver
-Underground City .2 Silver, .35 Red/Brown, 3.65 Golden, 5.0 Silver
-Phobos Space Haven .2 Silver, .35 Red/Brown, 6.05 Silver, 10.4 Antique Gold, 13.25 Silver, 13.55 Antique Gold
-Noctis City .2 Silver, .35 Red/Brown, 3.2 Silver, 4.7 Golden
-Domed Crater .2 Silver, .35 Red/Brown, 3.8 Golden, 6.05 Silver
-Ganymede Colony .2 Silver, .35 Golden, .65 Silver, 2.6 Antique Gold, 4.1 Golden
