Logitech C270 Wall Mount
Print Profile(1)
Description
This is a mount for the Logitech C270 webcam that allows you to mount it to a wall. The camera can be easily rotated in excess of 180 degrees. Aside from the screws needed to fix it to a wall no other hardware is needed. The holes for the screws are 5mm wide.

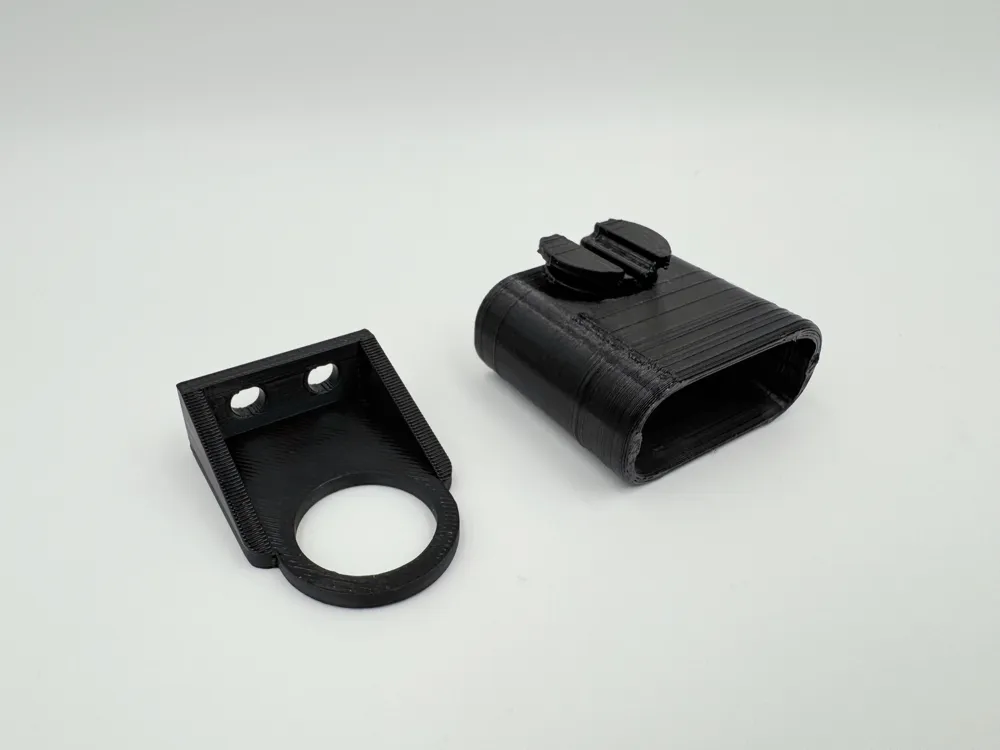

There are two parts, the solid part that is screwed to the wall which is intended to be printed in something solid like PLA, PETG or whatever.
The part that connects to the camera is designed to be printed with TPU 95A or softer as the case has to flex a little to push-fit the camera into the mount. It will not fall out and as it is a very good fit, it will not work with harder plastics.

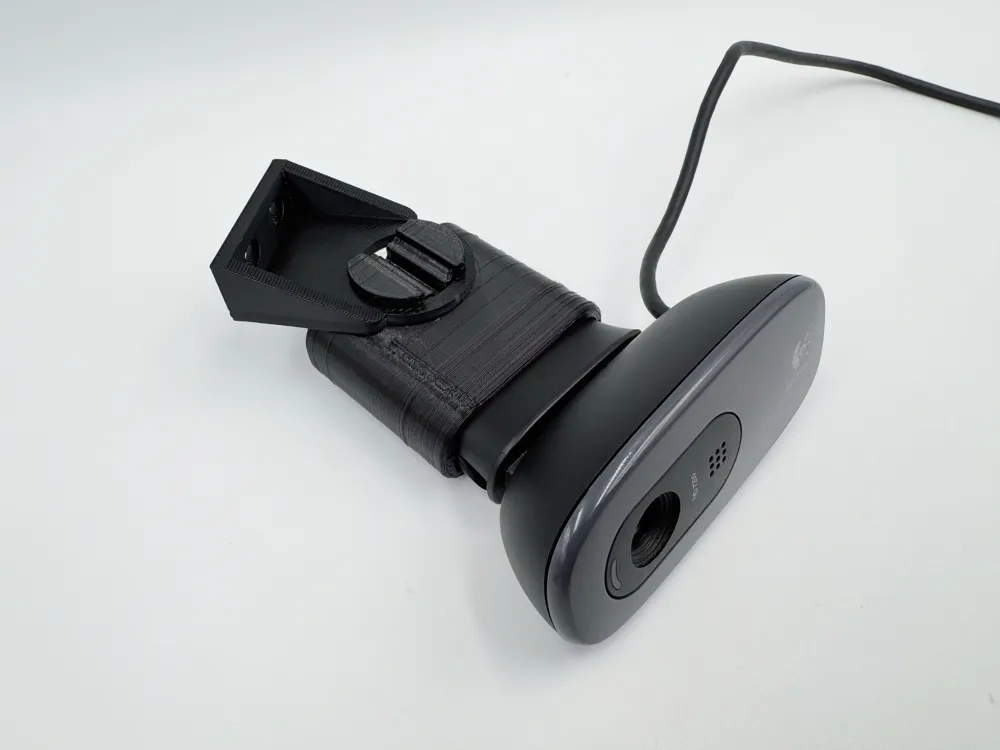

The two separate model parts are easily connected by hooking the camera mount into the hole and rotating it to snap into place.
This was made by scanning the mount point of the C270 and reverse engineering it in ExModel, after which it was imported into CAD and cleaned up a little and used to produce a generic mount.
If you find this model useful please consider joining my club on Printables, if only for a month. Boosts are also welcome. Thank you!
