Astro MixAmp Support

Key Features:

1. Precise Compatibility

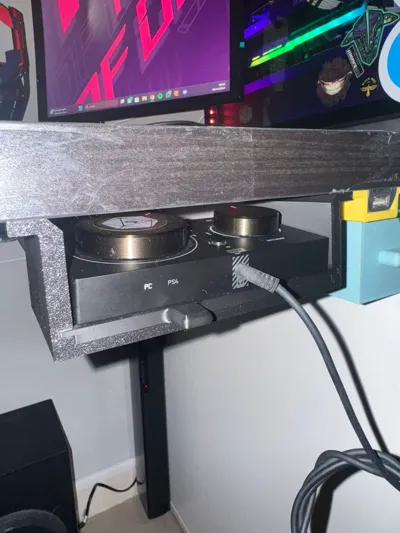

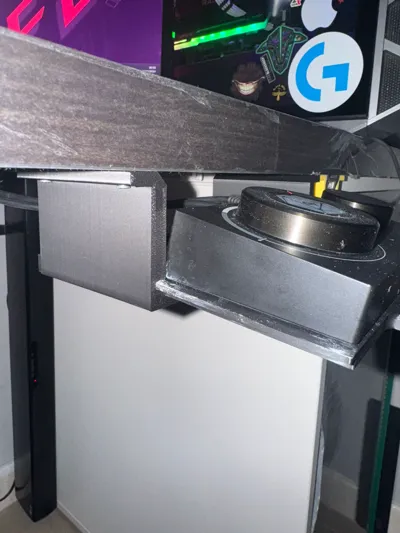

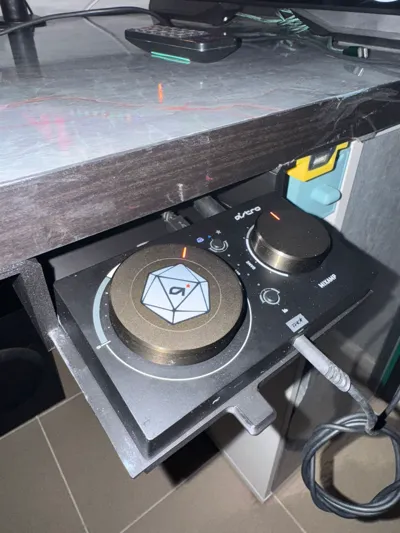

   Custom-designed for the Astro MixAmp (Gen 4), the mount incorporates a sliding drawer providing effortless access to the device without complex removal.
2. Drawer Locking System
   The drawer features a latch, which is adhered in place to prevent accidental dislodgement from the rear guide. Once correctly assembled, the drawer remains stable in both open and closed positions.
3. Customizable Mounting Holes
   The mount base includes pre-drilled 3mm diameter holes for under-desk attachment. However, these can be enlarged if necessary using a screwdriver and a plastic bit (maximum 4mm diameter).

Assembly Instructions:

1. Drawer Insertion
   Before installation, insert the drawer from the rear into the mount's guide and ensure smooth operation. This must be done before adhering the latch, as it becomes irremovable once fixed.
2. Latch Attachment
   • Once the drawer is inserted, slide it to its furthest extent.

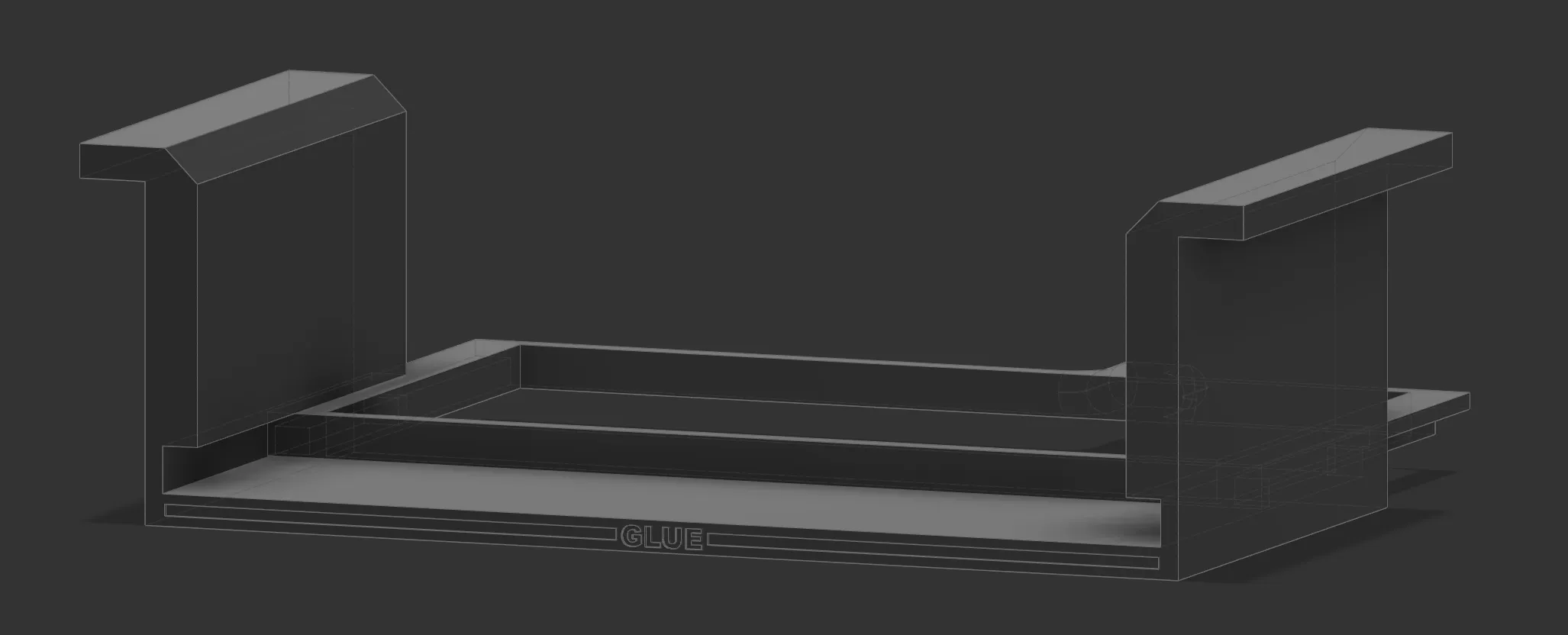

   • Apply a small amount of adhesive (preferably cyanoacrylate glue, such as Attack) as indicated in the illustrated guide, marked “GLUE” and accompanying guidelines. (SEE IMAGE).



     1.





     2.





   • Allow the adhesive to cure completely before proceeding. This step is crucial to prevent the drawer from dislodging from the rear when closed.
3. Securing the Mount to the Desk
   Once the drawer and latch are correctly fitted and the adhesive has cured:
   • Verify smooth drawer operation.

• Position the mount in the desired location under the desk.



• Secure it using screws compatible with the 3mm holes. If necessary, enlarge the holes using a screwdriver and a plastic bit (maximum 4mm) to accommodate available screws.


  ***THIS PROJECT IS STILL UNDER DEVELOPMENT***
