Breadboard Power Station for Electronics
This is my Electronics Development Station

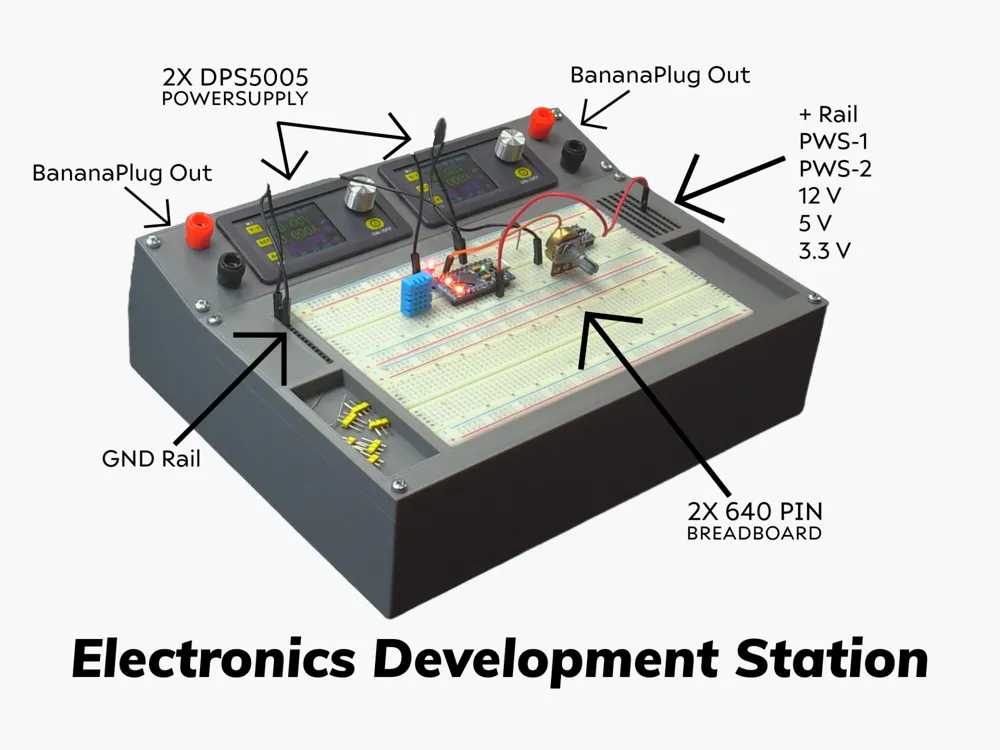

It's a breadboard unit that houses 2x 640-pin breadboard, including 5x Power Supply for all your electronics needs
It has:
- 3.3 Volt rail
- 5.0 Volt rail
- 12.0 Volt rail
- 2x self-selectable rail (DPS5005 Power Supply with voltage and current setting)
- GND-rail
With 1280 Pins for your components, there is more than enough space for your all your electronics components.
Bill of Materials
- 1x Mean Well LRS-350-24 PSU
- 2x DPS5005 PSU (with BT and USB if needed)
- 3x LM2596 Buck Converter
- 6x Female header pins (strip)
- 4x Banana type sockets (2x Black - 2x Red)
- European Mains Power Socket WITH fuse
- 8x Screw M3 x 25
- 8x Brass Heat Insert Nut M3
- Some wires in different colors to connect everything (colors depending per country)
For the calibration of the LM2596 Buck Converters you will need a trustworthy Volt Meter.
