DNA 75C 21700 Squonker mod

Hello,

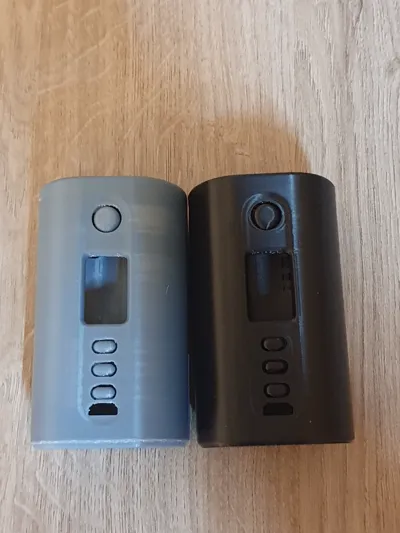

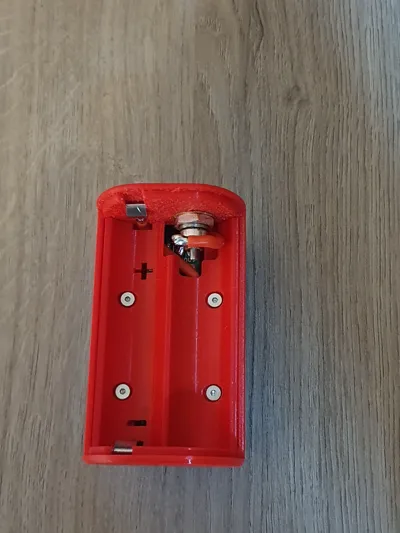

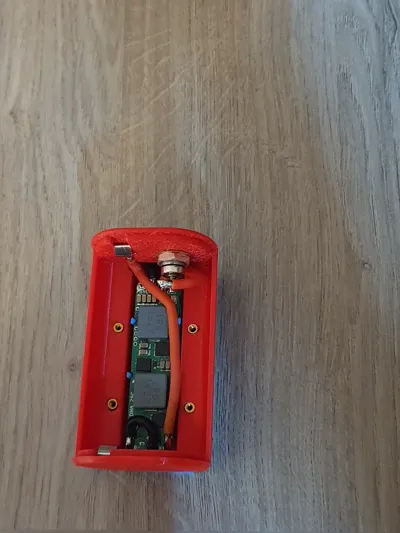

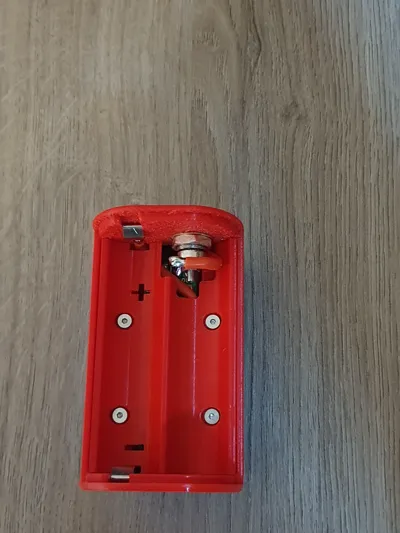

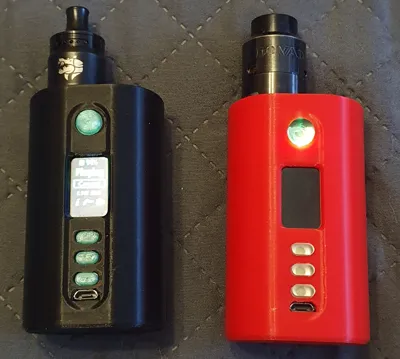

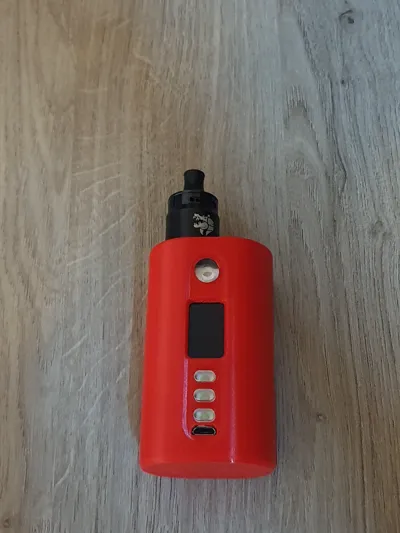

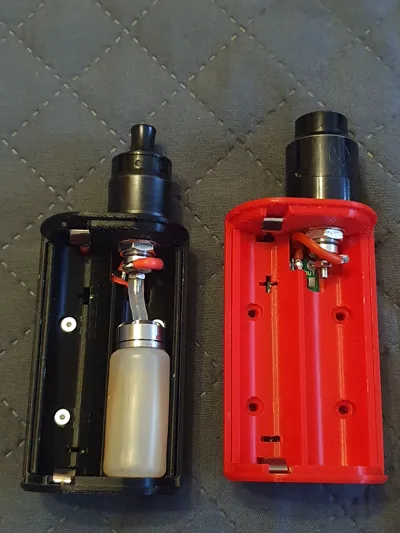

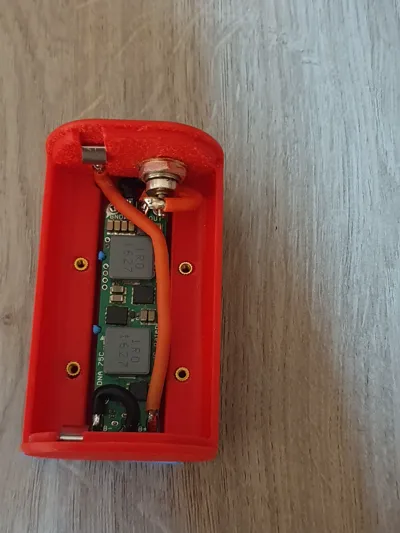

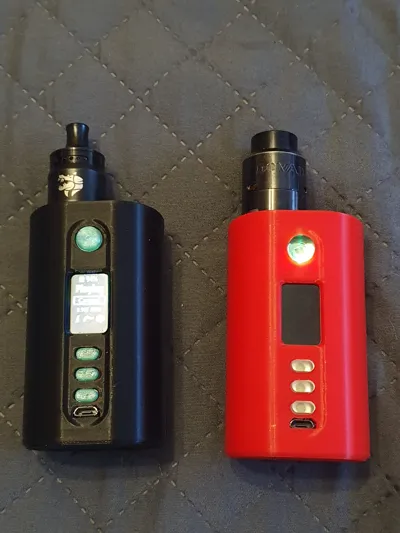

This is a DNA 75C 21700 squonker mod. The measurements for this design were inspired by the Evolv DNA 75C 2x700 squonker (the cradle was imported from here), and the entire design was created using Fusion 360.

This mod is compatible with the actuators that came with the board. While you can print the mod with the included actuators, I’m not entirely satisfied with the resulting quality.

Please feel free to reach out if you would like to suggest any minor changes to the design. Your feedback is greatly appreciated.

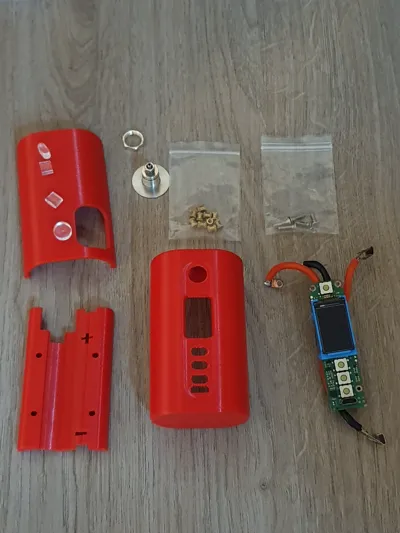

Needed parts:

MM510 V2 Squonker (SS/22mm*1mm) - https://www.modmaker.com/mm510-v2-squonker-ss22mm1mm
Knurled Insert Nuts *10 (M2.5*5mm) - https://www.modmaker.com/knurled-insert-nuts-10-m255mm
Hex Machine Screws * 10 (M2.5*8mm) - https://www.modmaker.com/search?controller=search&s=Hex+Machine+Screws+*+10+%28M2.5*8mm%29
Keystone (1107-1) Battery Contacts * 4 - https://www.modmaker.com/keystone-1107-1-battery-contacts-4
Silicone Wire (Red/16AWG-1.5mm2*1m) - https://www.modmaker.com/silicone-wire-red16awg-15mm21m
https://www.modmaker.com/evolv-dna75c - https://www.modmaker.com/mm-dinky10-silicone-squonk-bottle-light
Evolv DNA75C - https://www.modmaker.com/evolv-dna75c or https://www.stealthvape.co.uk/product/evolv-dna75c/

Disclaimer:

Vaping exposes the user to the toxic and addicting effects of Nicotine and may not be used by children, women who are pregnant or breastfeeding, or persons with or at risk of heart disease, high blood pressure, diabetes or taking medicine for depression or asthma.

The use of e-cigarettes is not medically recognised as a means for facilitating smoking cessation.

THIS PRODUCT IS INTENDED FOR USE ONLY BY PERSON OF LEGAL AGE OR OLDER.
