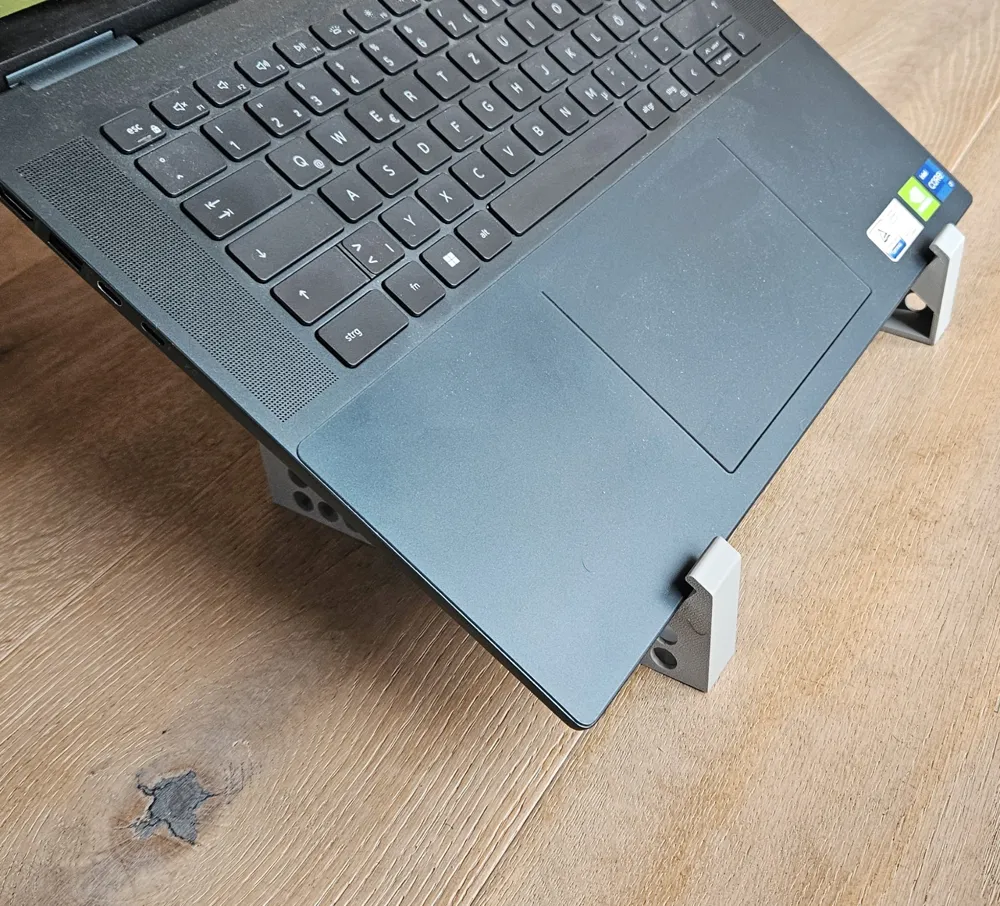

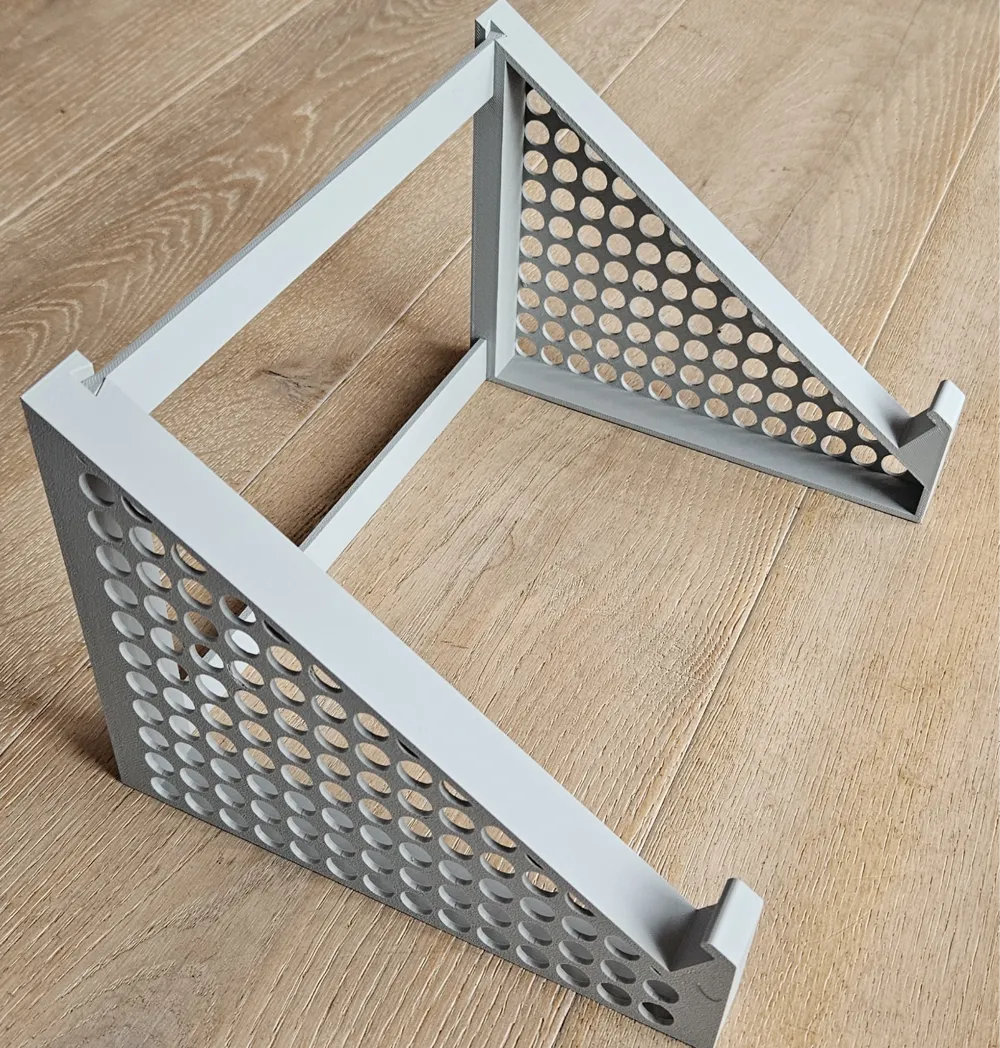

Laptop stand which is customizable in nearly all dimensions to the size of the laptop and to the needs of the user.
To make the laptop stand demountable the parts are connected with dove tails.
Boost Me (for free)
If you like this and want to see more like this.
Customizable parameters

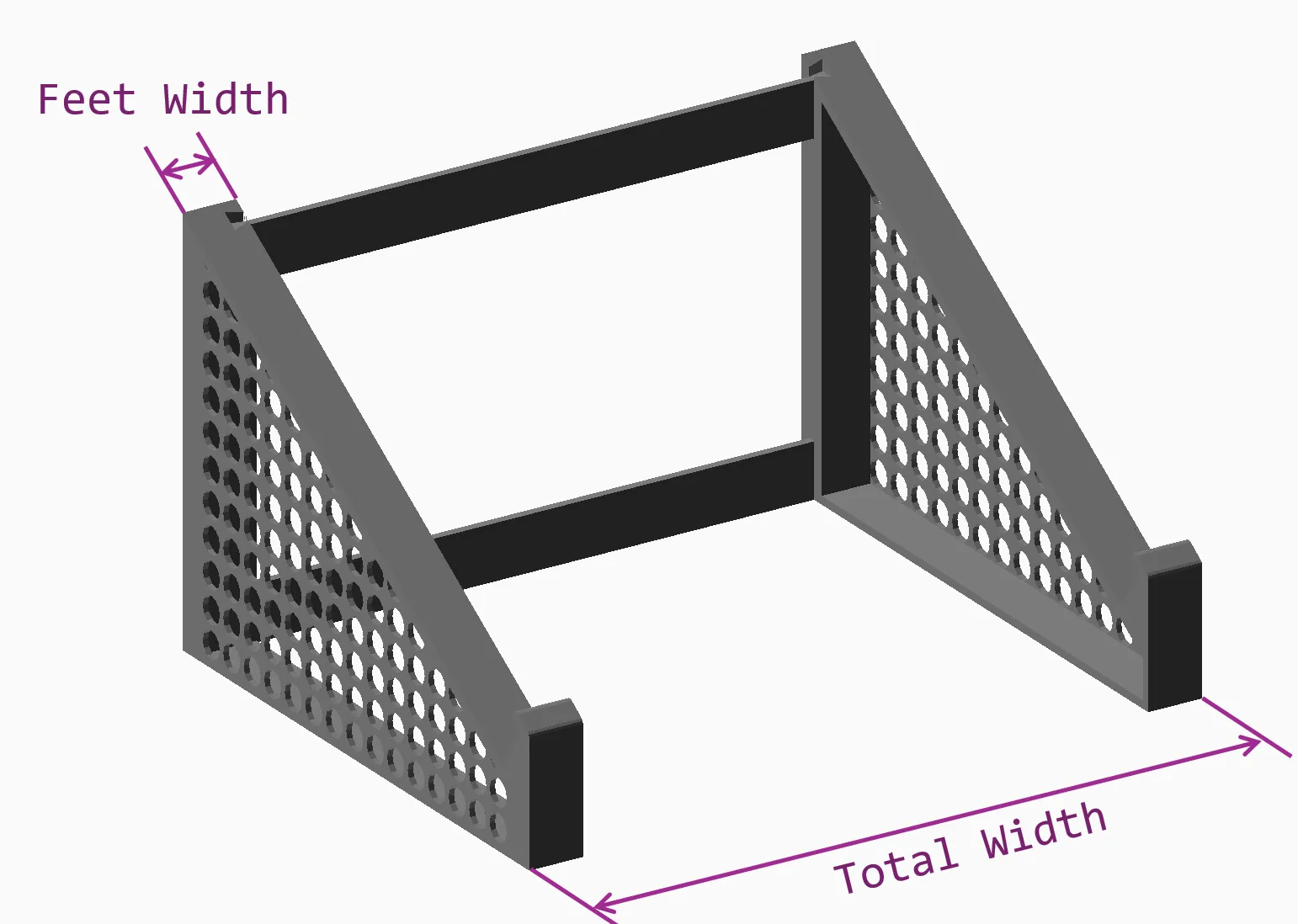

Size Variables
- Total Width - Total width. Distance from left to right

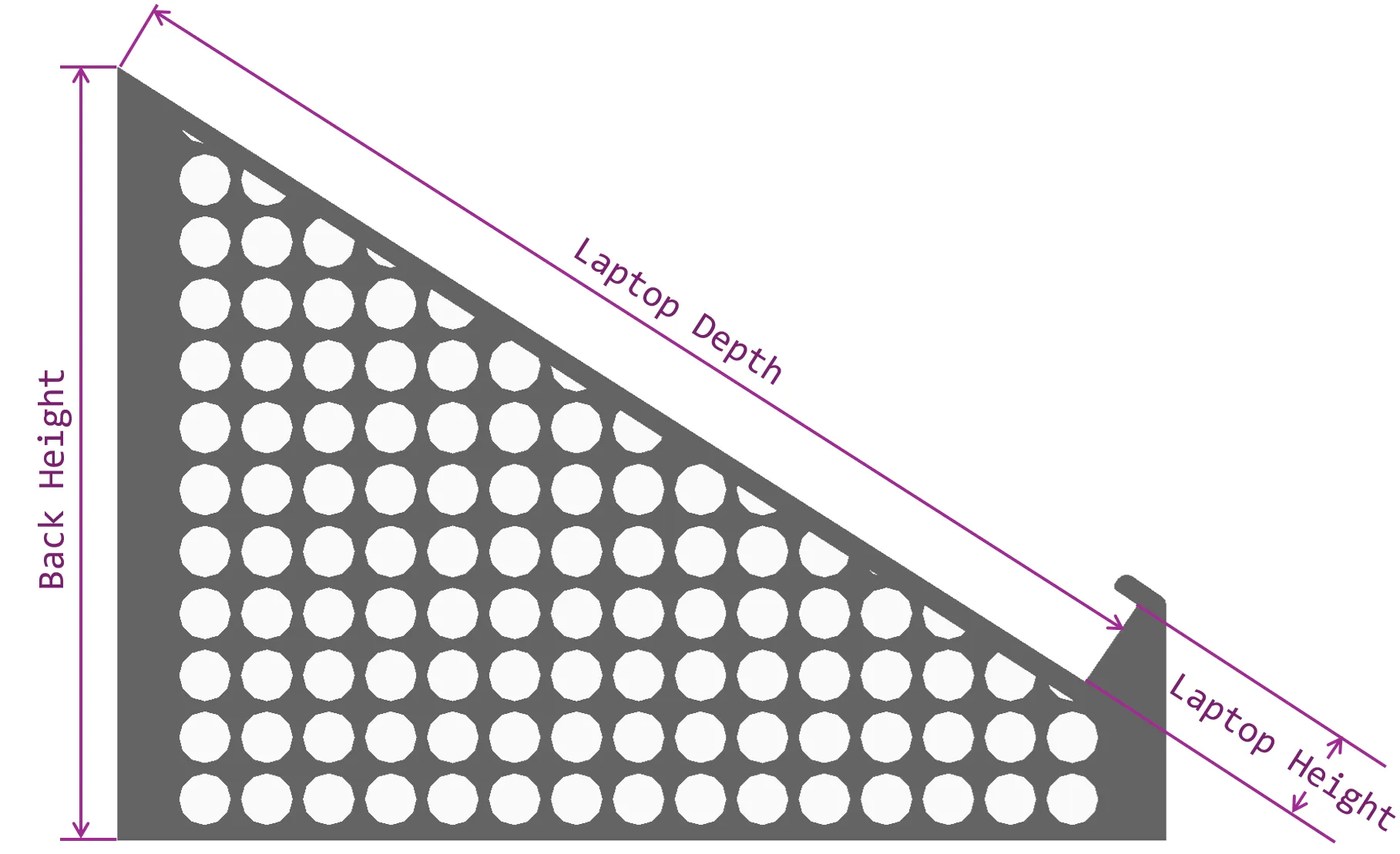

- Front Height - Height of the laptops bearing in the front
- Back Height - Height of the laptops bearing in the back
- Laptop Depth - The depth of the laptop from front to back
- Laptop Height - Height of the laptop in the front so it fits under the nose
- Feet Width - Width of the left and right feet
Other Dimensions
- nose thickness - Thickness of the nose holding the front of the laptop
- nose length - Length of the nose holding the front of the laptop
- frame thickness - Thickness of the frame.
- circle diameter - Diameter of the holes
- circle distance - Distance from one hole to the next
Advanced
- frame thickness back - Thickness of the back frame. Has to big greater than "dovetail max width"
- dovetail height - Height of the dovtail and the connectors
- dovetail min width - Min width of the dovetail and thickness of the connectors
- dovetail max width - Max width of the dovtail
- dovetail depth - depth of the dovtail. Should be less than "Feet Width"
- dovetail_clearance - Clearance between the male and female part of the dove tail
