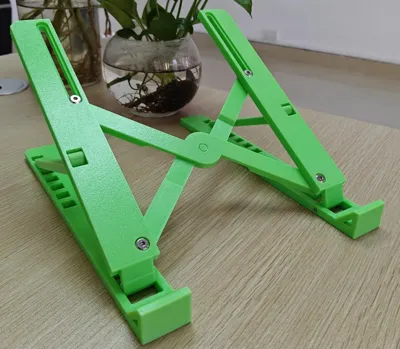

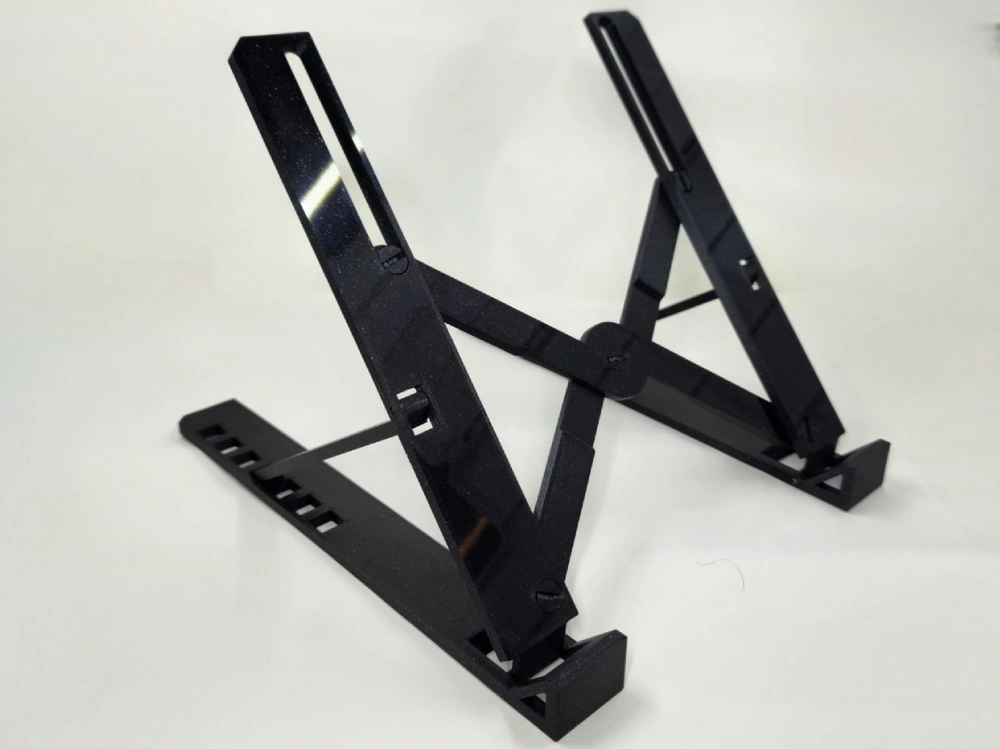

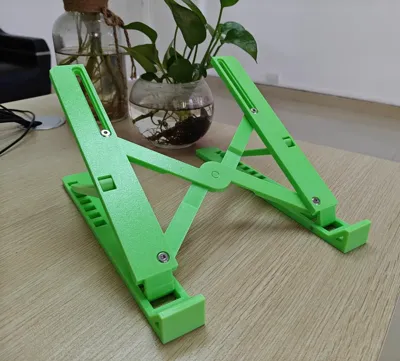

Laptop Tablet Foldable Stand (Thickened Version)

The original model's parts were approximately 5mm thick, making it somewhat flimsy. PETG prints exhibited slight warping, prompting a thickness adjustment.

The following adjustments were made:

1. Part thicknesses were increased by 1.5-2.5mm;

2. The original M2 pivot holes were changed to M3. If metal components aren't available, M3 pivots can be printed; PLA+ tests show suitable strength;

3. The printed screws between the two hinges were removed, replaced with non-fixed printed pivots;

4. The printed screw fastening of the two hinges to the stand was changed to set screws;

5. The base was extended by approximately 1cm at the triangular support points.

Hopefully, these adjustments improve the user experience 😊

Hardware Requirements:

M4*10—5mm diameter set screws 4 pieces

M3*27.5 cylindrical pins 2 pieces

M3*16.5 cylindrical pins 2 pieces
