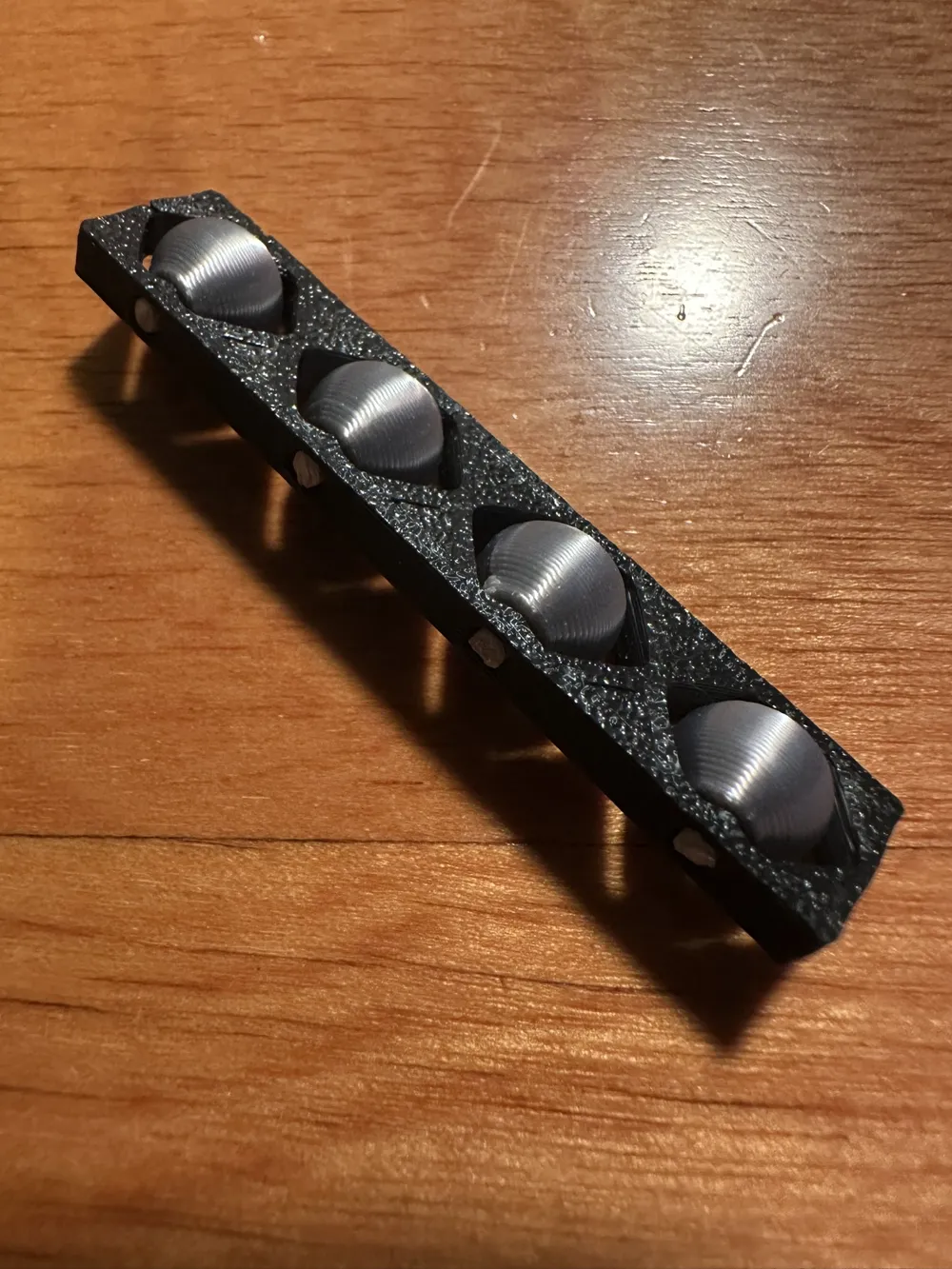

Mostly standard settings, brim to decrease warping, and no supports. IMPORTANT: Let your build plate cool fully for minimal warping which is needed for better functionality. If your bearings are too tight or lose, change their size (I would turn off uniform scaling too, and just make sure the x and y are equal, without changing z).&nbsp;I also printed the bearings using PLA silk which worked for me. Comment, or make another print profile, if other filaments work better for you.

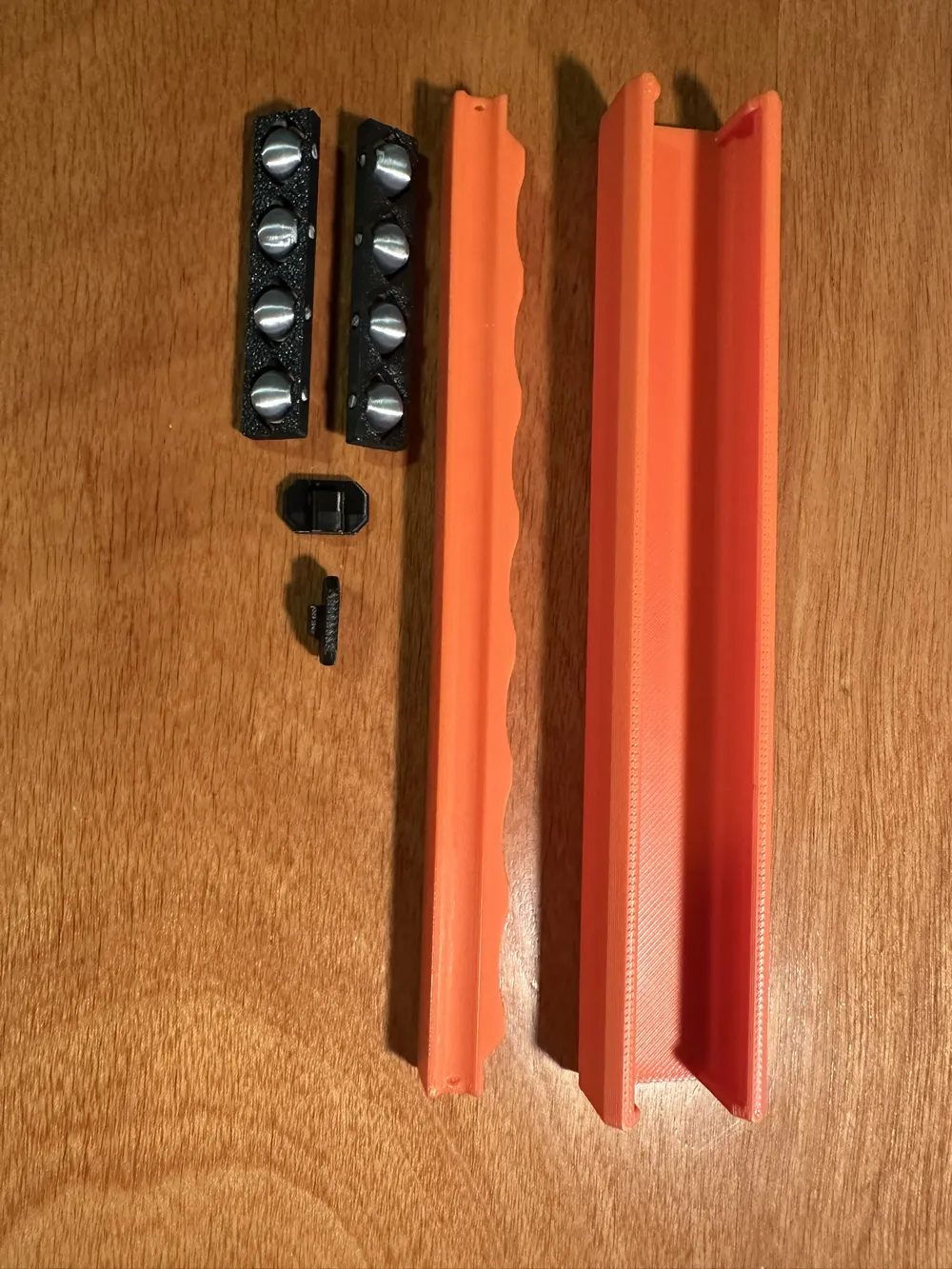

All parts

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

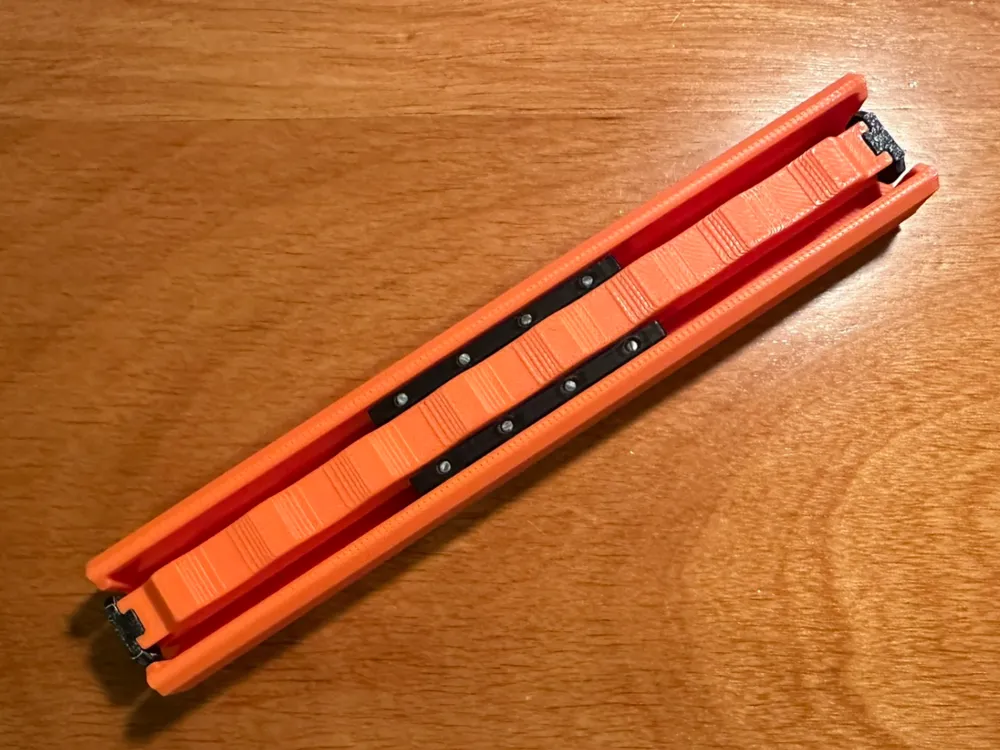

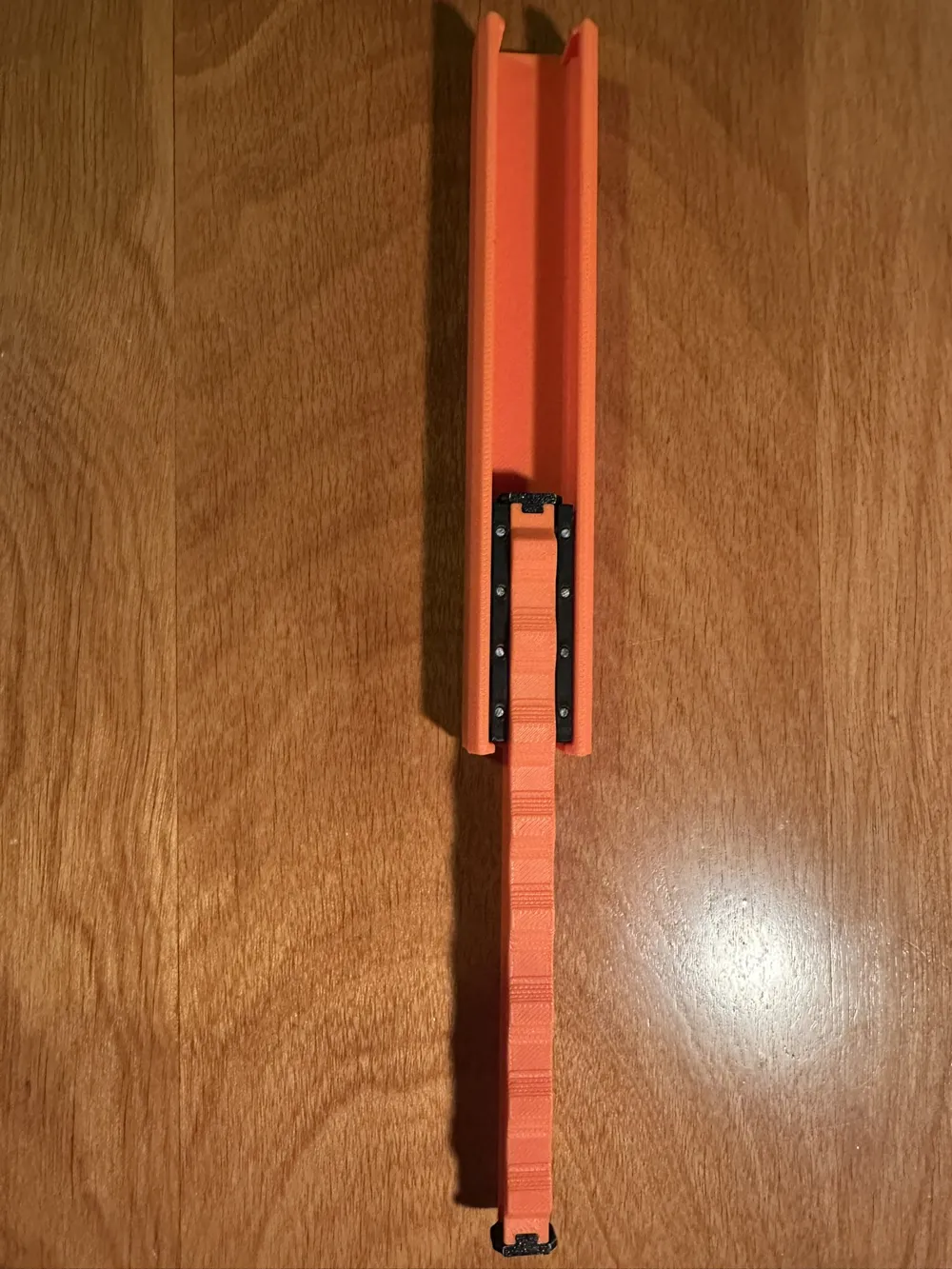

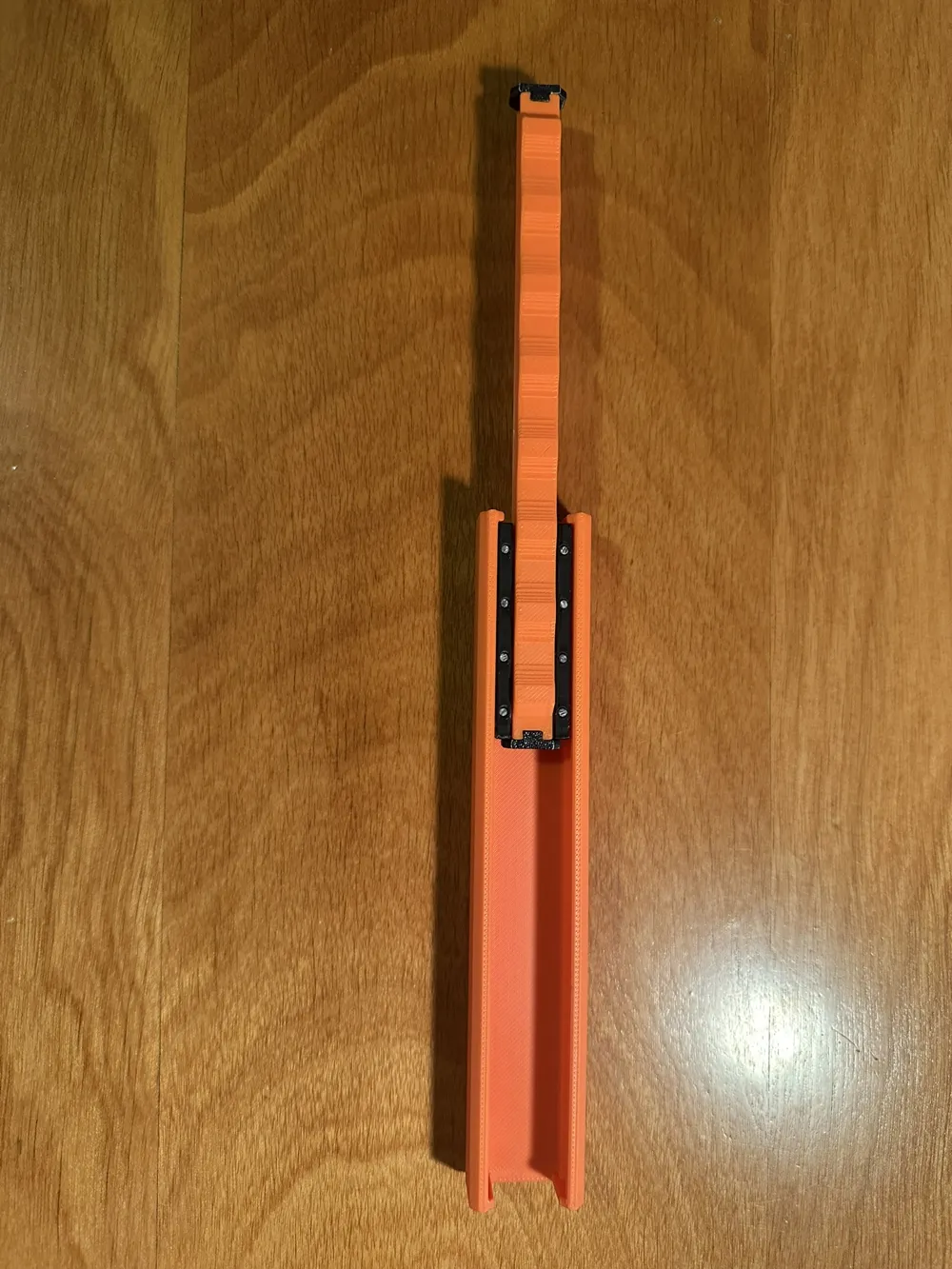

This is a fidget toy based off of a linear slide / rail (commonly used on drawers). It can also slide in both directions adding more mobility to it! In addition, a bonus to this model is that it uses filament (around 10 cm ~ 4 in) to hold the bearings in place, making it a great way to recycle the last bits of it left on your spools!<boostme><boosttitle>Boost Me</boosttitle><boostcontent>If you would like to see more models like it, leave a boost!</boostcontent></boostme>
