6040 CNC Proximity Sensor Limit Switch Mounts
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 75% infill
Designer
1.3 h
1 plate
Open in Bambu Studio
Boost
4
16
1
0
19
12
Released
Description

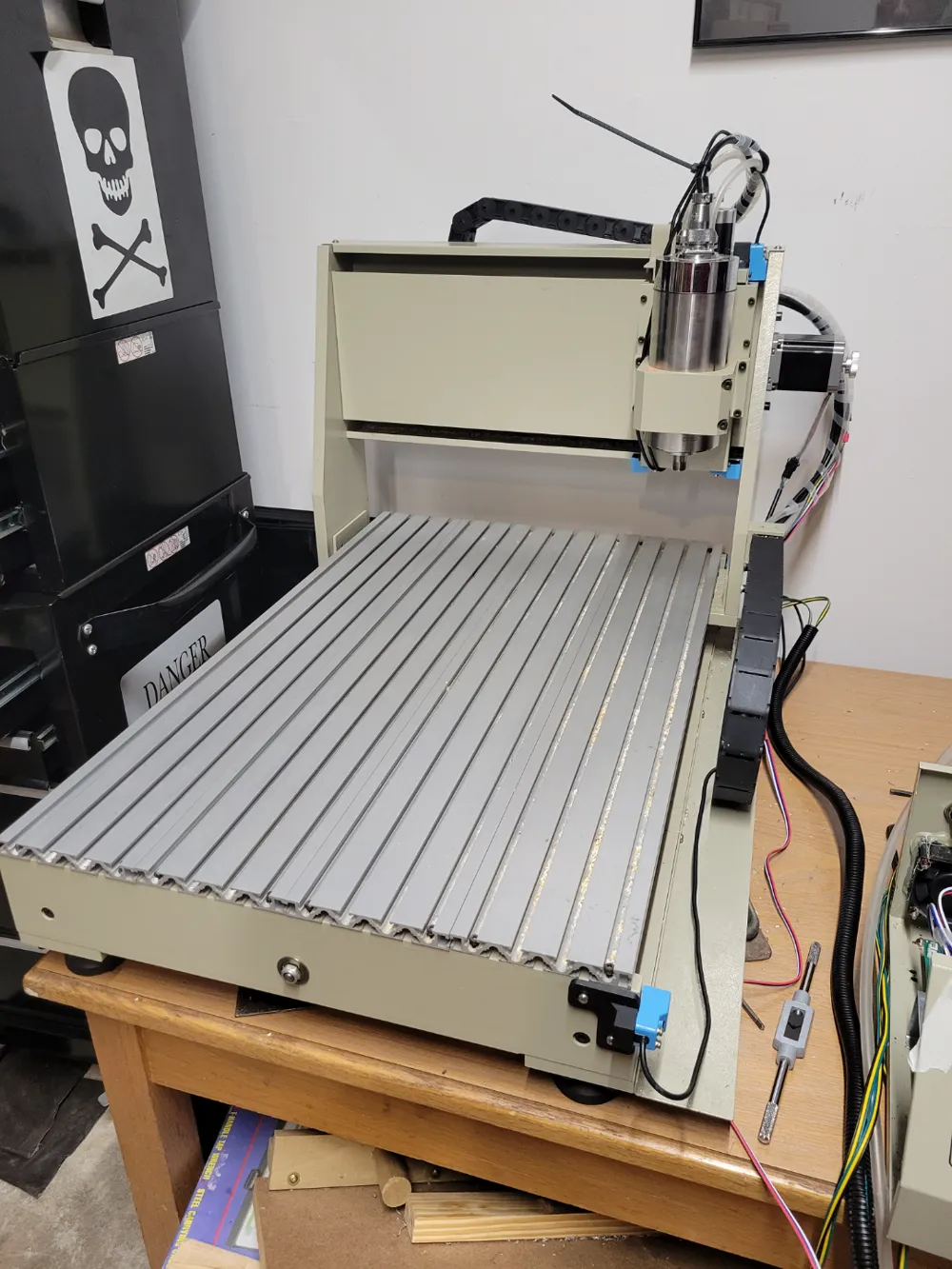

To add modern limit switches to your 6040 CNC

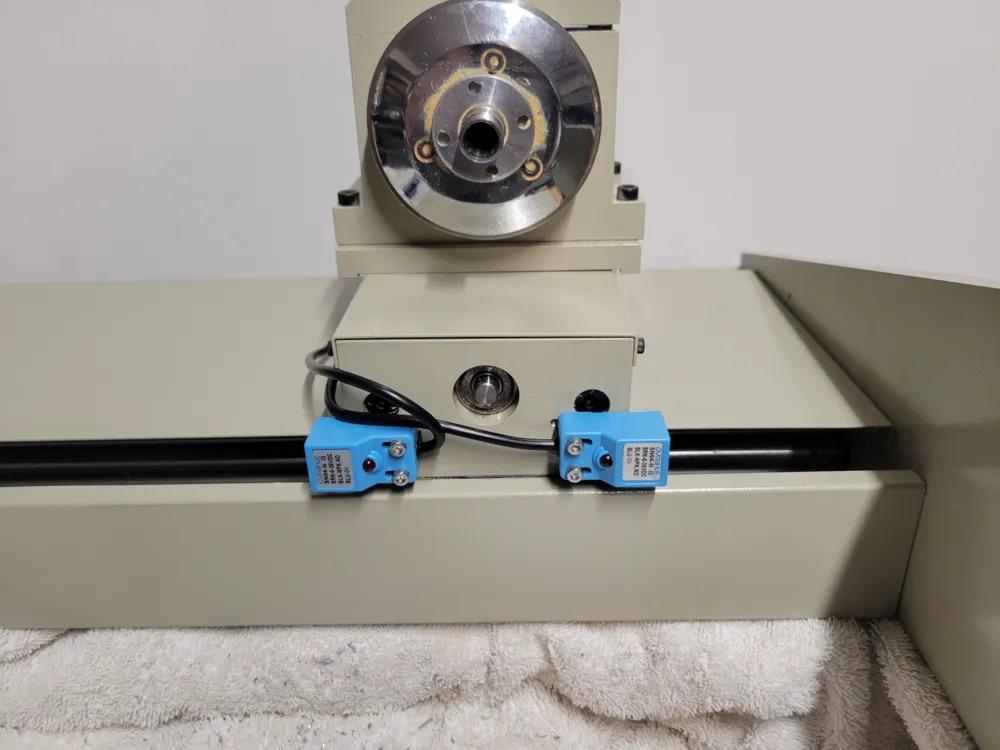

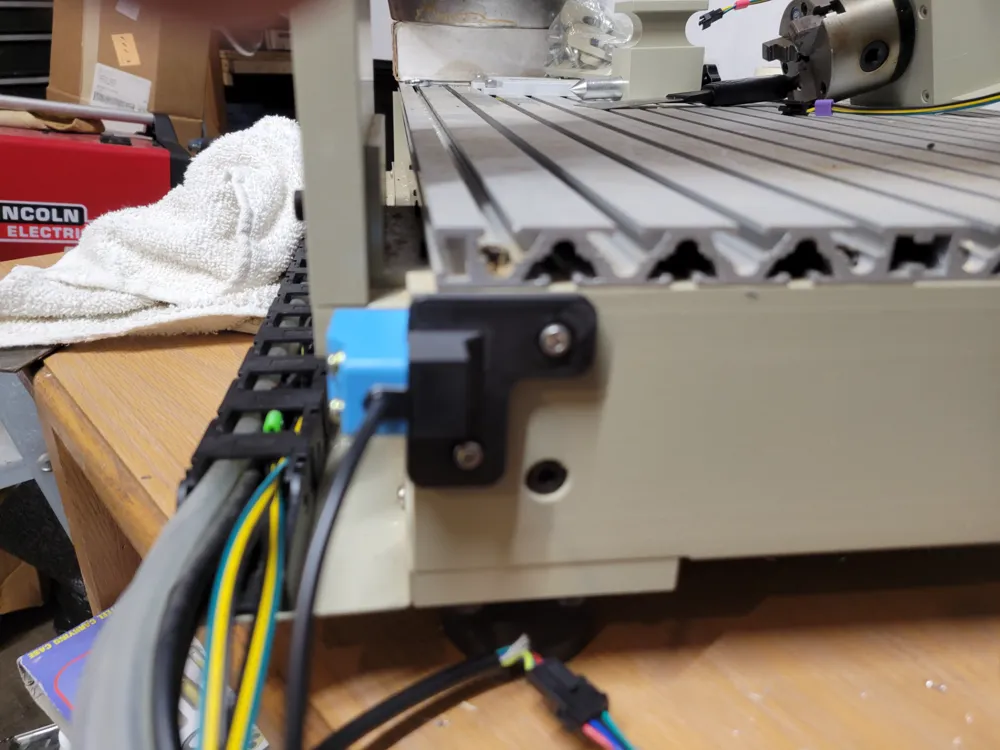

I used a 3.5mm drill bit and a 4mm tap to directly mount these to my CNC with 4mm bolts.

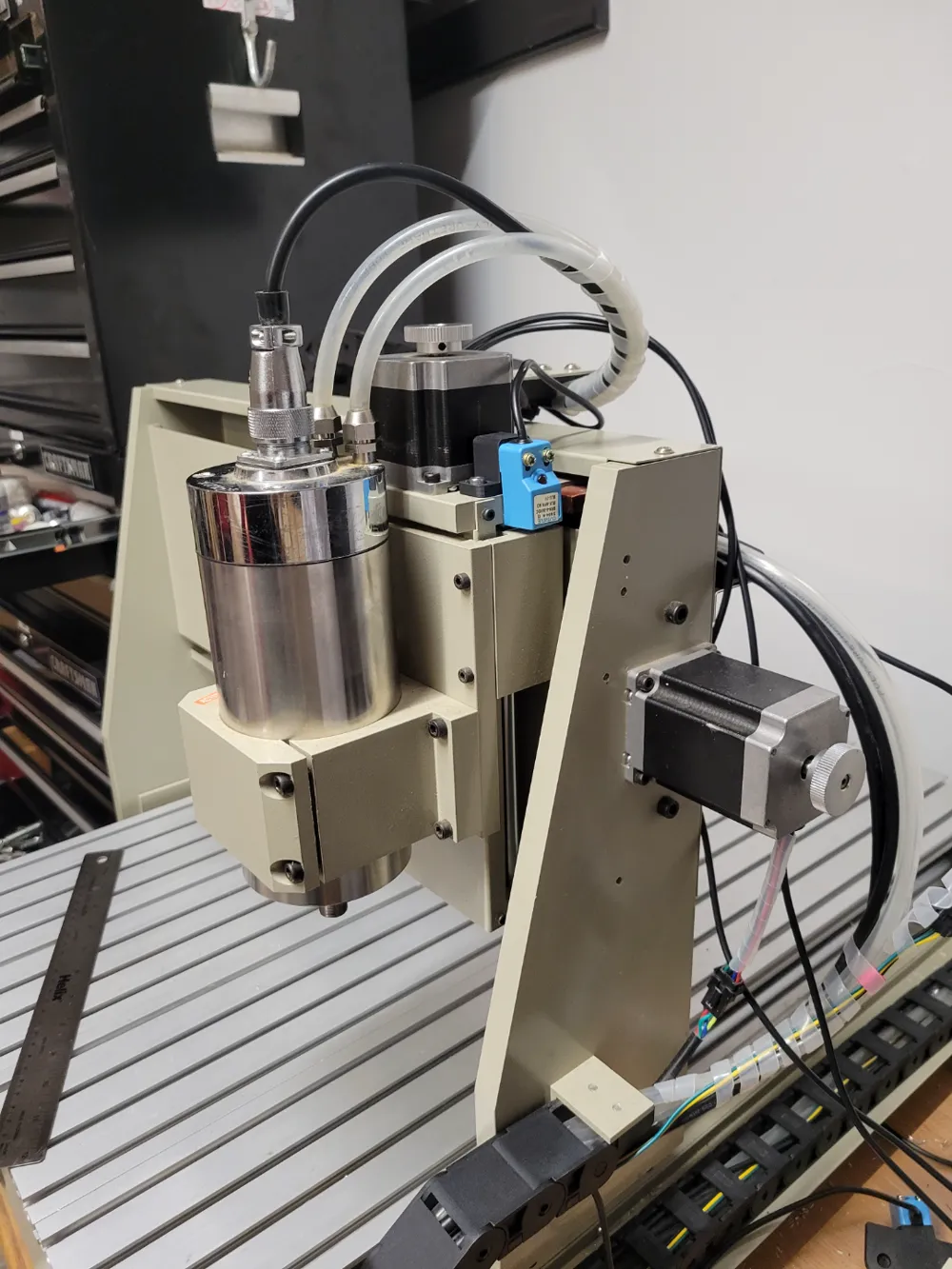

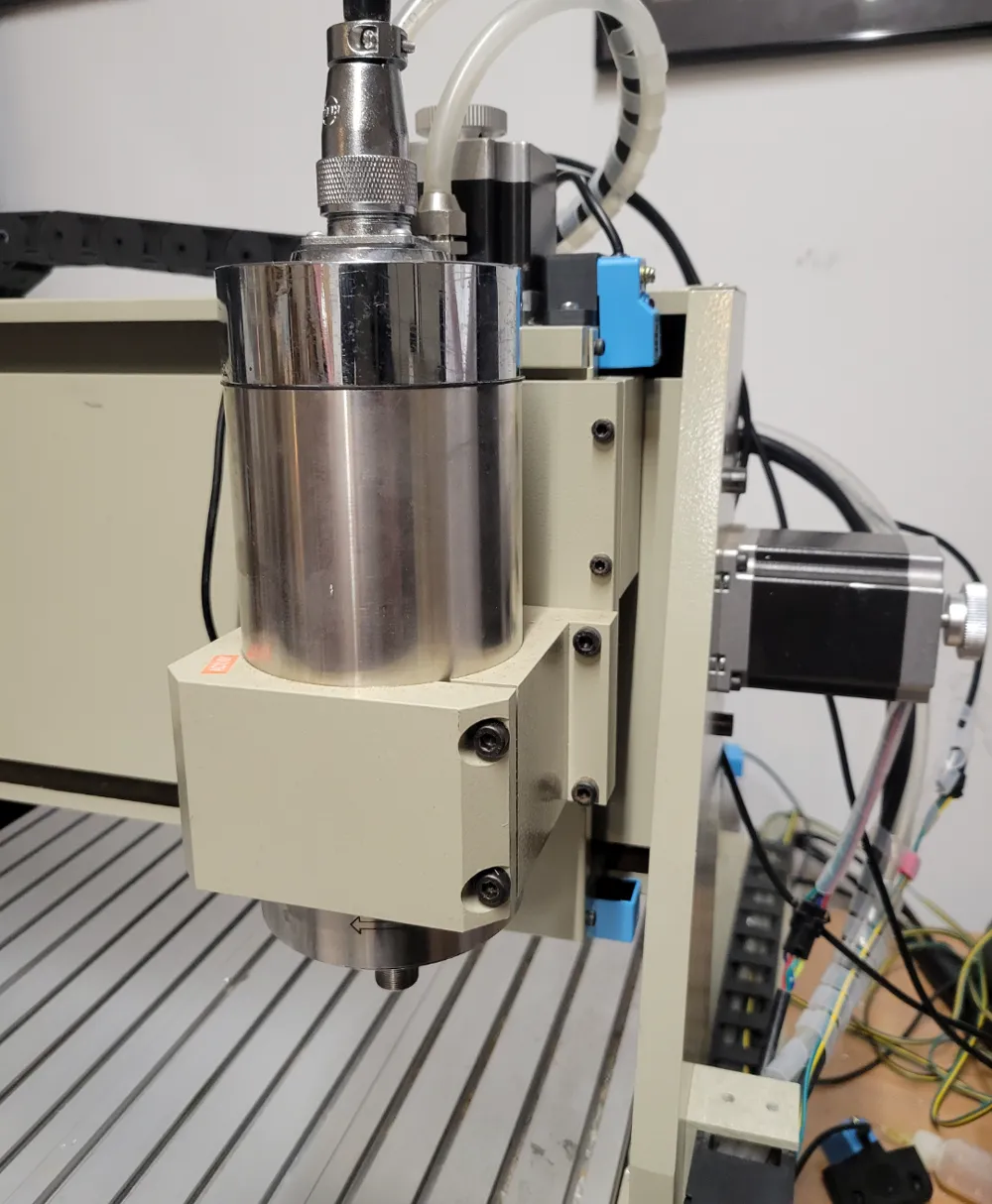

For the X-Axis the are mounted directly to the Z-Axis bottom which I drilled and tapped for 3mm bolts.
