Pull Chord Switch Mounting Bracket for Side Action
IP Report
Print Profile(1)
0.24mm layer, 4 walls, 15% infill, 28min print
Designer
33 min
1 plate
Open in Bambu Studio
Boost
1
0
1
1
2
1
Released
Description

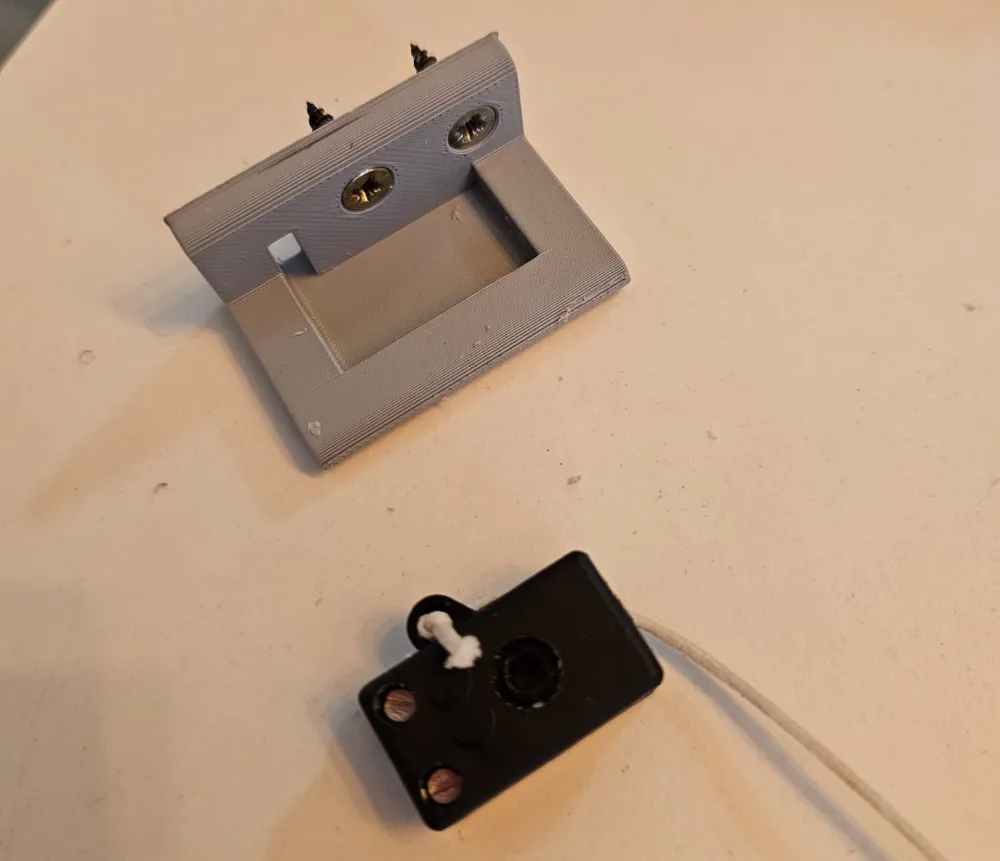

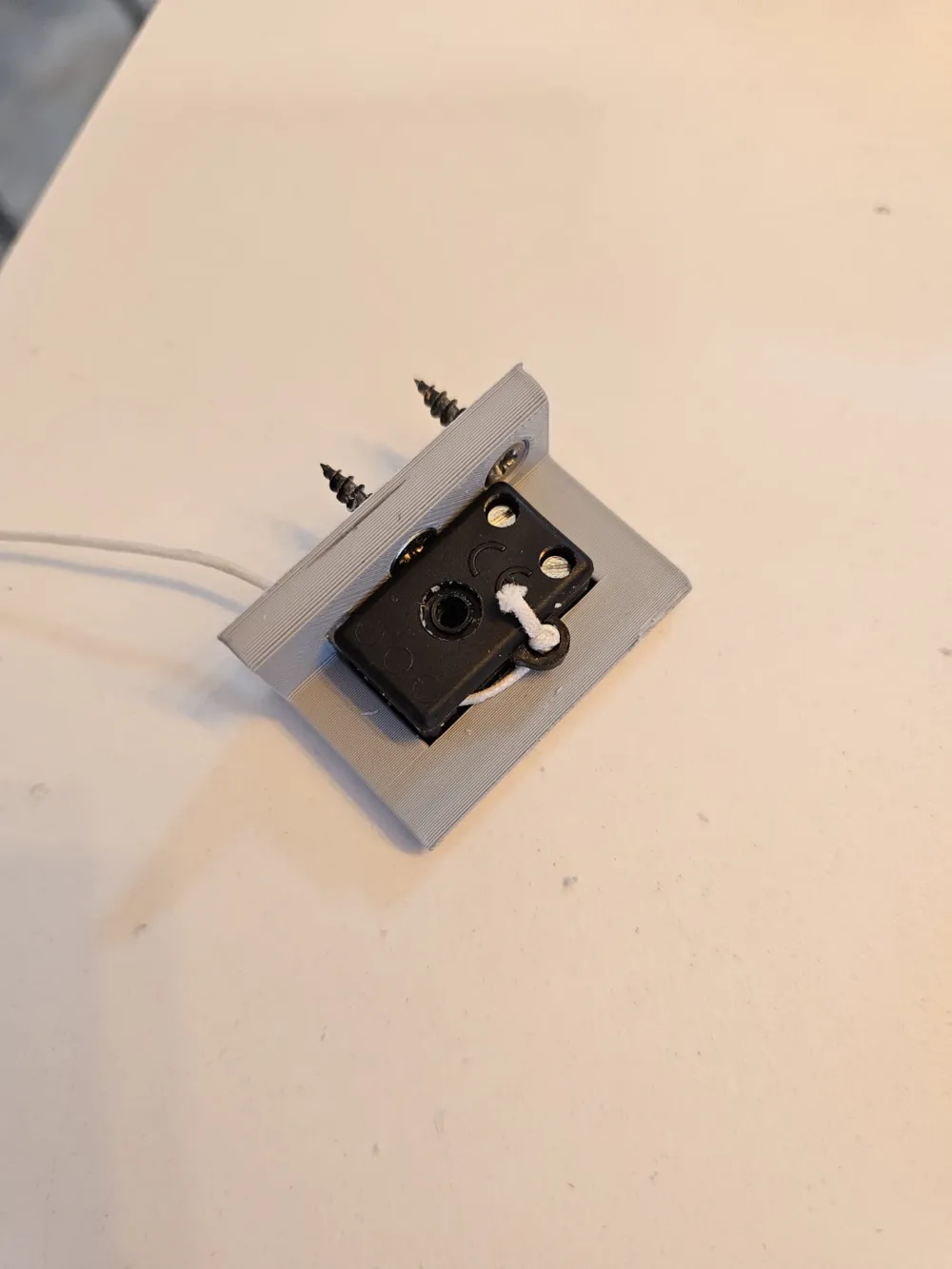

This is a mounting bracket for pull chord switches to change their mounting position by 90 degrees. See links for switch types.

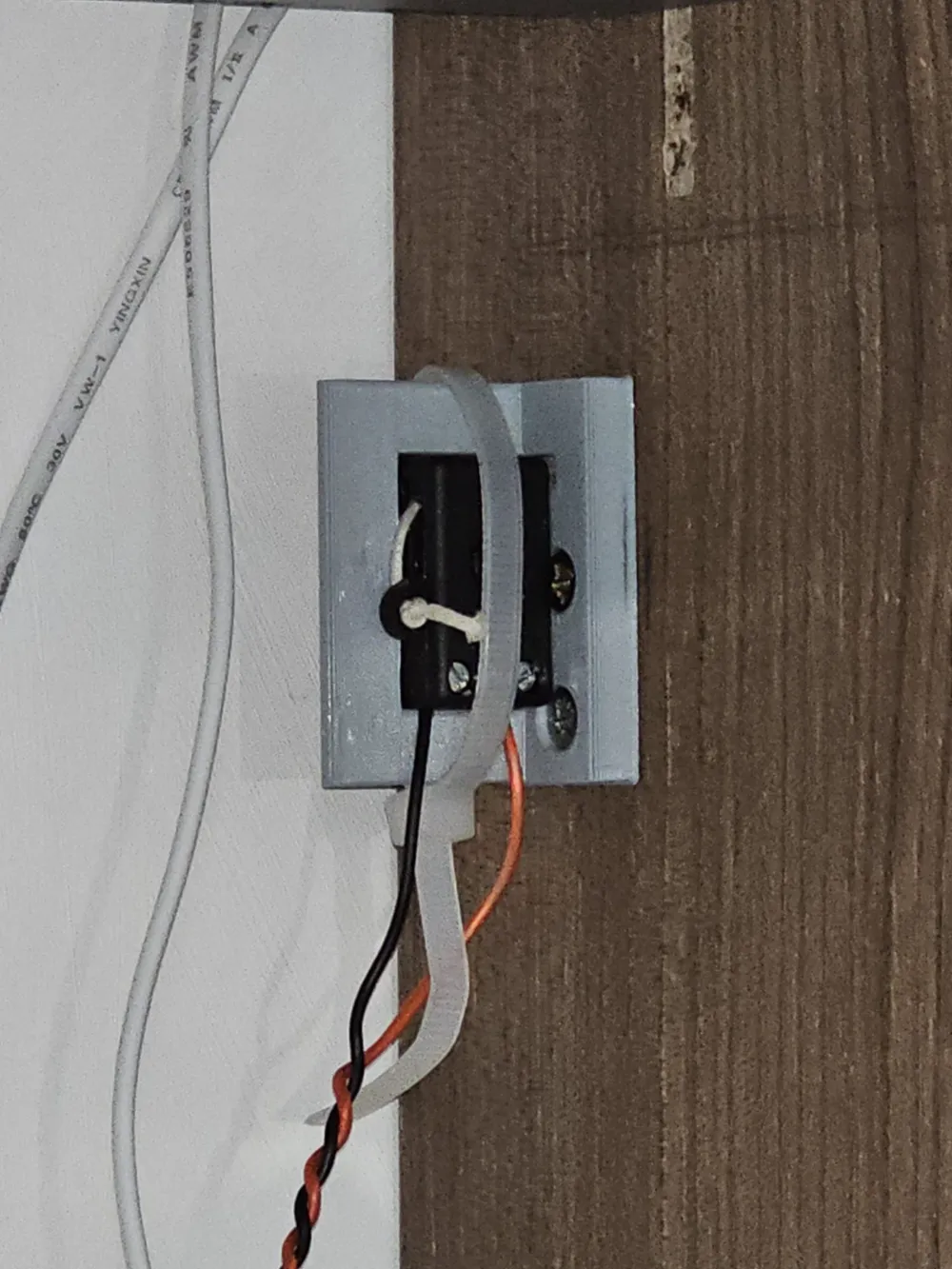

I had to make this because I wanted to mount this switch to my cabinet for the cabinet lights. The switch has a side action or downwards action, but the mounting is through the centre. So I mounted it 90 degrees rotated so I can mount it to the side board of the cabinet.
https://www.amazon.de/-/en/Pull-Switch-Installation-Mounting-White/dp/B0C6M98SY2/
https://dwyers.ie/products/1544-pull-cord-switch-2-amp
