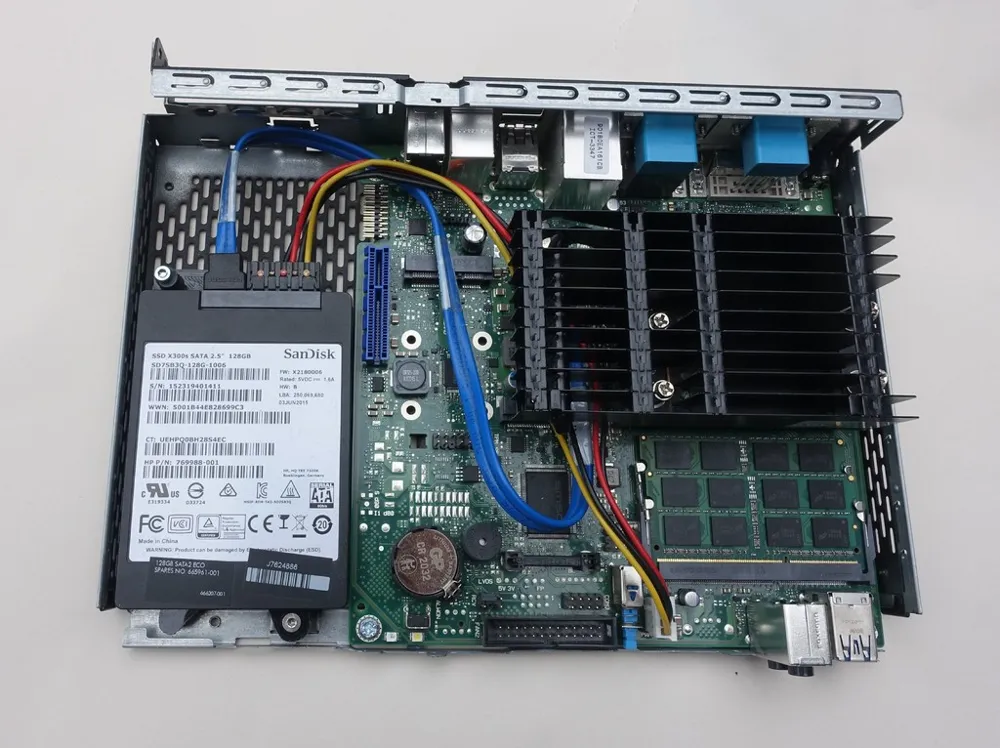

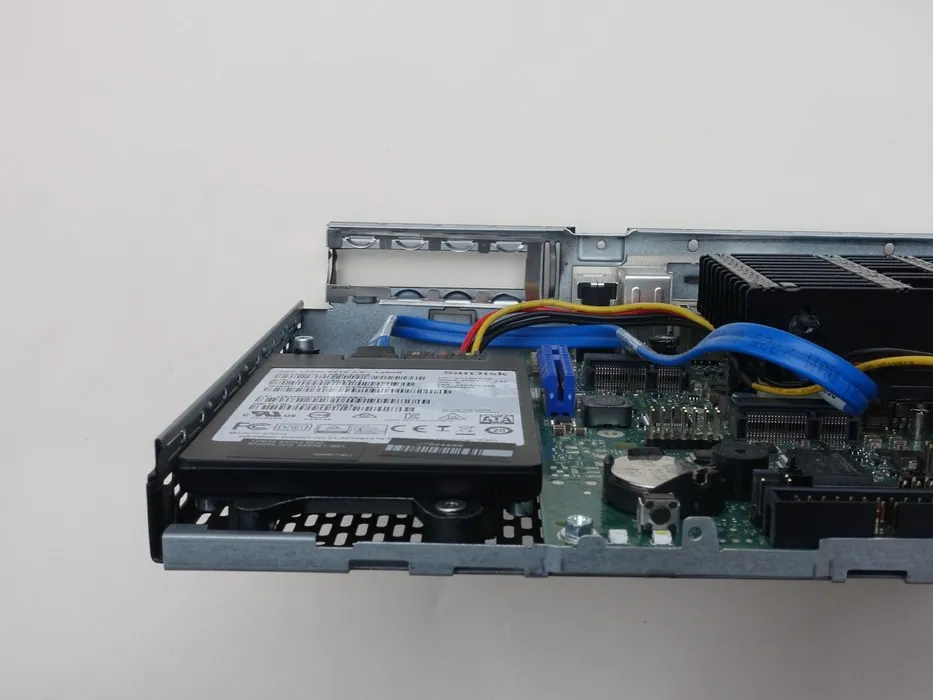

This is my low-profile adapter for the Fujitsu Futro S920 to mount 2,5" SSDs/HDDs,
leaves enough space to fit a networkcard into the PCI-E slot.
You´ll need:
• M3 Tab
• M3x12mm countersunk screw
• M3x8mm countersunk screw
• M3x12mm screw
• 8x M3x6mm
How to assemble:
- Remove the speaker/POE Tray
- Cut an M3 thread in the hole on the rear of the adaptor

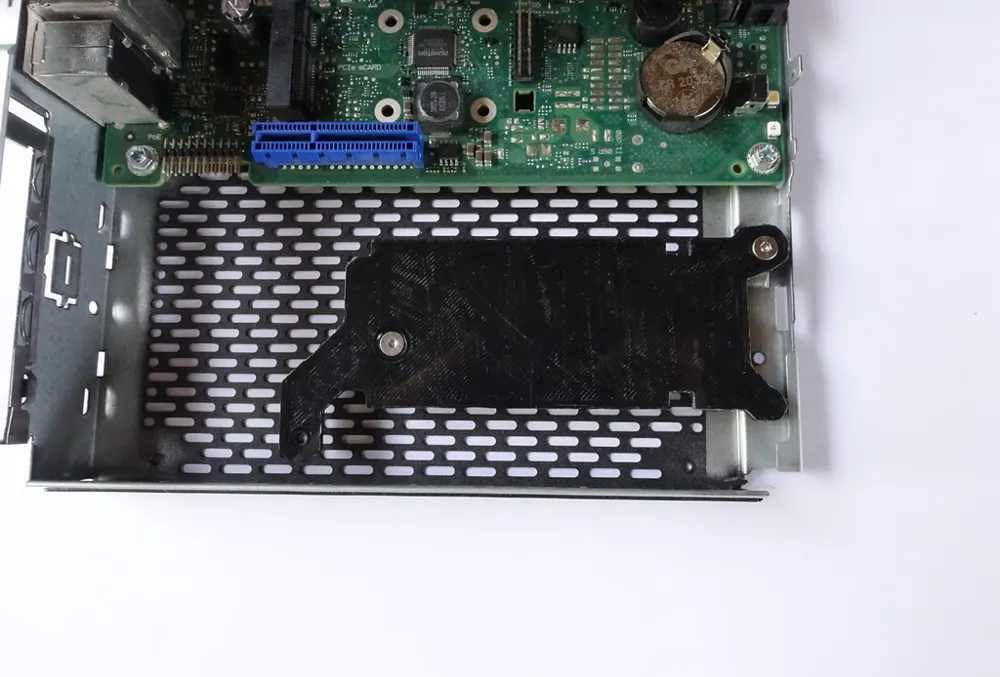

- Screw the adaptorframe onto the case using a M3x12mm countersunk screw and
M3x8mm countersunk screw - Screw in 4x M3x6mm Screw into the sideframes

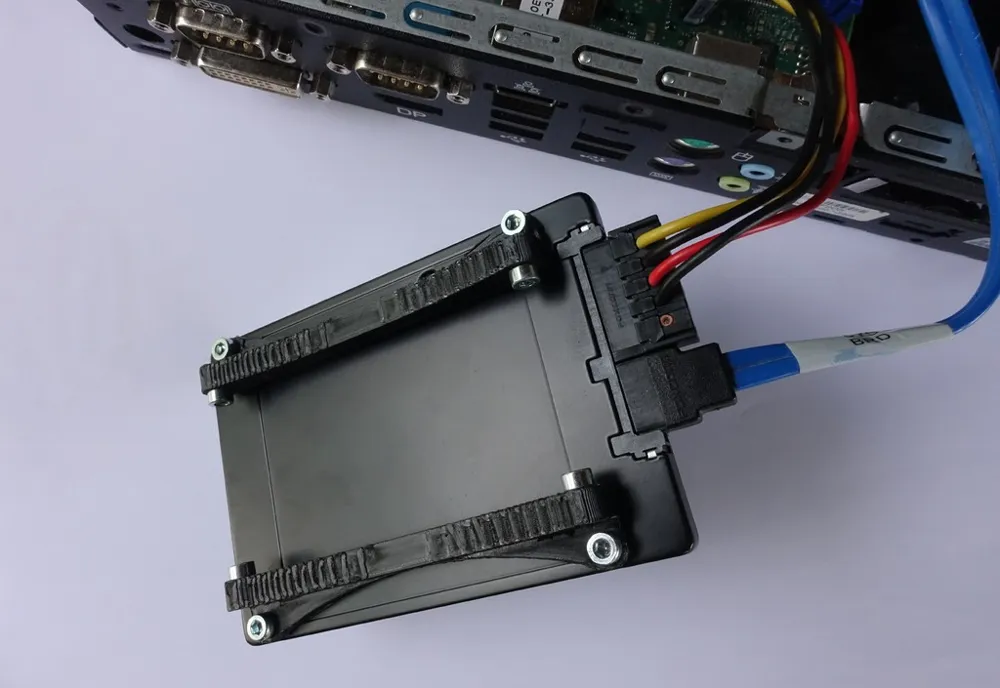

- Mount the two sideframes onto the SSD using 4x M3x6mm screws

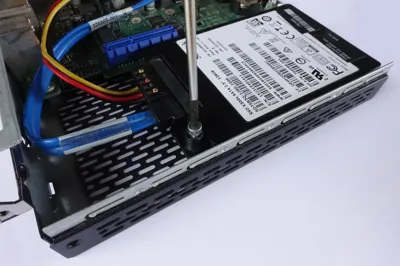

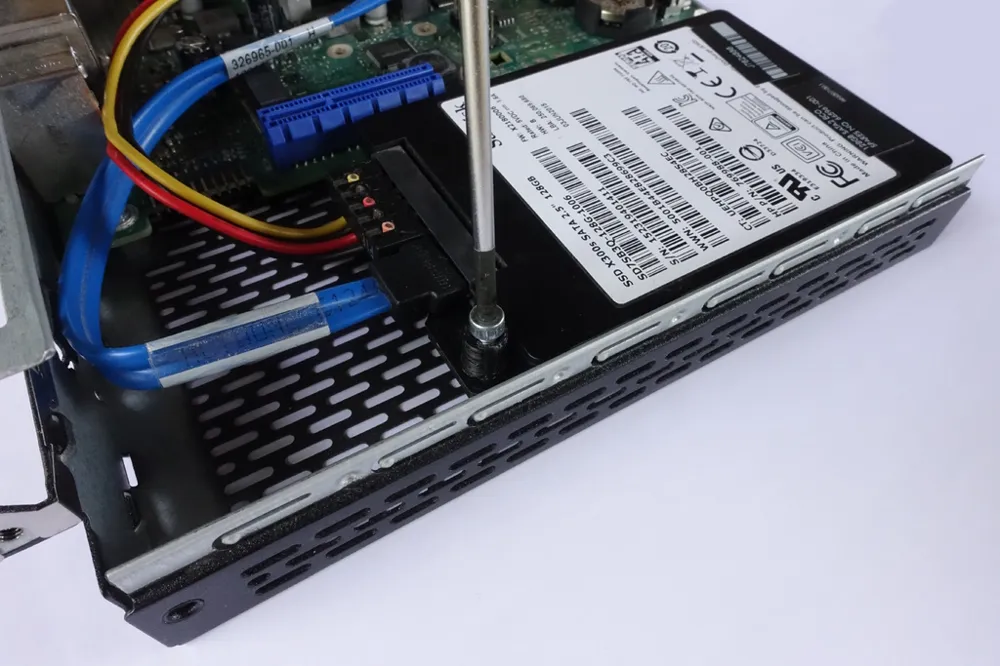

- Slide the SSDframe´s Screwhead into the 4 slots on the adapter and push SSDs
towards front panel - Secure the SSD in place using the excentric pin and a M3x12mm screw
