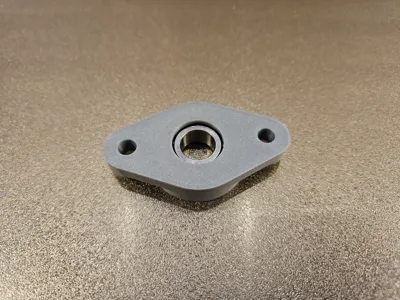

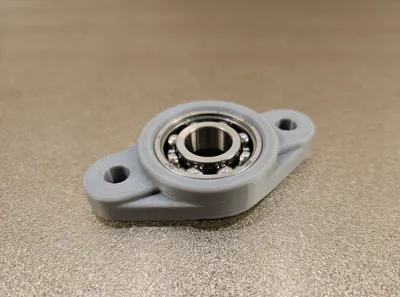

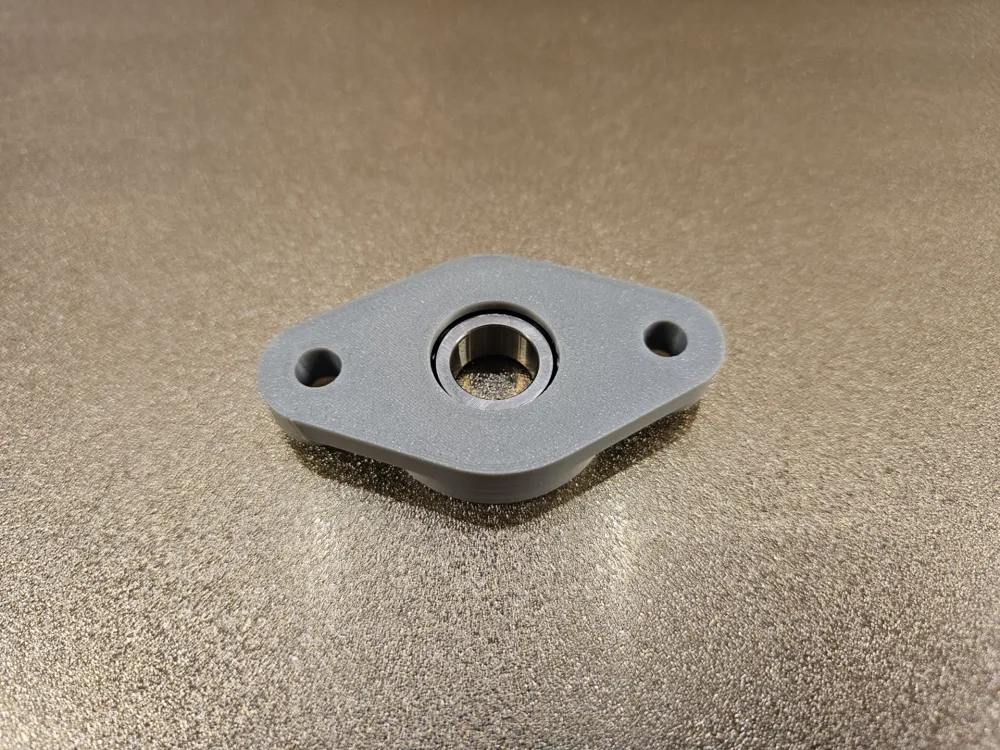

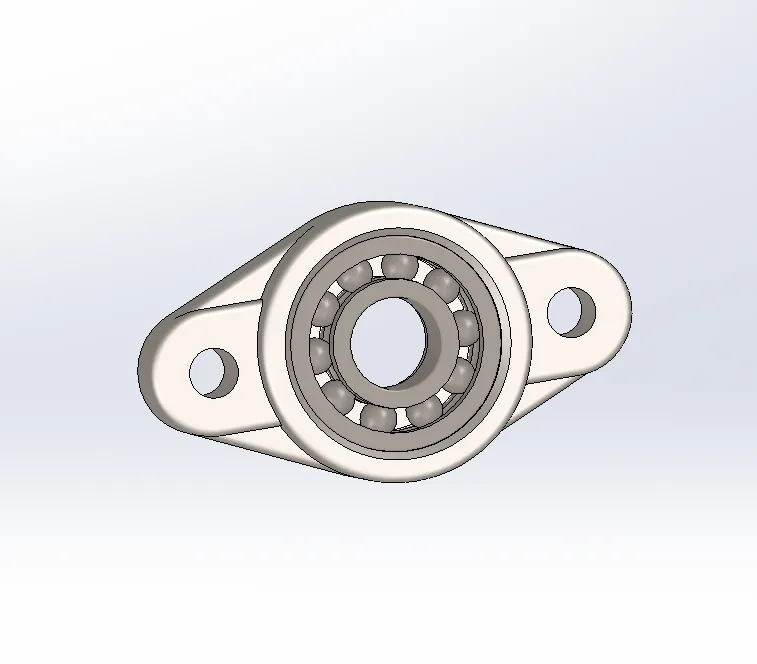

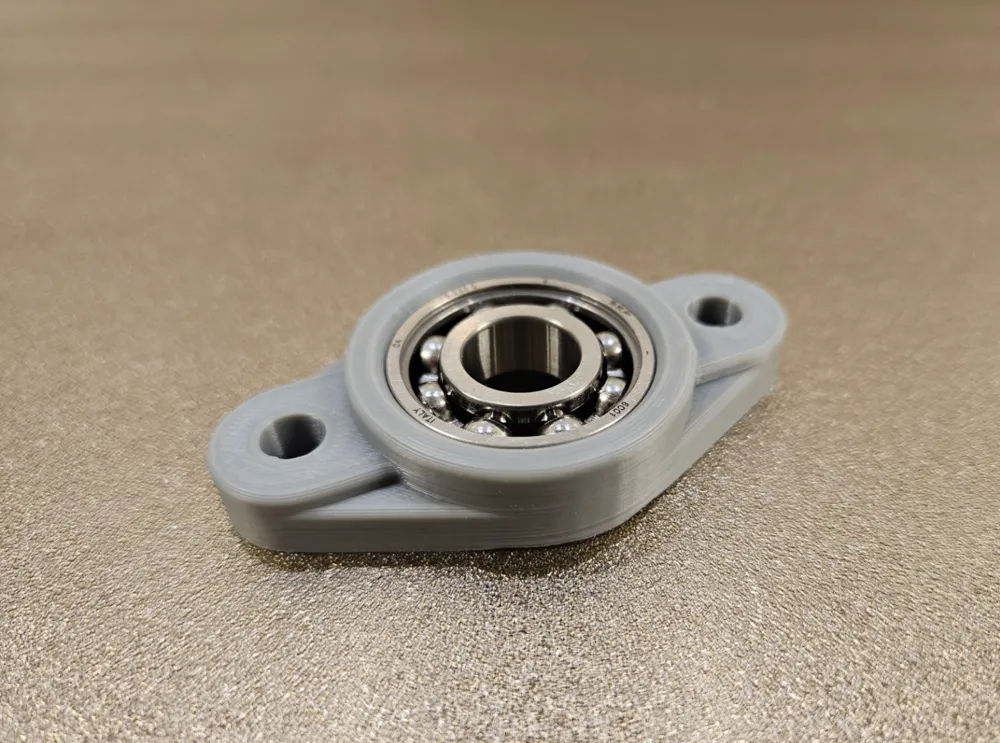

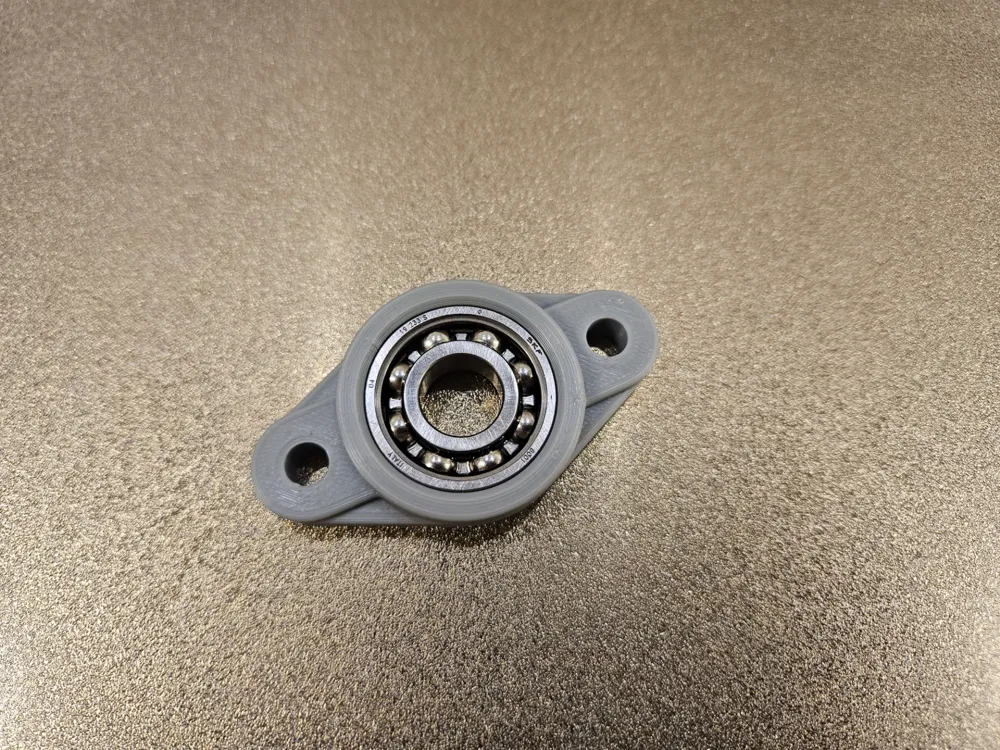

Bearing Flange for 6001 Bearings

This custom-designed bearing flange is specifically engineered to house 6001 bearings with a friction fit, ensuring a secure and stable hold. It features a robust and precise construction, guaranteeing optimal performance and durability. The flange includes two strategically placed holes, perfectly sized for M6 bolts, allowing for secure and straightforward mounting. Ideal for various mechanical applications, this 3D printed component combines functionality with ease of installation, making it a reliable choice for your projects.

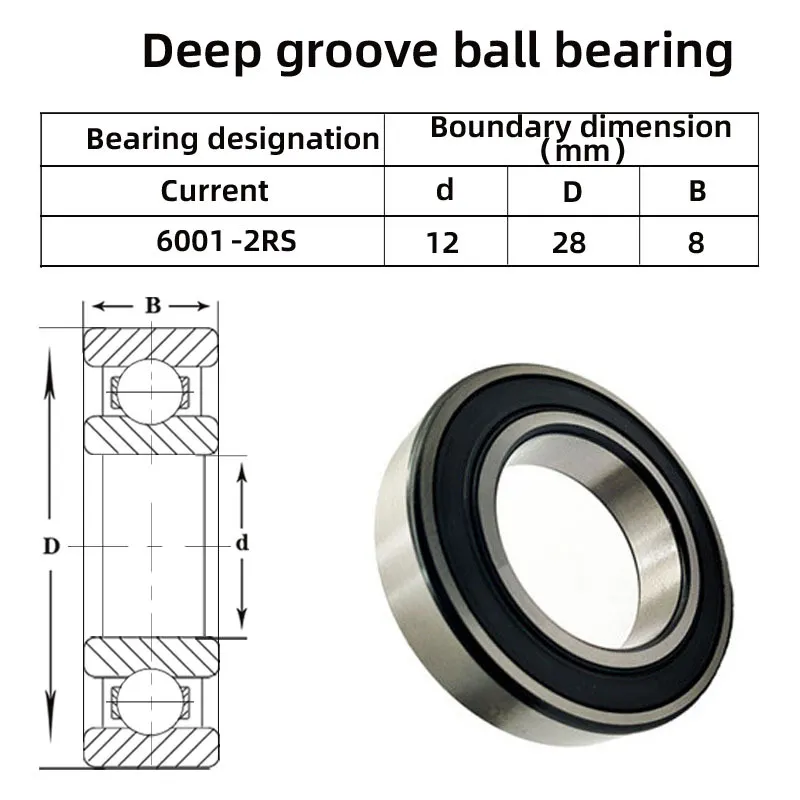

Shlnzb Bearing 6001 6001ZZ 6001RS 6001-2Z 6001Z 6001-2RS ZZ RS Rz 2RZ N RZN Zn Bantalan Bola Dalam Alur 12X28X8 Mm - AliExpress — 6001 bearing dimensions

Comment & Rating (7)

@user_3060327950

Boosted

do you have a version for 8mm screws?

The designer has replied

@VictorS3D

Hi, I added a print profile for M8 bolt version! Had to change the distance between the bolts to 52 mm to make it fit.

(Edited)

@user_3060327950

Boosted

Replying to @VictorS3D :

thanks will try it soon

@pdarling99

Print Profile

0.2mm layer, 2 walls, 15% infill

Printed great, perfect size for my bearings.

@user_2704422427

Print Profile

0.2mm layer, 2 walls, 15% infill

@user_3060327950

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

@user_3060327950

Boosted

The print profile is no longer public

No more
