Scraper V3 (Material saving and practical)-2026

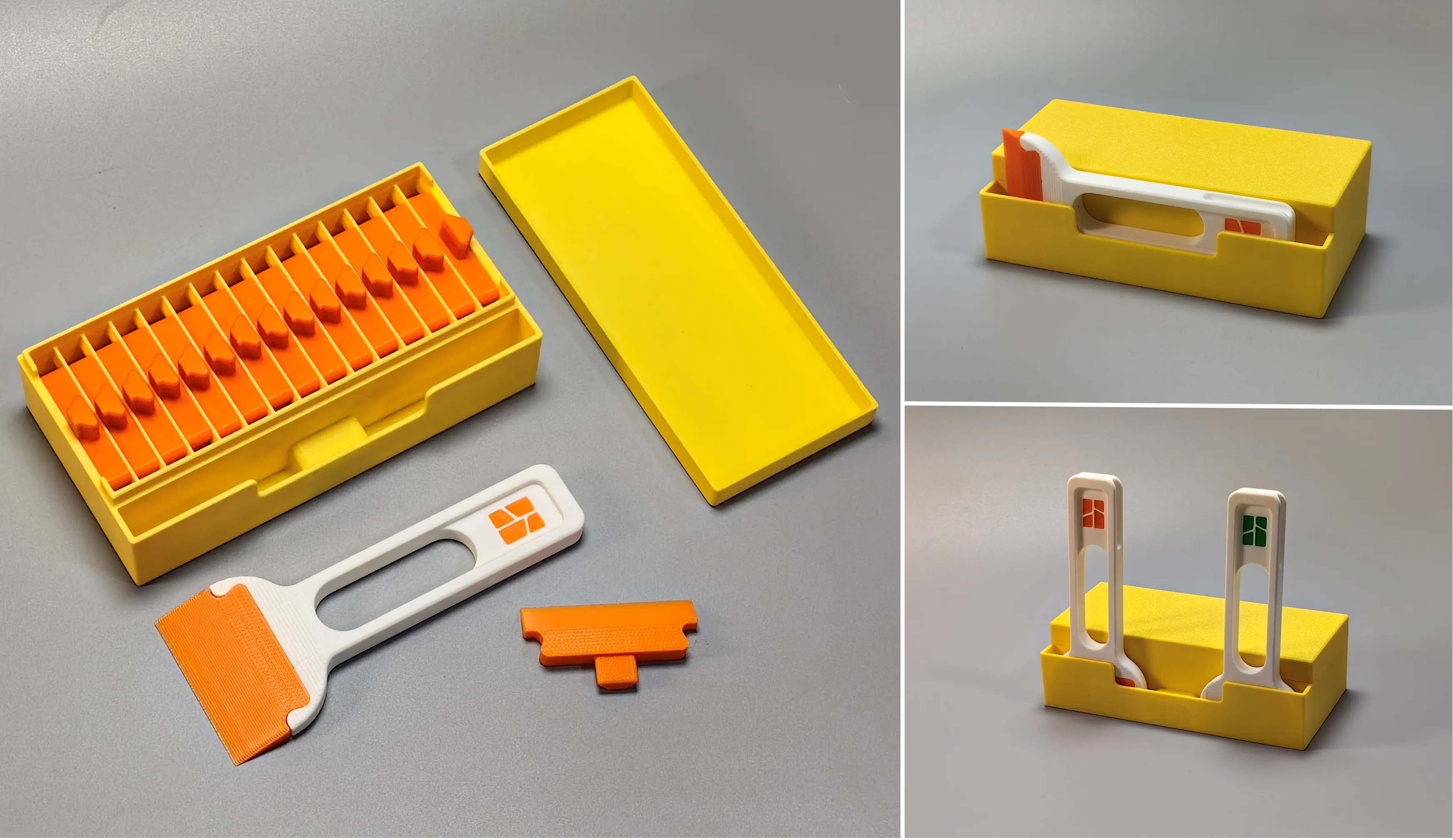

Model update: On February 7, 2026, the scraper storage model printing configuration was added, compatible with V1, V2, and V3 versions.

Important update: January 26, 2026, updated to V3 version（The strength of the shovel handle has been significantly improved, making it more durable and aesthetically pleasing）:

1. The connection strength between the shovel handle and shovel head has been strengthened, making it more sturdy and durable;
2. The shovel head and handle are perfectly connected without excessive steps, making it smoother and more aesthetically pleasing;
3. The diameter of the magnet hole is increased to 8mm and the thickness is 2mm;
4. It is recommended to print the V3 version. Due to interface size optimization, the V3 version is not compatible with previous shovel heads, but V1 and V2 can still be downloaded from the model (including printing configuration files).

The large inclined shovel V2 designed for quick replacement of shovel heads has a stable connection, practical and beautiful appearance, with a total length of 110mm and a shovel head width of 45mm（Provide two different angled shovel heads）. The shovel handle can be reused, and the shovel head can be freely replaced. The shovel can be magnetically placed and placed on the printer handle, which can help everyone achieve blade freedom.
Specifically, it has the following characteristics:

1) 1 second quick replacement, no need for connectors, stable connection, and designed with high and low surfaces, the shovel handle will not interfere with the shovel object;

2) Save consumables: The small angled shovel head weighs about 3g, while the large angled shovel head weighs 2g(Simultaneously more durable), and the shovel handle is reusable, which can significantly save consumables and provide a comfortable grip.

3) Multiple placement methods for shovels:

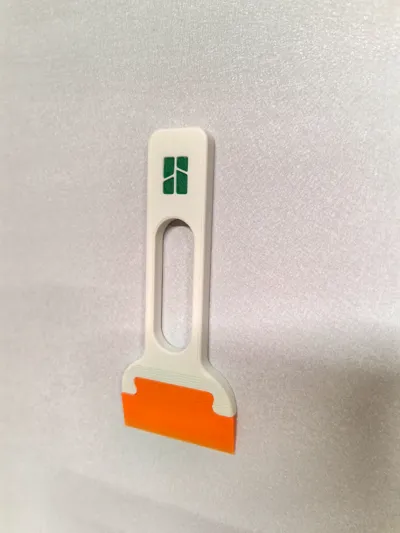

a) Magnetic installation: The back of the shovel handle is equipped with a 5mm (diameter) x 2mm (thickness) magnet installation hole;

b) Place on the printer handle: such as the door handle of Bambu Lab's X1C, X1, P1S or P2s;

4) Quick printing, one set (one shovel handle+one shovel head) monochrome printing only takes 27 minutes, with consumables of about 10g.

Installation and disassembly tutorial:

• Installation tutorial:

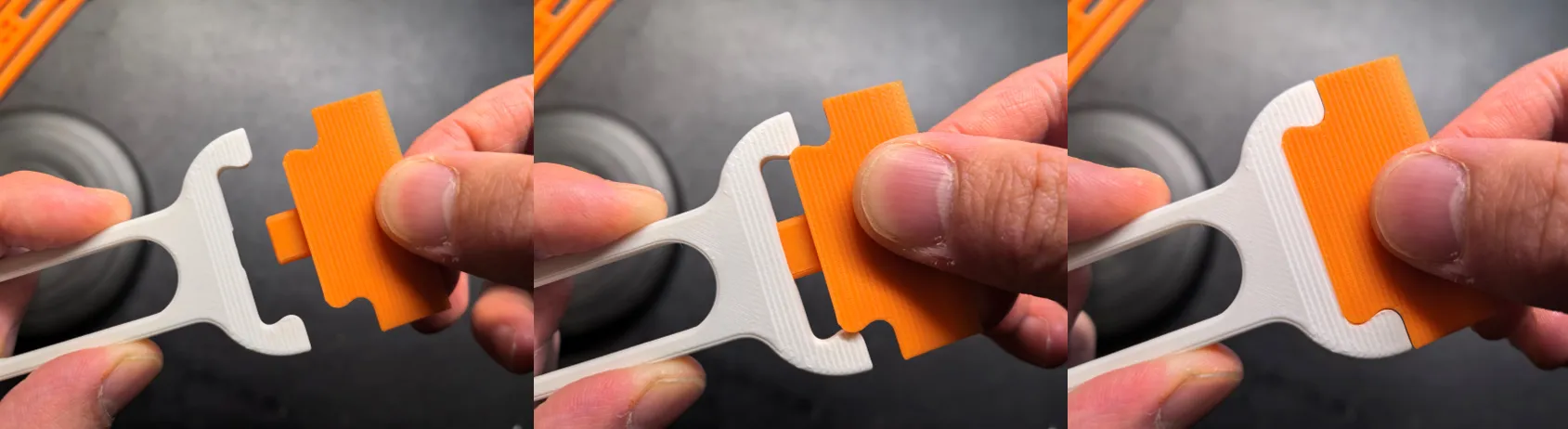

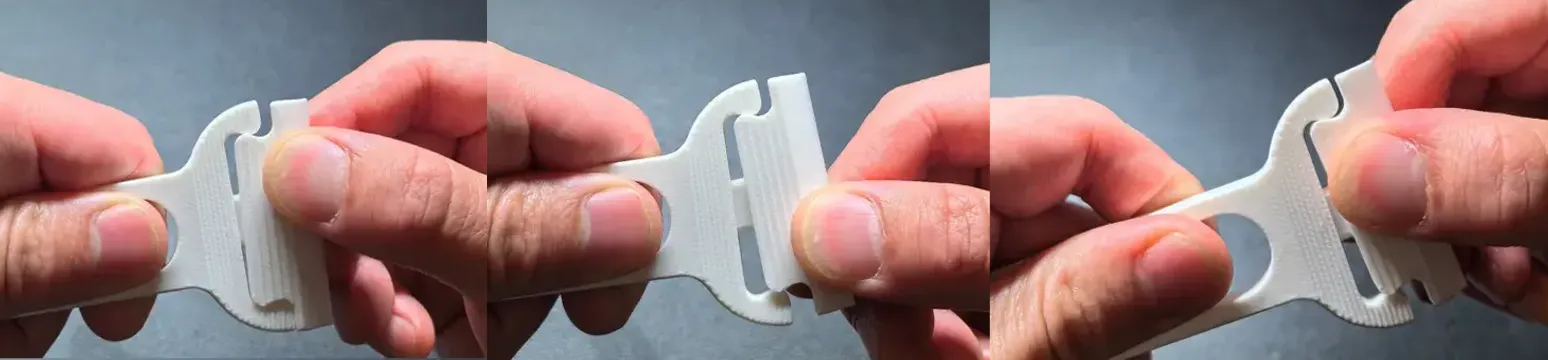

Remove the support of the shovel handle fitting hole, and then insert the shovel head fitting column parallel to the shovel handle fitting hole with slight force, and clamp it in place. When replacing, pull it out with slight force.

• Disassembly tutorial:

At the beginning of the replacement, it may be a bit tight, but after inserting and unplugging twice, it becomes much easier. When disassembling, first pinch one end of the shovel head and pull it out a certain distance, then pinch the other end and pull it out a certain distance, and finally pinch the middle part and pull it out.

• More good things：

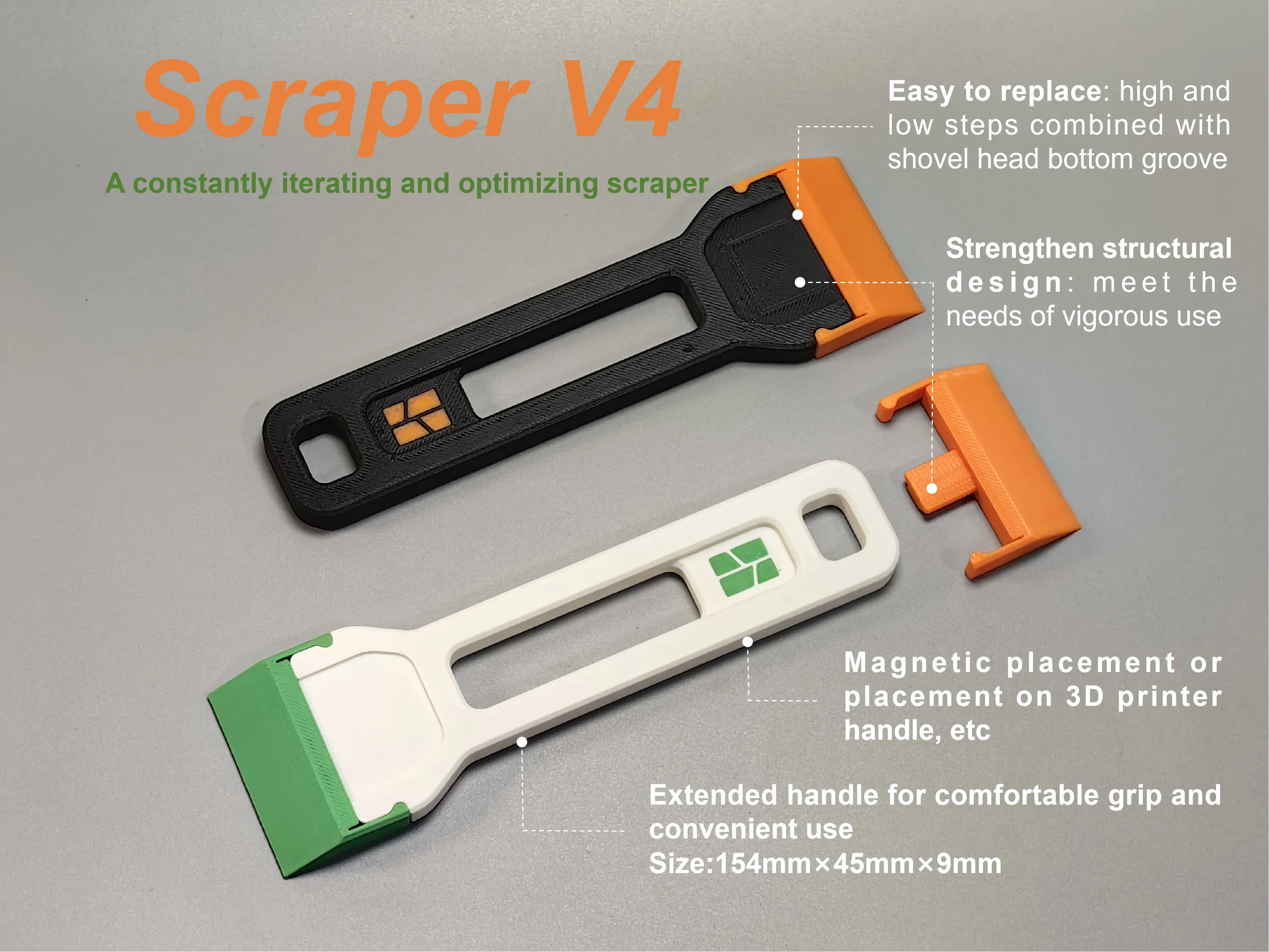

The latest design is a high-strength scraper V4, which meets the needs of 3D printing for shovels while protecting the hot bed. Welcome to download and print it：

刮刀 V4 （高强度型） - 免费 3D 打印模型 - MakerWorld

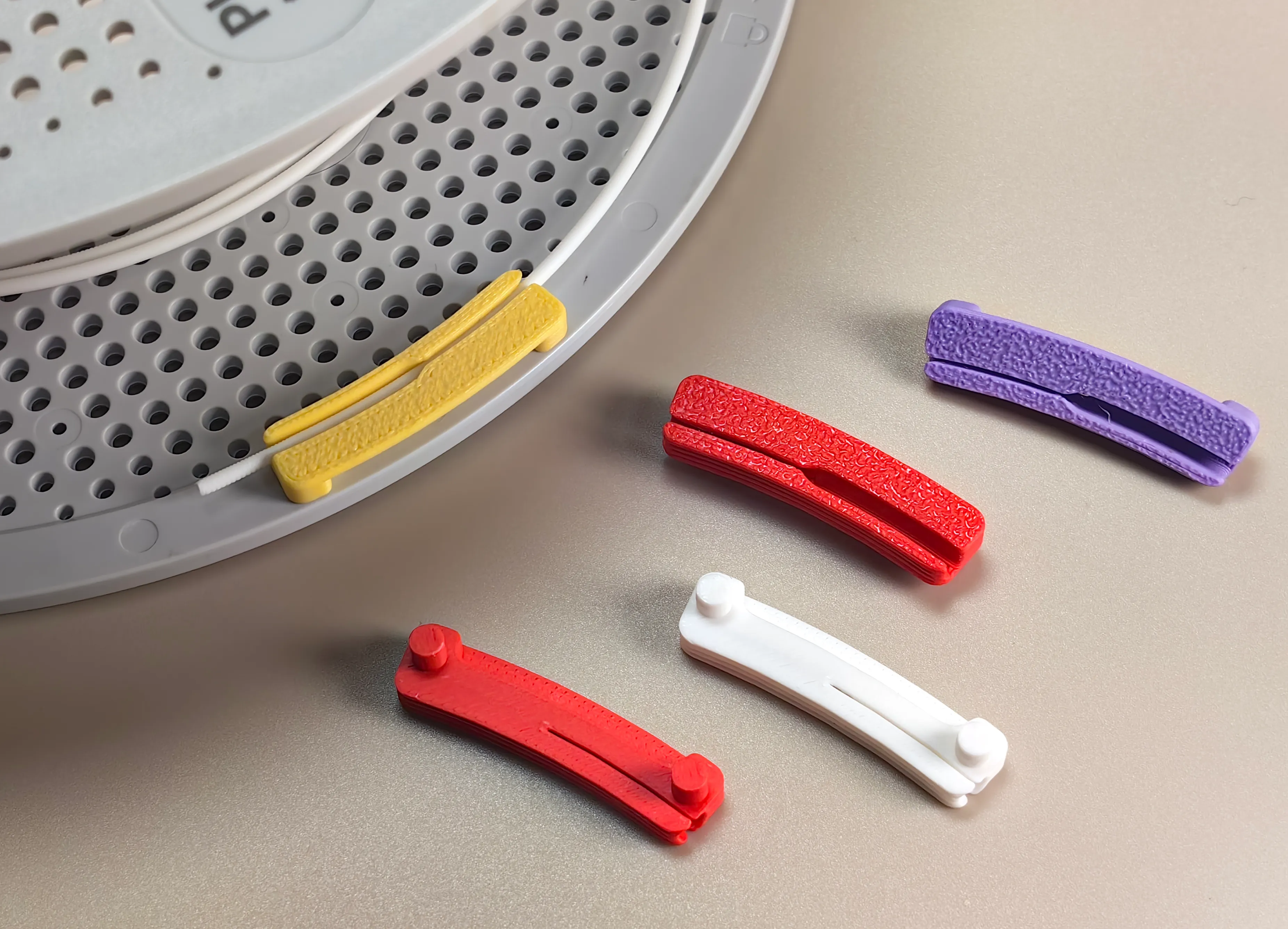

I have designed a self-locking consumable clip that only requires 1g of consumables. It can be easily inserted in both directions and is self-locking (not easy to fall off). It is easy to use and has a retrieval slot for easy disassembly. Welcome to download：

Filament Clip

自锁耗材夹（1g） - 免费 3D 打印模型 - MakerWorld

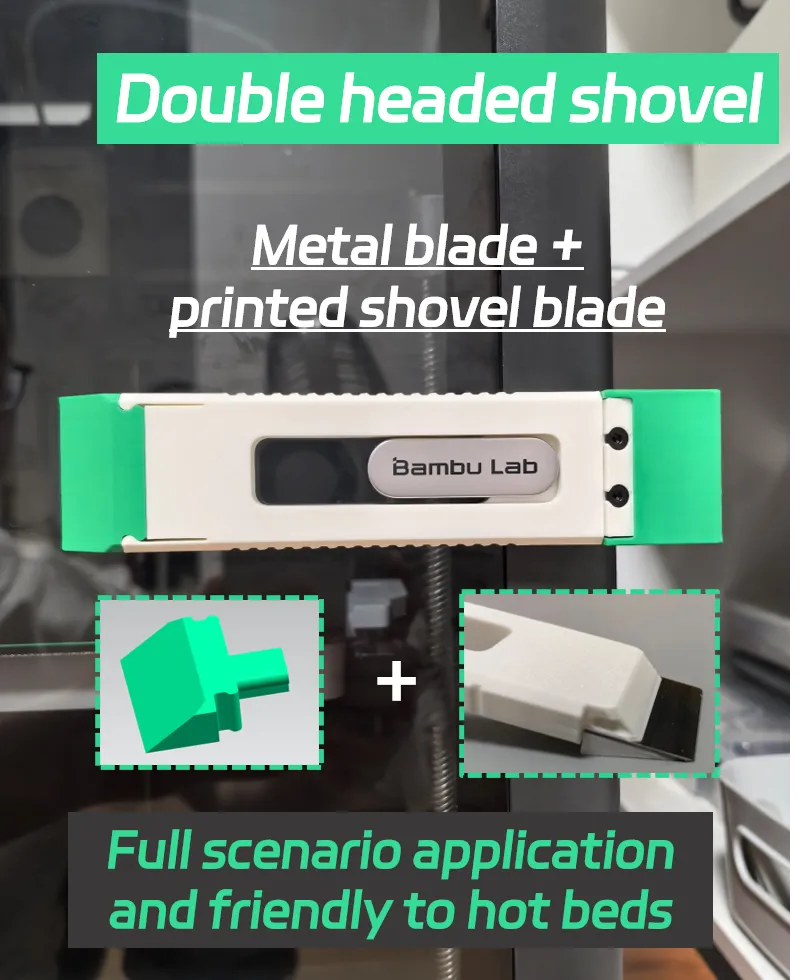

Dual headed shovel (original blade+replaceable print head) that can meet the full scene application of 3D printing and is friendly to hot beds. Welcome to download:

双头铲（原刀片+打印头） 来自 JHY_maker MakerWorld：免费下载 3D 模型

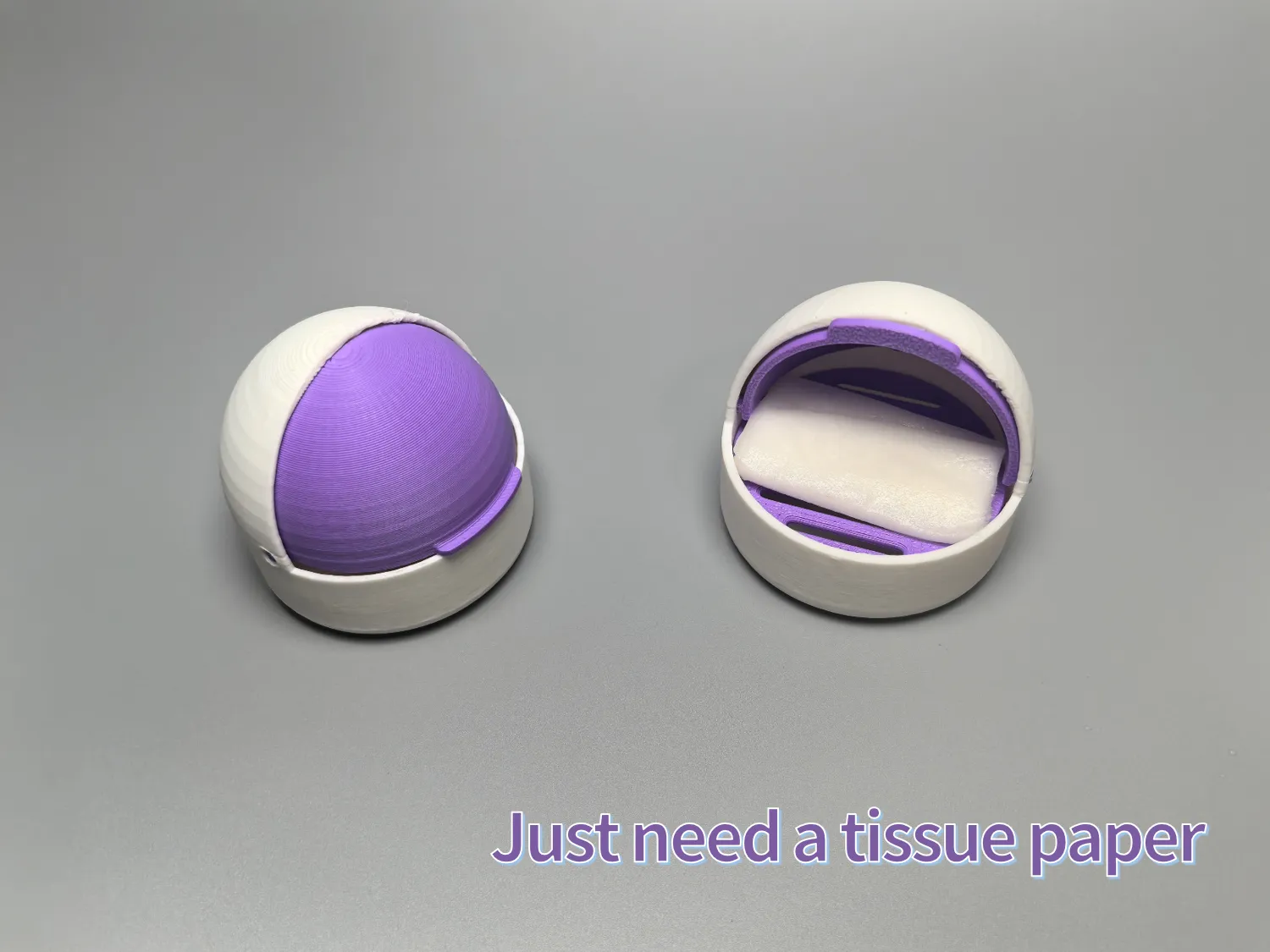

I have designed a finger wetting/counting device that only requires a tissue (needs to be moistened with water). Welcome to download：

指尖保湿工具/点钞工具 来自 JHY_maker MakerWorld：免费下载 3D 模型

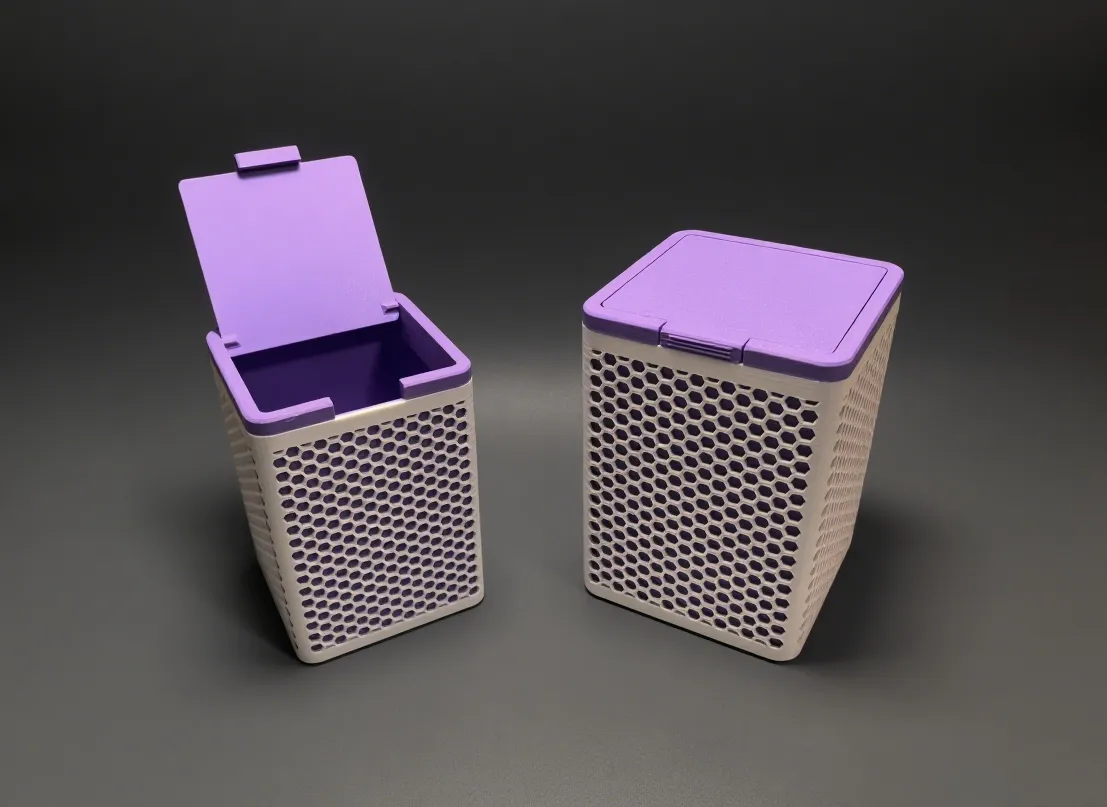

I have designed a double-layer garbage bin with a material saving inner tube (which can be easily replaced after getting dirty), which is practical and beautiful. Welcome to download and print it：

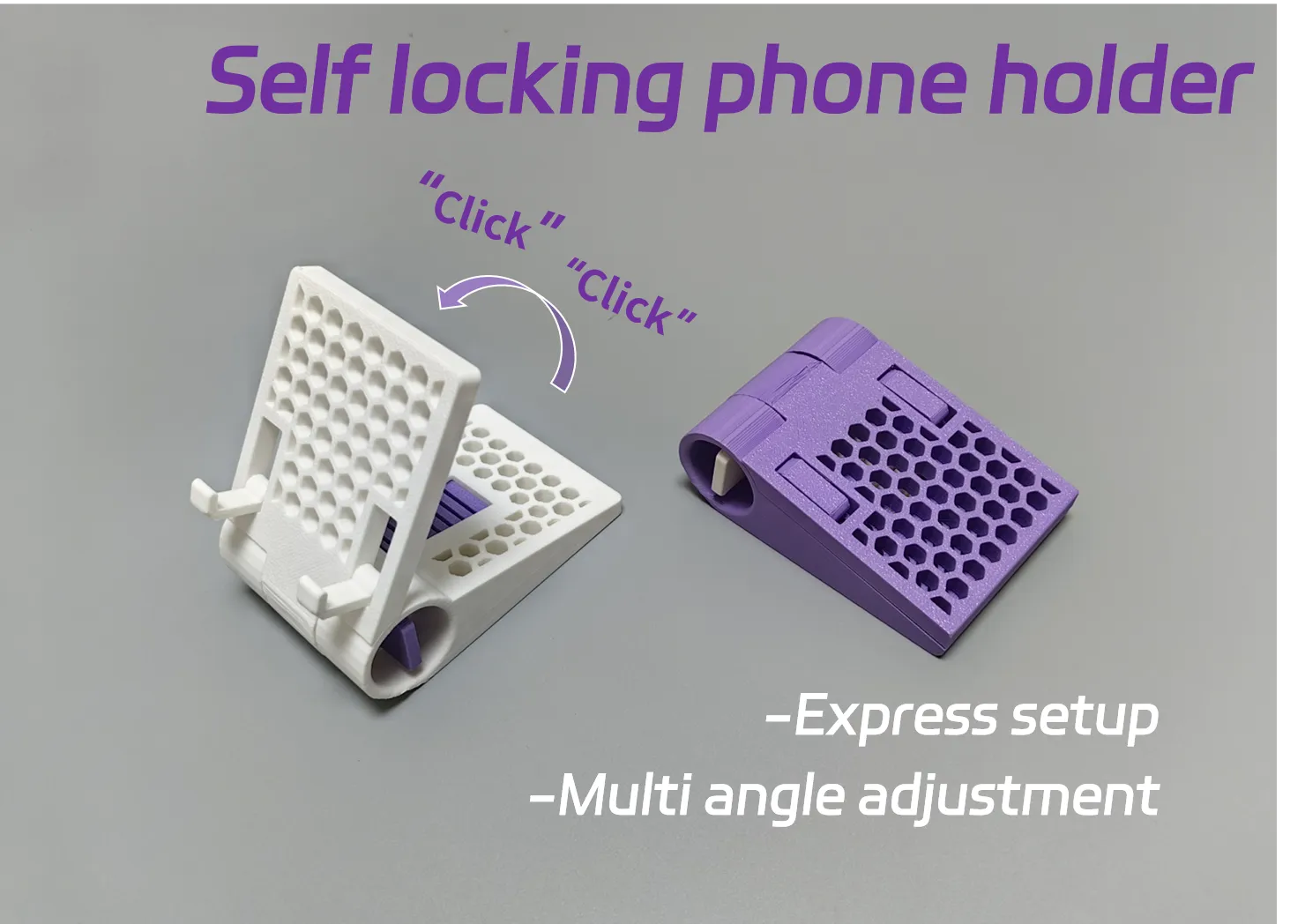

I have designed a self-locking phone holder, which is very practical, simple and beautiful. Welcome to download it:

自锁式手机支架 来自 JHY_makerMakerWorld：免费下载 3D 模型

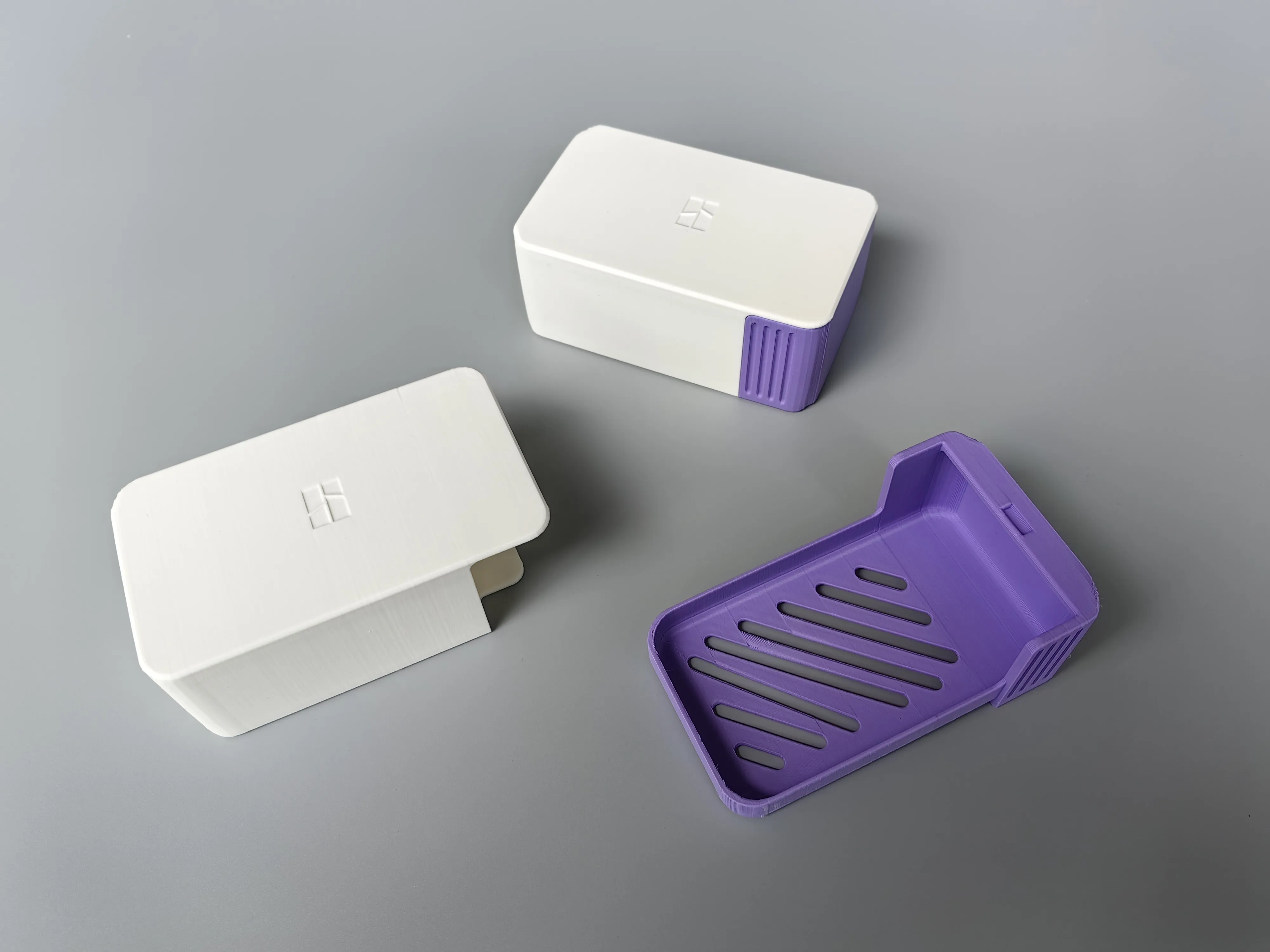

A new portable travel soap box has been designed, which is simple, beautiful and practical. Welcome to download it:
