Raspberry Pi 5 TV HAT Case
Print Profile(2)
Description
I have designed a case for my Tvheadend based on Raspberry Pi 5 + Raspberry TV HAT.
The case allows you to install the NVMe Base for Raspberry Pi 5 from Pimoroni to use NVMe storage (much faster) instead of a MicroSD card. However, the case still supports the use of a MicroSD card.

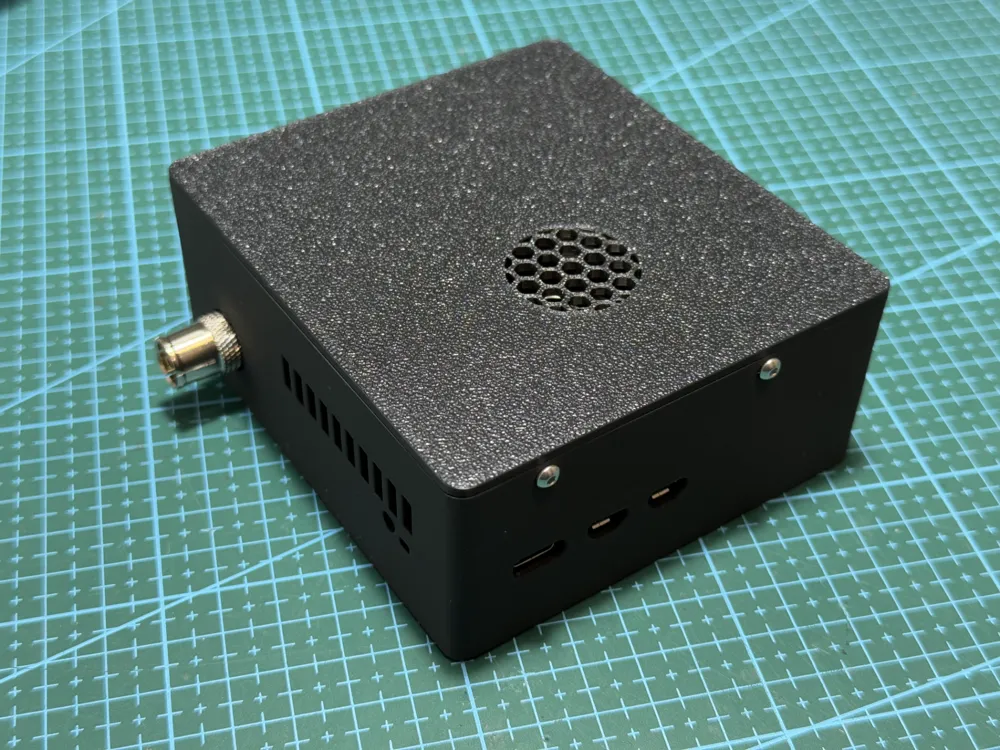

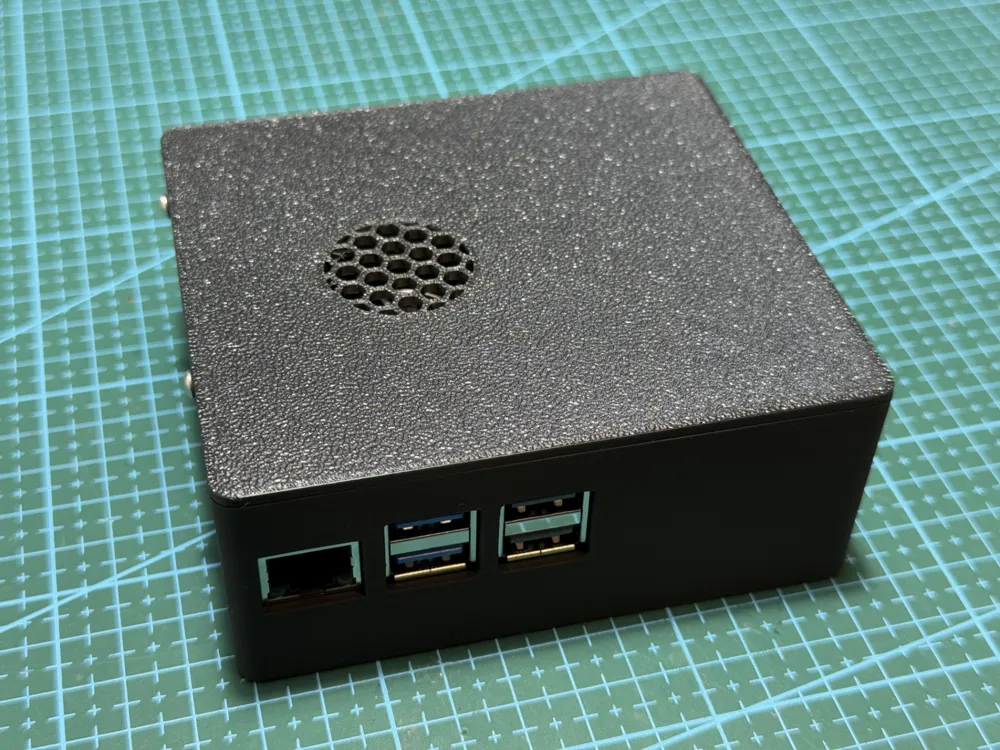

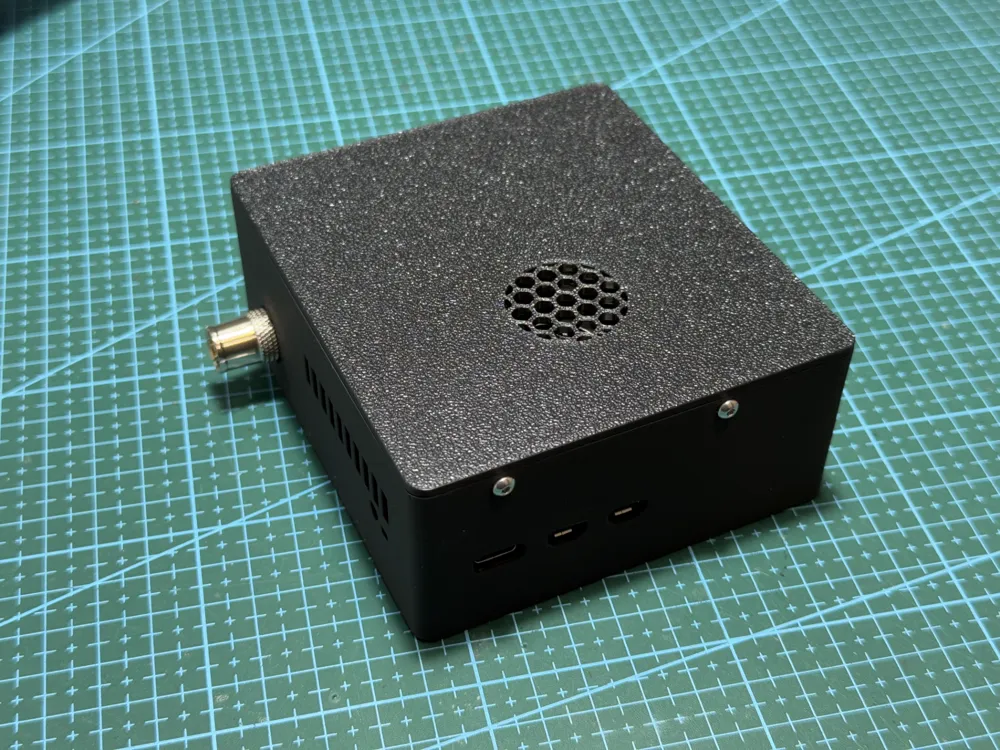

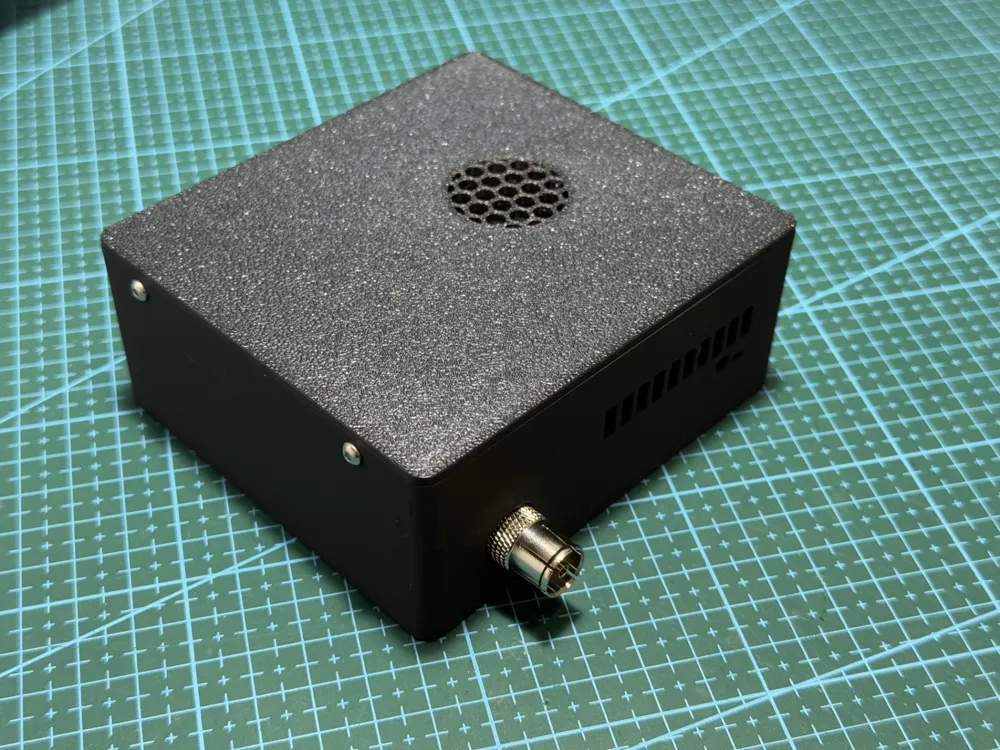

To help with cooling, the lid has ventilation holes for the Raspberry Pi active cooler.

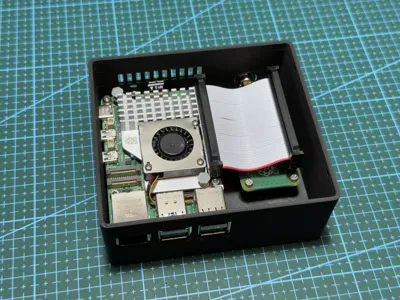

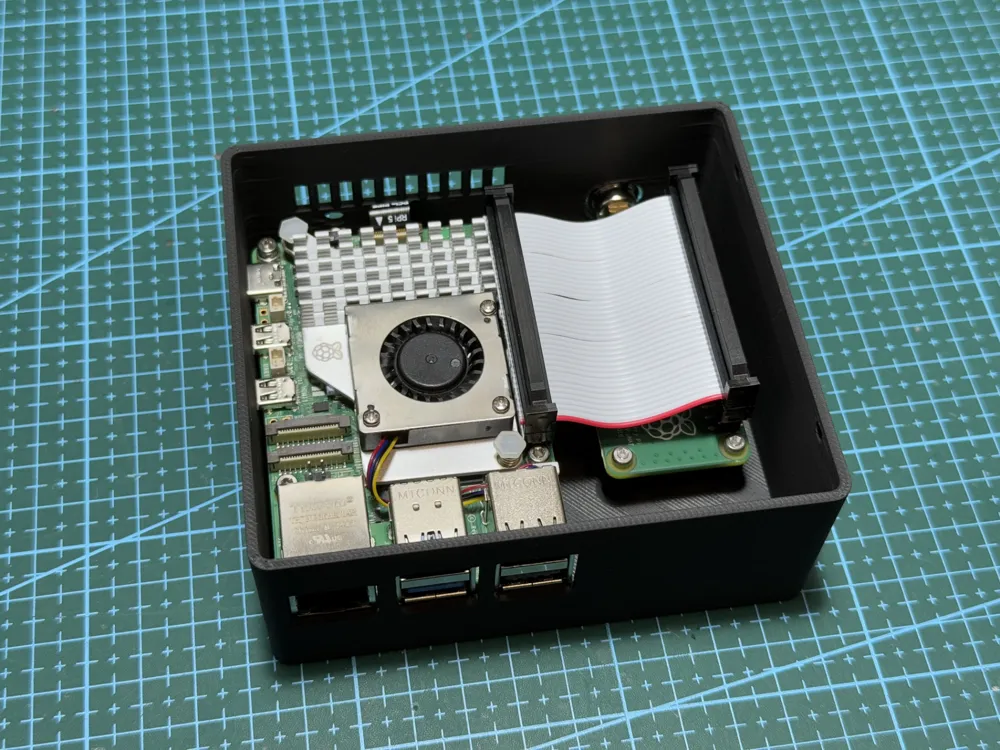

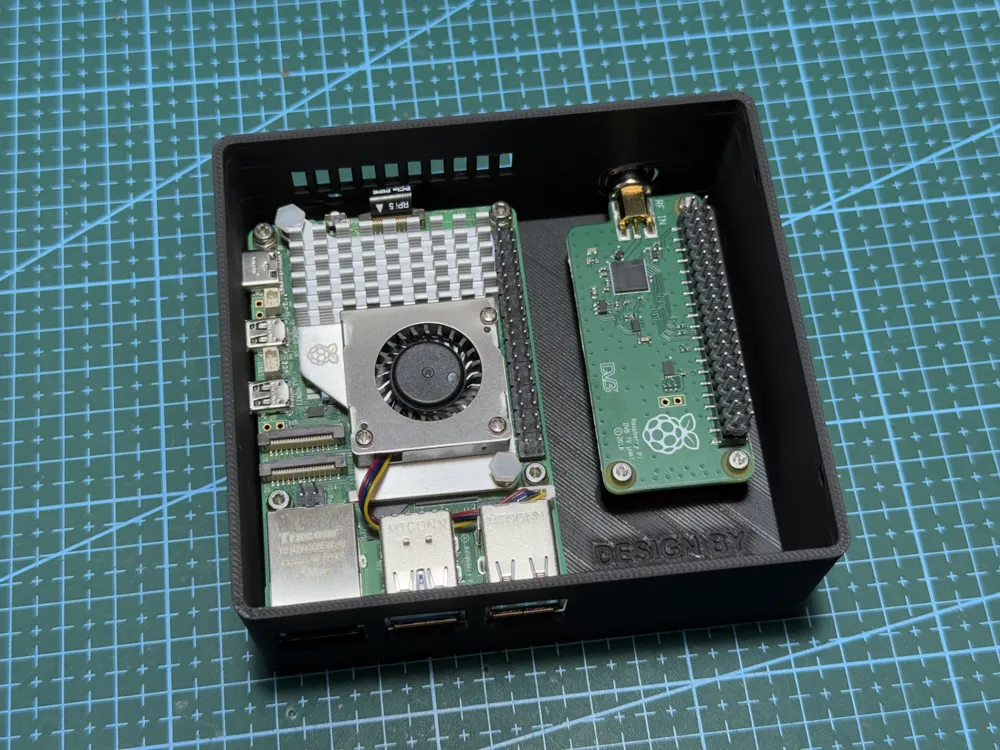

The Raspberry TV HAT is housed on the side so as not to block the Raspberry Pi cooling. A data cable is required to connect both devices. I have designed a template to help build the custom cable.
Requirements
Hardware
Storage
or
Box
- 11x M2.5 Heat-Set Inserts (OD=3.5 L=4)
- 3x M2.5x6 Socket Screws (PCB)
- 4x M2.5x14 Socket Screws or 4x M2.5x16 Socket Screws + 4x M2.5 Nuts (PCB)
- 4x M2.5x6 Round Screws (Lid)
- 4x 6x2mm Silicone Adhesive Bumper Pads
Mounting
- 4x 7mm Spacers (If you are going to use the NVMe Base for Raspberry Pi 5 by Pimoroni)
- 4x 8.6mm Spacers (If instead you are going to use a MicroSD card)
- 2x 40-Pin IDC Female Connectors
- 50mm 40-Pin Flat Ribbon Cable UL-2651 28AWG
- 1x 2x20-Pin 2.54mm Double Row Male Breakaway
Assembly Guide
- Print the Base, Lid and Spacers needed (according to your configuration).

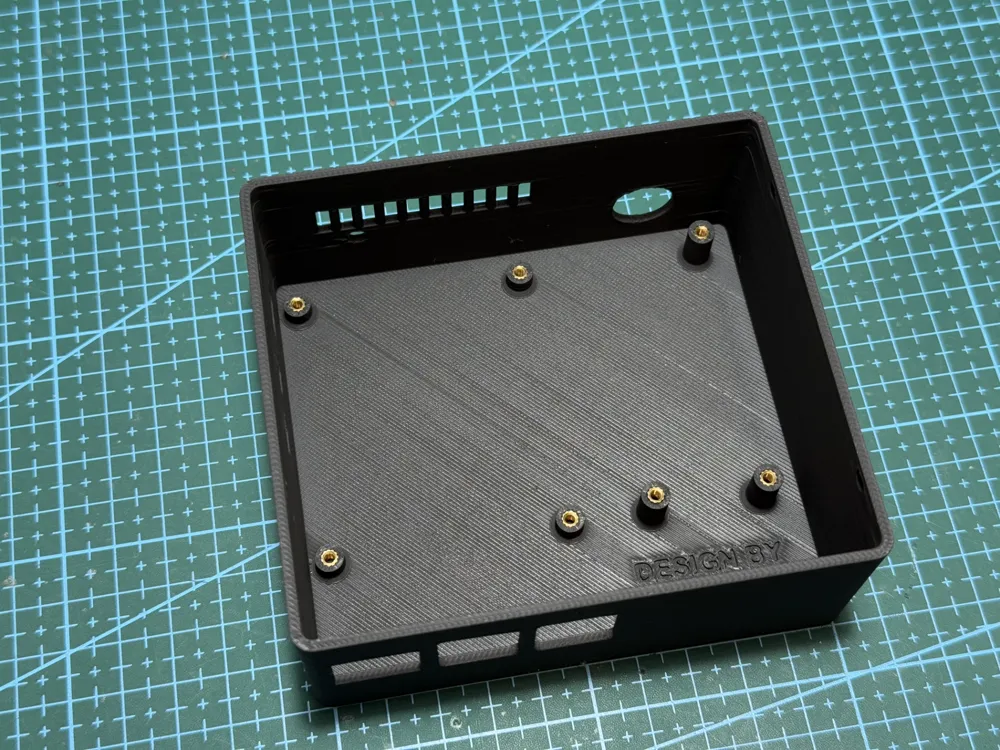

- Place the Heat-Set Inserts.
- Build the data cable, if you want, you can print the template to help you with a Water Pump Pliers.
- Assemble it.
- Enjoy!
Notes for Nerds
All models have been designed with PLA filament shrinkage in mind. They are ready to print directly without scaling.
Make sure you have correctly calibrated the flow and shrinkage of your filament.
