Description

I've now improved on this design, based on feedback so if you'd like to check out the improved version you can find it here:

Improved Modular 4040 Profile Cable Clip by Googlebug - MakerWorld

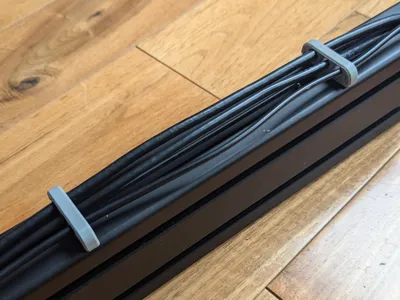

Very simple, reusable cable management for 4040 aluminum profile typically used for industrial racking, or in my use case a sim rig.

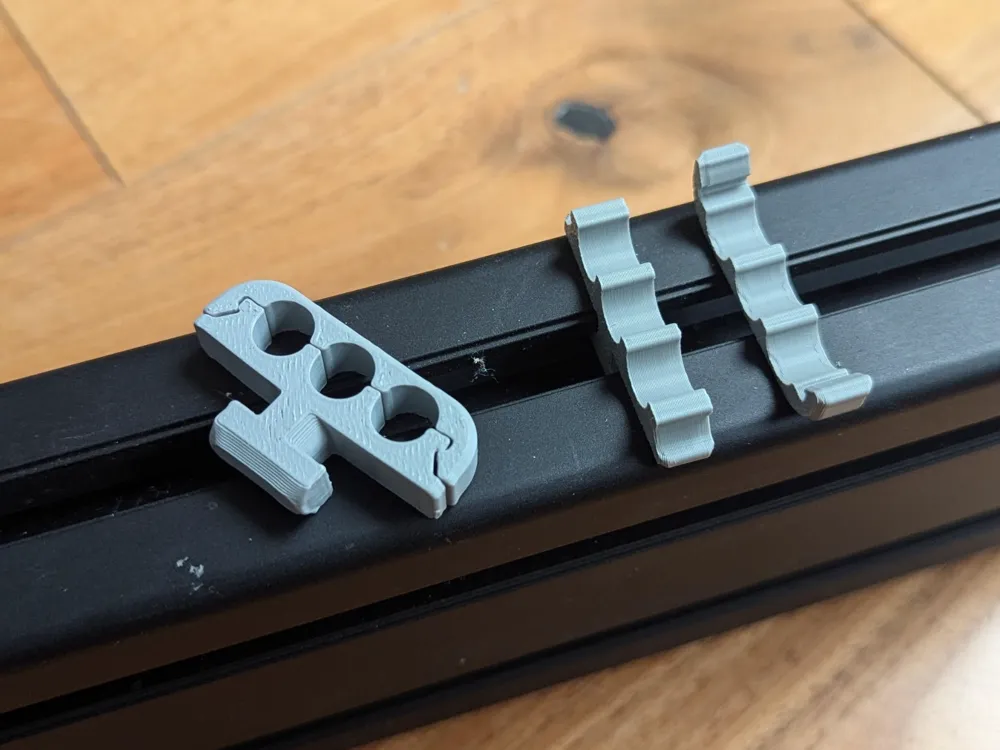

The bottom clip slots into the grooves of the profile, you then rotate it by 90 degrees. It will be a tight fit so that it doesn't move especially when added onto uprights.

Once the bottom clip is in place, lay the cables on top and then push the top clip on until it clicks.
