Yolobox Pro Stand, Vertical and Horizontal Live Streaming Device Stand

Before you begin, please note this design is specifically for the Yolobox Pro. If you are using a Yolobox Ultra, please refer to this version

Concept

Jimmy has been using the Yolobox Pro for many years. For those unfamiliar with this remarkable device, please see this review: “《Jimmy’s Guide》The YoloBox Pro Live Streaming Powerhouse”

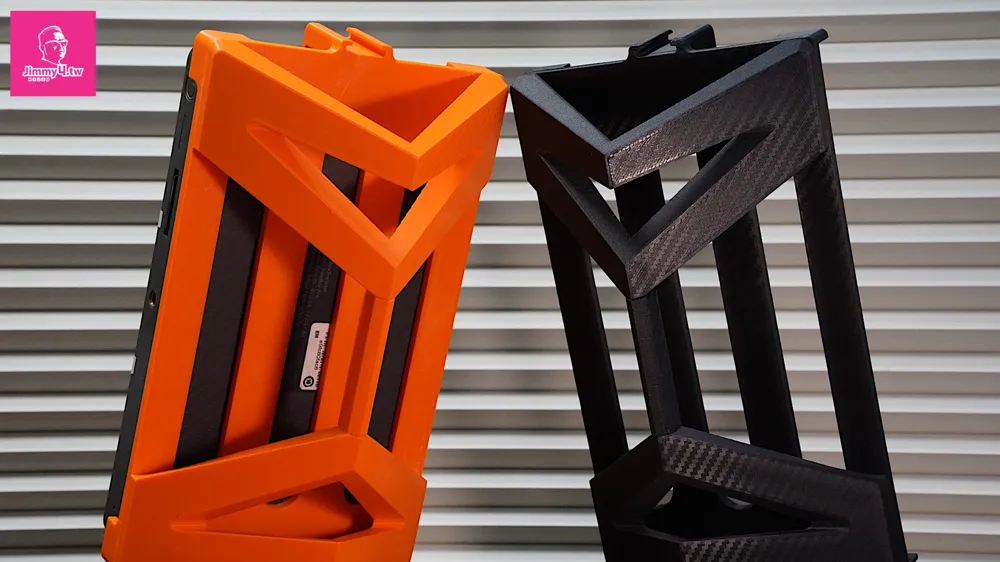

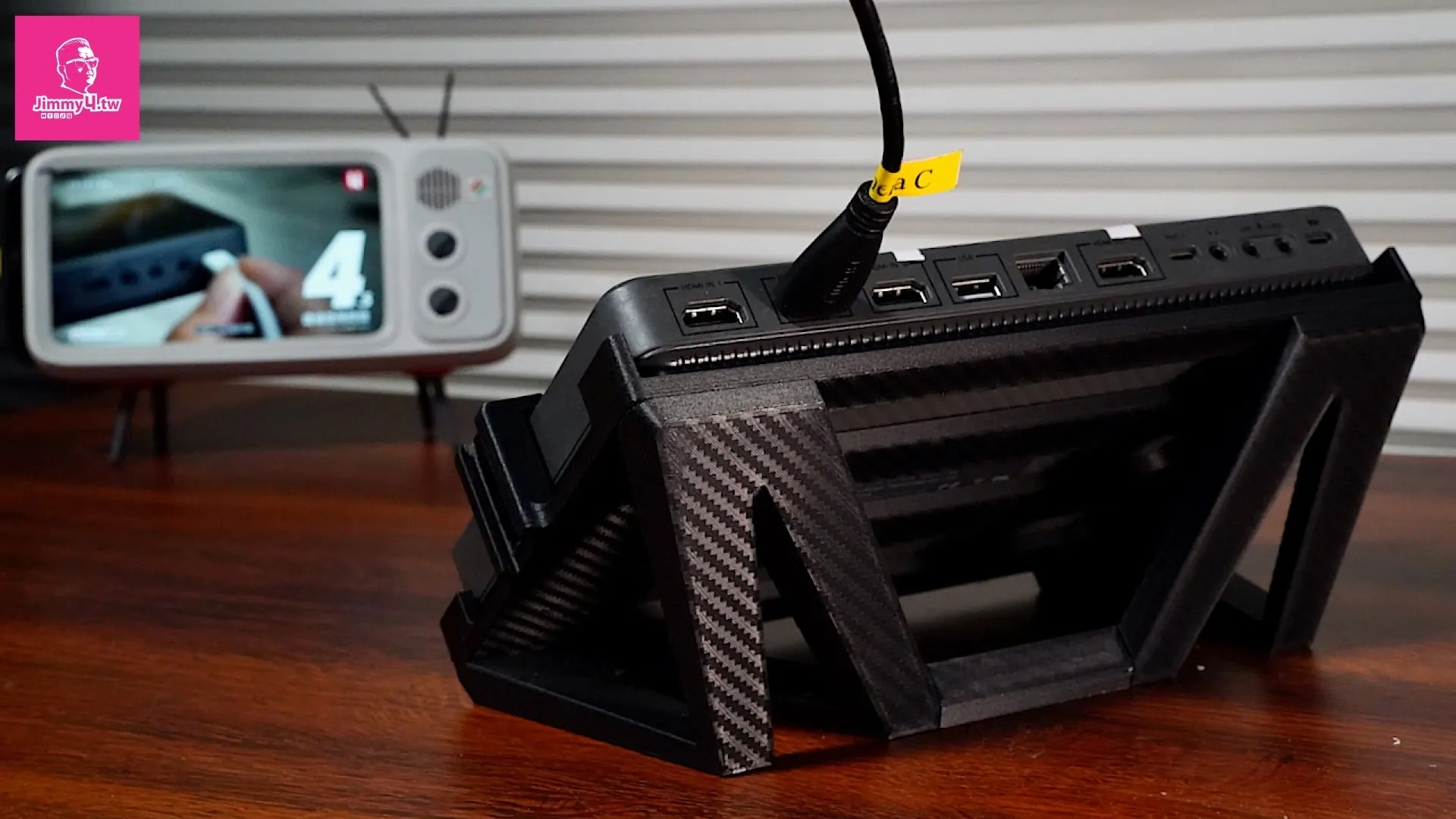

This accessory is exclusively designed for the Yolobox Pro live streaming device, enabling horizontal presentation

I’ve been using it for two years, and after acquiring a 3D printer, I started designing a stand to conveniently position it on my desk for optimal viewing and operational ease

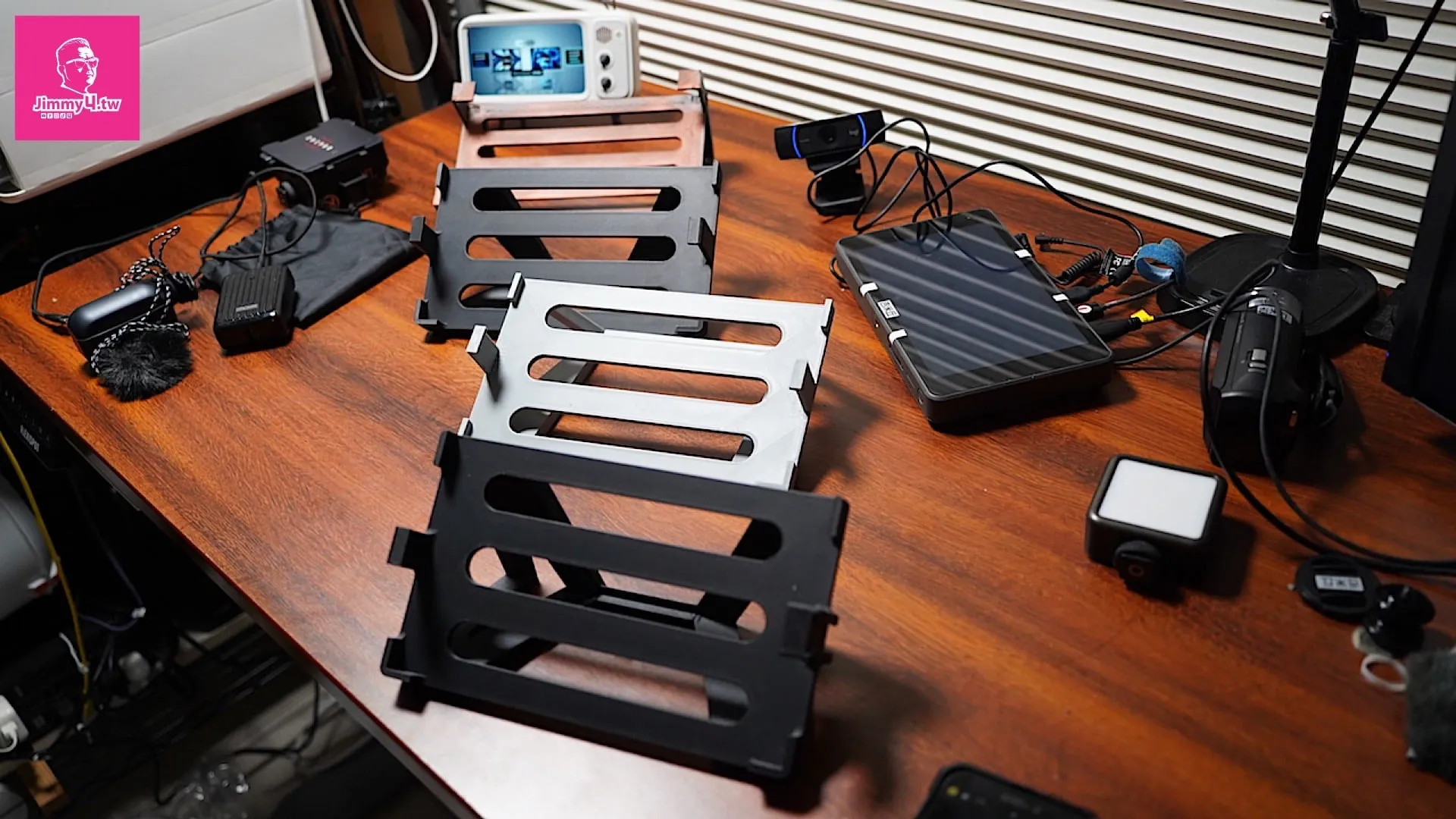

After purchasing a new 3D printer this year, I began iteratively refining the design, resulting in numerous revisions

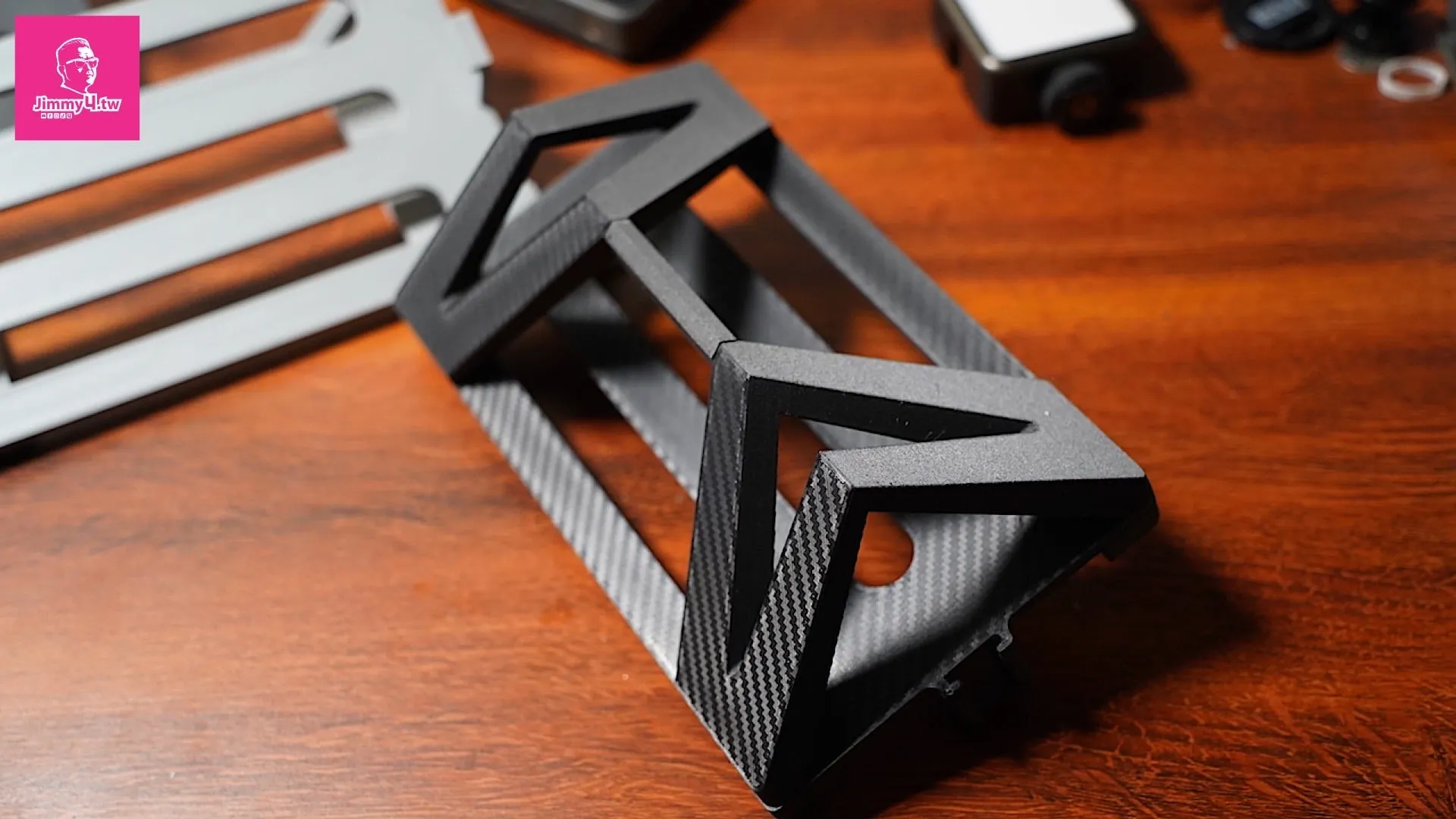

My recent 11.11 purchase of carbon fiber PETG filament arrived, perfectly coinciding with my earlier acquisition of a carbon fiber textured heated bed. Extensive testing culminated in this final version

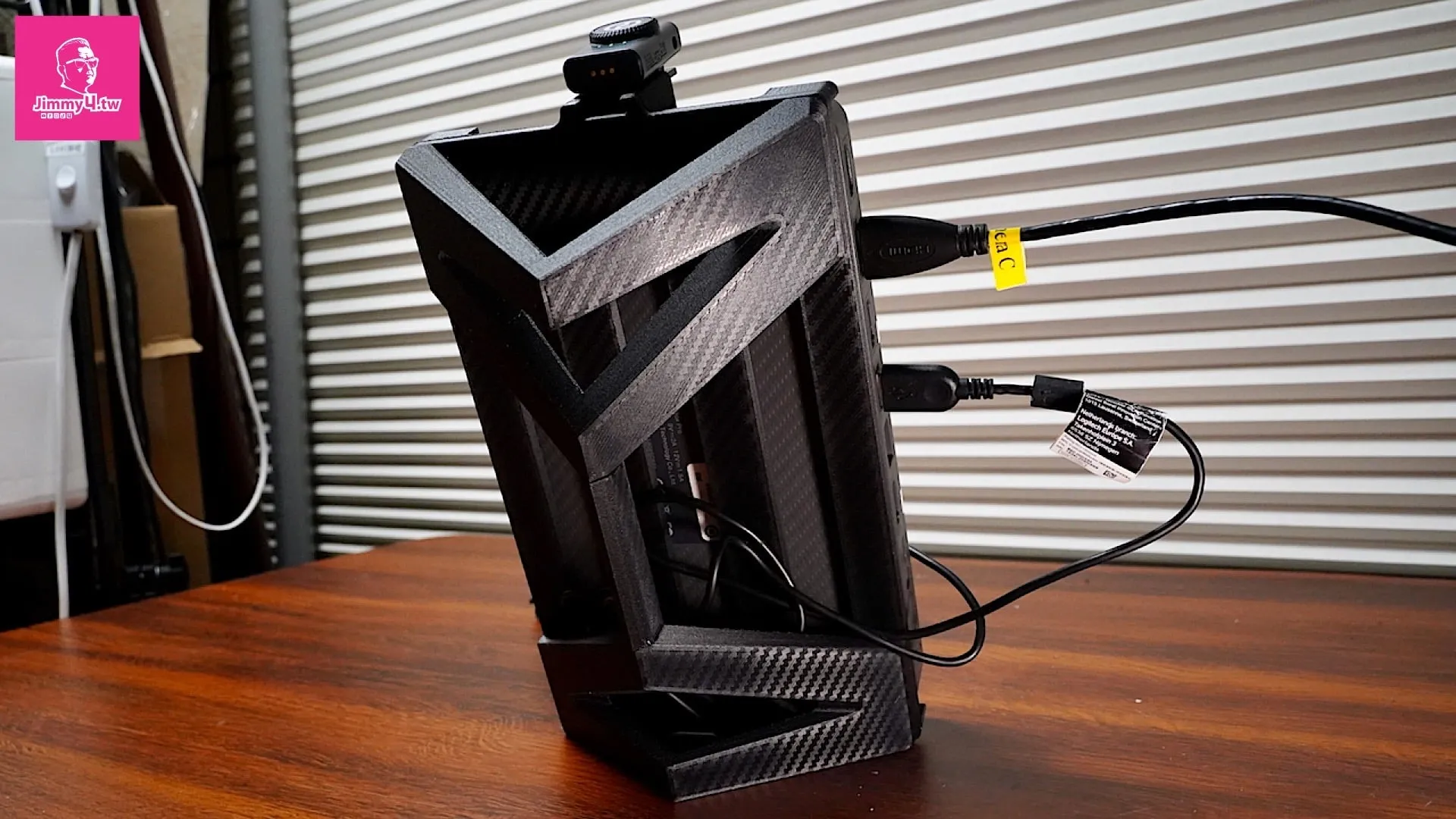

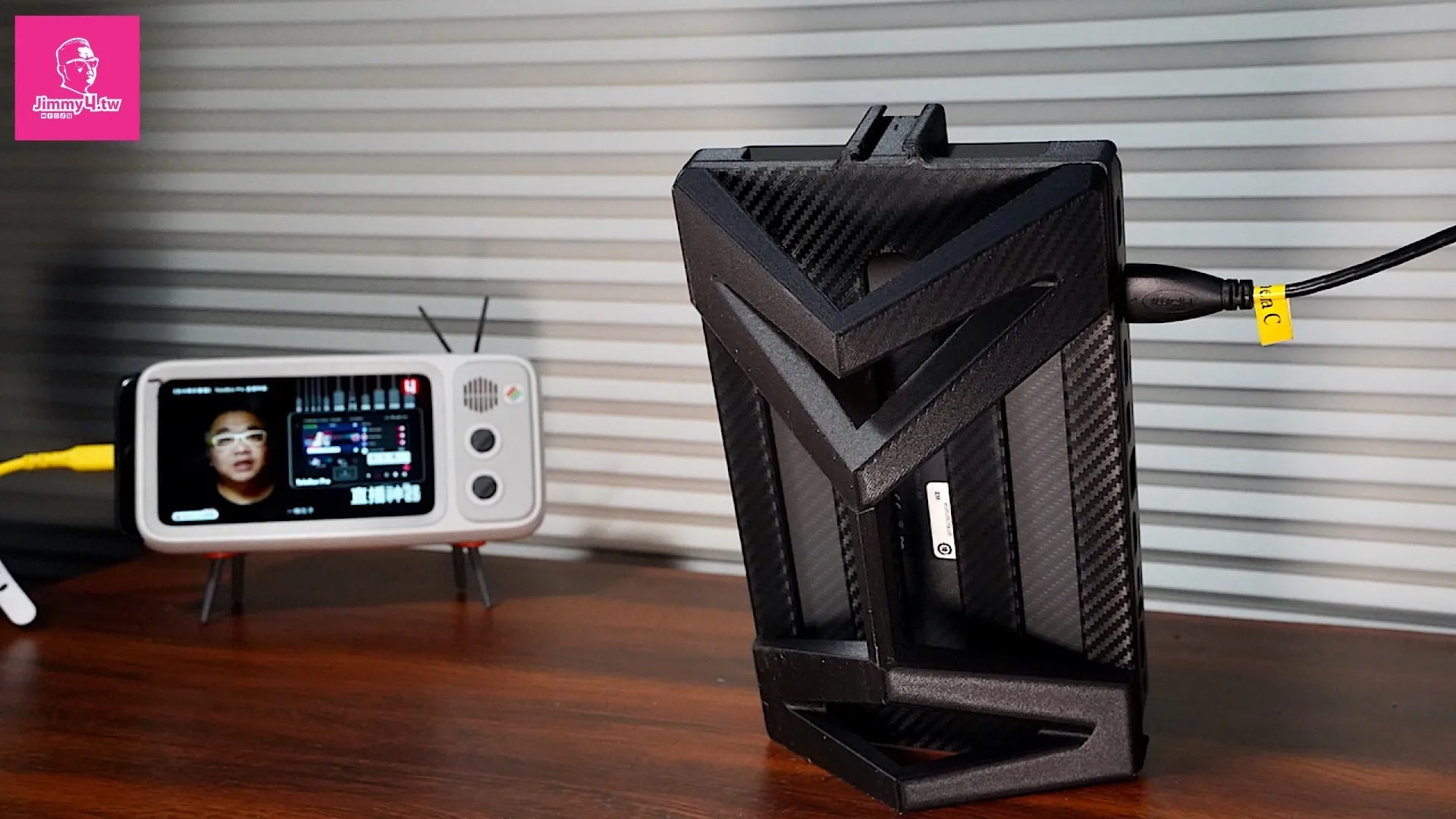

The key improvement is the addition of a vertical orientation, optimizing it for live streaming

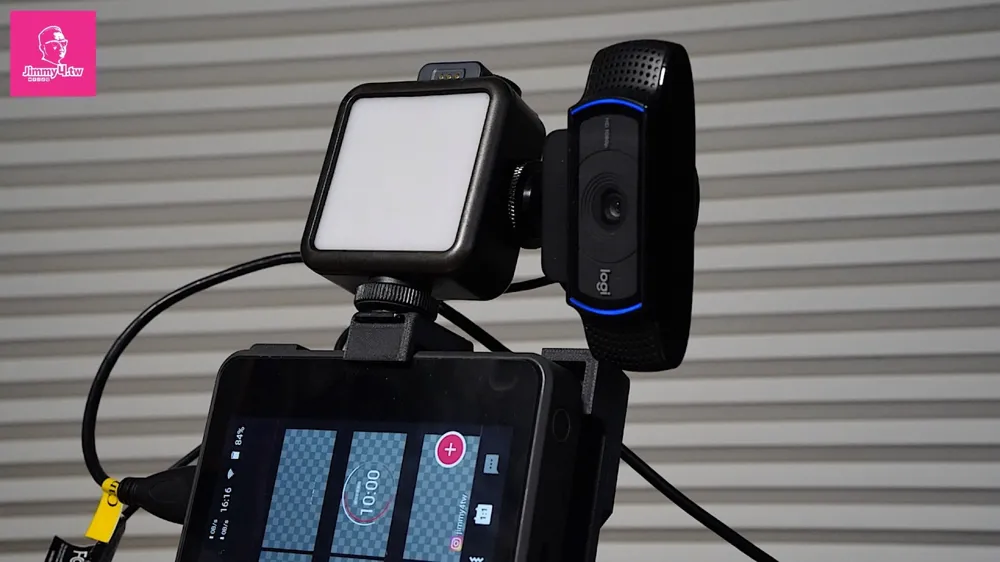

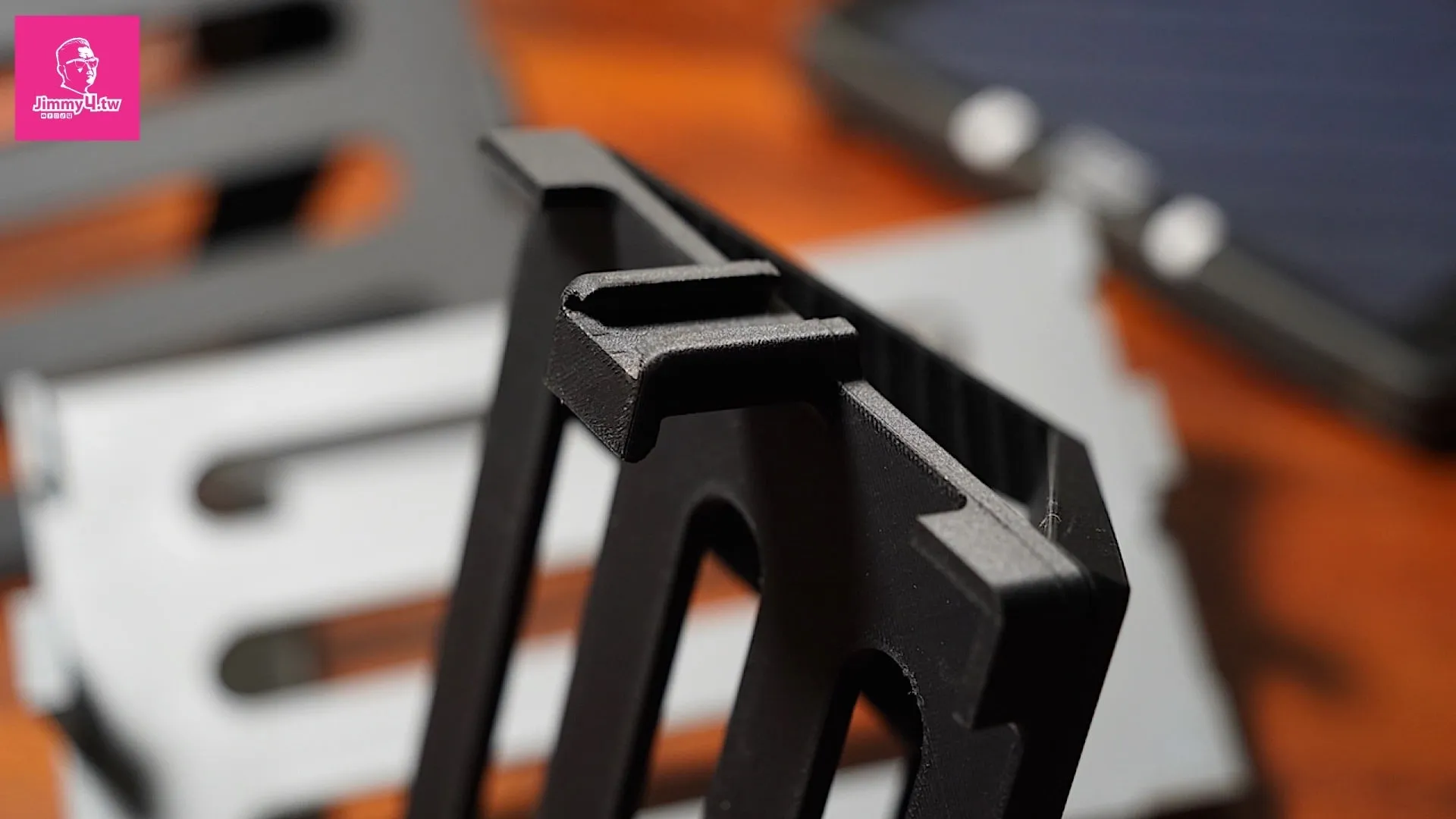

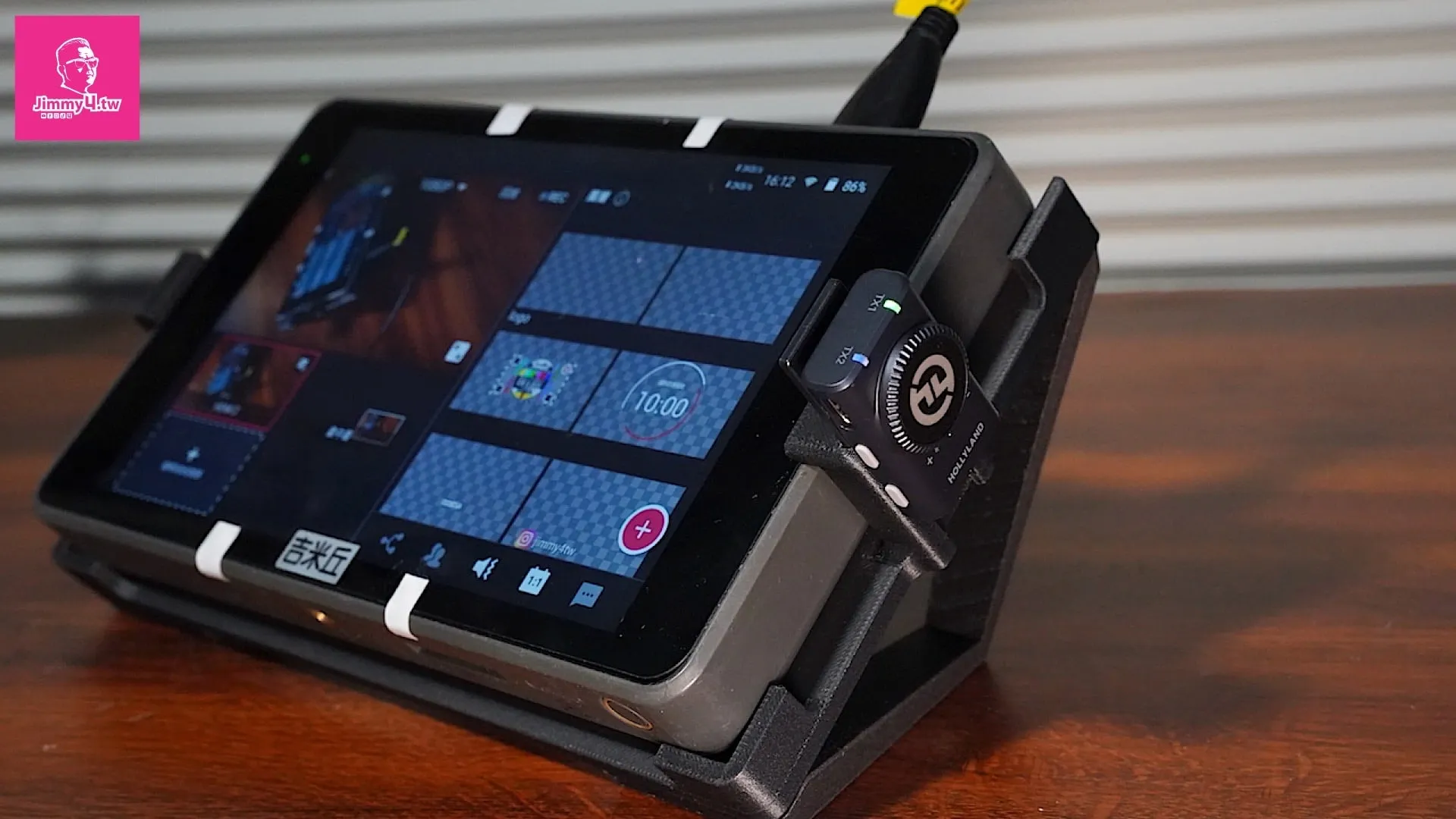

Cold shoe mounts have been integrated into the clamping mechanism

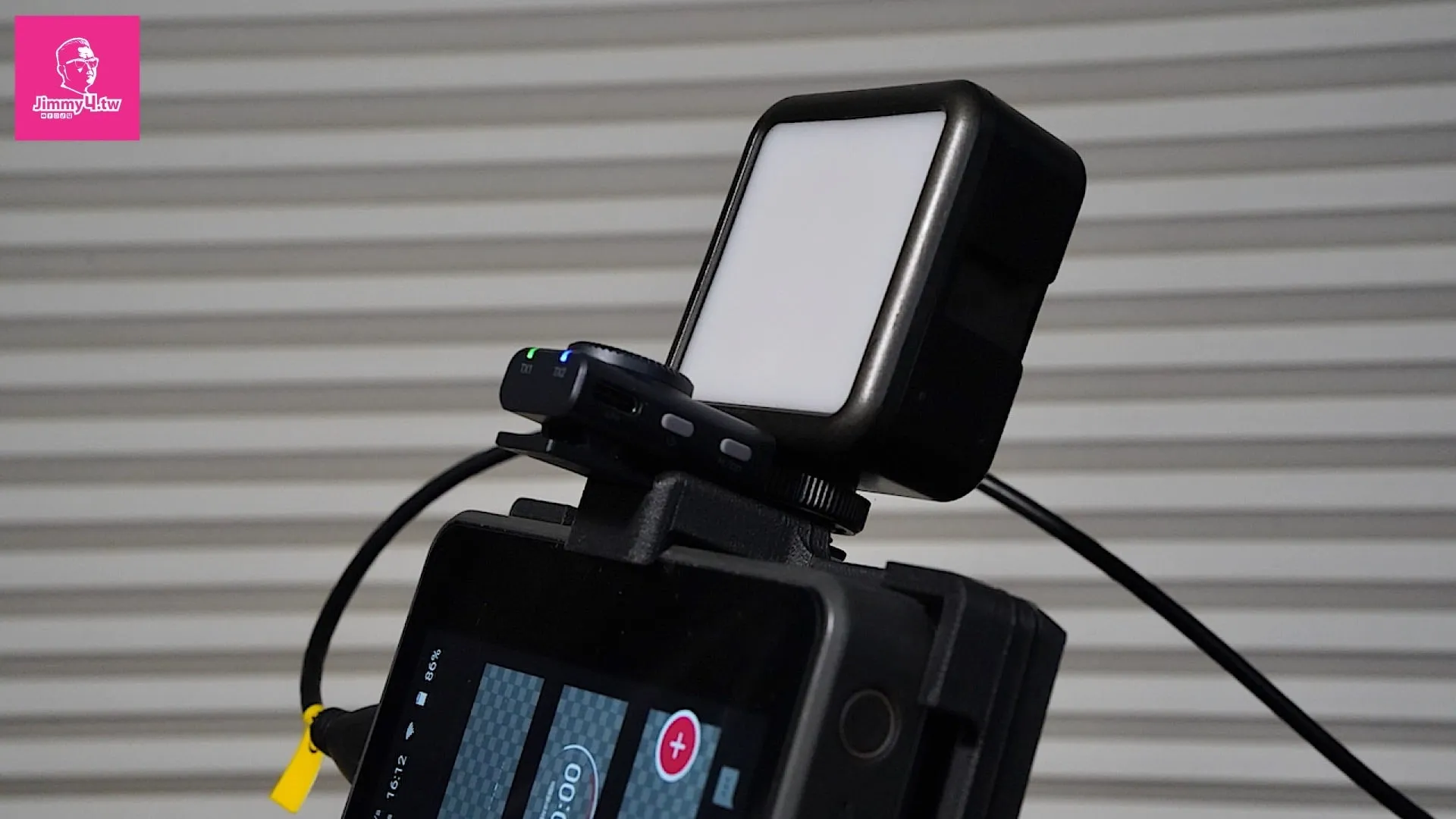

Given the length of the clamp, a cold shoe accessory can be mounted at both the front and rear

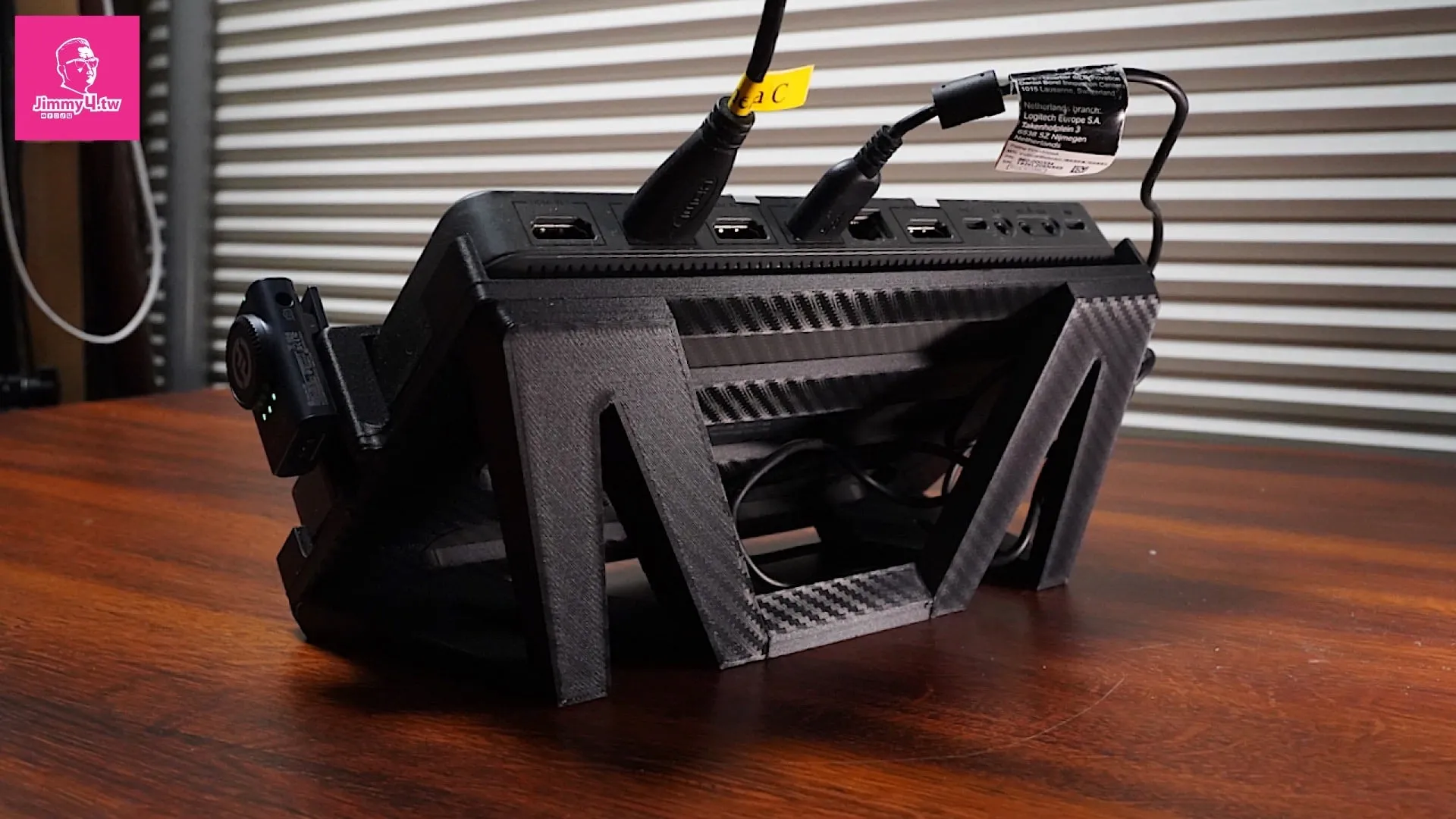

Facilitating the installation of microphone receivers

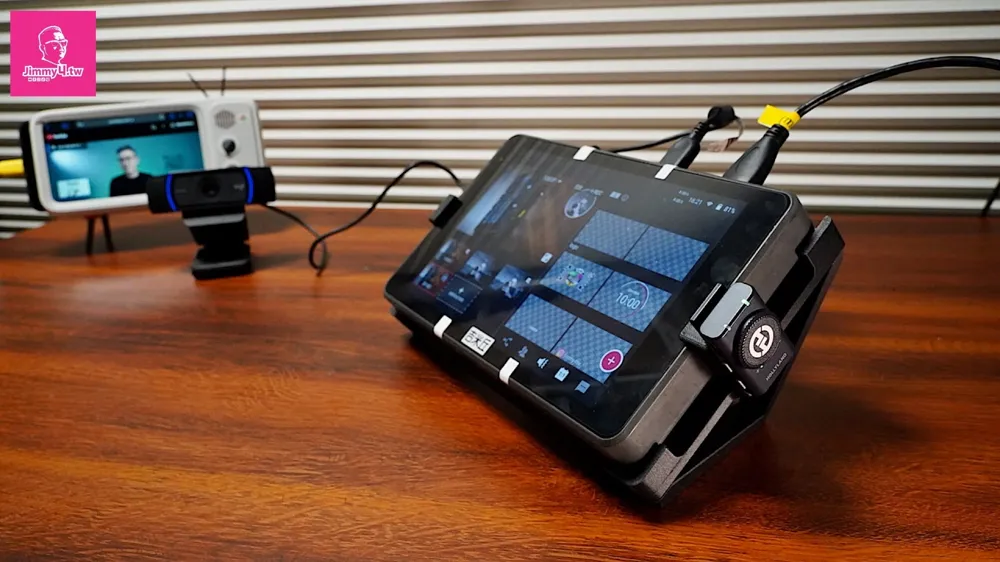

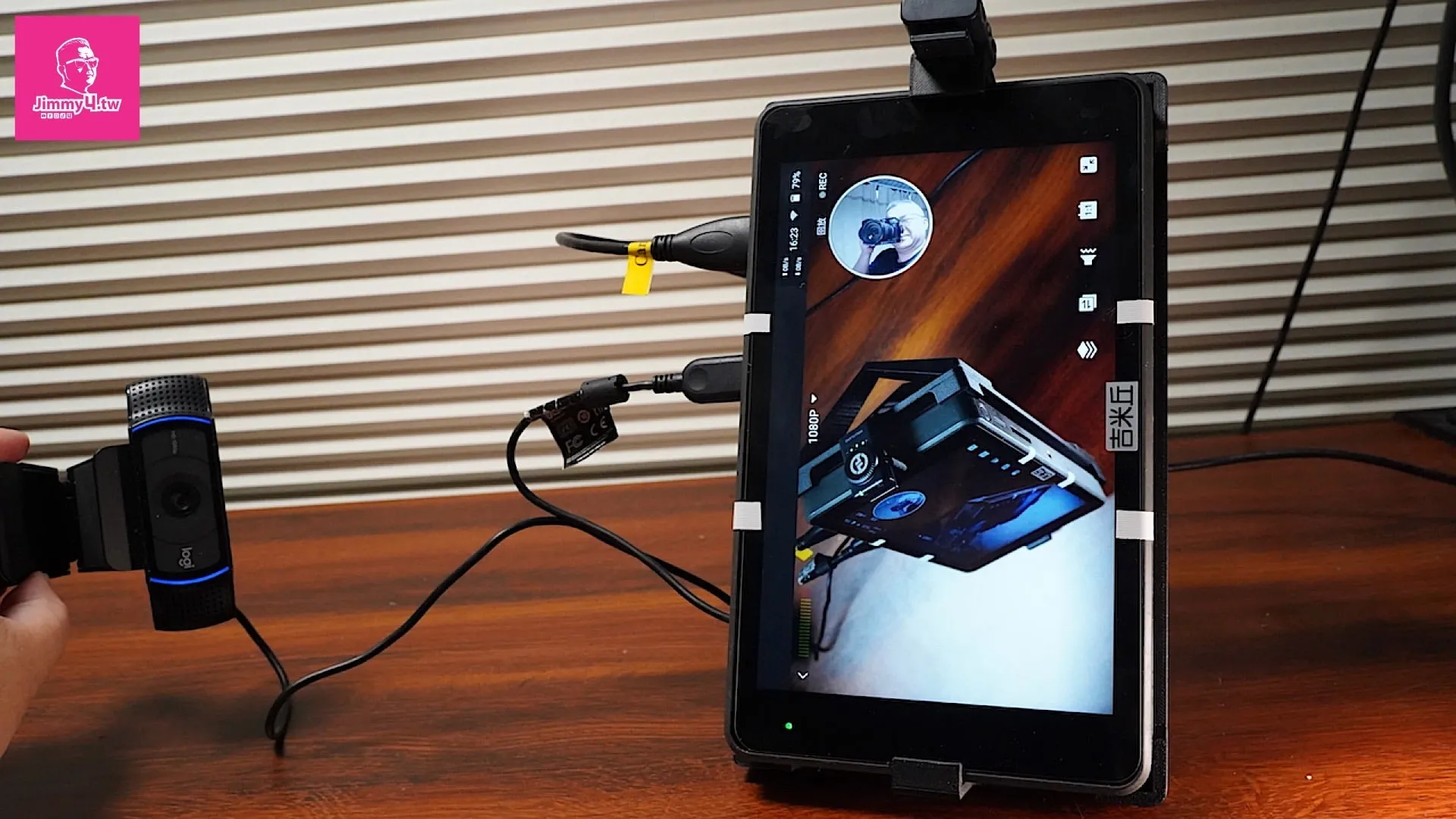

Even lighting, USB webcams…



And thus, your live stream commences

Although


This YoloBox Pro doesn’t support vertical video for platforms like Douyin, TikTok, Taobao…

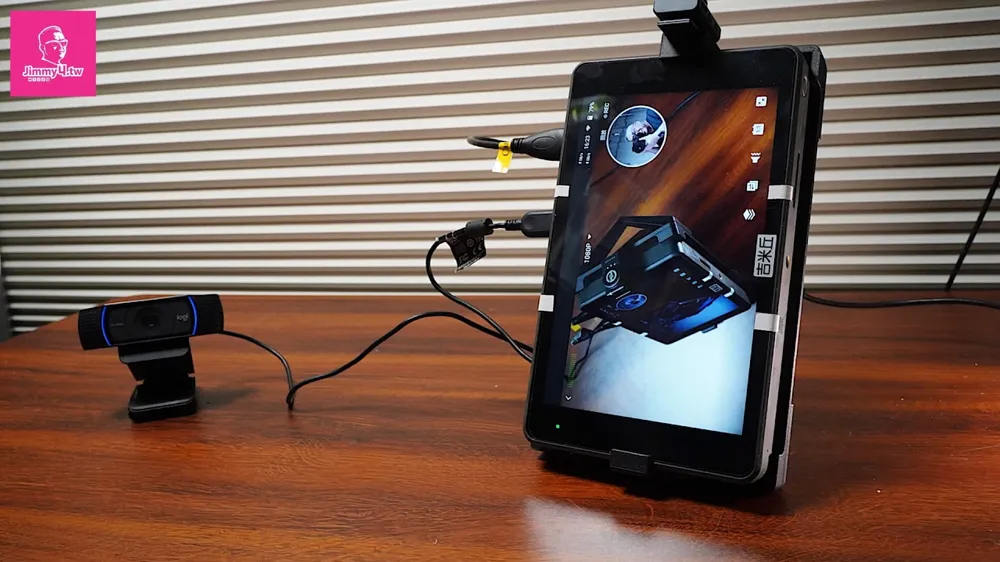

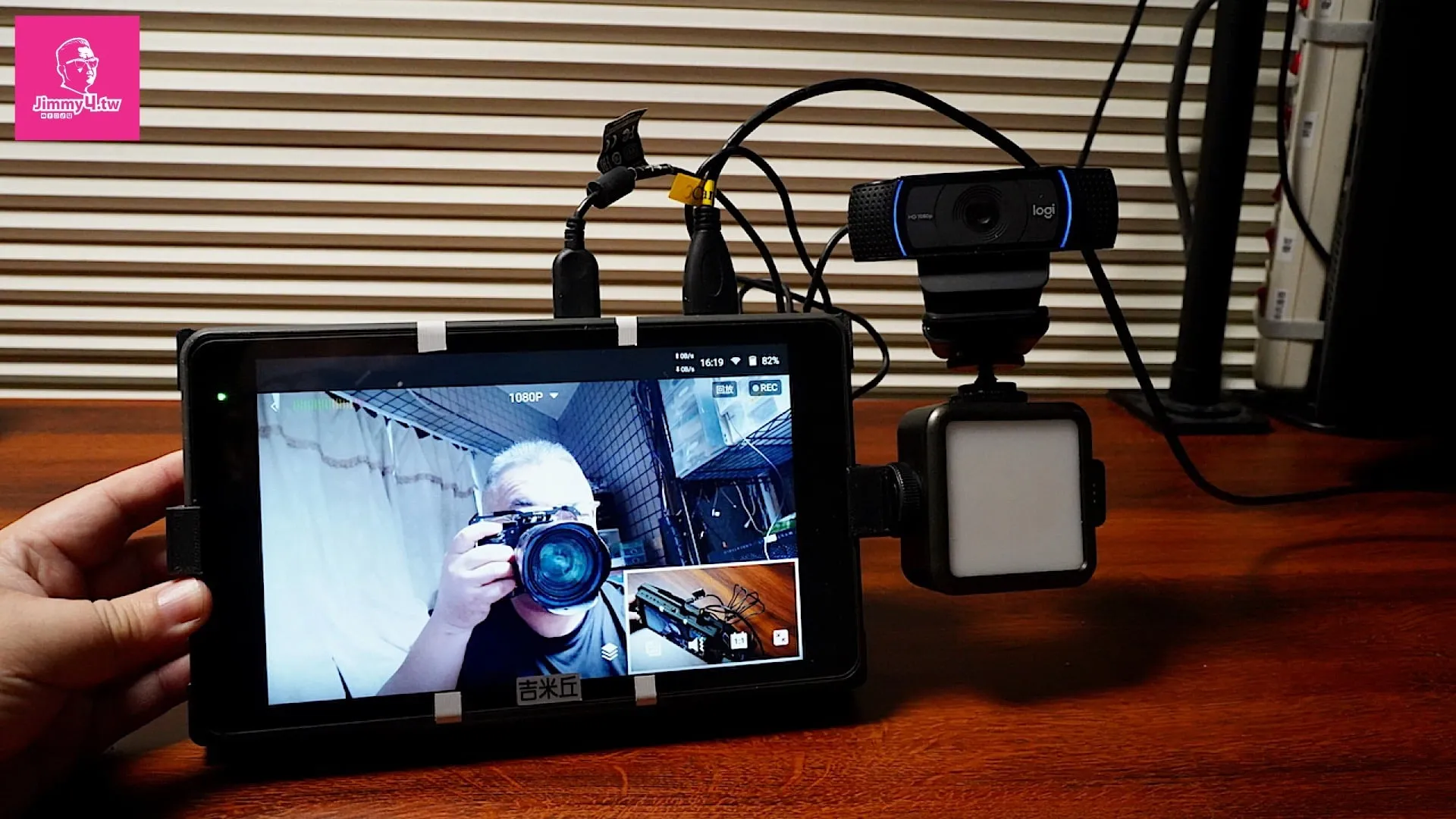

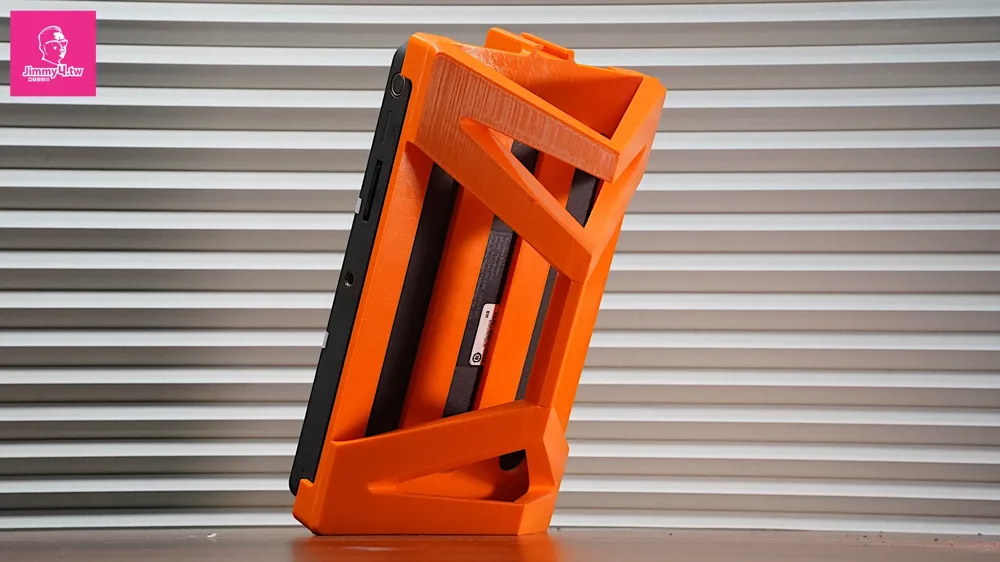

However, its upright configuration has recently become my preferred method for monitoring live video feeds during filming

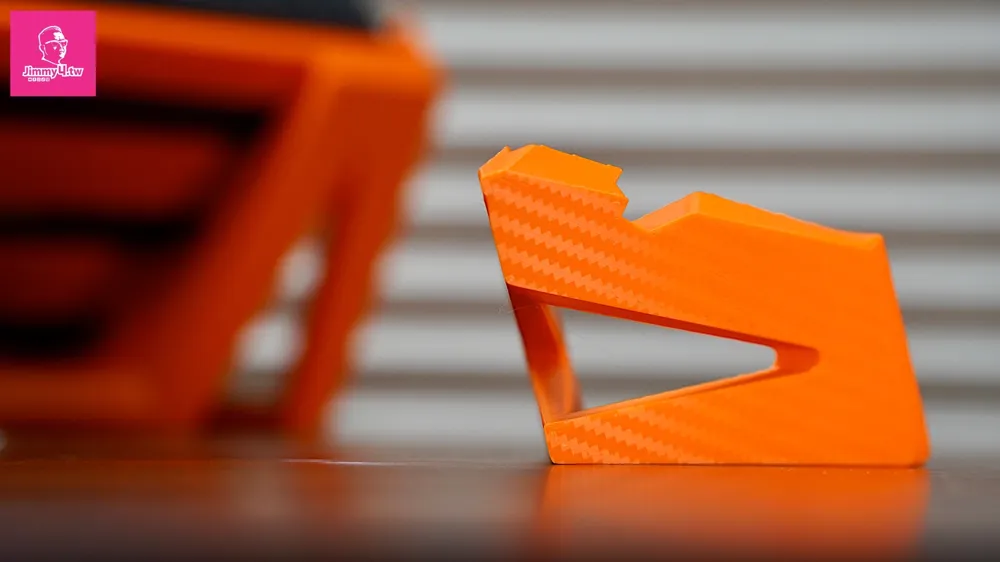

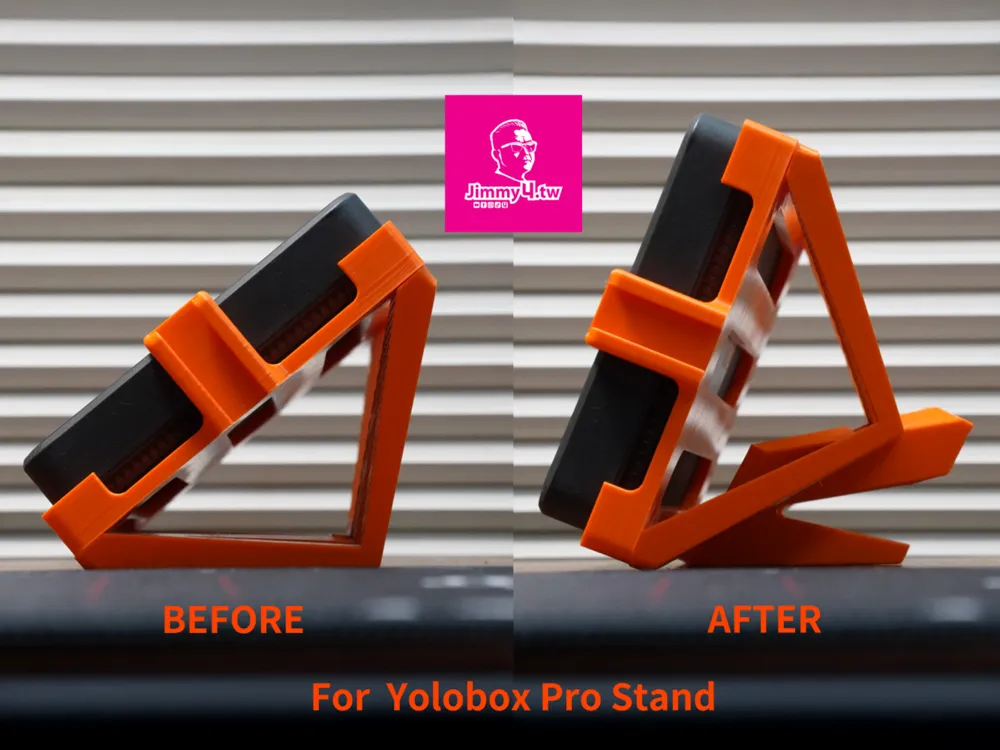

I’ve meticulously refined the upright tilt angle,


Not only adjusting the angle, but also striving for material efficiency (laughs), while maintaining aesthetic appeal

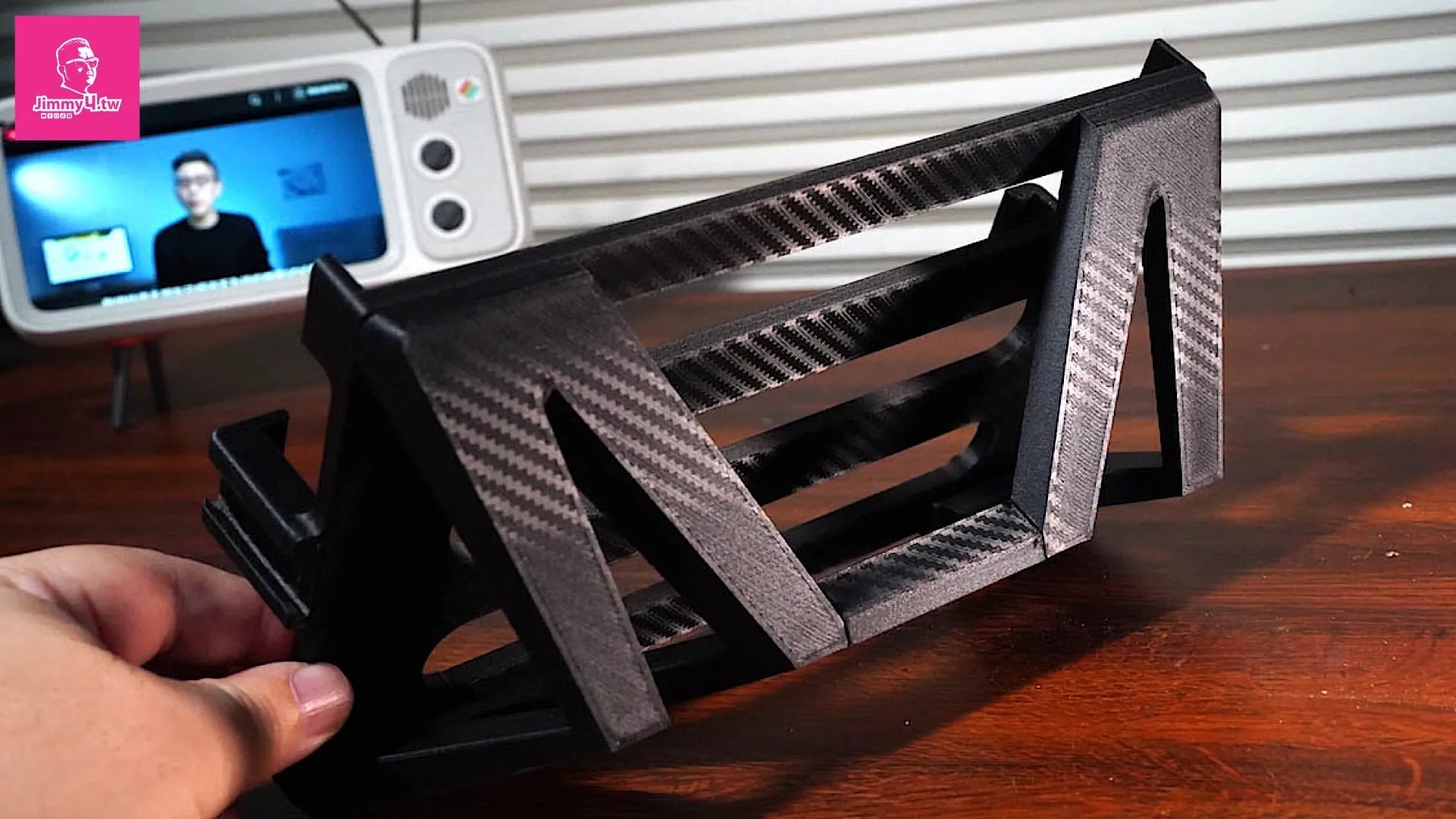

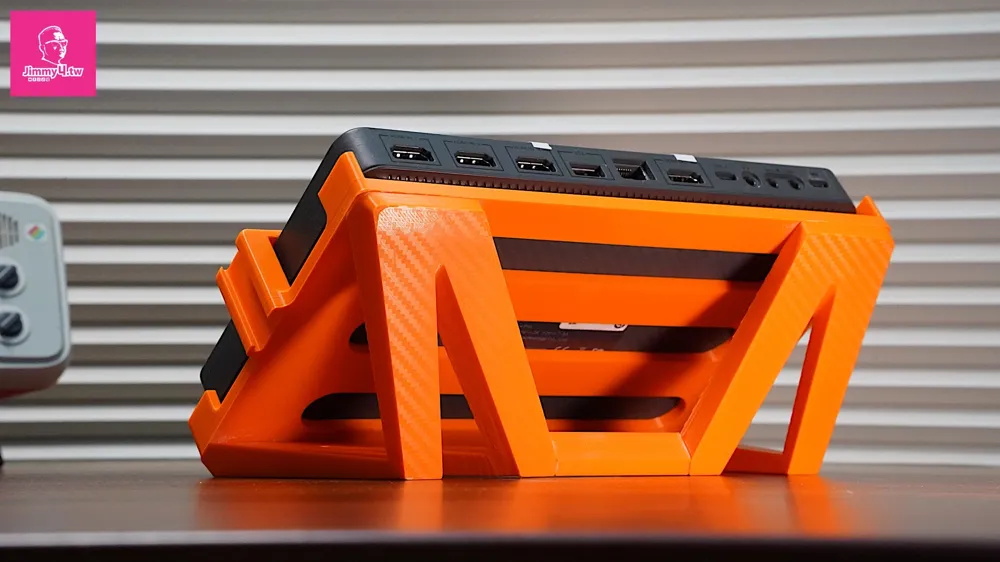

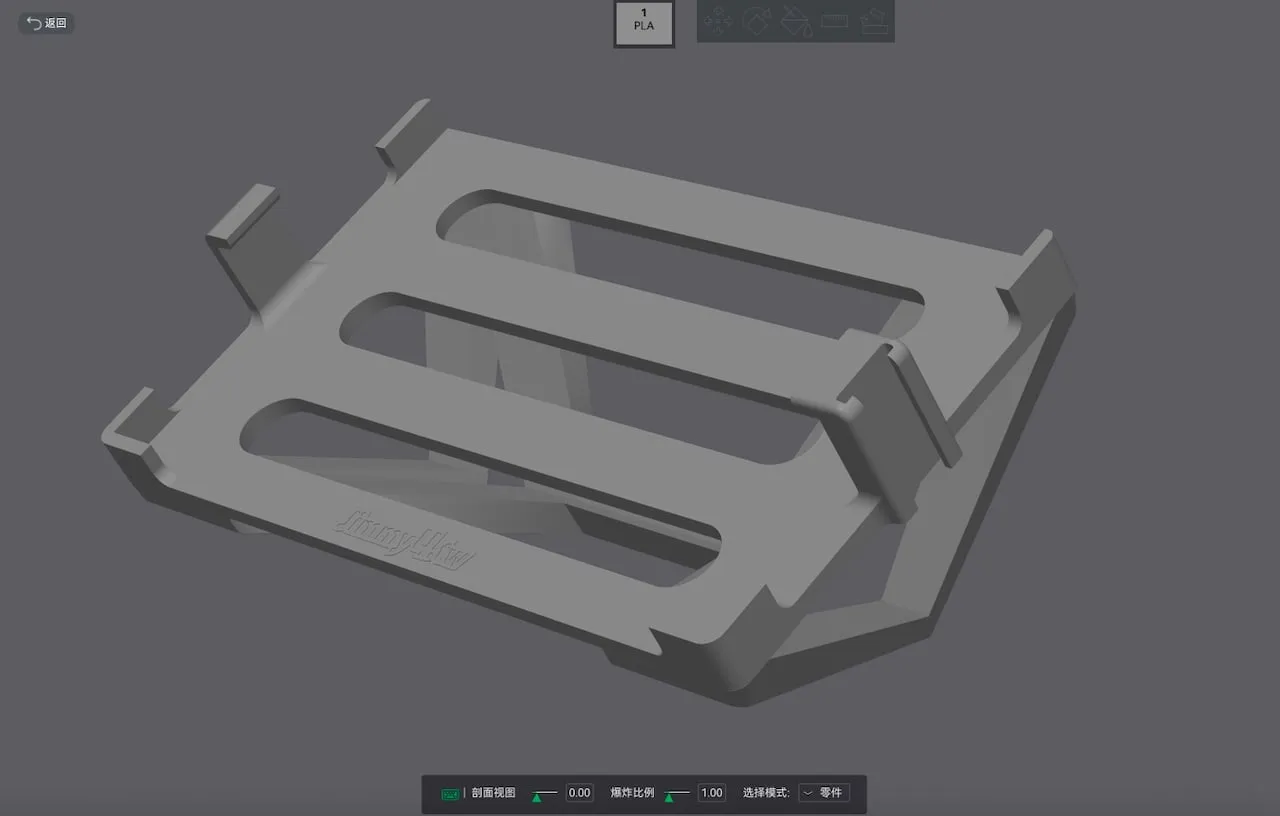

Model Appearance

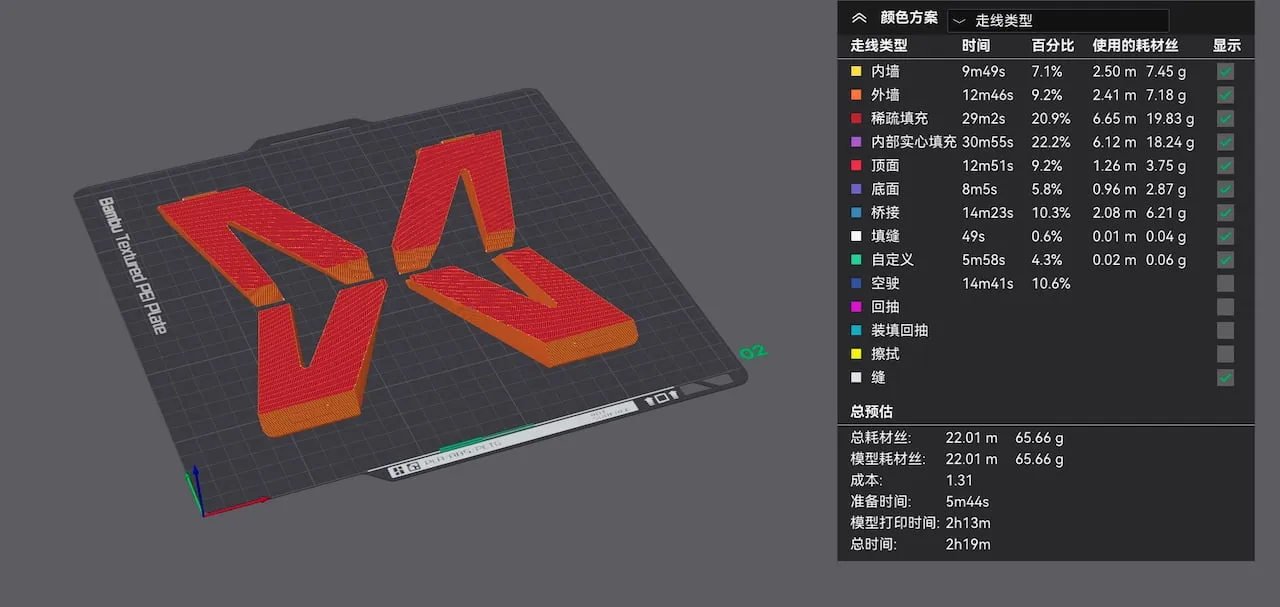

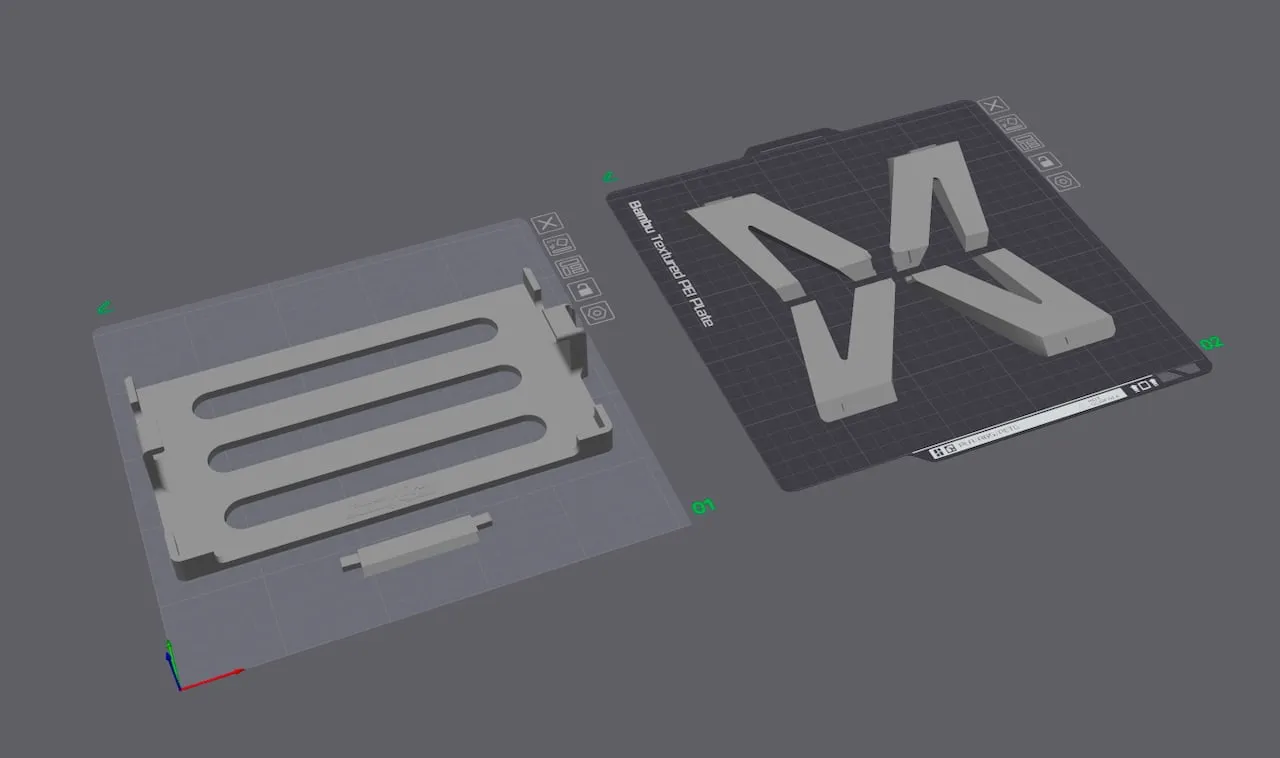

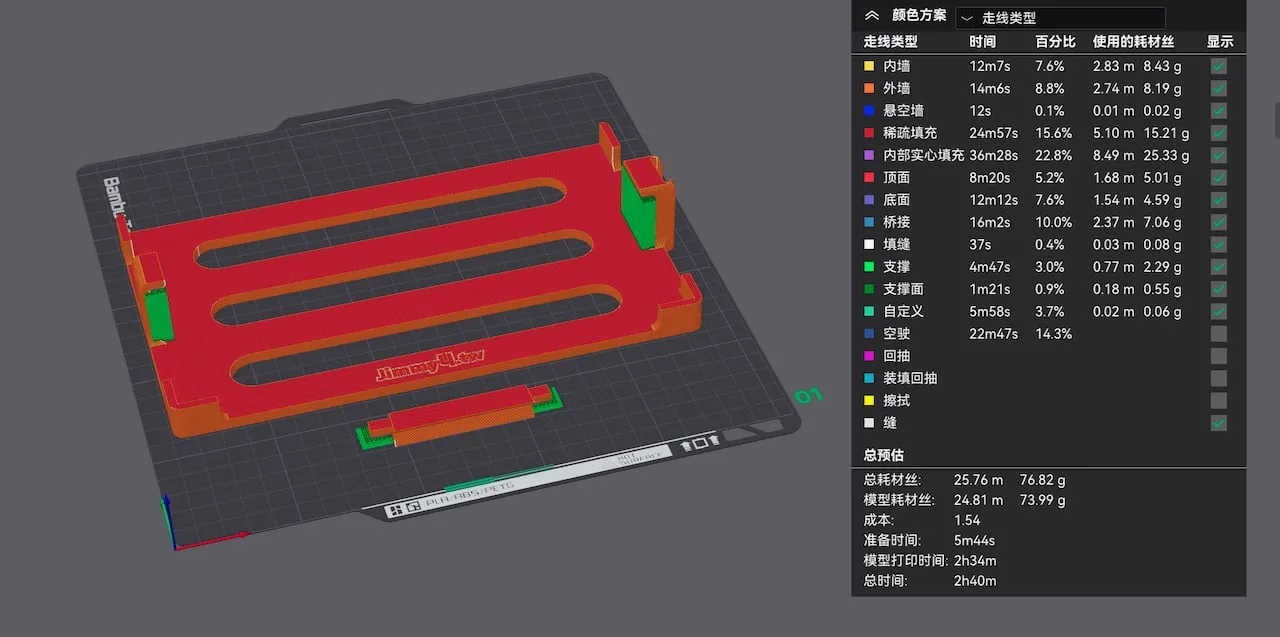

I recommend printing in two parts, although it’s possible to squeeze it into one. The total print time remains similar; the only difference is whether you need to change the print bed



Supports were enabled throughout the print

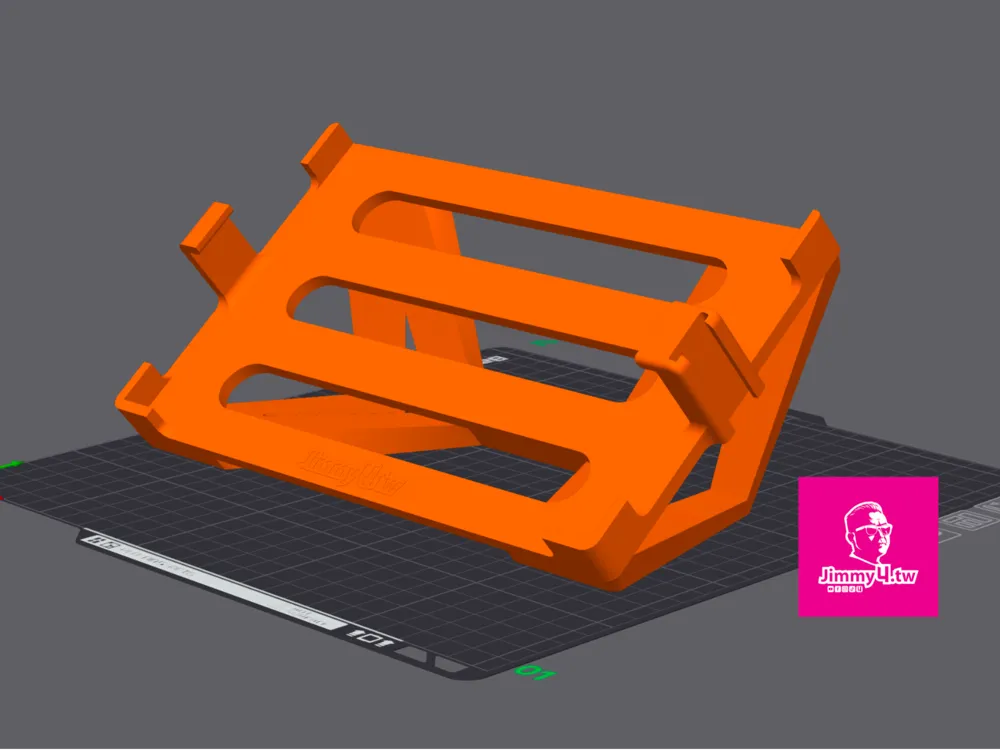

The model is designed to lie flat for optimal bottom surface texturing. If you have a textured heated bed, I suggest using a visually appealing material


Total material consumption was approximately 180g. I purchased a kilogram of this carbon fiber PETG for about 500 yuan, resulting in a material cost of approximately 90 yuan

A quick share with everyone

Feel free to download and print
