Drive Stacker - 3.5" and 2.5" HDD and SSD stacking - Free 3D Print Model

Search models, users, collections, and posts

Qwak

Hobby & DIY>Other Hobby & DIY

IP Report

GIF

Print Profile(3)

All

P1S

P1P

X1 Carbon

X1E

A1 mini

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

4x Brackets - 0.2mm layer, 2 walls, 25% infill

Designer

20 min

1 plate

4.9(24)

4x Feet - 0.2mm layer, 2 walls, 25% infill

Designer

20 min

1 plate

5.0(13)

4x 2.5" Adapter - 0.2mm layer, 2 walls, 25% infill

Designer

39 min

1 plate

5.0(5)

Open in Bambu Studio

Boost

271

729

648

383

Released

Bill of Materials

Maker's Supply Kits and Parts

Select all

M3 Socket Head Cap Machine Screws (SHCS)

Description

Boost Me (for free)

Please boost if you can :)

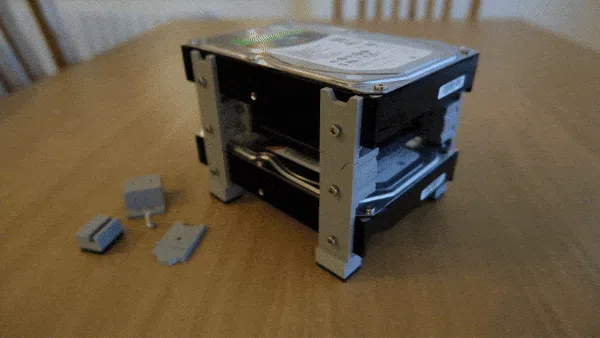

This stacking system allows for stacking 3.5" HDDs. There is a gap left between drives for air flow.

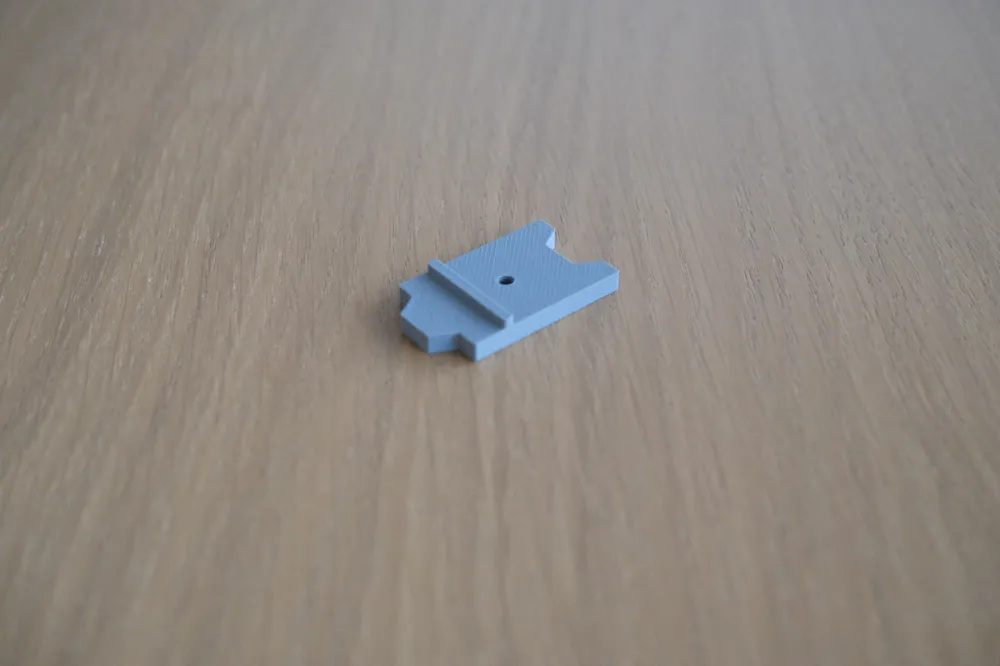

There is also an adapter available for 2x 2.5" HDDs or SSDs.
Feets are optional, I added some self-adhesive neoprene to the bottom.

Hardware needed: M3x8 Socket Head Screws (other lenghts might work too)

Comment & Rating (81)

@sjdawson

Boosted

Print Profile

4x Brackets - 0.2mm layer, 2 walls, 25% infill

A neat, quick to print, low material cost option for stacking hard drives together. Works a treat with the drives I've used it with so far, and using the drives as a way to index them together is smart. Modularity is also a benefit, as it's simple to print some more to add more drives later.

The profile uploader has replied

@qwak

Thank you! 🙏

(Edited)

@sjdawson

Boosted

Print Profile

4x Feet - 0.2mm layer, 2 walls, 25% infill

Nice feet for the drive stackers, decent base on them to allow fixing some vibration dampening pads.

The profile uploader has replied

@qwak

Thanks! 🙏

@Izy13

Print Profile

4x Brackets - 0.2mm layer, 2 walls, 25% infill

very helpful when your computer is running out of space

The profile uploader has replied

@qwak

Ty! 🙏

@Mastinius

Thanks! needed something which was easy, modular and simple to use within a cupboard along with open test bench (NAS). I did had a bit of trouble finding longer screws then the default ones which are used in regular cases.. i also printed some M3 screws but to use temporarily. overall happy with it.

The designer has replied

@qwak

Cool translucent filament, thanks!

@eastpetersen

Boosted

I finally got around to adding these into my dell 8950 I use for storage, fits nicely.

The designer has replied

@qwak

ty!

@timfromsales

Neat little hard drive stacker. Pictured here with 1TB drives, it doesn't index off of the HDD, so it slides around a bit. With a thicker drive like a 4tb or greater, there's no problem at all. Used M3x8 to mount and I don't think anything smaller wold work well. The part thickness is at 5.5mm (±0.1mm) where it threads and a M3x6 may not be enough to thread on.

The designer has replied

@qwak

Thanks for the feedback! I didn't even know some 3.5" drives were so thin! Do you think making a version with shorter brackets so the would keep indexing on the drive itself could be enough? Could you please share the thickness of those drives?

@Henriquevicente

Print Profile

4x Brackets - 0.2mm layer, 2 walls, 25% infill

they are very weel thought and they fit nicely on their he had but the hole for the screw needs to be fixed it is to narrow I had to use a heated rod to enlarge it

@Henriquevicente

Print Profile

4x Feet - 0.2mm layer, 2 walls, 25% infill

they fit wonderfully and they are roubust. and it printed very nicely and fast

@Branczu

Print Profile

4x Brackets - 0.2mm layer, 2 walls, 25% infill

SUPER

@Facerolled

Boosted

I used m3x10 screws for this and it worked well. I slapped some extra furniture pads on the bottom. I also glued the feet to the first drive. maybe not needed but it works.

License

This user content is licensed under a Standard Digital File License.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
