Jart 3DP - A Scalable, Customizable 3DP Sailplane
Print Profile(1)
Description
Revision History
(6/29/2025) Added servo cover STEP file (cover4.stp) for user customization.
(11/26/2024) Rev 0.0 - Print & Assembly verified. Pre-maiden release. Use with caution.
This release is intended for experienced builders/pilots with extensive knowledge in building 3d printed rc gliders. Although not required, builder is recommended to have experience with Bambu Studio or Orca slicer and modifier.
3mf file is for Bambu Studio / Orca slicers. Conversion to other slicers is possible but not recommended - see link on how to convert 3mf files between various slicers -
Jart designed by Reed Sherman 20 years ago, now available for 3D printing.

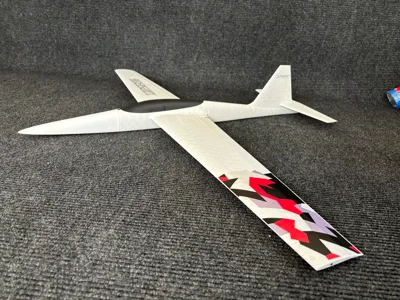

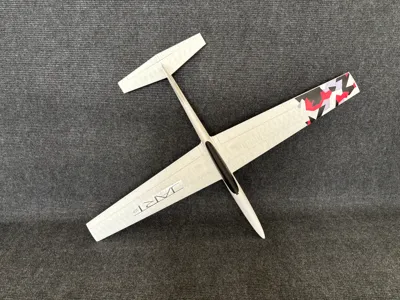

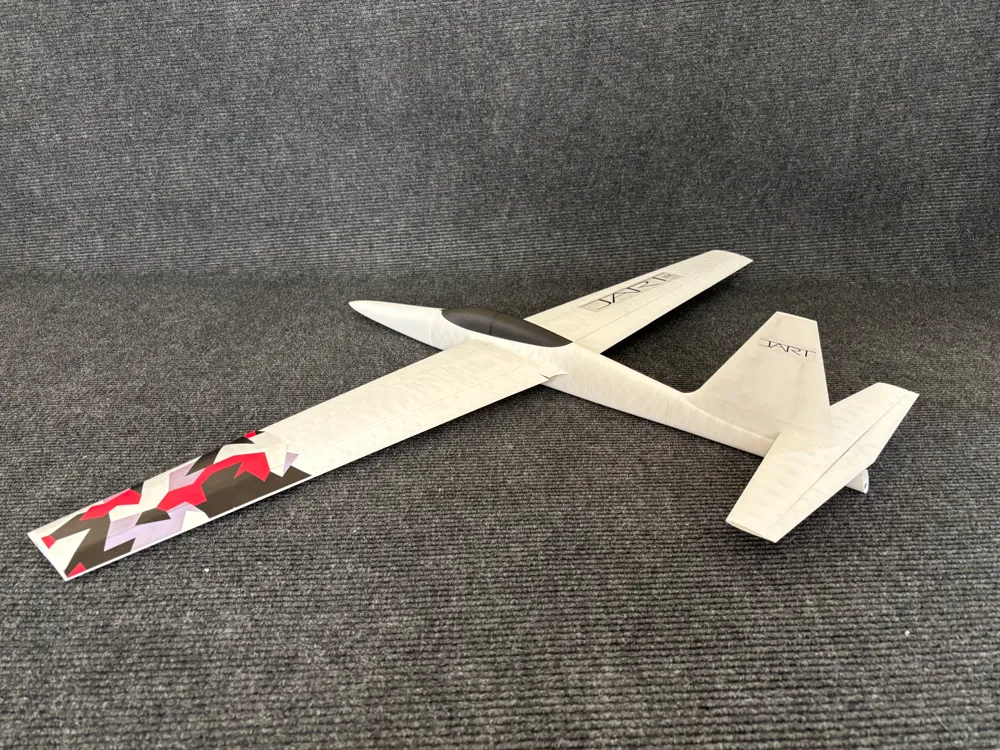

Jart 3DP features:
(1 ) All “solid” CAD design, allow user to add modifiers for Jart variants (different weight and strength, from Jart Light to Jart Strong)

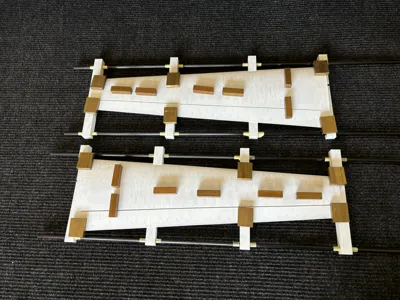

(2) Scalable - designed in 48” wing span, scalable to 60”~80”, or higher. Carbon fiber spars and stringers are designed as cutting mesh, allow user scaling and modification when scaling for different wing span.

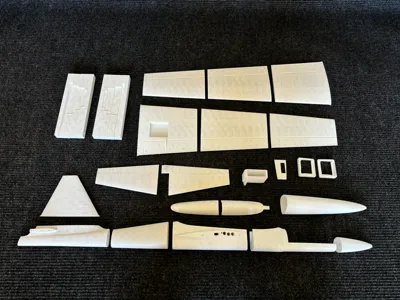

(3) Detachable wing and tail feathers
(4) Off the shelf carbon/metal rod as wing joiner or ballast.

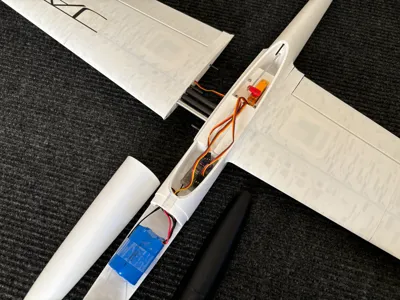

(5) Fuselage with nose cone and canopy - allows easy access for equipment installation

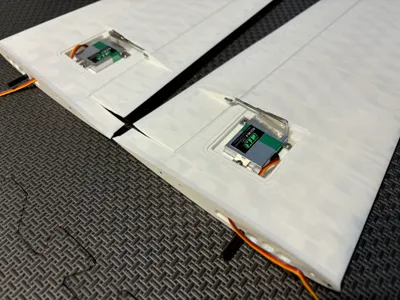

(6) Servo frame/box - cutting mesh based design, allow user customization
"Jart 3DP" RCGroups build log:
Multi-media manual:
Acknowledgment & Reference:
(1) Jart original design created by Reed Sherman (Creative Common Attribution - NonCommercial 2.5 License)
(2) Jart plan & build log - https://www.rcgroups.com/forums/showthread.php?259967-Jart-Build-Thread
(3) Jart CAD rendering - https://grabcad.com/library/jart-rc-glider-1
#3dprinted #rcairplane #ItFlies #slopesoaring #jart #pss #slope #soaring #sailplane #glider
