MacArthut HAT light pipe harness
IP Report
GIF
Print Profile(1)
0.12mm layer, 2 walls, 10% infill
Designer
17 min
1 plate
Open in Bambu Studio
Boost
1
5
0
0
6
2
Released
Bill of Materials
List other parts
- MacArthur HAT x 1: https://openmarine.net/macarthur-hat
- Bivar Light Pipe at Digikey x 12: https://www.digikey.ca/en/products/filter/light-pipes/102?s=N4IgjCBcoLQCxVAYygMwIYBsDOBTANCAG4B2aWehA9lANogDMAHAwAwMgC6hADgC5QQIAL6EYAJkQgUkPgCcArgRA1I9AKxdhokADYpASwAmgmGFYReAyEMJ8Anj1yD02FNqA
Description

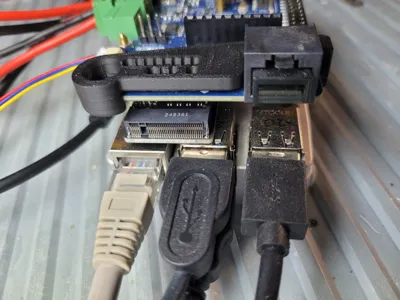

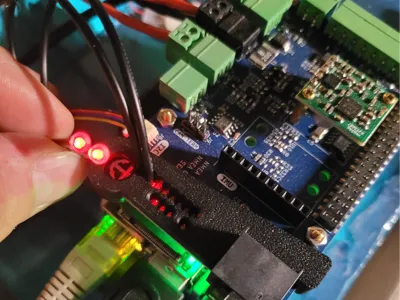

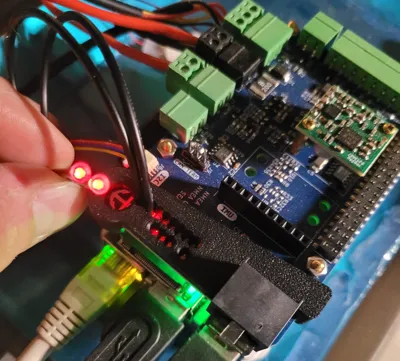

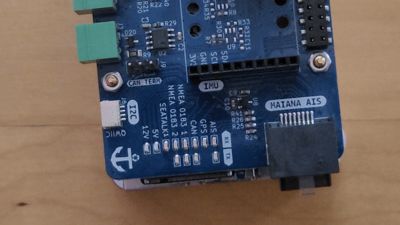

Harness to hold light pipe over the MacArthur HAT's LEDs
I use the Bivar SMFLP series light pipe, available at Digikey
The LEDs are too close together for the light pipe diameter I use so there is not enough room for the adapter Bivar provides. There isn't even enough room for a complete circle of plastic around each pipe. LED spacing is around 2.3mm, pipe diameter is 2.2mm.
It means that I needed to print this on it's back but even PLA doesn't seem to have problem flexing for it to clip in place securely
