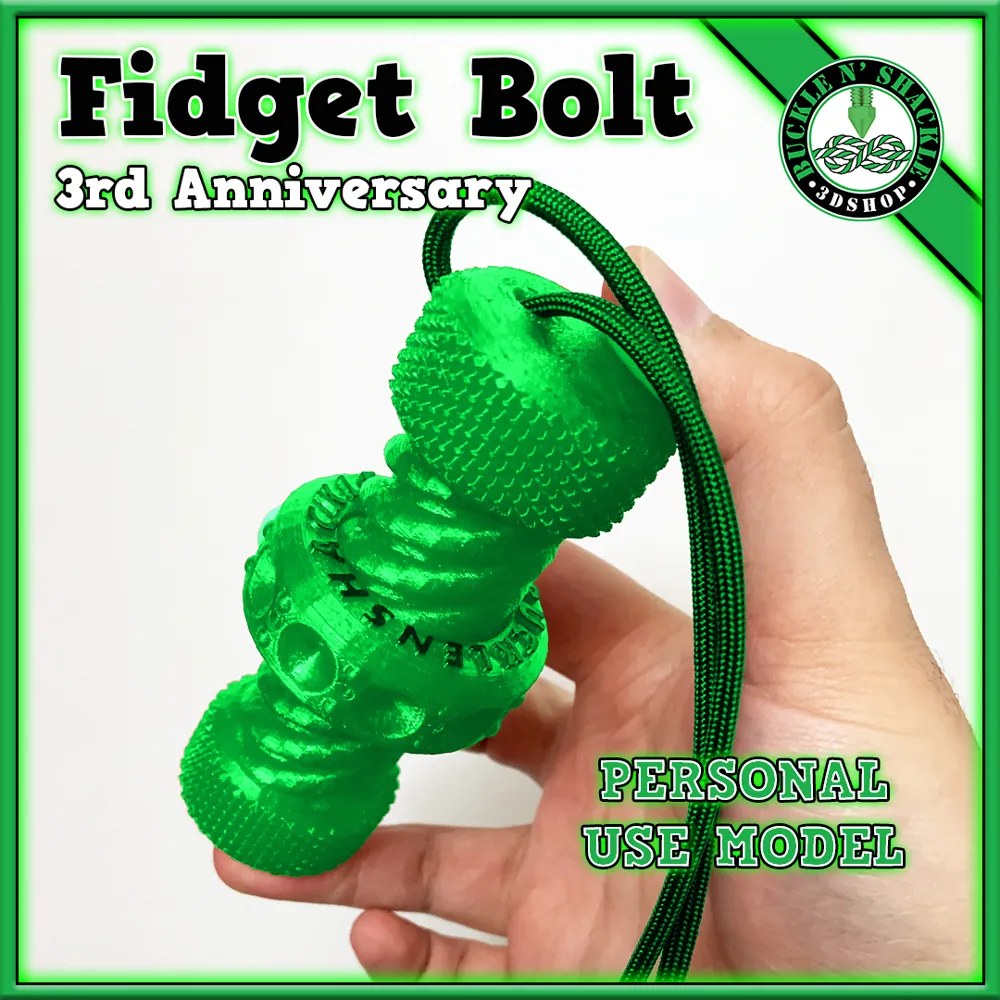

Fidget Bolt - Bucklenshackle

You may only use this file for personal purposes, and you are not authorized to sell either the file or any printed items derived from it.

If you find yourself printing a large quantity of these items, we kindly request that you consider donating some of the printed Fidget Bolts to your local charities. These donations are highly valued and can serve meaningful purposes in the community.

Commercial use to this and all of my other files are available at my Patreon Page, Or you can download The Cults3d Model which includes more sizes and the Capsule as well.

Subscribe for a Commercial License on my Patreon Page.

Download the Branded Personal Use plus Capsule Version at Cults3d Here

Download the One Time Purchase Commercial Use plus Capsule Version at Cults3d Here

__________________________________________________________________________________________________________________

🎉🔩 3 Year Anniversary of the Fidget Bolt! 🔩🎉

On September 18, 2022, I released the Fidget Bolt on Cults3D. Hard to believe it’s already been three years since then!

In that time, it’s been downloaded over 2,500 times 🤯 across all my platforms — something I never expected when I first uploaded it. The Fidget Bolt was one of my very first designs, and it’s still one of the most popular ones today. Be sure check out the new v.3 update on my Cults3d and Patreon Page!

The Fidget Bolt was originally designed by me as a unique creation for the purpose of selling at a Local Craft Show. Upon showcasing it to my friends and family, they were impressed and encouraged me to make the file available to others. This charming toy has broad appeal, appealing to all ages and personalities, and it's particularly popular among neurodivergent individuals who can play with it for hours on end.

**The Fidget Bolt & Capsule was the Design File for Day 7 of Make It Michael's 3d Printing Olympics 2023**

__________________________________________________________________________________________________________________

Printing Tips: No Supports Needed!

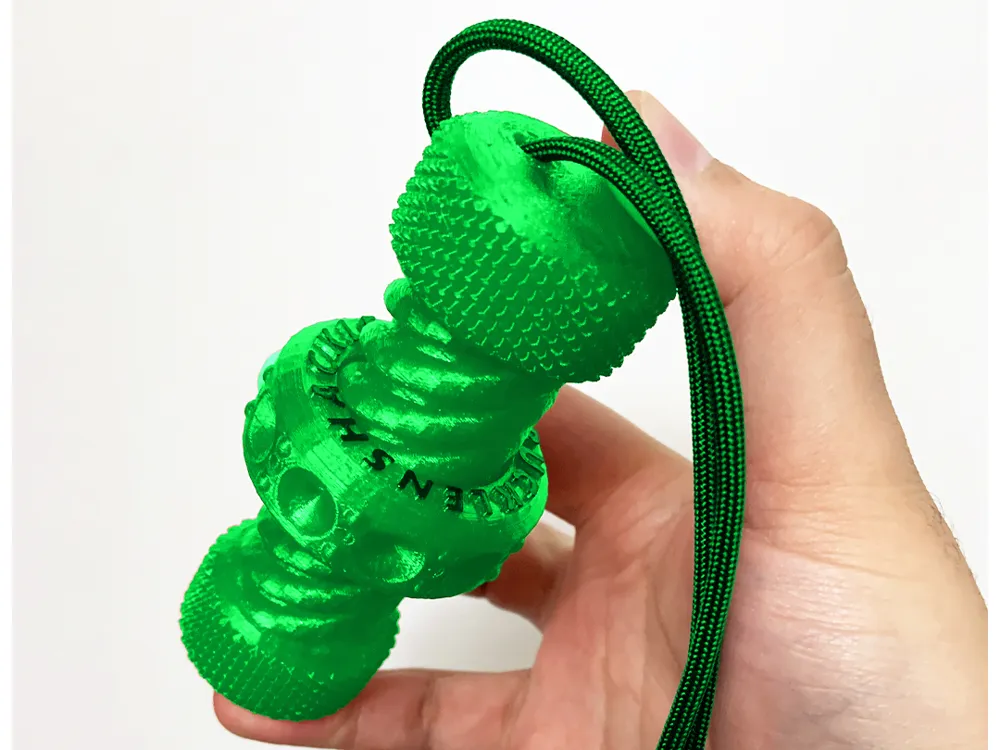

The Fidget Bolt features an Embedded Loop that can be utilized for attaching a Keychain or Paracord/Rope. It prints in three pieces requires glue to assemble, prints with no supports!

The Original Fidget Bolt has been test printed at 60%, 75%, 100% and 200% (See Group Photo). The tolerances (0.6mm) between 75-200% make this operate fine. However if it is not spinning, I suggest twisting it manually until it has sanded itself down. You can also add some Skateboard Bearing Oil or other lubricants to the tread. (Tip try water too!)

Print this with a 0.4 Nozzle with 3 Walls and 10% Infill. For a different click and clack print the Nut with Higher or Lower Infills. This File is also frequently used as a Purged Object, I suggest at least 25% if printing as purge.

For overall best results I also suggest lowering your Outer Walls speed to 40mm/s especially if printing with Silk.

Print it in Glow Filament with a Hardened Steel Nozzle/Gears with a 0.6 Nozzle with 2 Walls and 20% Infill.

Here's a video of me using the Fidget Bolt: https://www.tiktok.com/@bucklenshackle/video/7142981299857263878

Assembly Instructional Video: https://www.tiktok.com/@bucklenshackle/video/7147856438537276677

200% Fidget Bolt Video: https://www.tiktok.com/@bucklenshackle/video/7148499896897785093

Purge to Object Demo: https://www.tiktok.com/@bucklenshackle/video/7263952519129304325

__________________________________________________________________________________________________________________

License and Modifying:

You are authorized to: Print this item for personal use, give away a printed bolt as a gift, or donate to charity.

What is not allowed: No Selling, No sharing of files, No Adapting or remixing of my file, no modifying this file with any Text & Logo. Unless you Purchase a Commercial License.

__________________________________________________________________________________________________________________

Commercial Licenses:

You are only allowed to sell these if you buy a one time purchase license from Bucklenshackle's Cults3d Page. or if you are a have my Merchant or Early Bird Tier subscription on my Patreon Page.


Across all my platforms, over 2,500 people have downloaded The Original!

The Cults3d Model includes the Capsule as well and is available for Personal Use too.

Download the Branded Personal Use plus Capsule Version at Cults3d Here

Download the One Time Purchase Commercial Use plus Capsule Version at Cults3d Here

Authorized Sellers.

I have listed those who filled out the Sellers Form Here: https://www.bucklenshackle.com/authorized-sellers

__________________________________________________________________________________________________________________

Adding Attributions:

Printing my item? I would really appreciate it, if you tag me and credit me @bucklenshackle on Socials.

Please do one or all of the following: Add Buckle N' Shackle, tag my socials @bucklenshackle, add a link to the makerworld model page or cults3d model page or my website
