Open universal holster

This is an old version!

For the latest design and features click here.

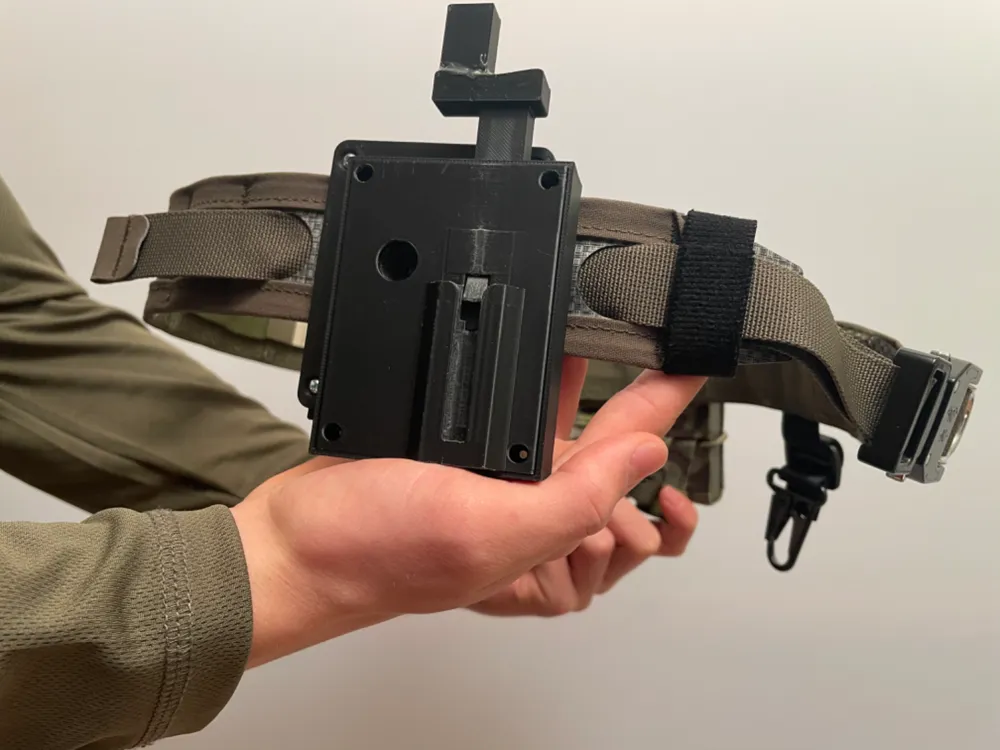

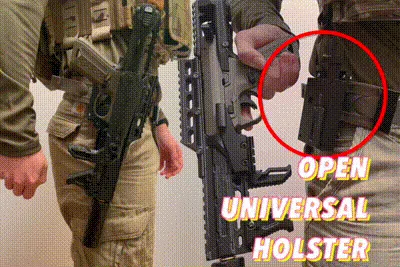

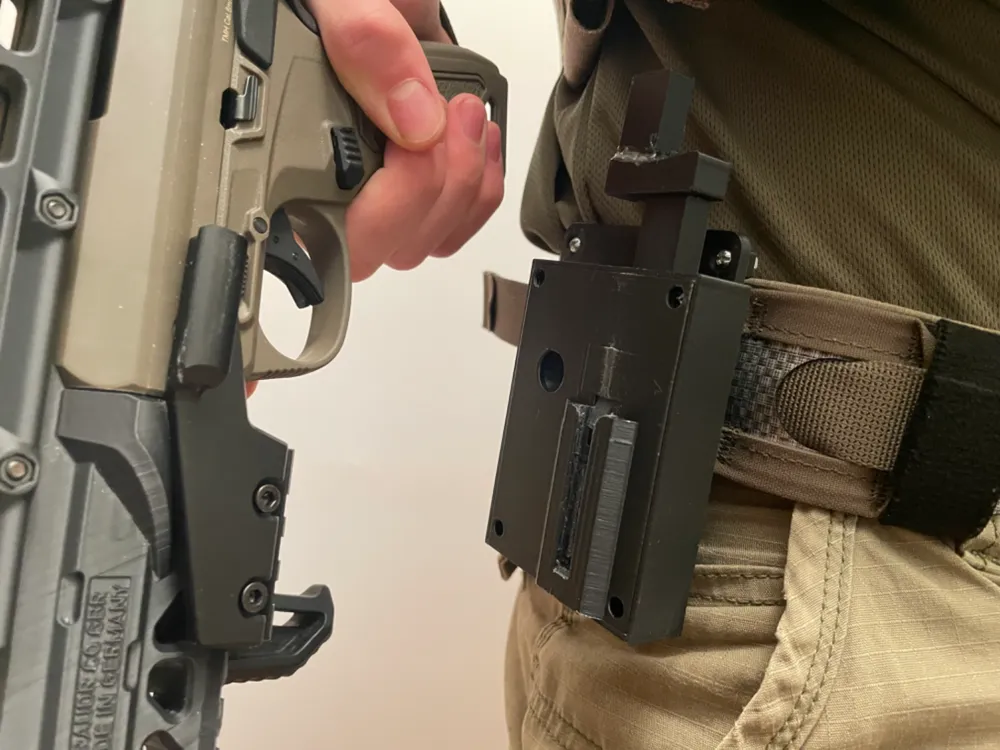

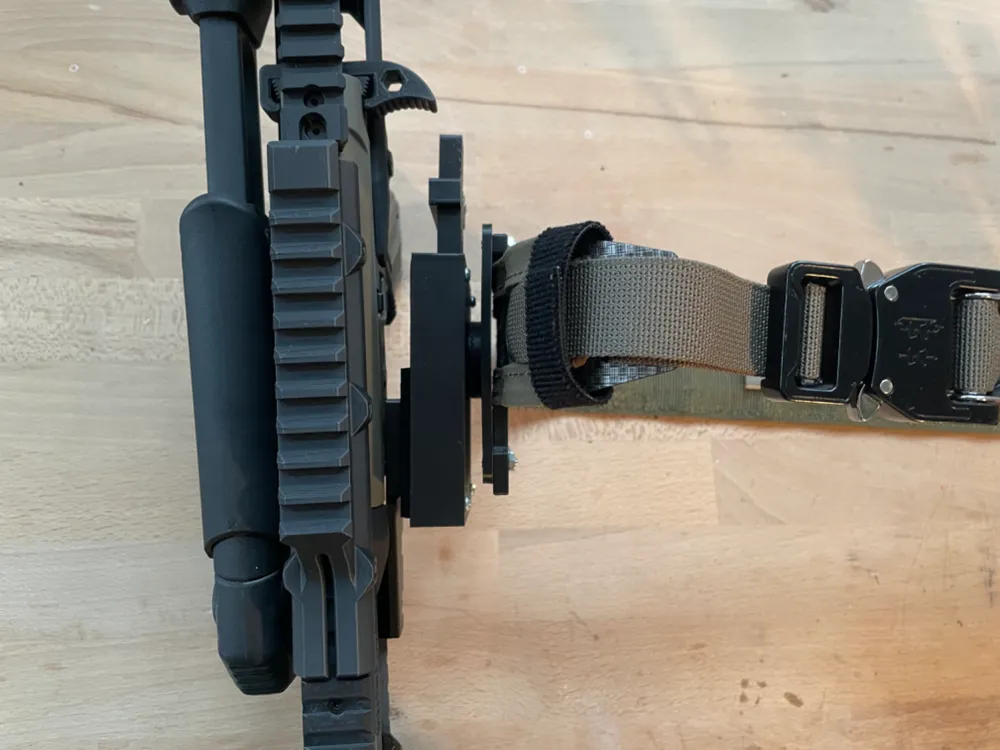

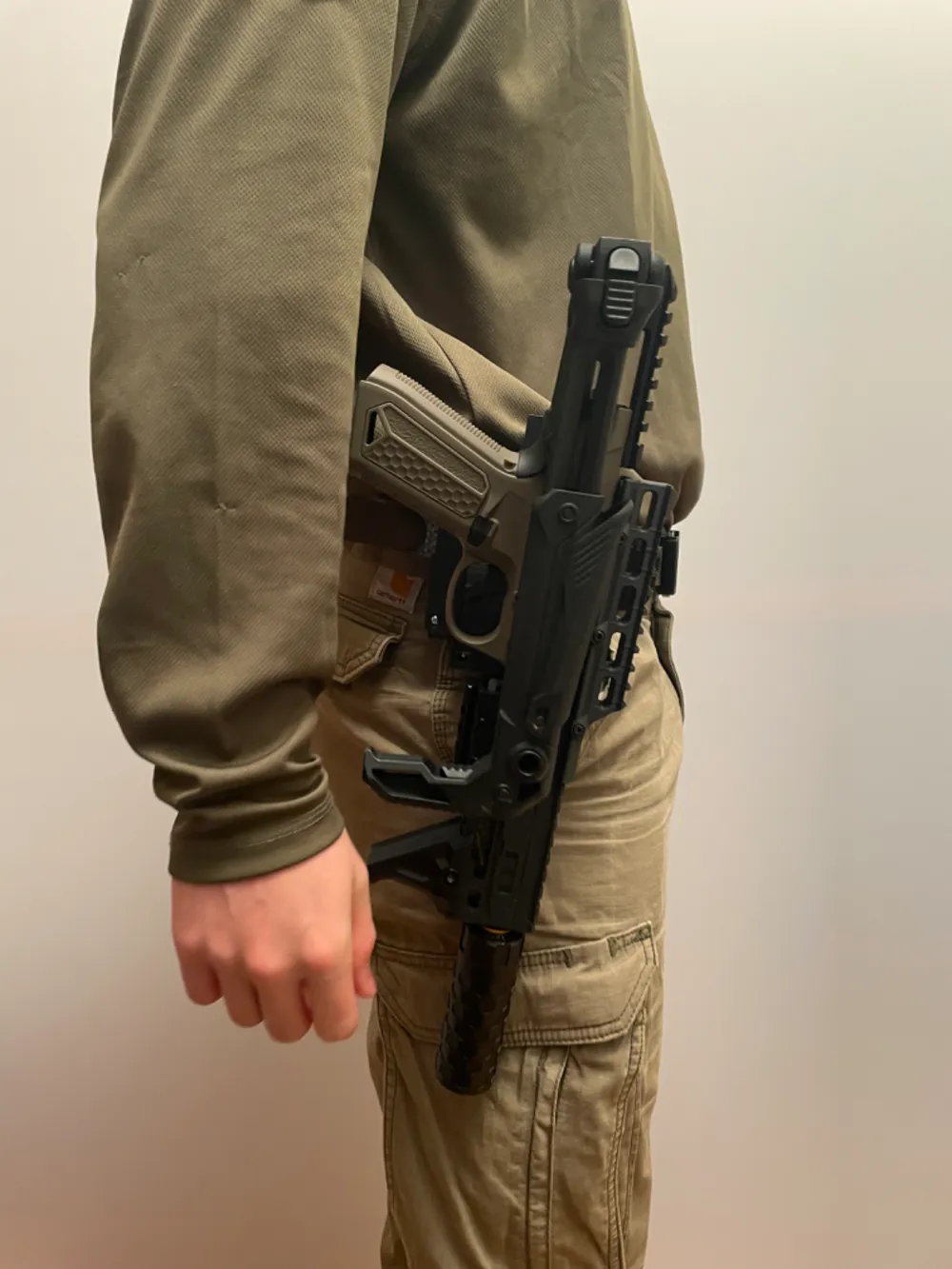

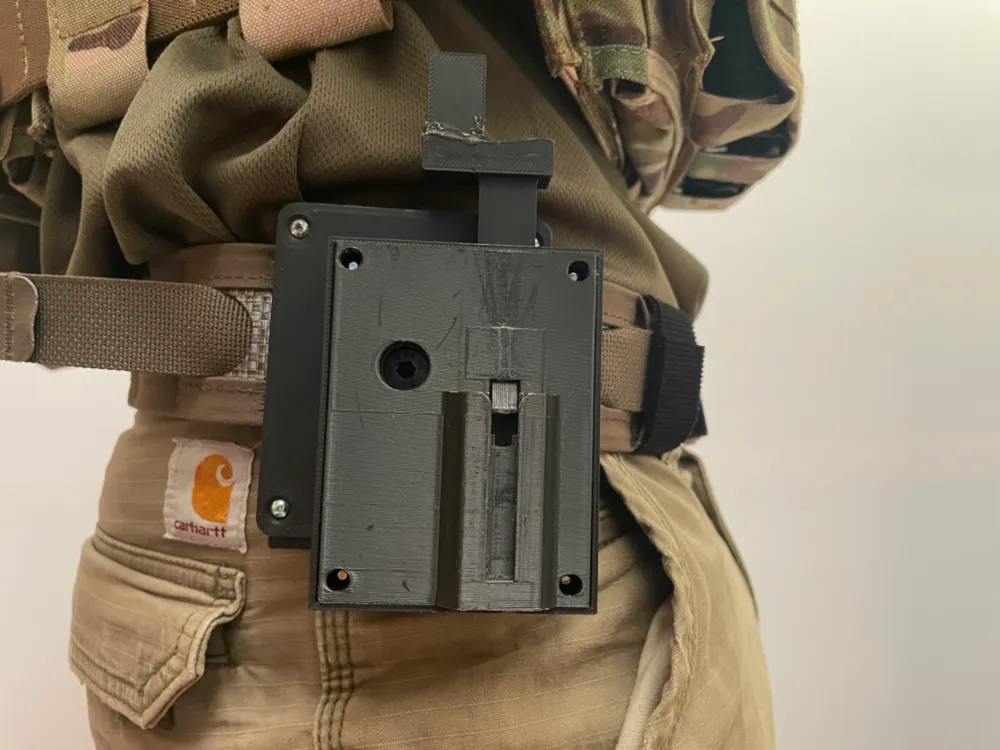

I designed this holster for my AAP-01 carbine. It’s compatible with Novritsch rails and features a rotary-style mount, allowing you to clip it onto your belt or any other preferred location.

I got my rail from the Novritsch website: https://eu.novritsch.com/de/products/equipment/gear-apparel/gear/holster/

If you trust a 3D-printed version, check this out: https://cults3d.com/:851287
I use this MOLLE mount: https://www.thingiverse.com/thing:4706766

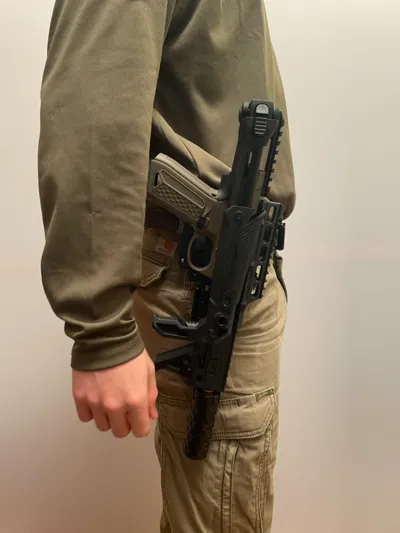

I don’t use this holster for my backup weapon because a classic closed holster still offers faster and more secure draws. However, if you’re using a pistol or carbine as your primary weapon, this is the perfect way to rest your arms between games or quickly free your hands during gameplay.

Assembly

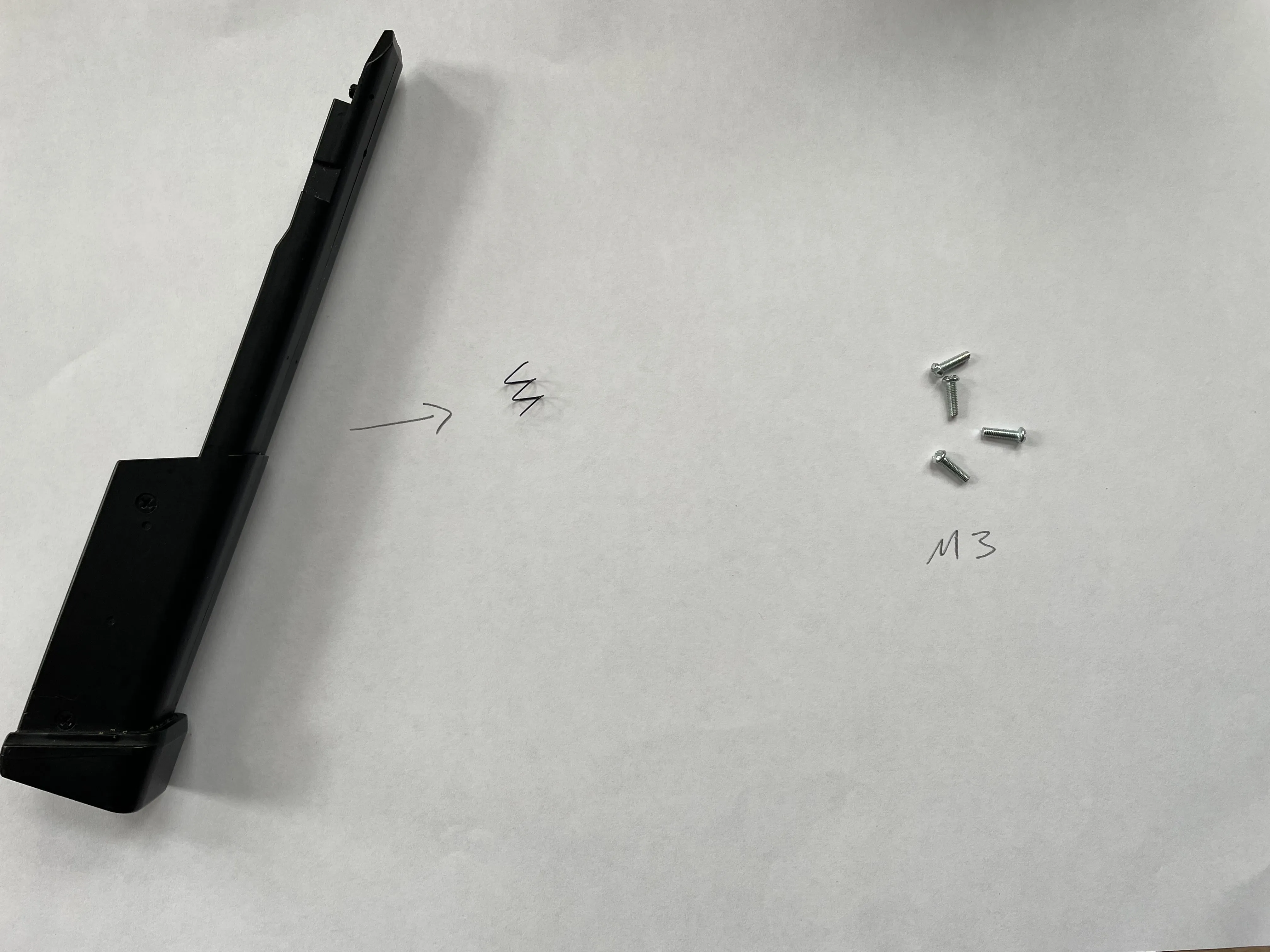

You’ll need the following for assembly:

• 4 M3 screws
• a small piece of wire
• a tiny spring (you can use part of a spring from an old AEP mag or another similar spring).

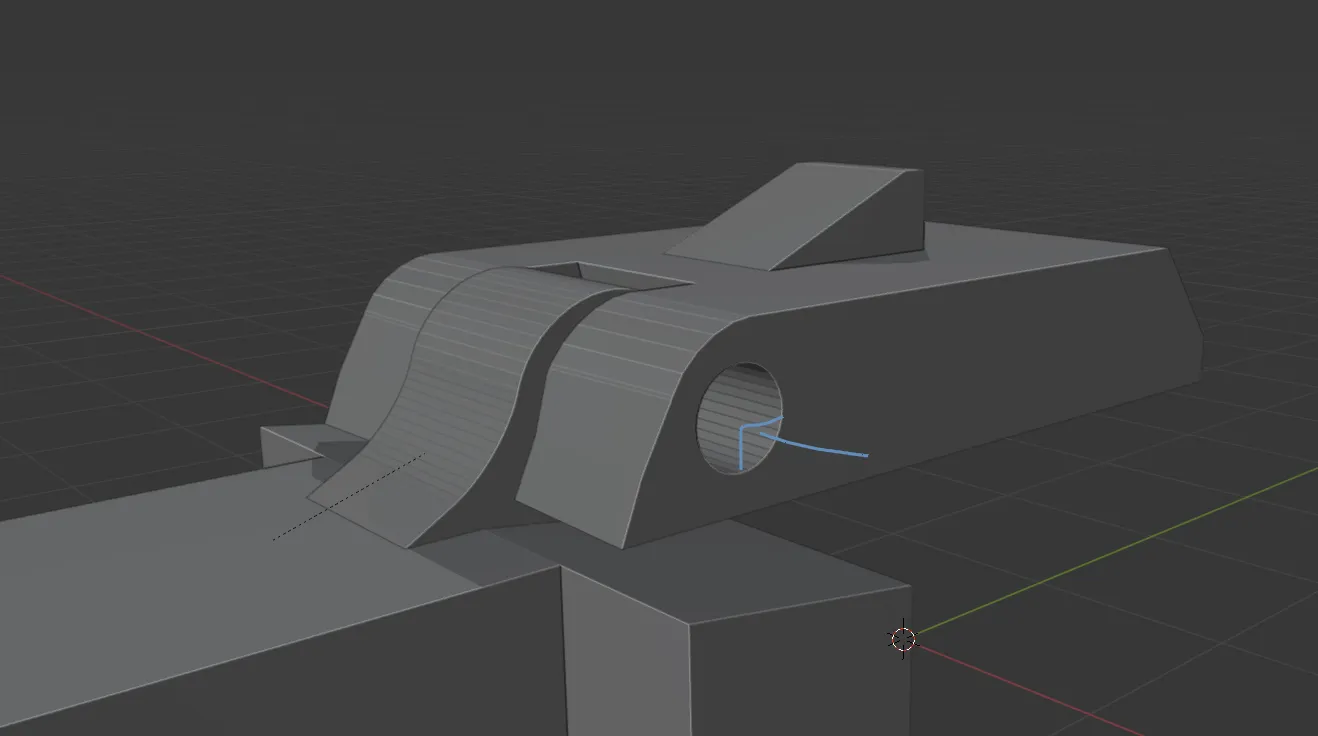

1. Use the wire to fix those two pieces

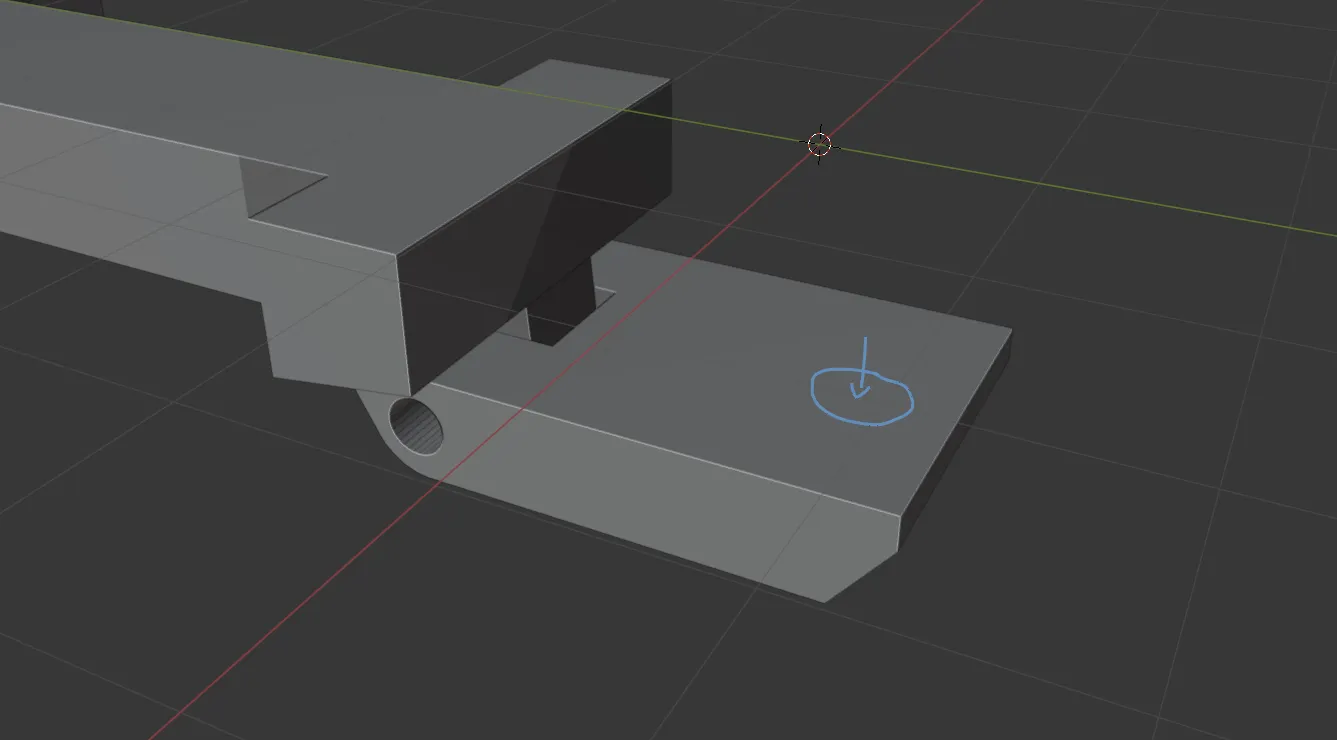

2. Glue the spring in place with some hot glue

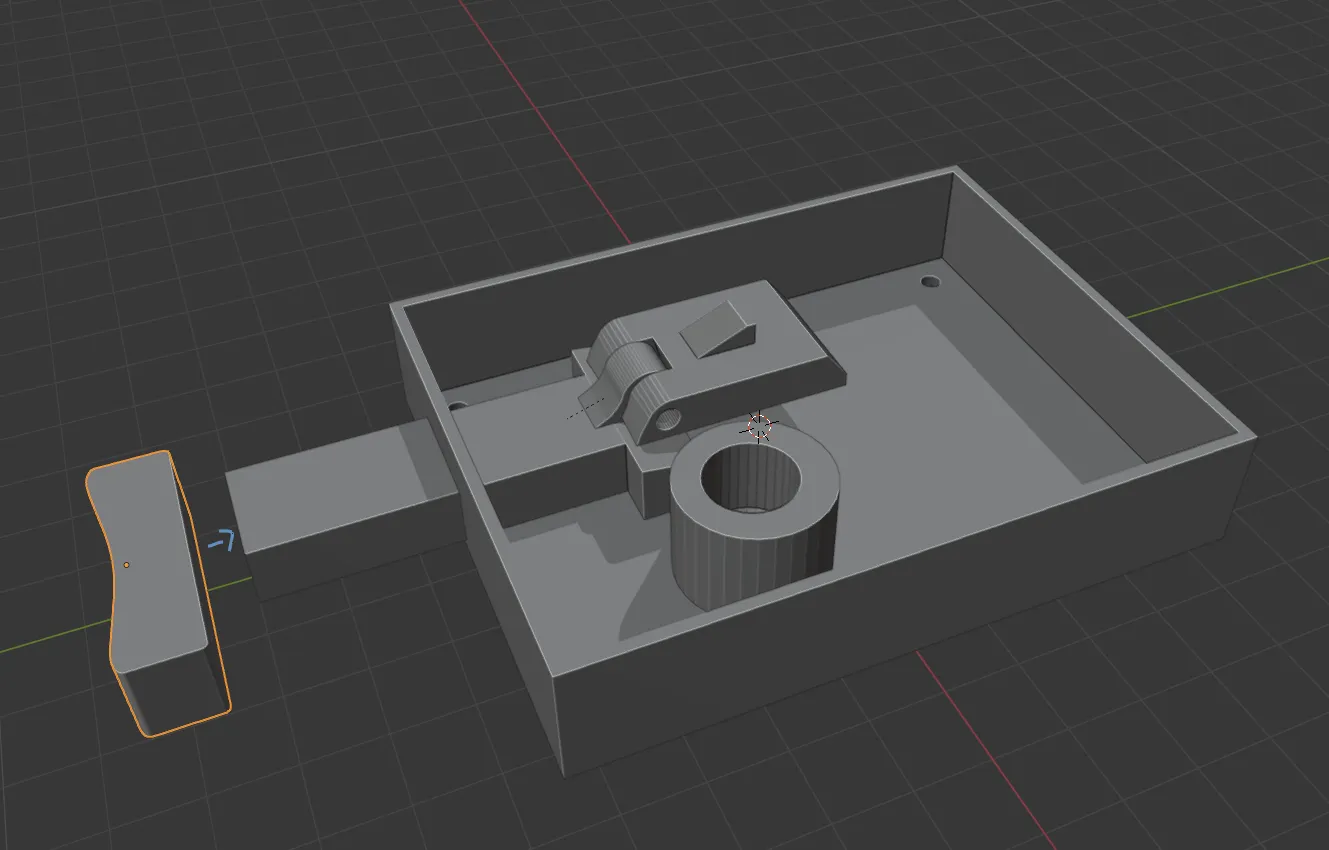

3. Put the pieces in the bottom shell and glue the thumb rest on

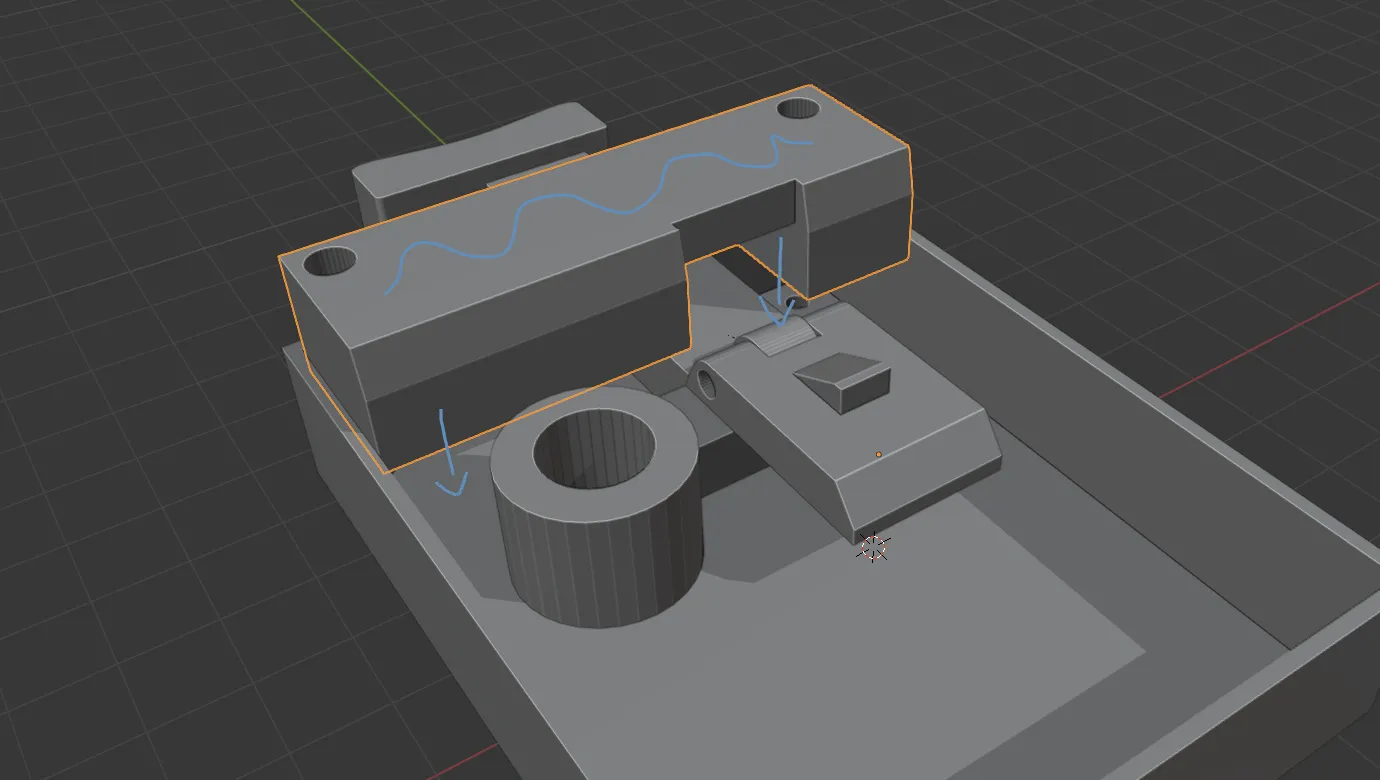

4. Push in the spacer and apply some glue un top

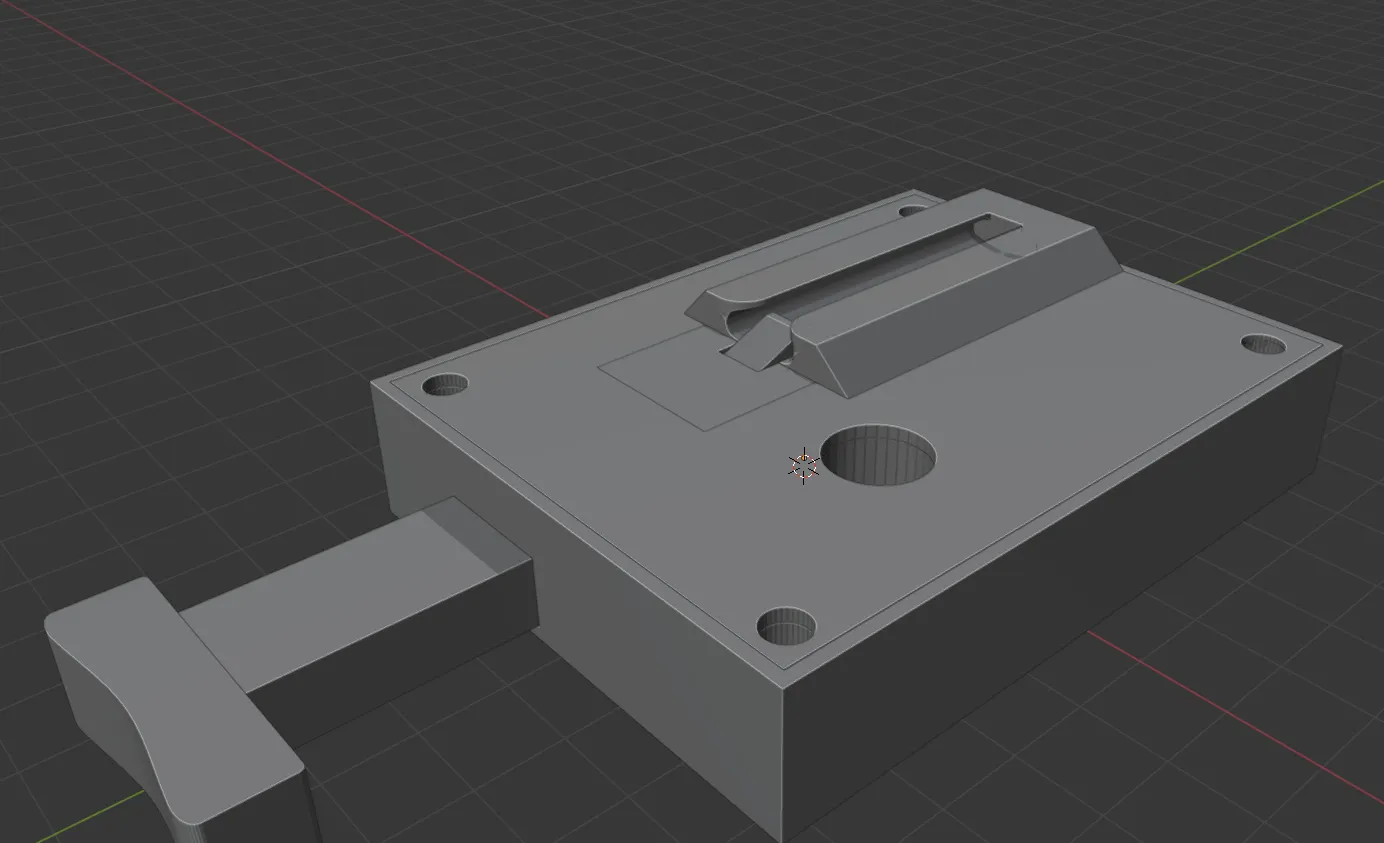

5. Put on the top cover and apply some pressure until the the glue is dry

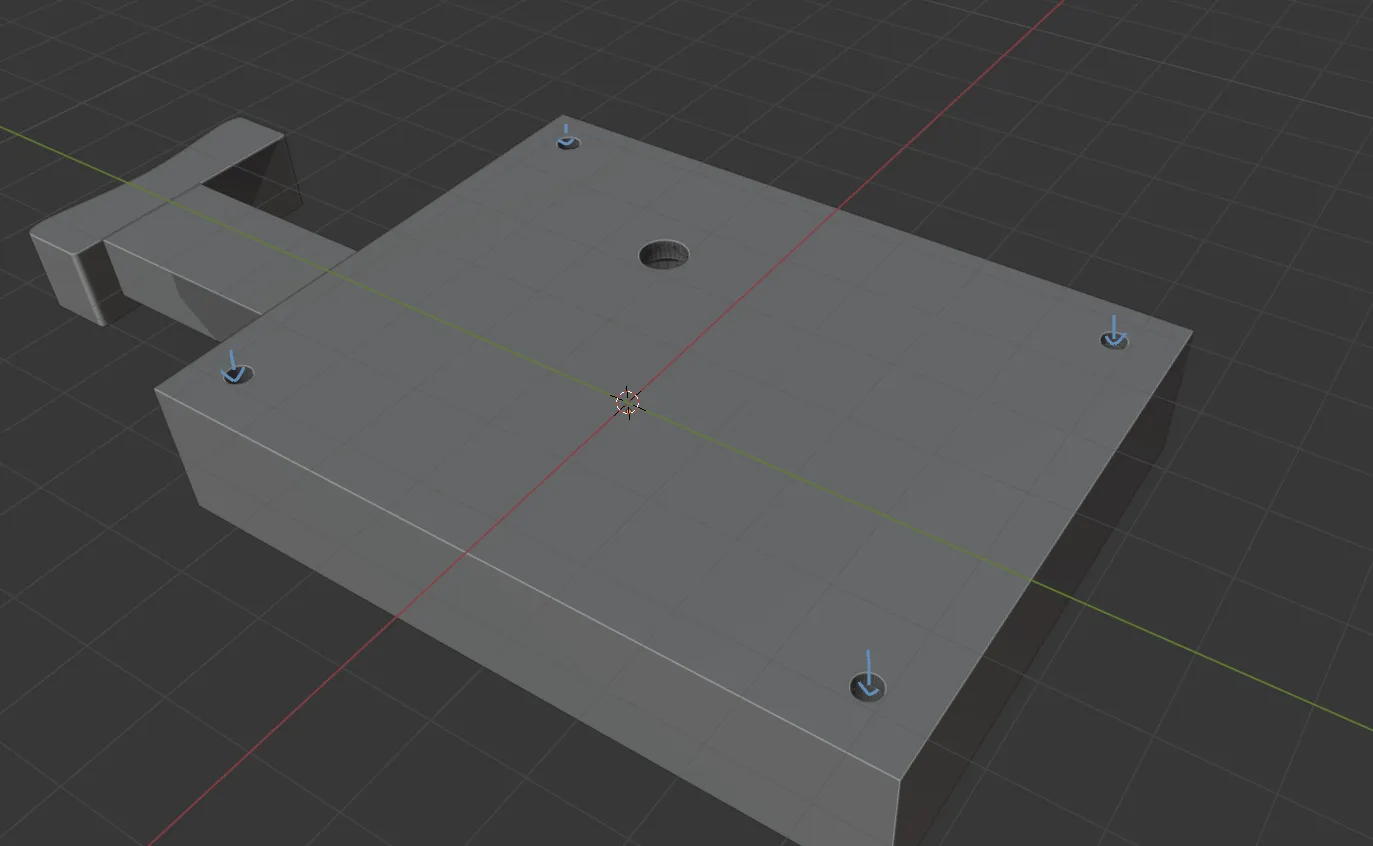

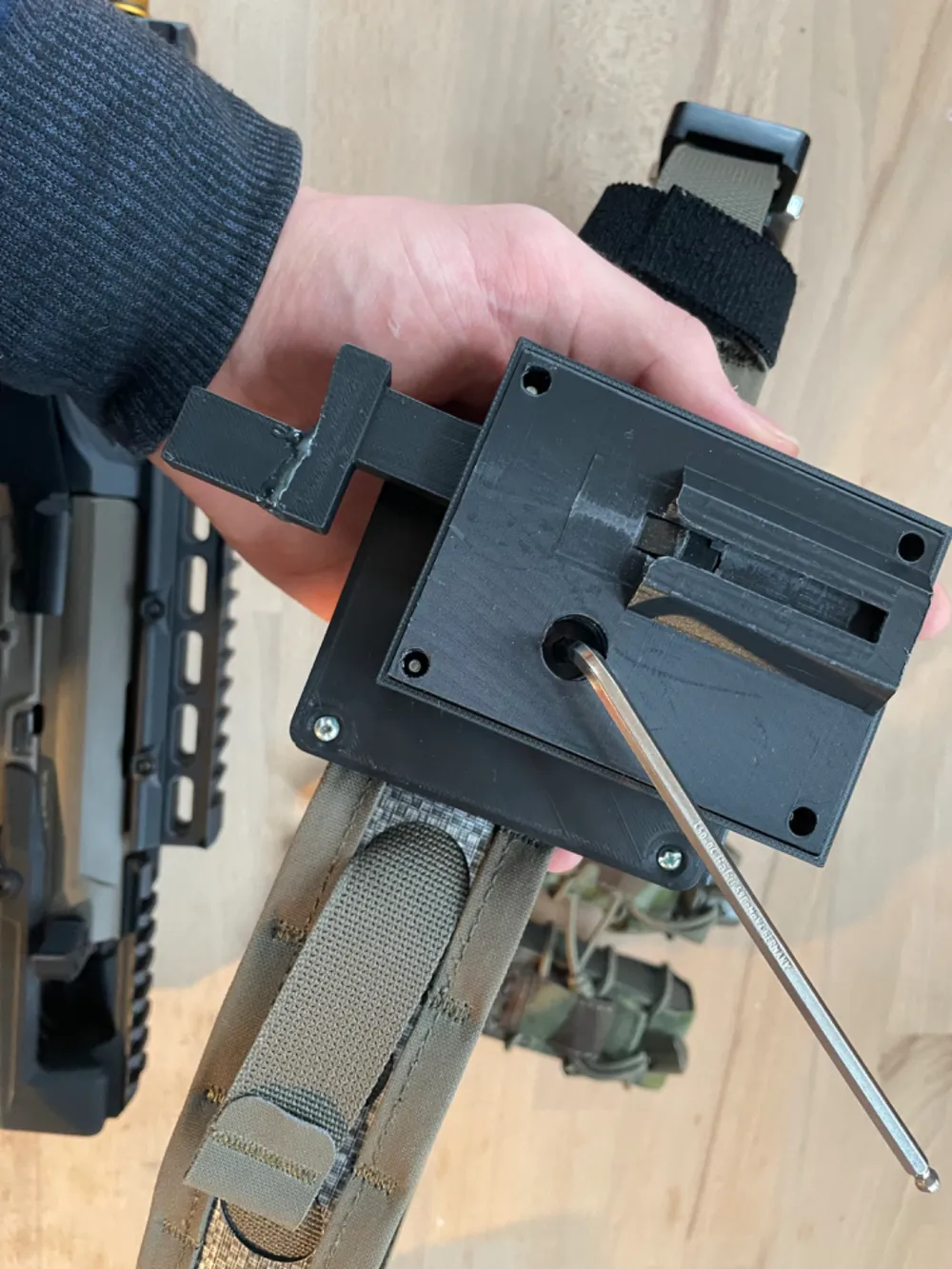

6. Screw everything together from the bottom
