Quick release steering wheel hub
IP Report
Print Profile(3)
Multi-color Quick release
Designer
2.1 h
2 plates
A1 mini multiple plates
Designer
2.5 h
3 plates
A1 mini - singel color
Designer
2.2 h
1 plate
Open in Bambu Studio
Boost
20
41
4
0
87
16
Released
Description

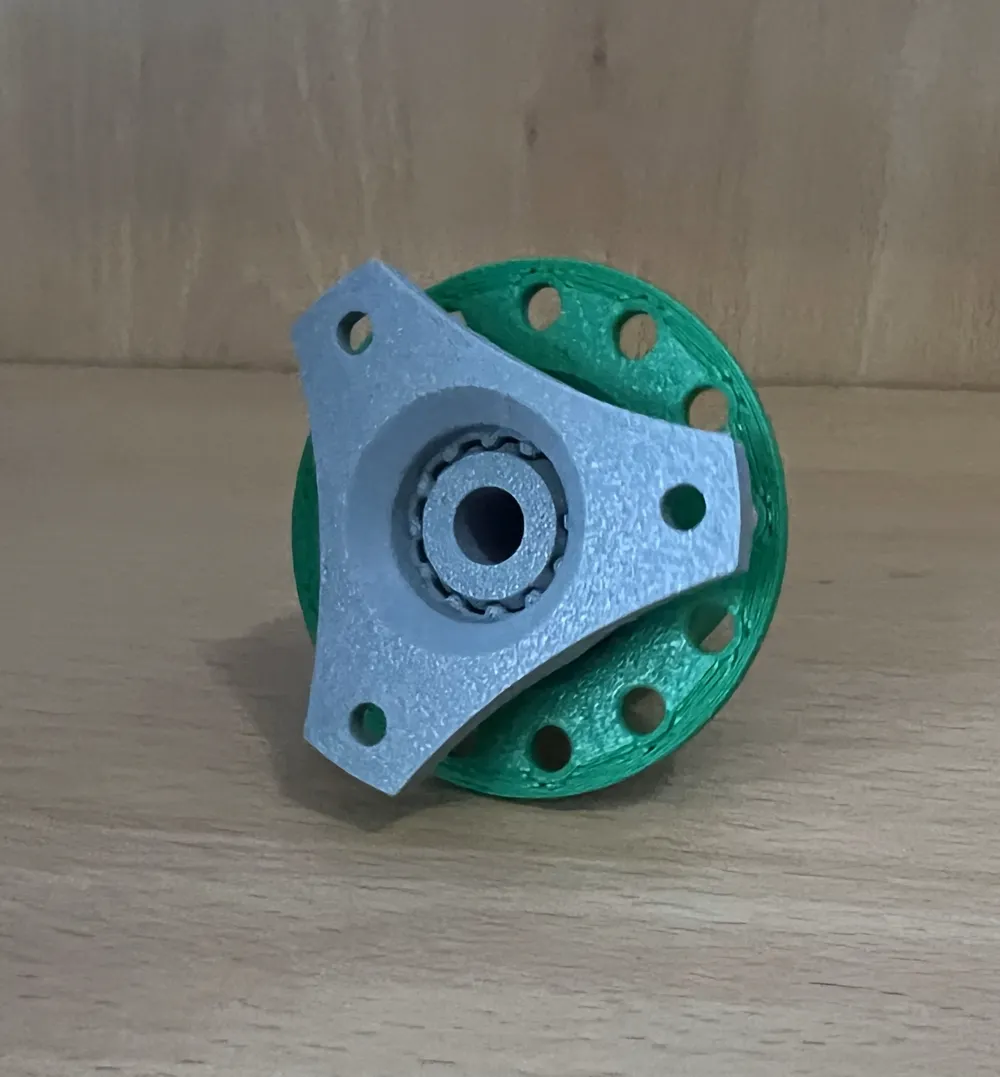

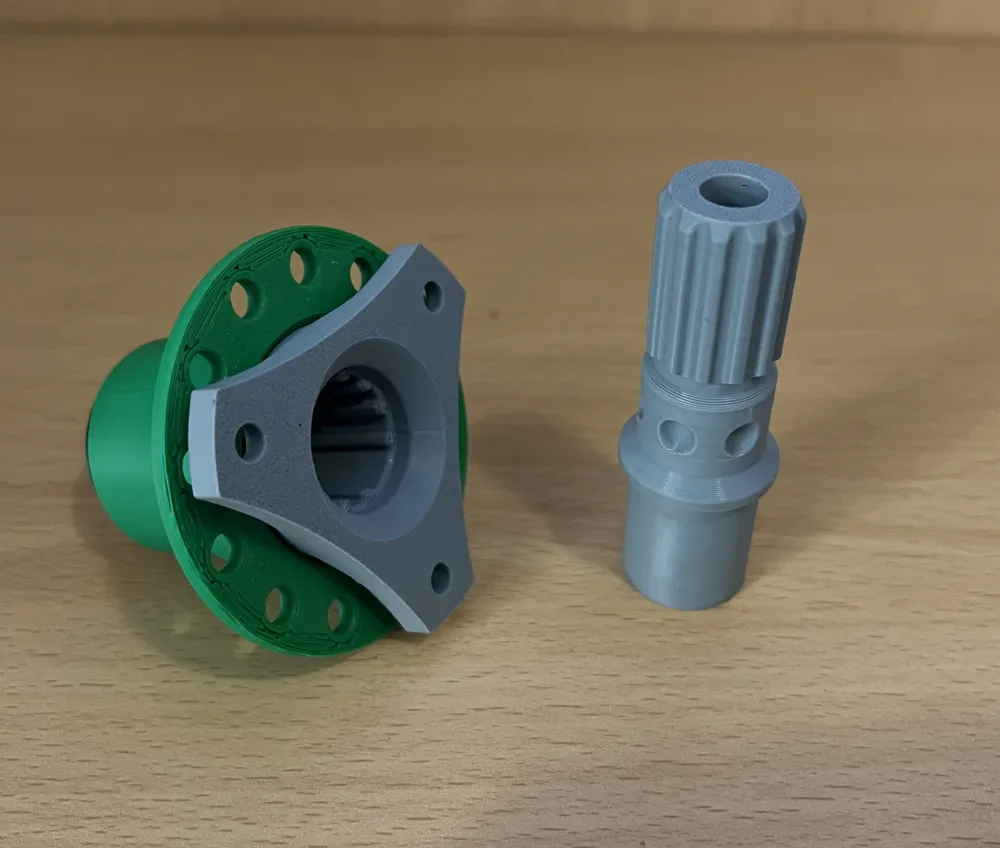

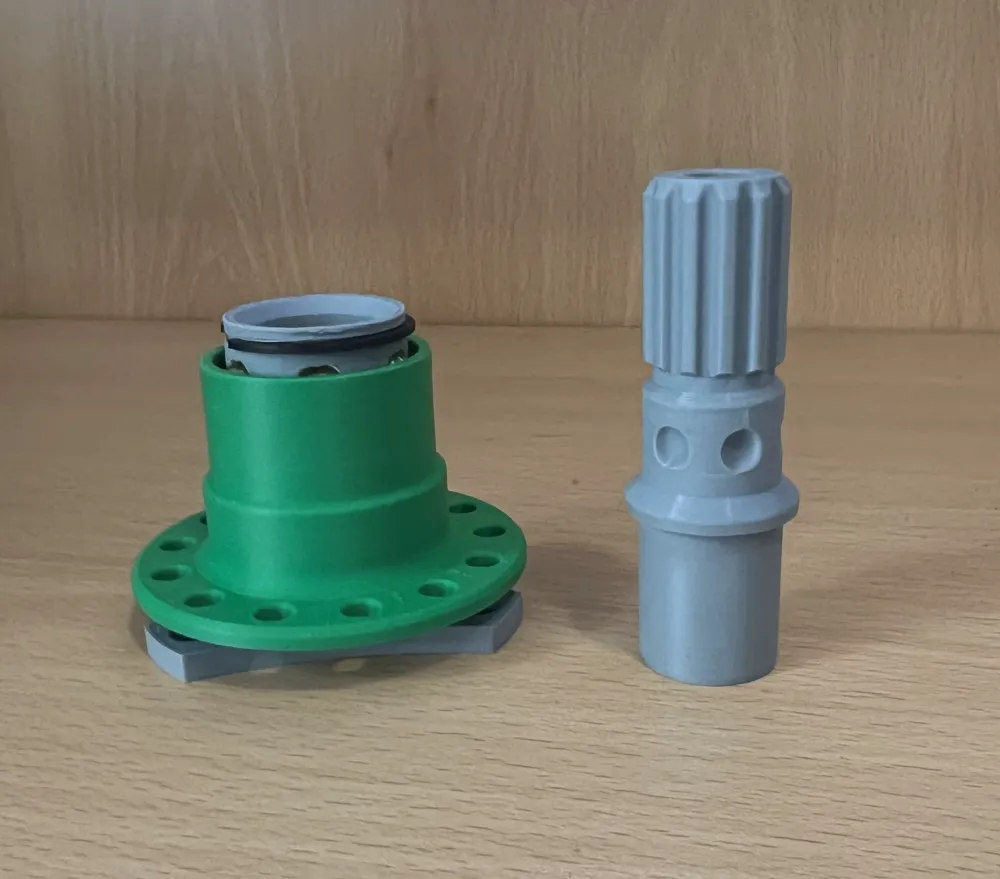

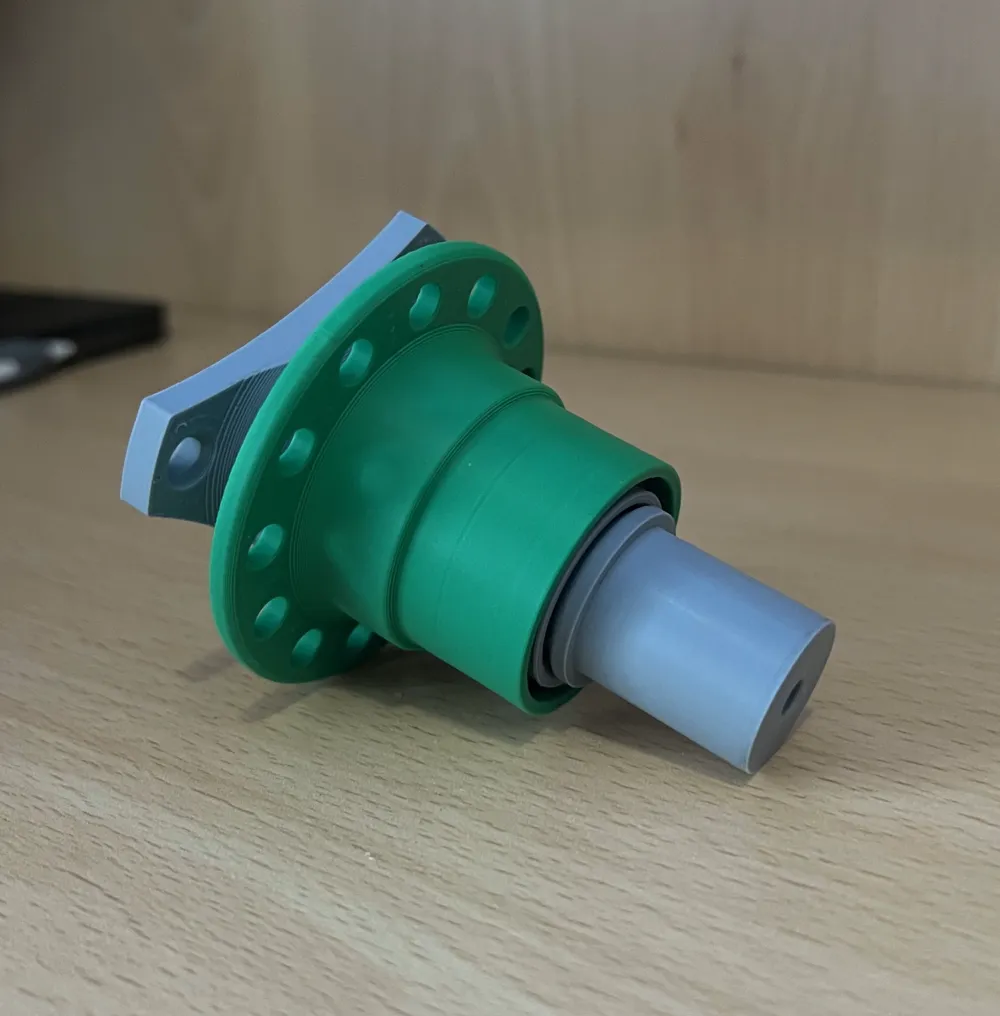

The quick release is a theoretical replication of Lifeline weld on quick release hub. I went through a couple iderations to optimize the fit.
The model requires (6) six - 6mm pearl beeds connected with a elastic string and a custom spring made out of some wire. This is because at first i was planning the beeds to lock the main shaft in th equick release, but the 3D model was a bit finiky and so the beeds fall out when there is no shaft inserted.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial
