Digital Arcade Flightstick 3 The Raptor

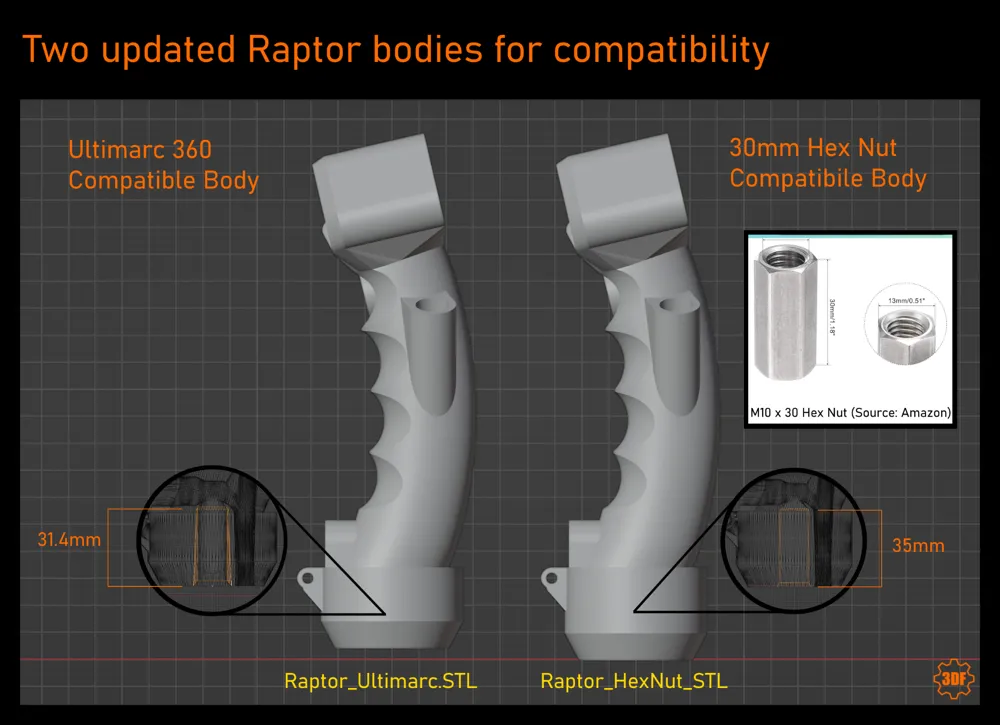

Update 16/03/24:  Added Ultimarc & M10x30 Hex nut compatible raptor bodies (Many thanks to user francislej )

…

Analog Update: Received my cheap analog arcade joystick mechanism from AliExpress and I can confirm that The Raptor fits and works well BUT it doesn't have a strong recentering effect so it needs to be mounted flat and not at an angle plus I can't vouch for how long it will last because I only just got it. $24 AUD (Around $17 USD) inc. postage, If you want to try it out.

Link is down in the misc. notes.

...

Now I'm on v3 of my Digital arcade Flightstick series I am starting to think it shouldn't be digital anymore, so I have searched down a not-too-expensive (read: cheap) arcade analog stick and placed an order. I did consider the Ultimarc UltraStik (especially the 360FS) but the cost was high and you could buy an off the shelf analog stick for less.

If anybody has a spare UltraStik or knows of a cheap way to get one to Australia please message me.

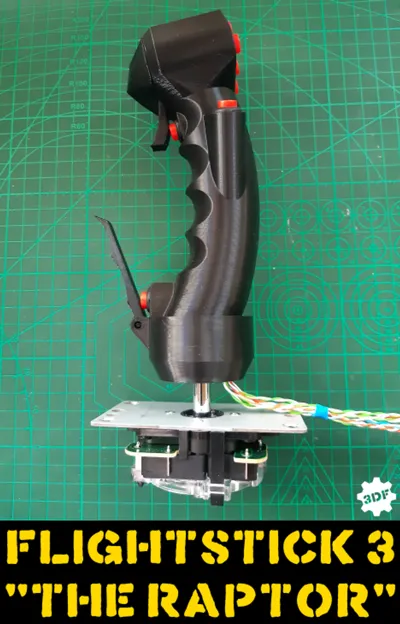

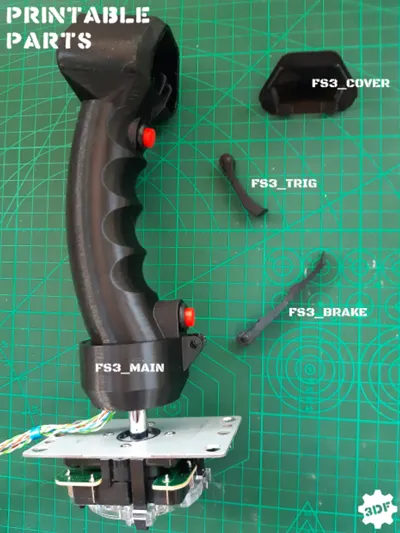

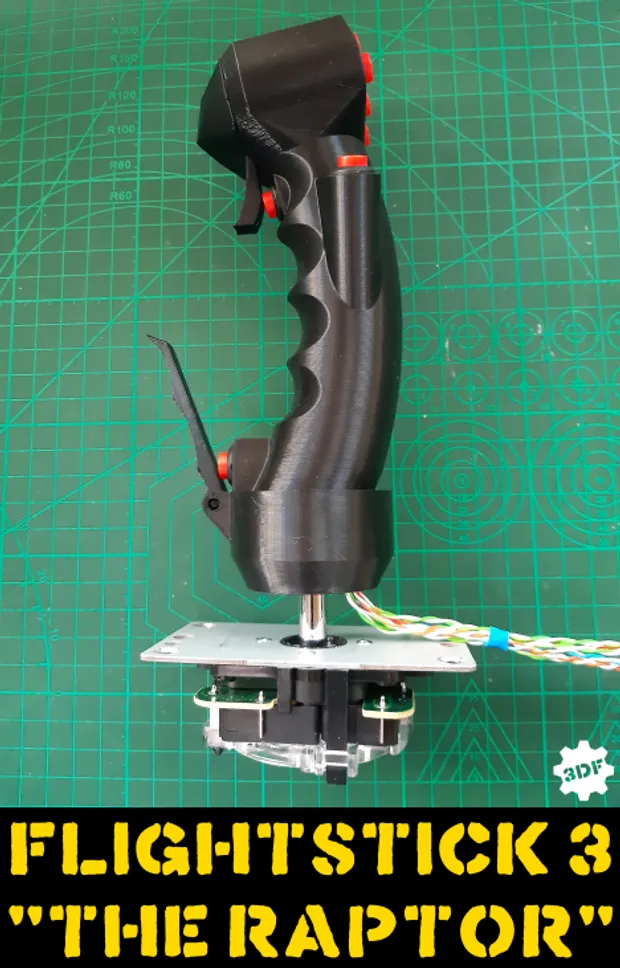

Anyway, continuing on from my other flightsticks, "The Raptor" is relatively simple to print and requires only 8 of a single type of push button to be ready for battle!

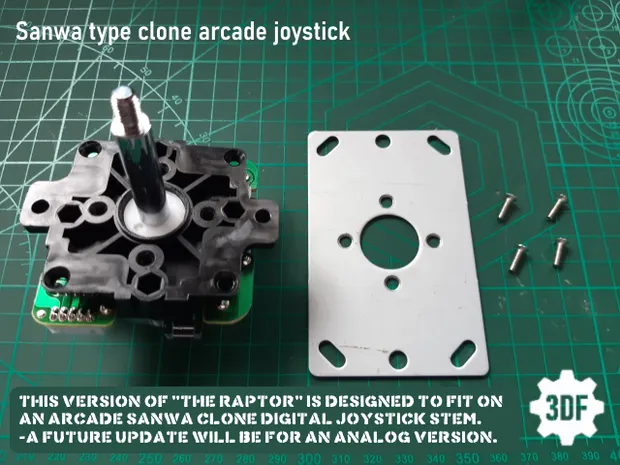

Obviously, you will need to wire up the buttons, have a Sanwa clone joystick to plant it on and an encoder to interface with your chosen device.

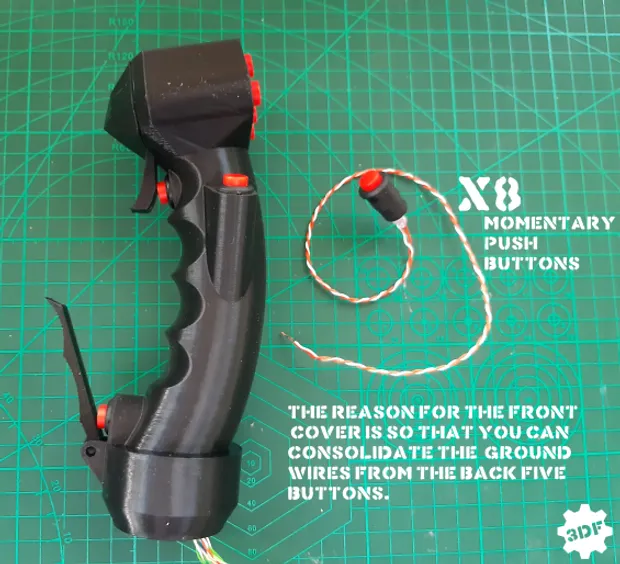

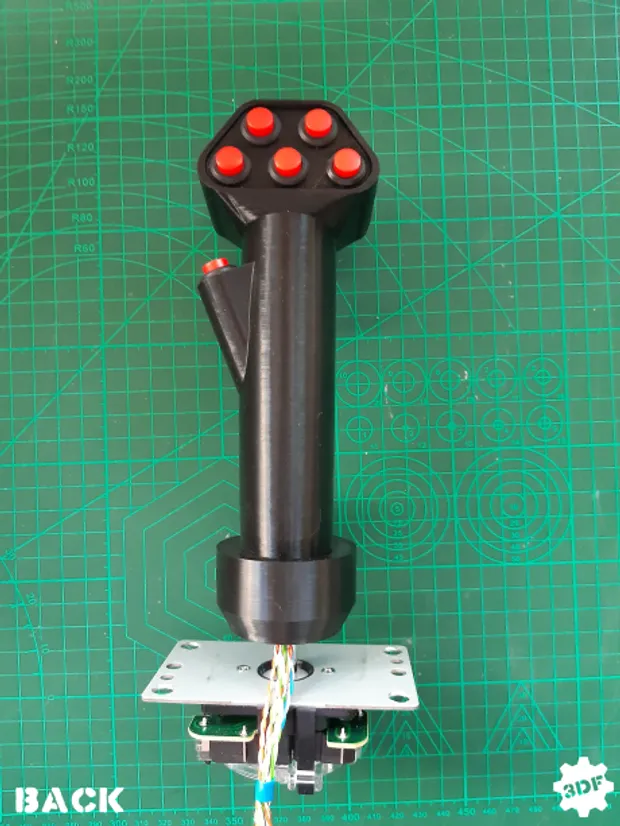

The reason this version has a separate front cover is so you can consolidate the ground wires from the back 5 buttons, thus reducing the amount of wiring running through the body. I also would suggest feeding a wire up to the trigger push button location from the bottom, the turn is a little tight to be able to feed it from the top.

As a connection suggestion, considering that there are 8 fire buttons and a ground wire you could use a coiled spring type cable terminating in a 9pin D plug with a connector situated on the front of your control panel, or just under if it overhangs.

I hope someone gets as much of a kick out of this as I did designing and making it, this is not the end of the flightstick series but I might have a go at a few others things in the meantime.

MY PATREON & PATREON SHOP.

https://www.patreon.com/3DFreeman

Here's a non-affiliate link to the type of cheap and cheerful Sanwa clone I use:

Aliexpress.com

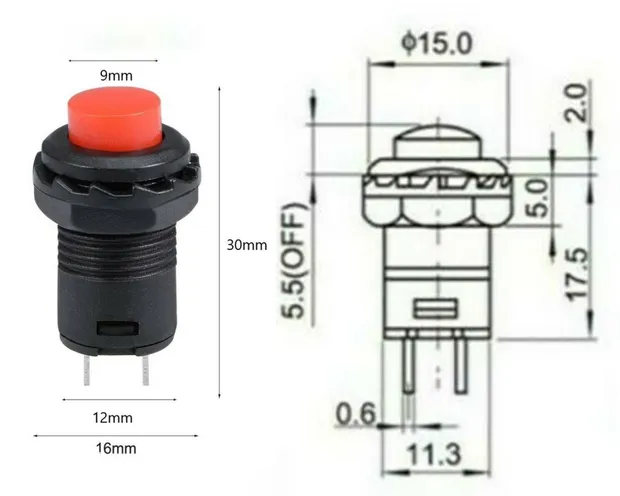

And the momentary push button switches:

Aliexpress.com

Thanks for checking out my designs.
