A Series 5-way to 2-way single filament feeder
Print Profile(3)
Description
Update: PC4-M6 version added
Note: Using this modification will disable the Hall sensor, affecting filament feeding functions, but it does not impact normal use. Please use this modification as needed.

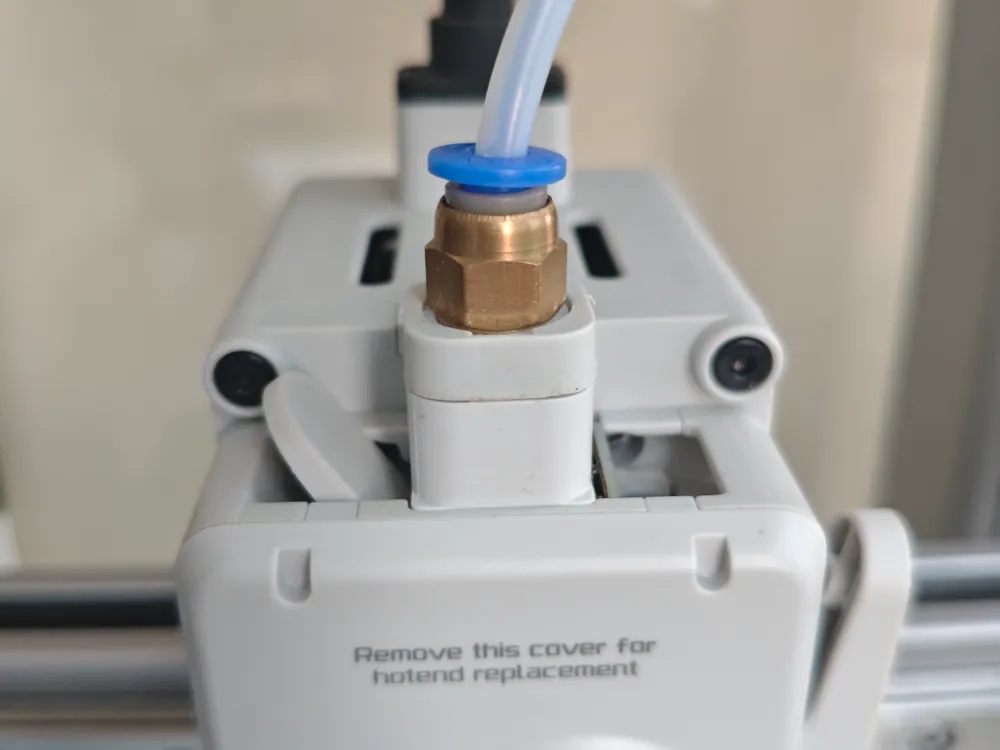

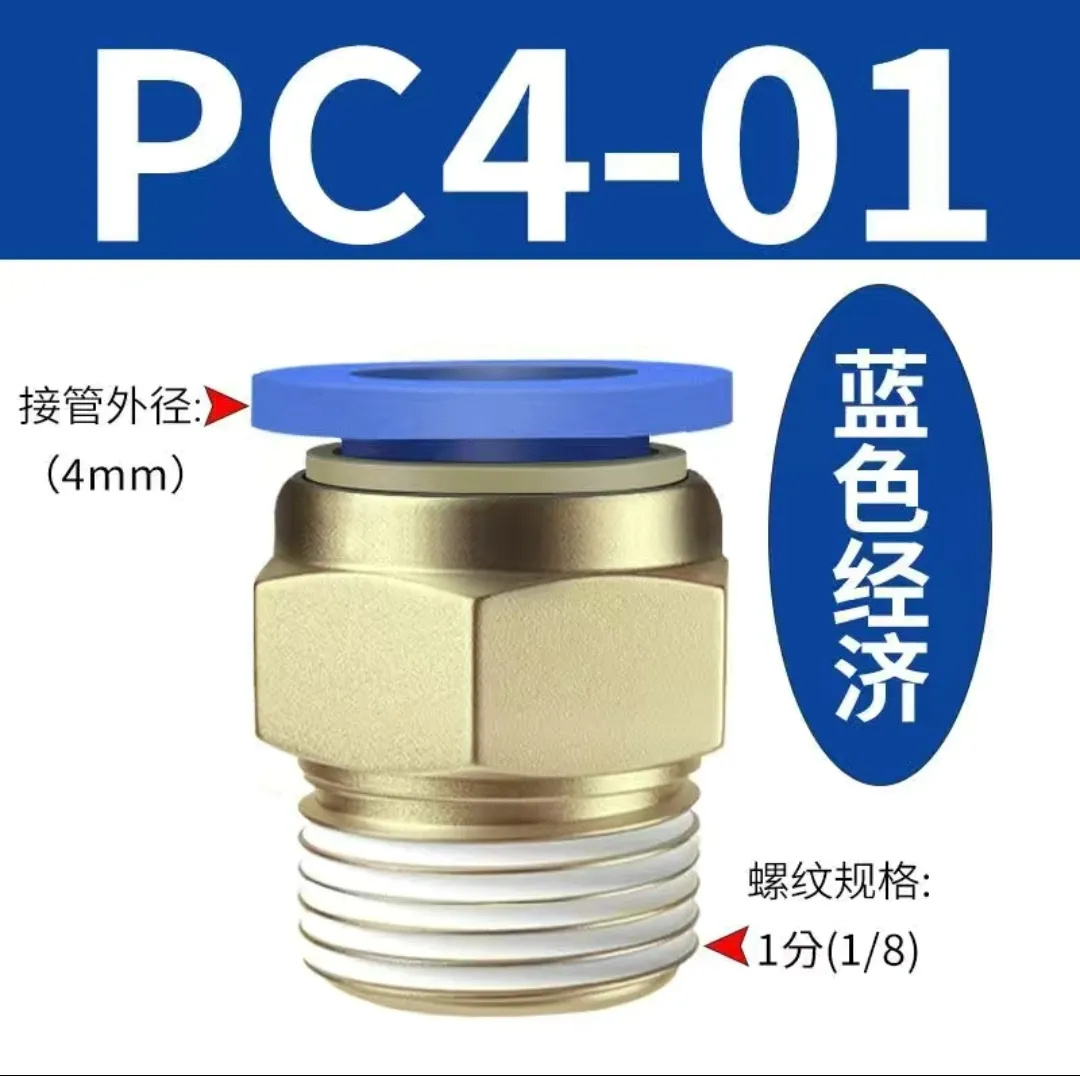

Use a PC4-01 pneumatic connector (the blue one is not mandatory),

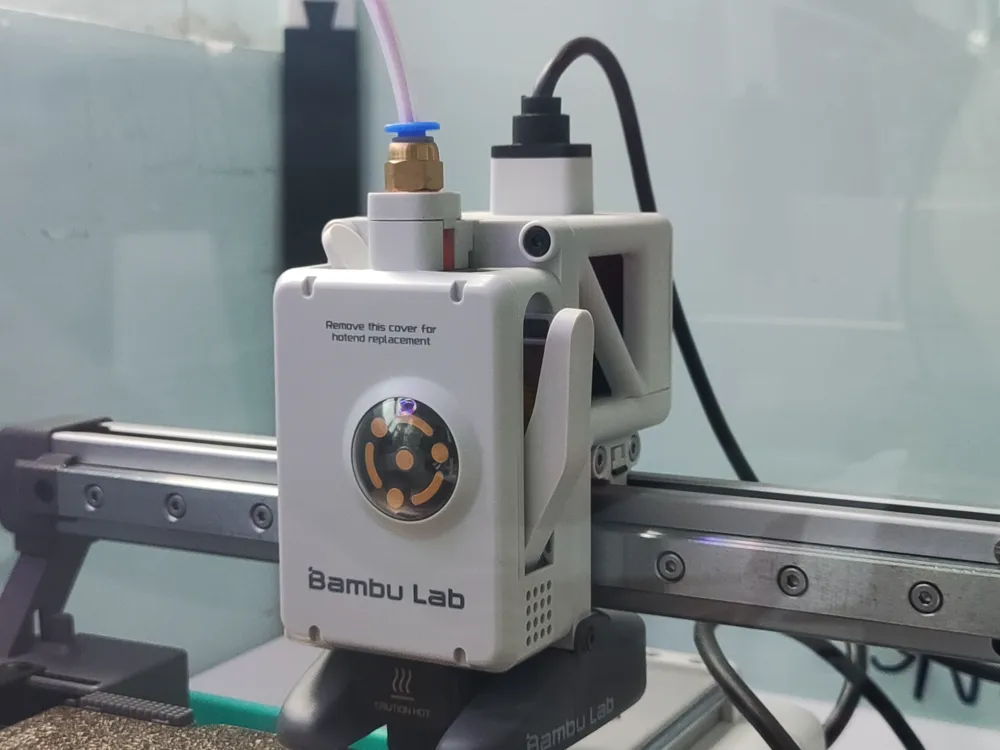

5-way hub installation and removal tutorial: https://wiki.bambulab.com/zh/a1/maintenance/filament_hub_cleaning. After prying open the cover, remove the 5-way hub and replace it with the 2-way hub. Install it following the 5-way hub's installation method, then connect the PTFE tube (4mm).
When using, if you encounter a situation where the filament cannot be inserted all the way, it is recommended to straighten the PTFE tube and try again. Try to avoid putting pressure on the connection point.
