Universal Electric Meter Key

27/11/2024 Version 2.0 update:

• Added more key types
• Changed keychain holder
• Added a place to store the bit

Description:

This is a universal utility key, often used for accessing technical systems like HVAC panels, electrical cabinets, elevators, or other specialized enclosures. It includes multiple key types, such as square, triangular, and round sockets, and can feature various adapter ends to match different locking mechanisms. These tools are especially useful for technicians and engineers who deal with diverse access points during maintenance or repairs. Has a place for a bit. Can be attached to keys.

The set has the following types of keys:

• Square: ⌀6–7 mm, ⌀8–9 mm, ⌀10–11 mm
• Triangle: ⌀7–8 mm, ⌀9–10 mm, ⌀11–12 mm
• Stepped square: 6–9 mm

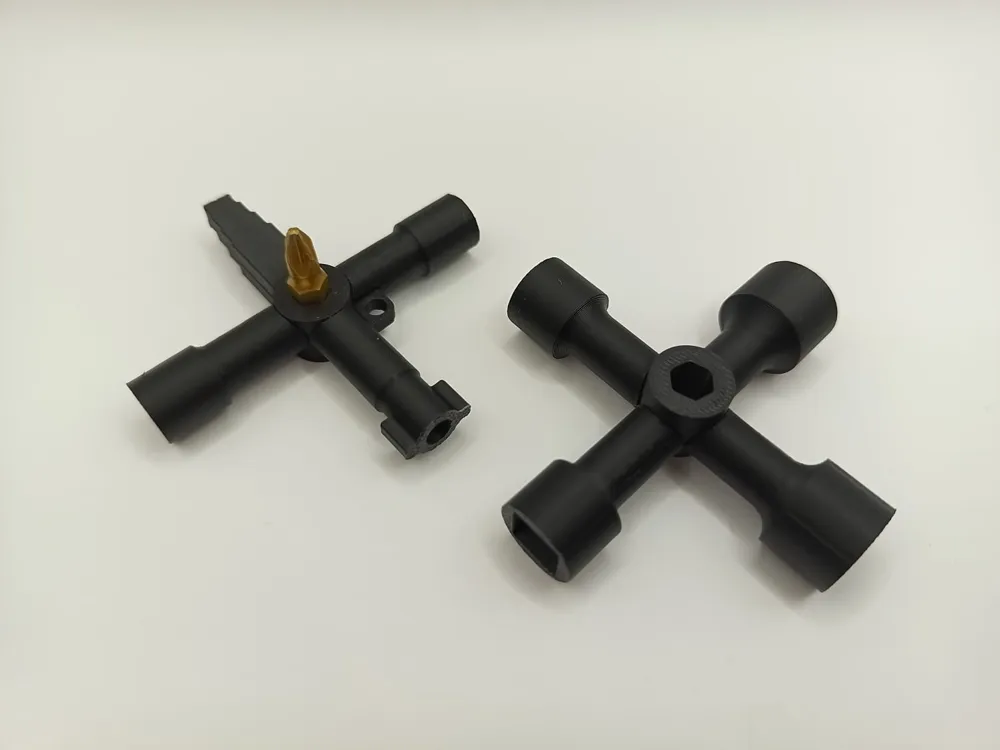

• One more common type which I am not able to describe but is visible on the pothos.

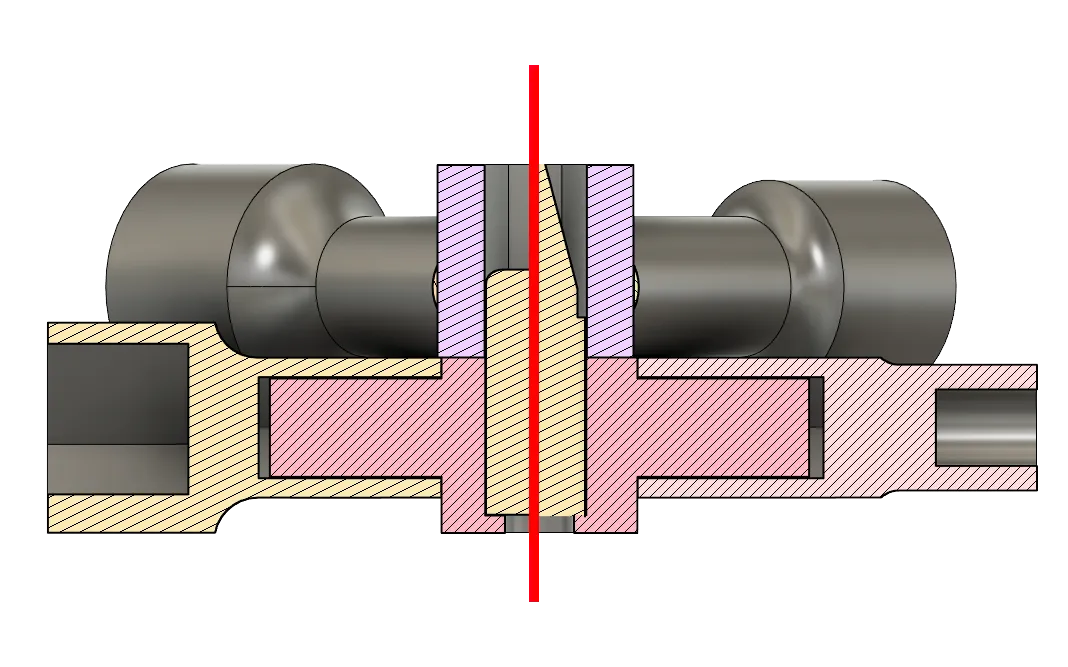

The upper and lower bodies can be connected in two ways. Either by inserting a bit inside or by using a printed joint. The upper part has more clearance, which allows the upper part to be dismantled without removing the bit from the lower part.

Easy to assemble. The mounting of the tips does not matter. You can arrange them however you like. The only two tips that have their position are the ones with the groove for the keychain holder. Use force to press individual components into place. You can add a little glue to strengthen the whole thing.
