Sink-side dishcloth holder
Print Profile(4)
Bill of Materials
- Round Magnet 15x5 x 4:
Description
Practical and stylish holder for your dishcloths
Finally a spot directly in the sink where you can dry your dishcloth...
Printing & Assembly:
Attention! Please select the print profile according to the desired mounting method:
1. Print profile → Magnets & adhesive pad
2. Print profile → Magnets
3. Print profile → Adhesive pad
The lever can be printed with PLA or, even better, with ABS. I print this with ABS for better stability.
It is important to note that when printing parts that might end up in the dishwasher, PLA slightly shrinks the FIRST time.
The above also applies to the pin, but here I often switch to PLA due to coloring. It is fitted with an M3 heat-set insert to screw on the buffer.
I print the buffer with TPU, which you should definitely do if you want to attach the hanger magnetically. If you want to attach it with the M3 adhesive pad, you can also use PLA. Two round 15x5 mm magnets (https://www.amazon.de/gp/product/B009UW8RT0/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1) are embedded in the buffer. There is a pause at layer 45 in the print profile here.
Be sure to observe the polarity when inserting the magnets!
I print the round holder with the same material as the pin, and here too, a pause is set at layer 45 for inserting the magnets. If needed, attach the M3 adhesive pad to the back of the holder.

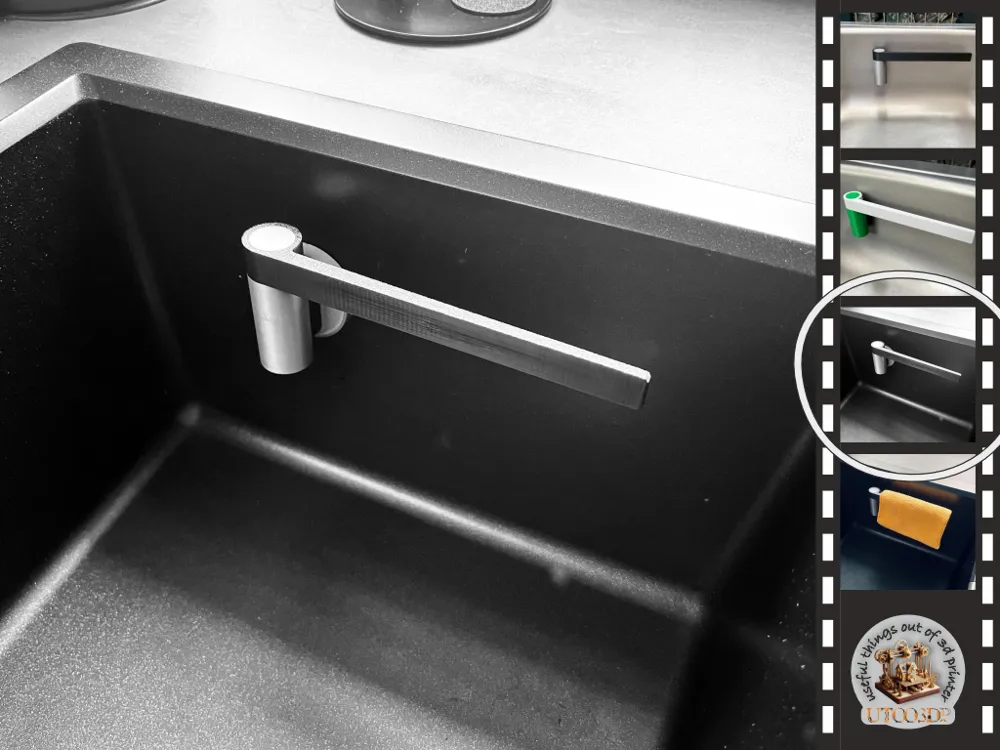

Attachment to the sink:

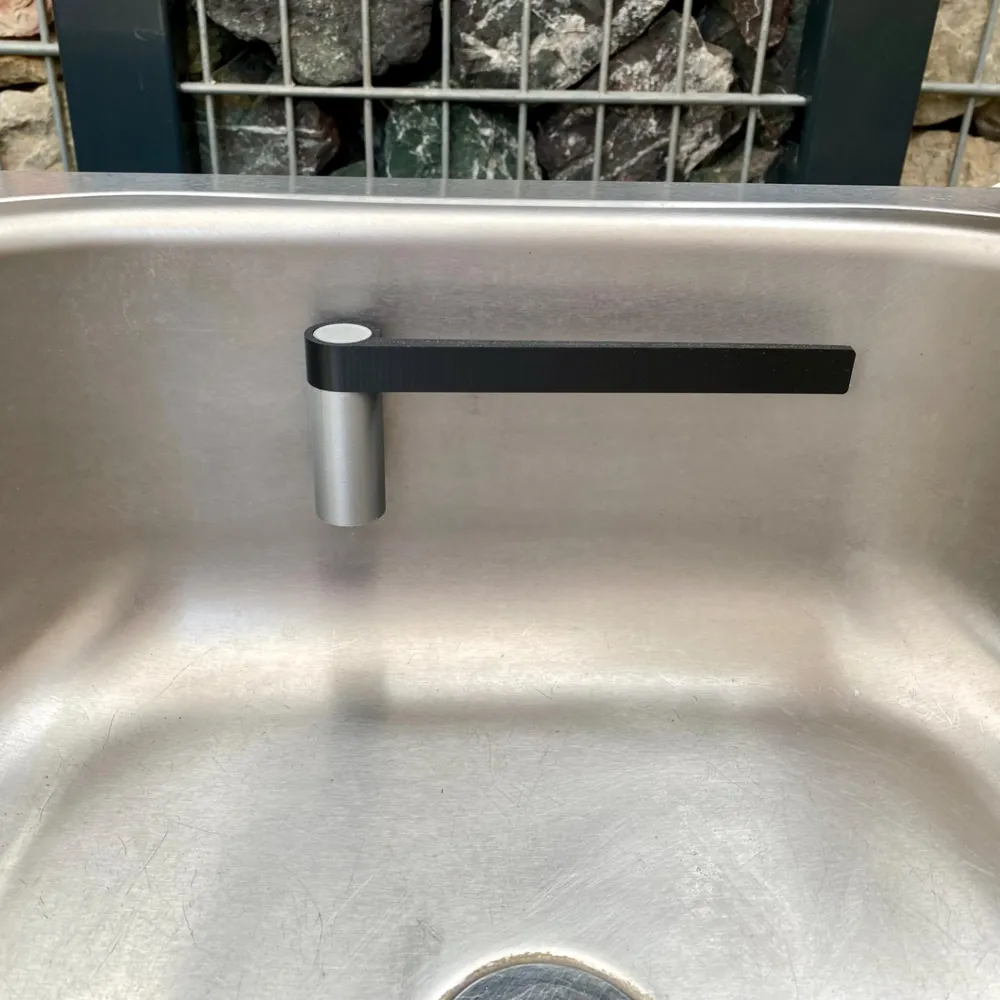

- The hanger can be easily attached to magnetic sinks using the integrated magnets (Print profile 2).
- Furthermore, attachment can be done using the extra strong 3M adhesive pad, which can also be removed without residue (Print profile 3).
- Experimental - Alternatively, for non-magnetic sinks, you can try to attach the holder to the back of the basin. This way, only the pin and the lever are visible in the visible area. To prevent the magnet from falling off the back when removing the lever, you can use the M3 adhesive pad (Print profile 1).
The finished printed holder is available here: https://www.etsy.com/de/listing/1797653735/magnetische-halterung-spultuch-aufhanger
