Paracord Pulley – Skeleton Zero
Print Profile(3)
Description
Light-duty pulley that prints clean with zero supports.

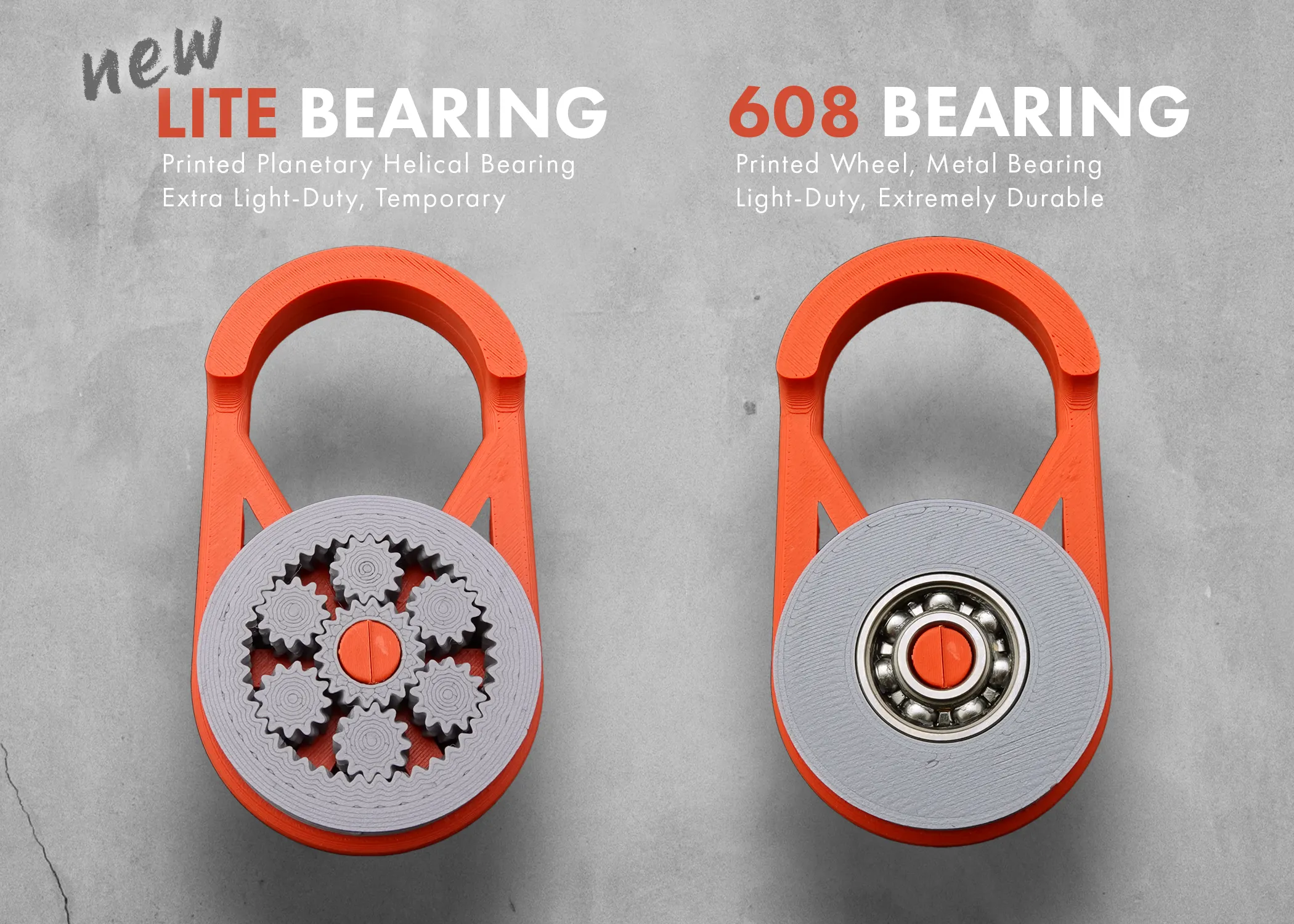

Options: 608 bearing or printed bearing + axle/snatch.

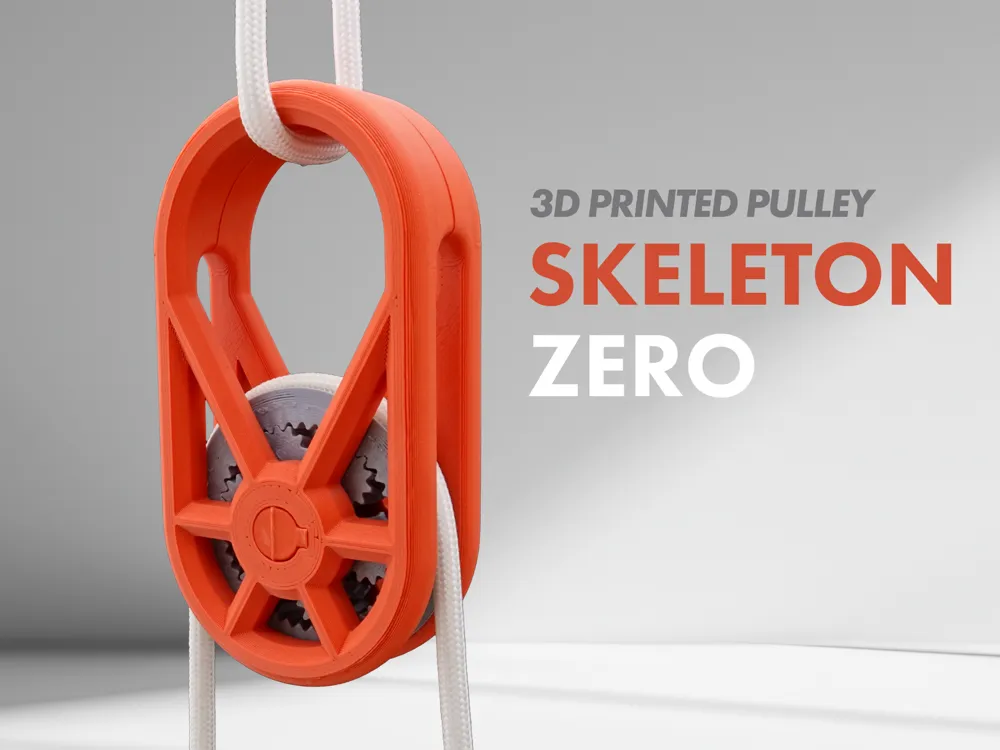

Skeleton Zero is a pulley designed to be strong, stylish and light-weight. It prints without supports and features either a printed compression-fit axle or a printed screw fastener. This pulley is capable of easily handling light-duty jobs of up to 25 pounds, with durability depending on which bearing type you choose.
Updated September 6, 2025: Now you can print Skeleton Zero without a 608 Bearing!
Both bearing and wheel options are included in all of the attached print profiles.
About the Two Fastener Options
Option 1: Compression Axle (Most Popular)
The axle is a two-part compression fit locking design and assembly is simple but will require some gentle hammering ideally with a plastic hammer or the butt end of a screwdriver. Once hammered into place it will be quite strong easily capable of lifting 25 pounds and can handle even greater static loads. This is the strongest option.
Option 2: Printed Screw / Snatch Block
Print the screw by maxing out wall loops or use 100% infill. This design has an additional feature that it can be opened and closed like a snatch block. This is the more versatile option since it allows for easy disassembly.

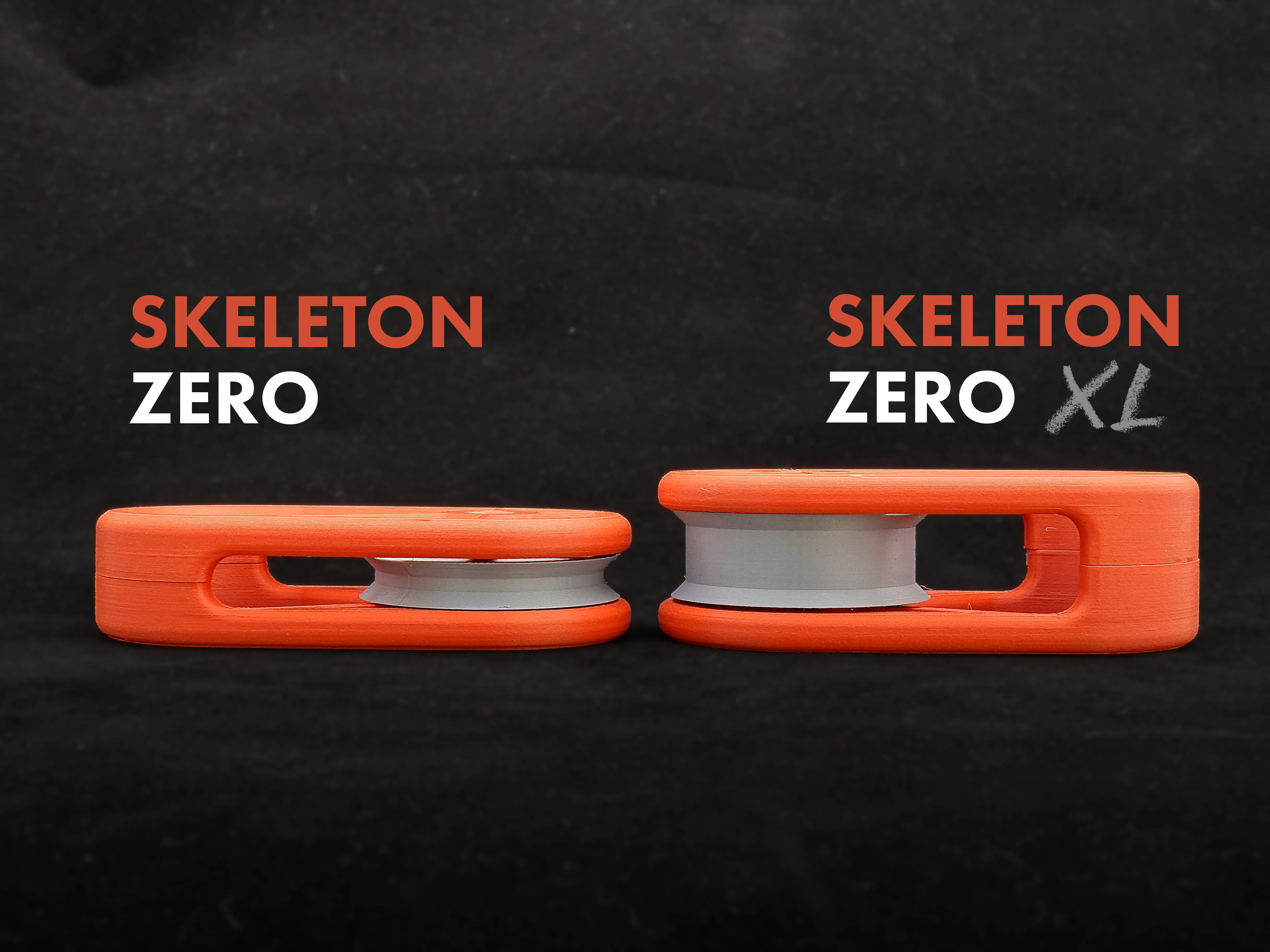

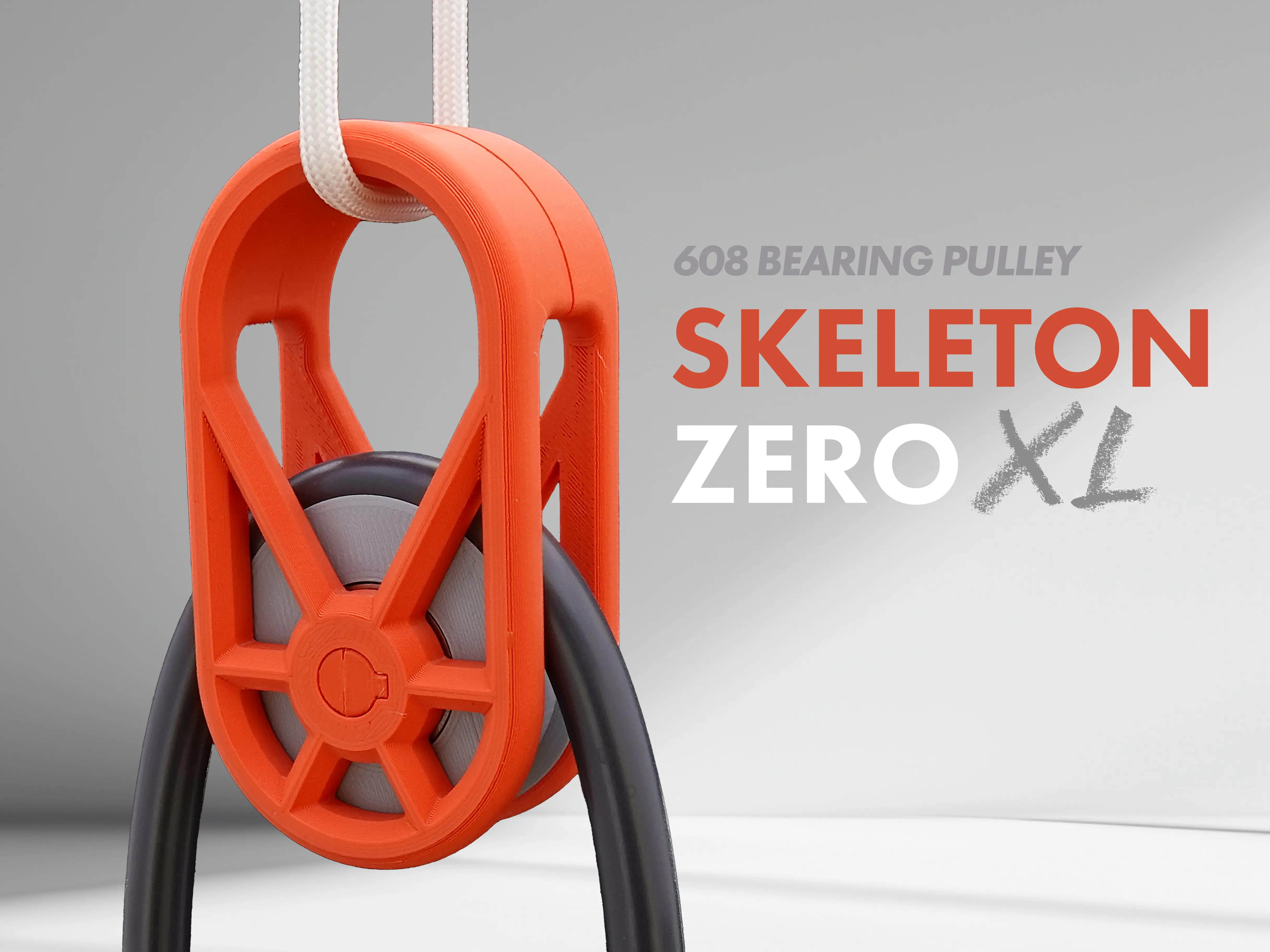

Updated August 3, 2025 - Skeleton Zero XL
New XL version that has a 14mm wide wheel for larger cordage, cables and tubing. This variant requires two 608 bearings.
Related Models

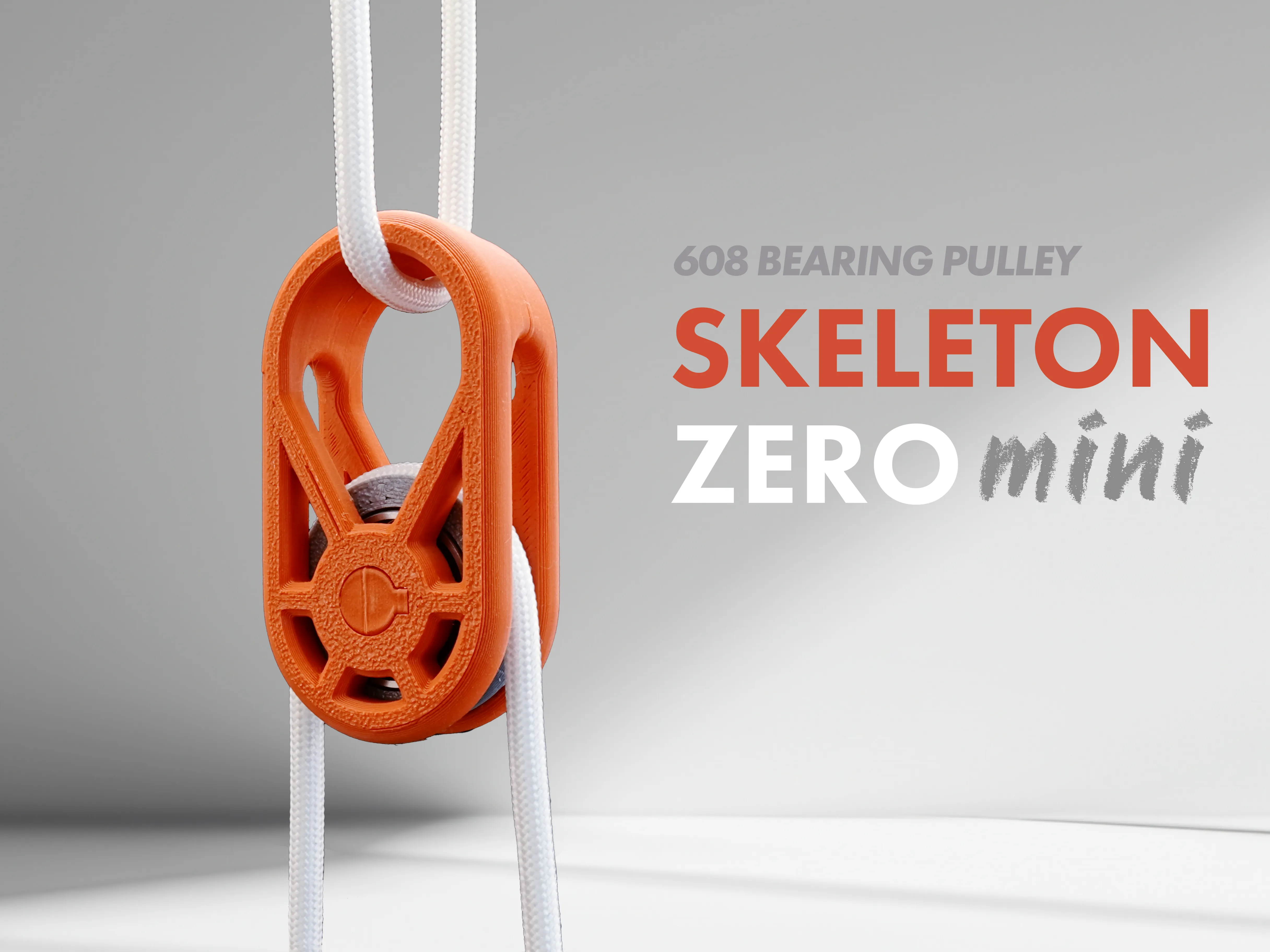

Check out the Skeleton Zero Mini for a smaller version of this design.

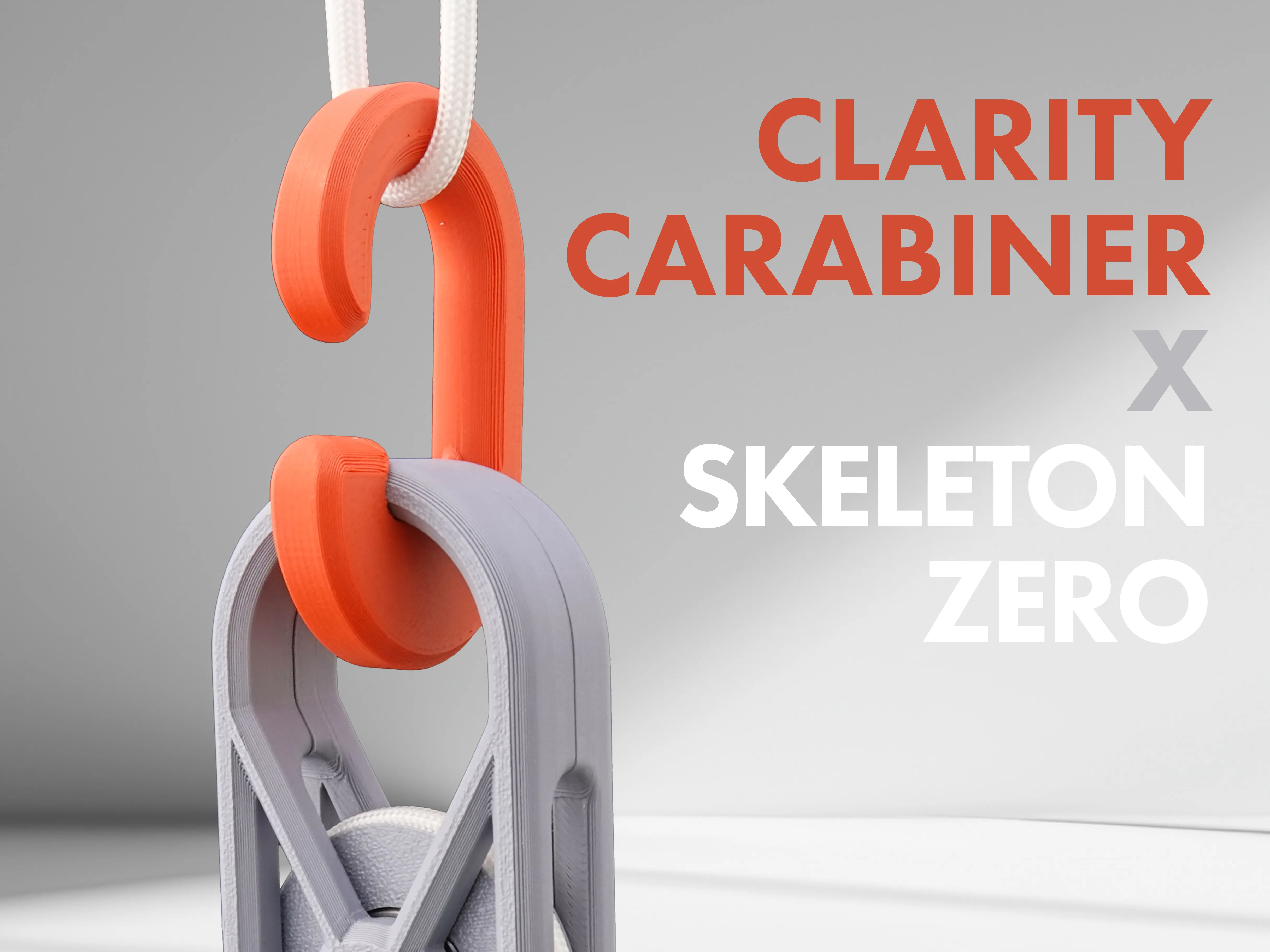

Check out this specially designed hook that stays fastened to the Skeleton Zero and makes it a little easier to attach to things.

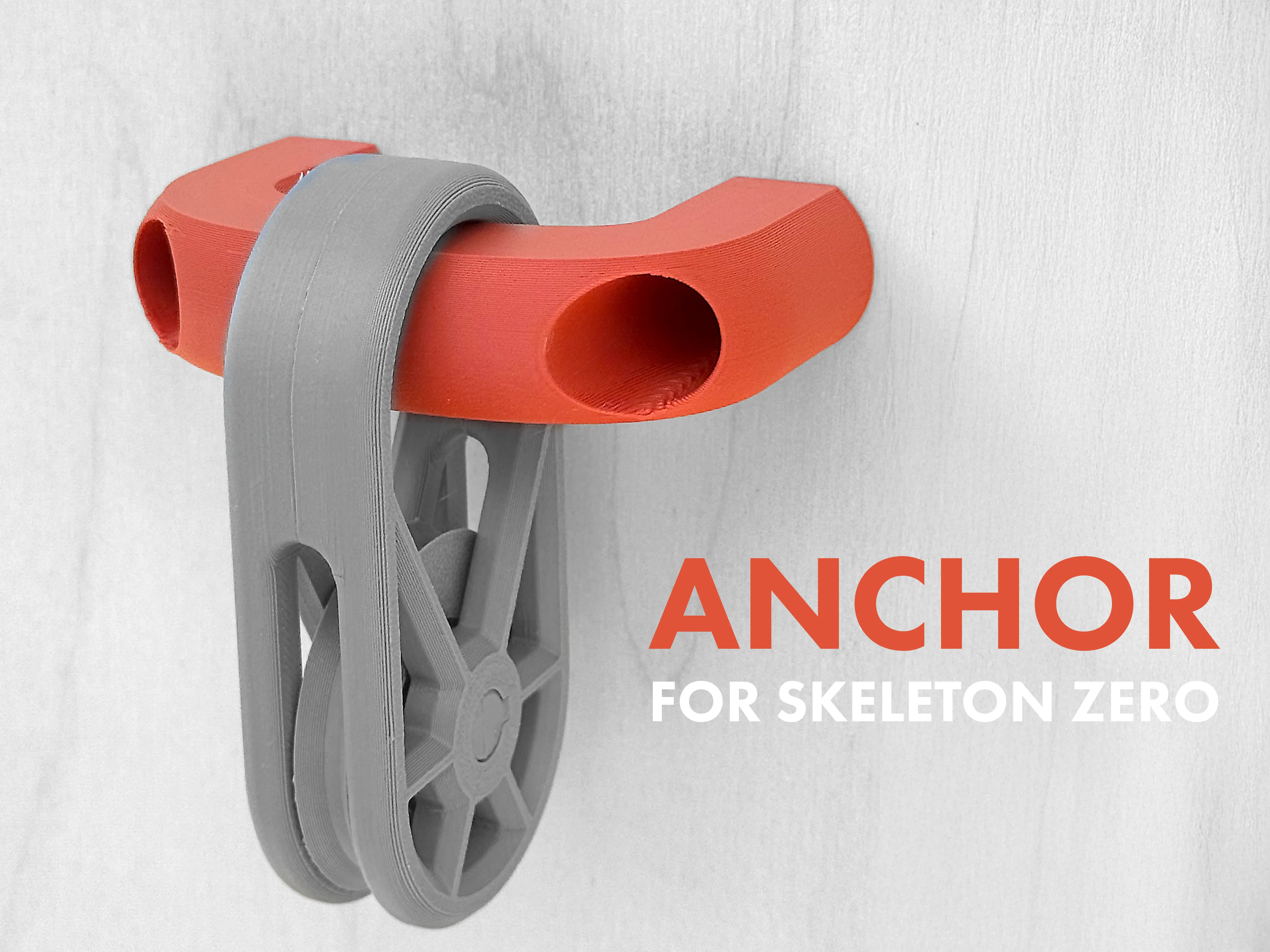

Anchor a Skeleton Zero to the wall or ceiling.
Boost Me (for free)
Your boosts help me to buy filament which goes towards designing and prototyping new models. Thank you for your support.
