Snatch Block Pulley (608) – Prime
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
2.1 h
1 plate
Open in Bambu Studio
Boost
336
1019
15
9
250
156
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description

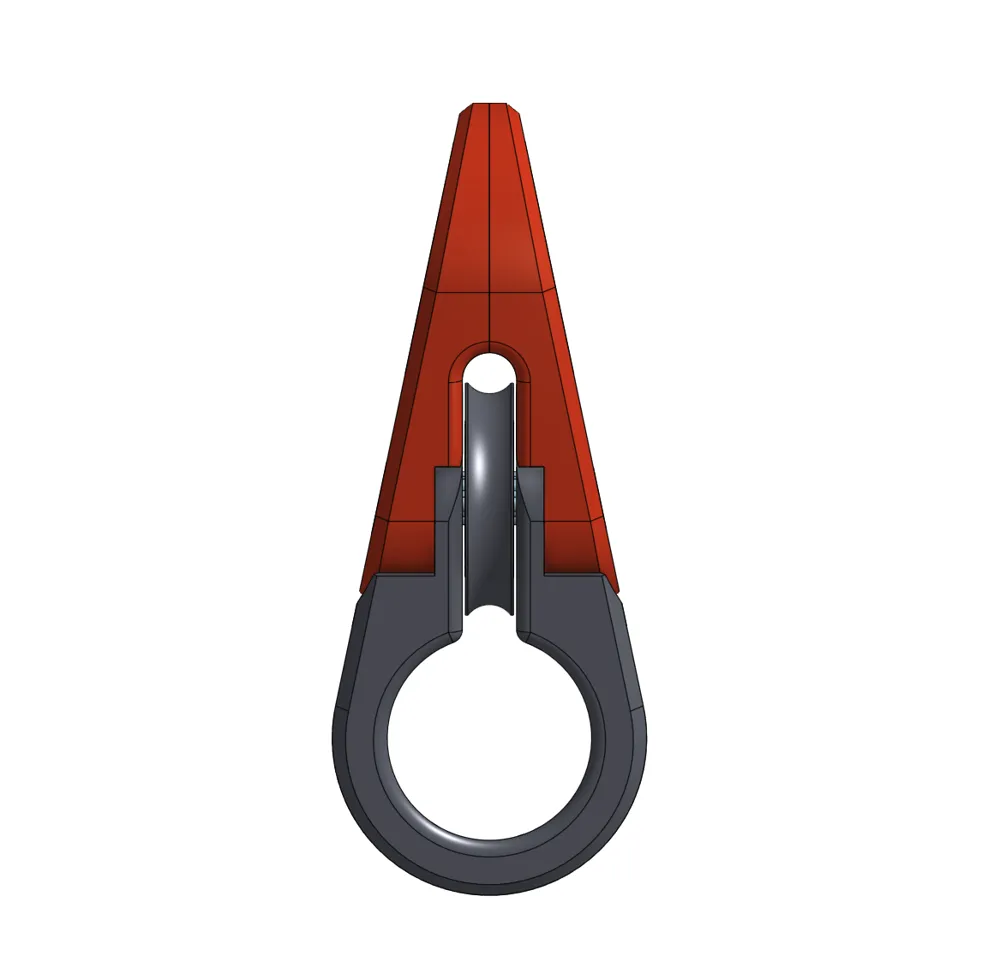

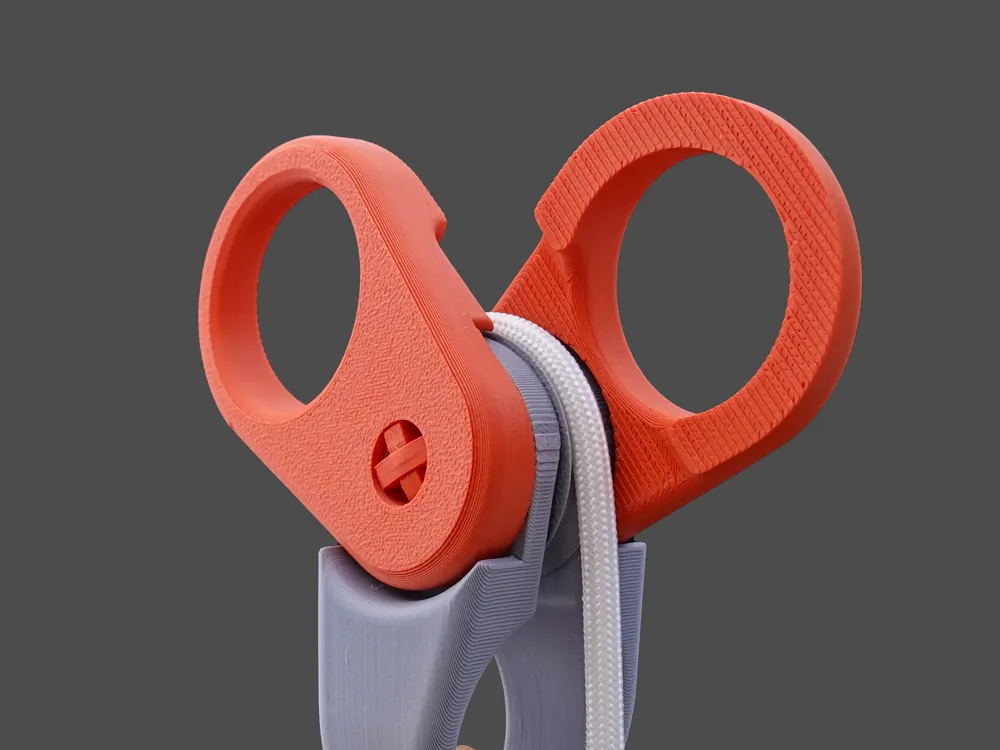

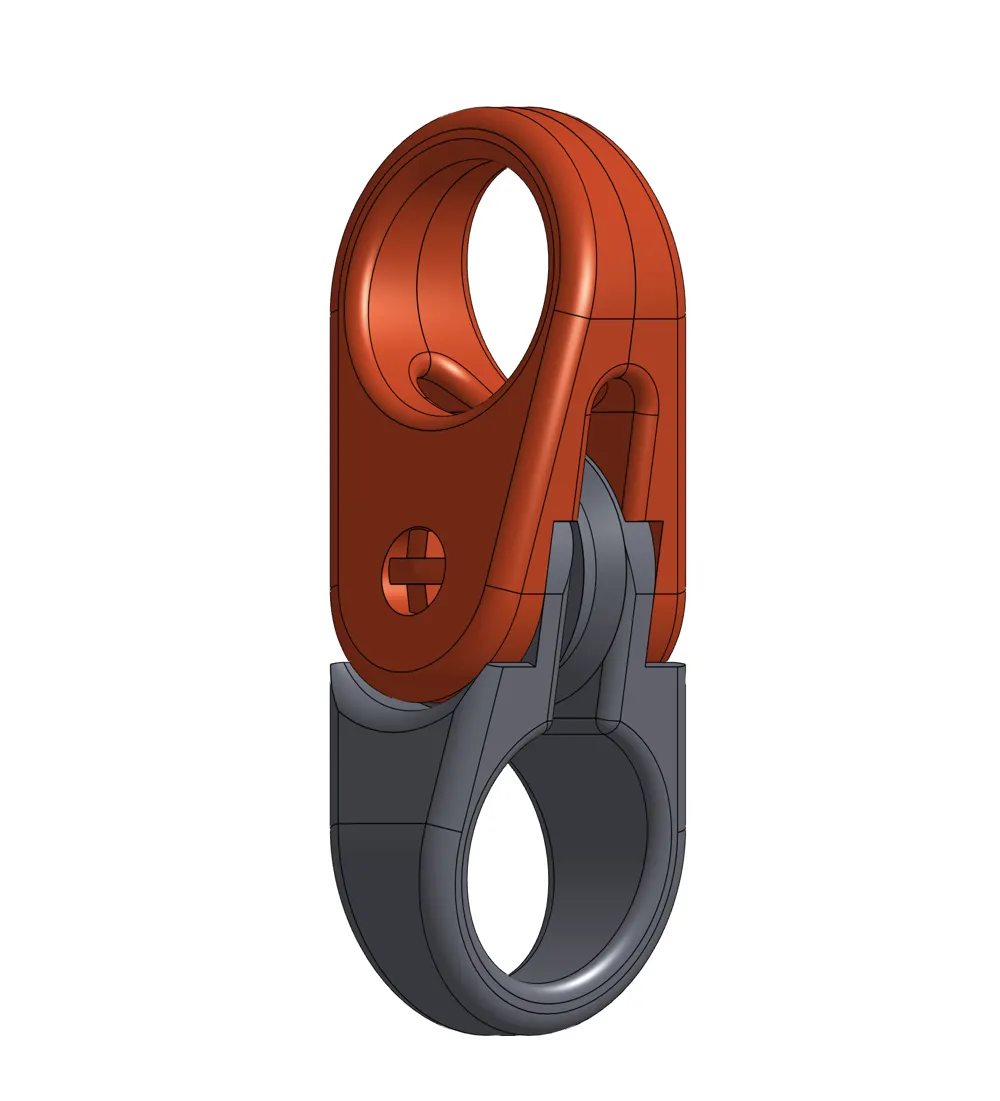

Light-duty snatch block with becket for clean rigs.
1×608; pairs well for low-friction 1:2 / 1:4 setups.
Paracord snatch block for light-duty jobs up to 25 lbs.

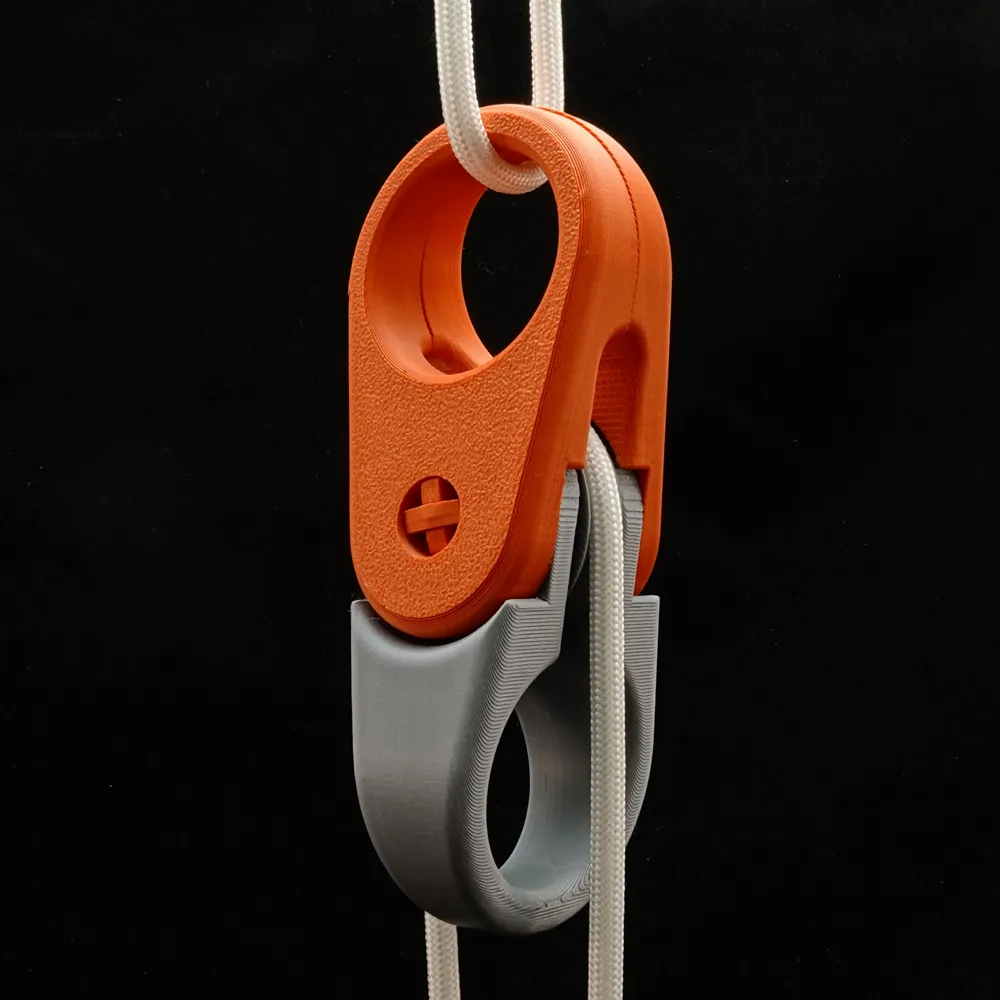

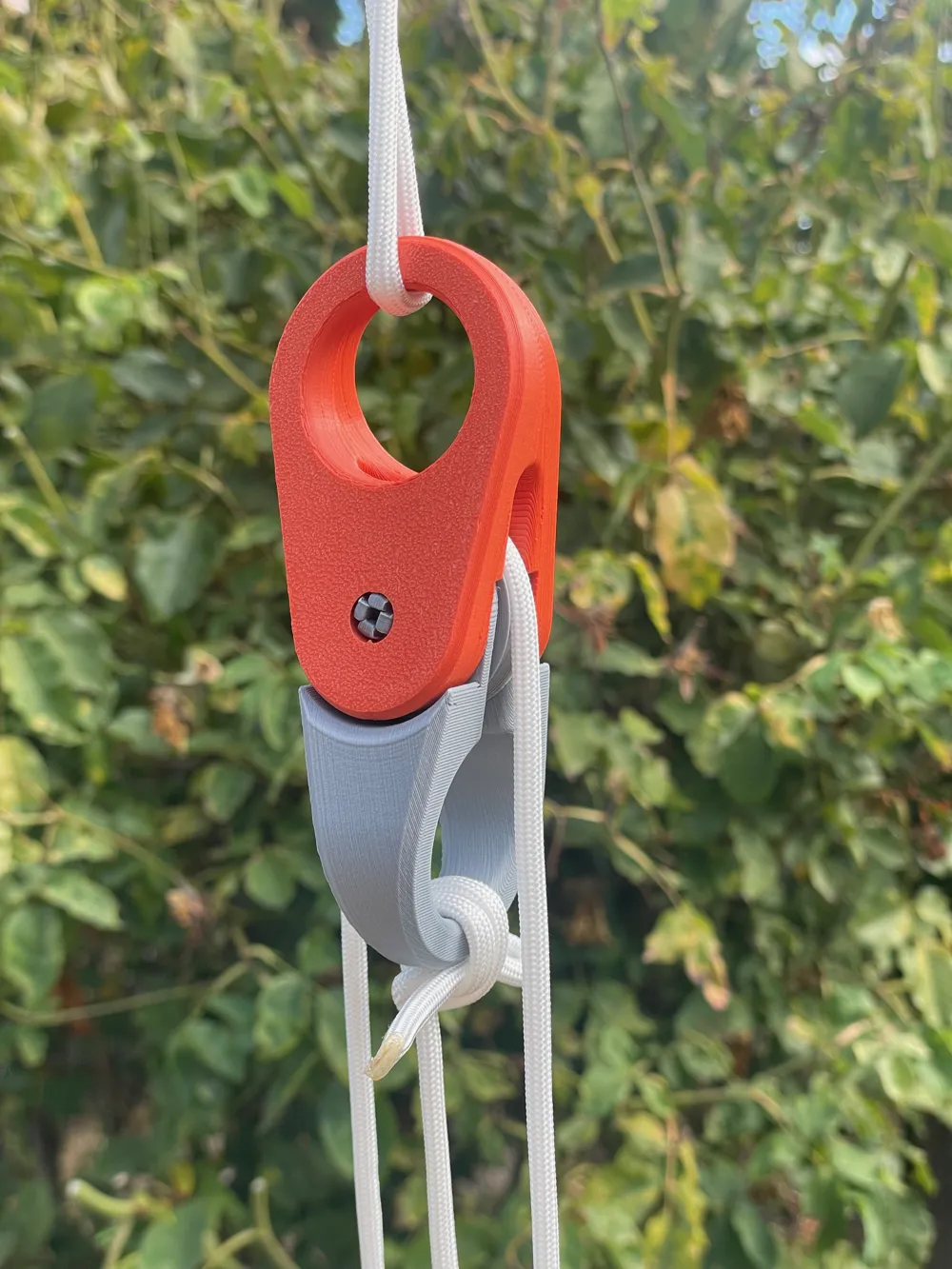

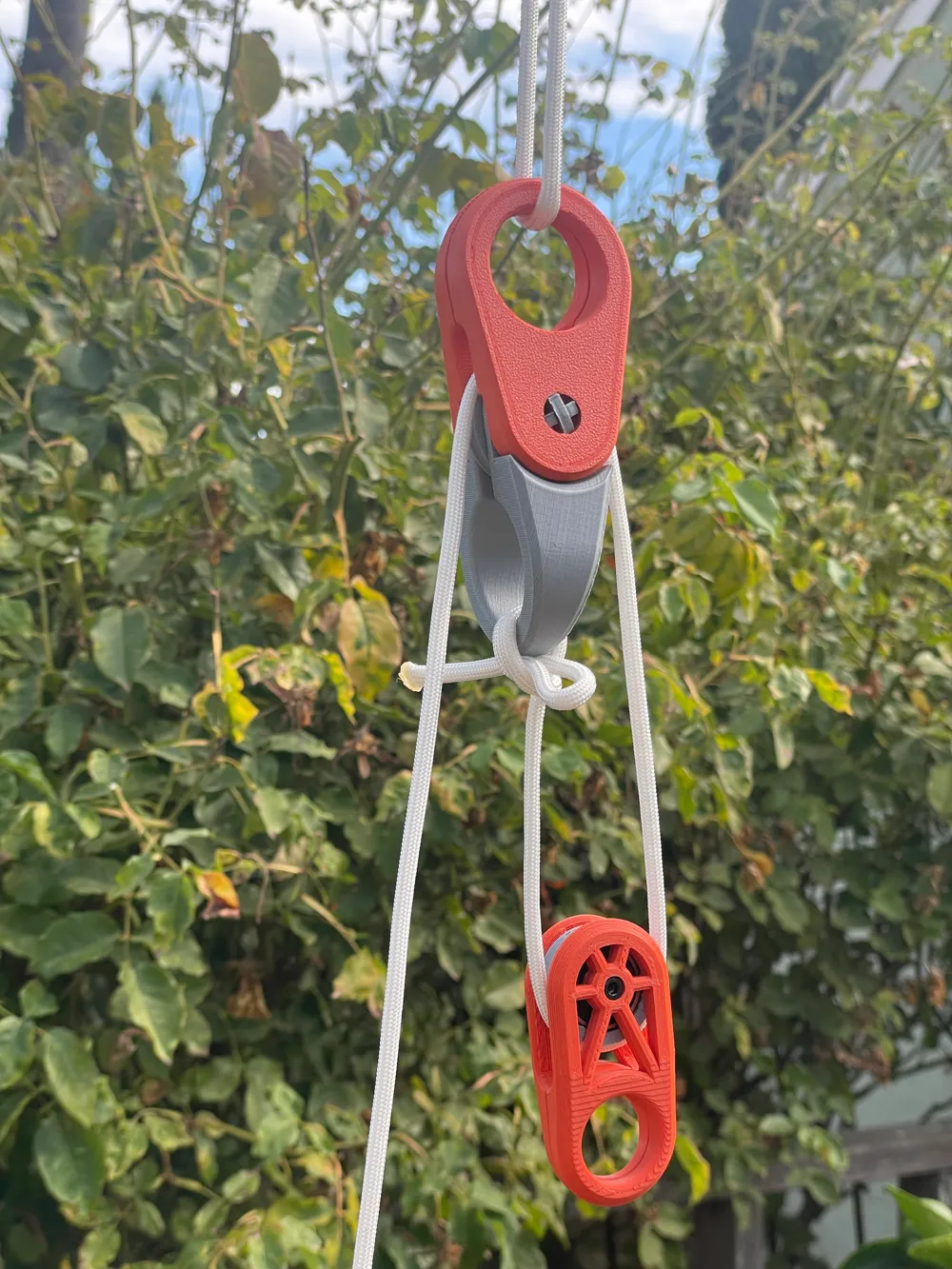

This pulley can achieve a 1:2 mechanical advantage when assembled as a block and tackle. The bottom half of this pulley is called a becket and provides a strong fixed mounting point for the working end of the line to attach to. To minimize friction it is recommended to pair this with another pulley such as the Snatchblock Mini or a Snatchblock Plus directly attached to the load.

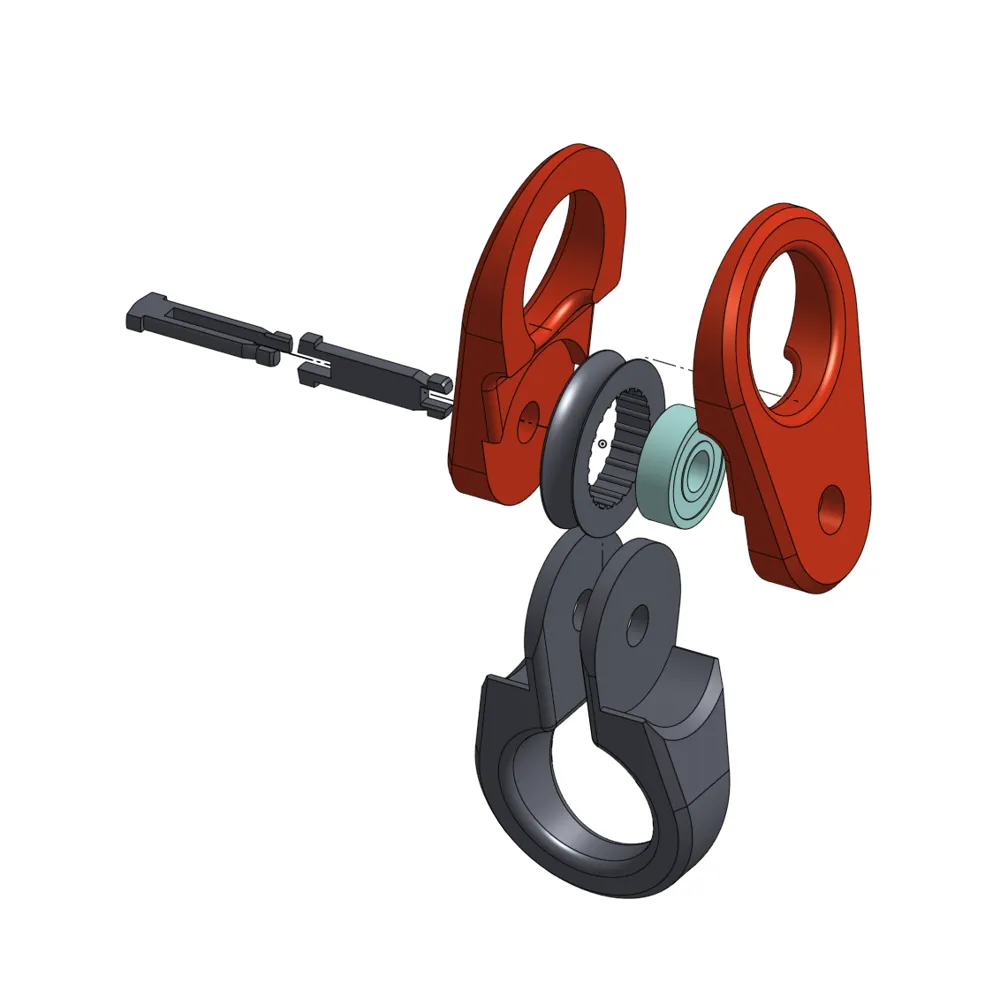

Required Hardware
- 1x 608 bearing
Boost Me (for free)
Your boosts help me to buy filament which goes towards designing and prototyping new models. Thank you for your support.
License
This user content is licensed under a
Creative Commons Attribution-Share Alike
