7 channel Deej Mixer Enclosure - 6 linear 1 rotary

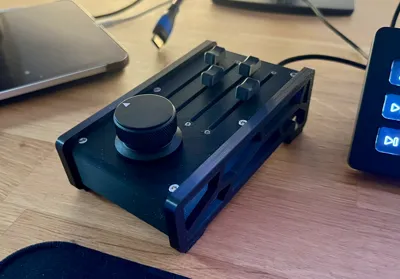

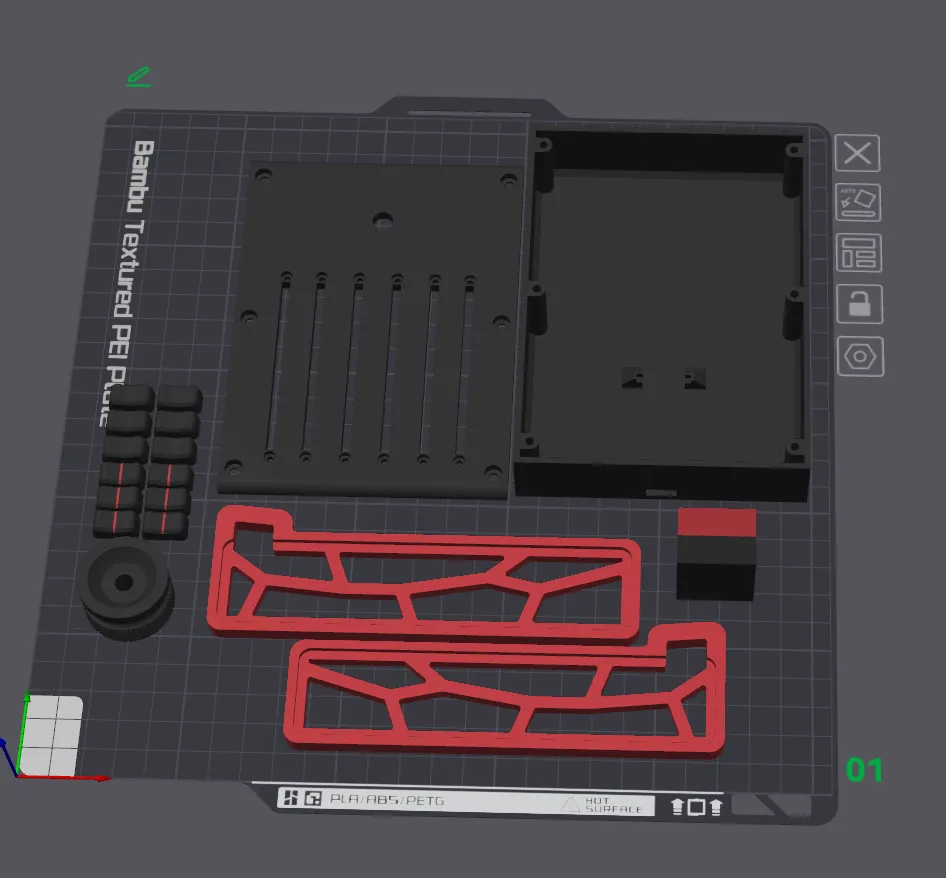

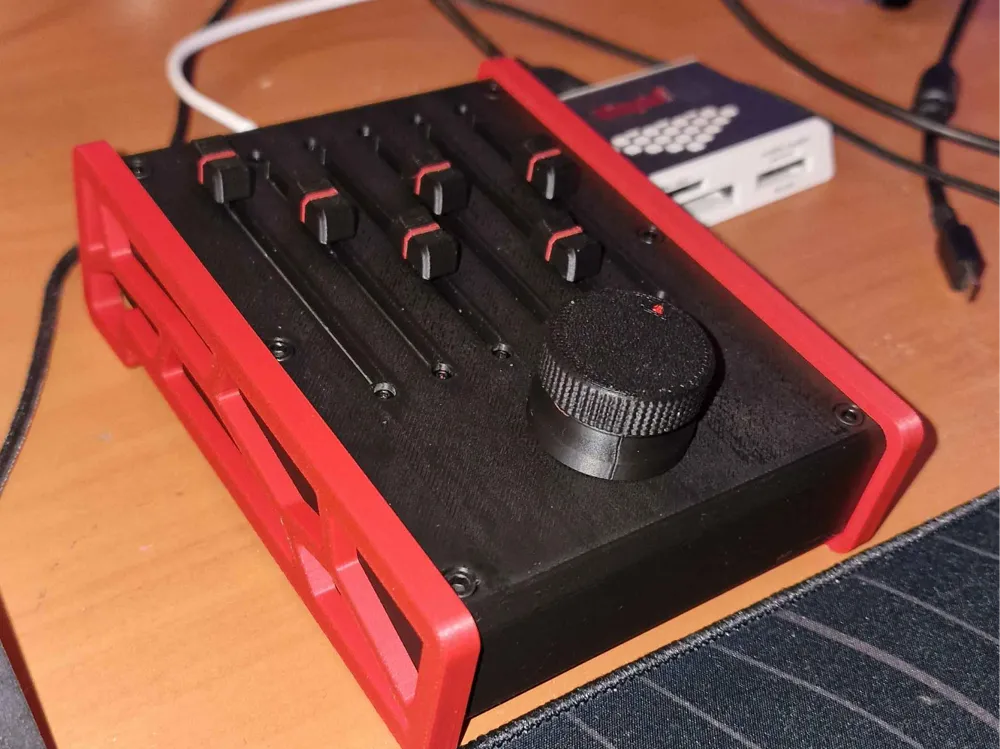

This is a remix of the original Sliders with Deej model made by Daniel Eischer. I have widened the model to add two additional linear slide potentiometers, made additional fader knobs both with and without a line marker, as well as added a slightly different rotary potentiometer knob also with a red marker. All parts are arranged on to one plate for AMS users but can be split into two plates. 0.4mm nozzle at 0.12mm layer height.

This build uses the same hardware as the original:
Parts

Linear Pots 10K https://www.banzaimusic.com/Alpha-16-PC-KN-10k-lin.html

Rotating Pots 10K https://www.banzaimusic.com/Alpha-Slide-Pot-SP60DT-10K-lin.html

Arduino Nano (ESP32, but every other Nano works) https://store.arduino.cc/products/nano-esp32-with-headers

Screws

6x M4x10 up to M4x16

12x M2x6
