AMS Lite Splitter Holder and Support
Print Profile(1)
Description
Version 5: The splitter model has been updated, it now has two points for attachment, So you can go and reprint that. It's on the second plate of the main profile. A1 AMS Lite Splitter. remix. I've updated the print profile here to have better connection with it, as well as adding a second clip section for those that want it.
Version 4: More improvements to the security, new feet to help secure better. Huge thanks to @user_1837898024 for the remix.
Version 3: Improved stability and security to the top of the toolhead. Added Optional Plate with accessories. Please read Updates section.
Description:

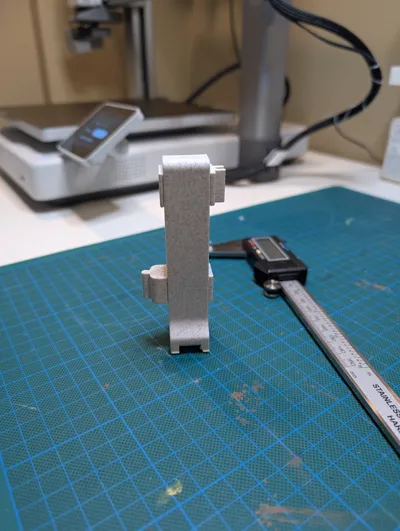

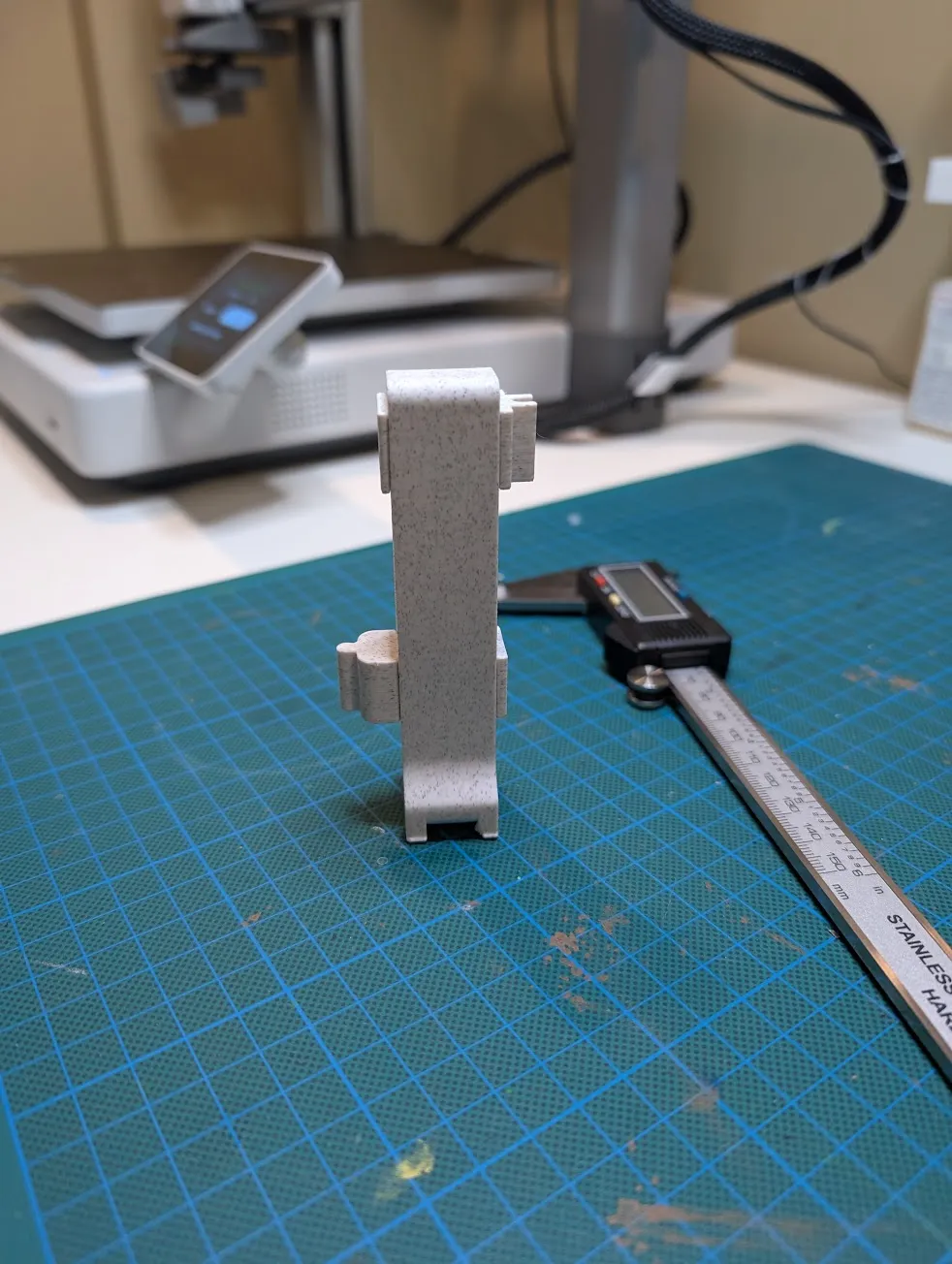

Here's a vertical stabilizer for the A1 AMS Lite Splitter attachment.
This allows you to print that model, and give it some stability, but also allow for vertical movement so your printer can still detect issues.
This connects to the other model using the extra attachment.
Printing Instructions:
Print only plate 1, the second plate is accessories that are optional. For more info please read the Updates section below.
Assembly:
Snapping in the holder(s) in the tower piece will take some force but with a little twisting and pressure will snap nicely into place.
Updates:

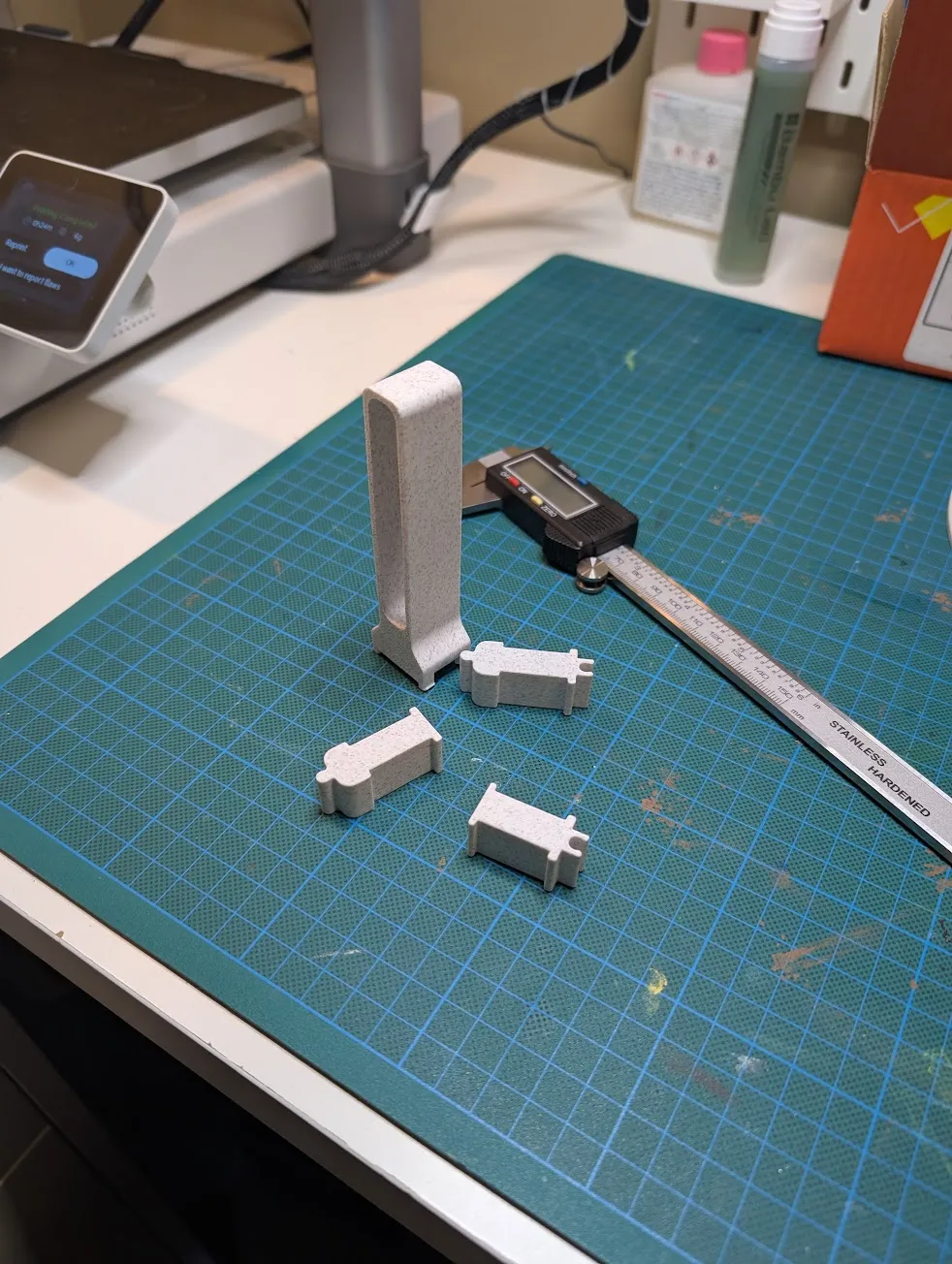

I added a 2nd plate with two additional pieces that add the ability to hold the power wire on the rear of the print head. The first provides a clip for the wire only and is meant to be added in the tower ABOVE the holder for the y-splitter so you have two holders--one for the splitter, one for the wire. (Note the wire holder clip should point in the opposite direction of the y-splitter clip). The 2nd additional holder is a dual holder with clips at either end - it will hold both the Y-splitter and the power wire and would be the only one you would use in the tower if you choose to use it. I added this on request, but it is really not recommended as it can affect the AMS tangle detection.
This update should solve the issues with any breaking or coming loose the tower was suffering from.

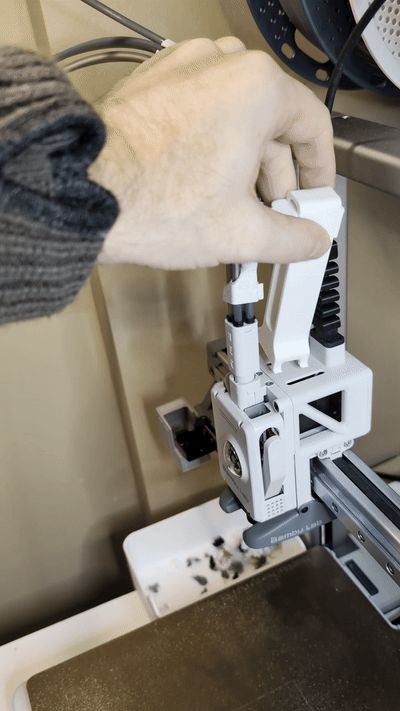

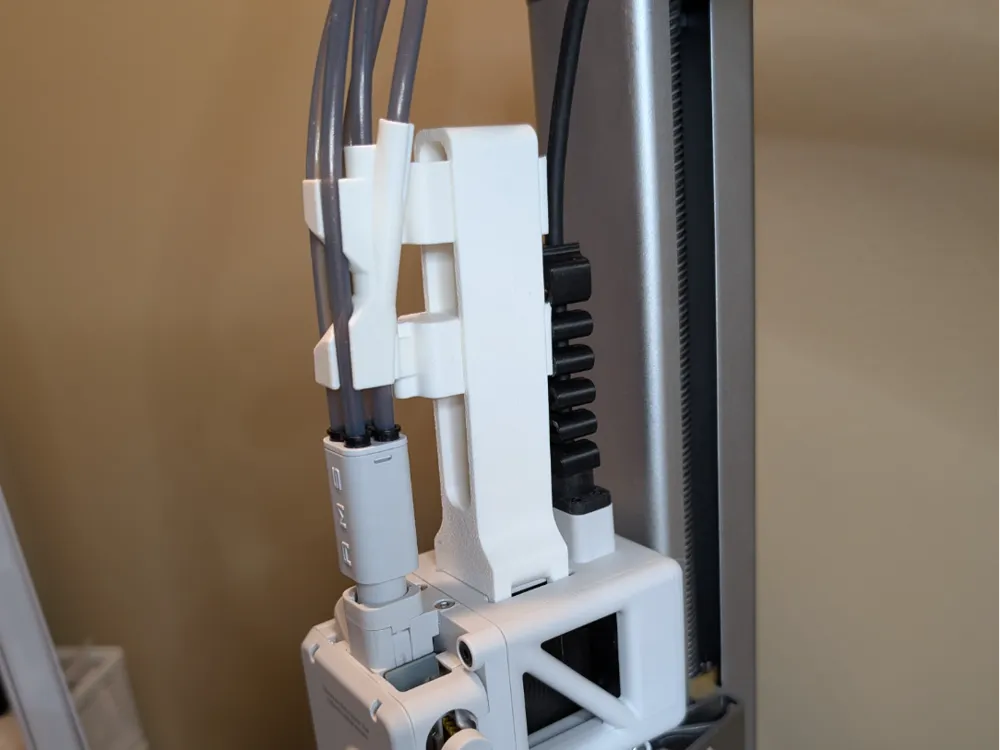

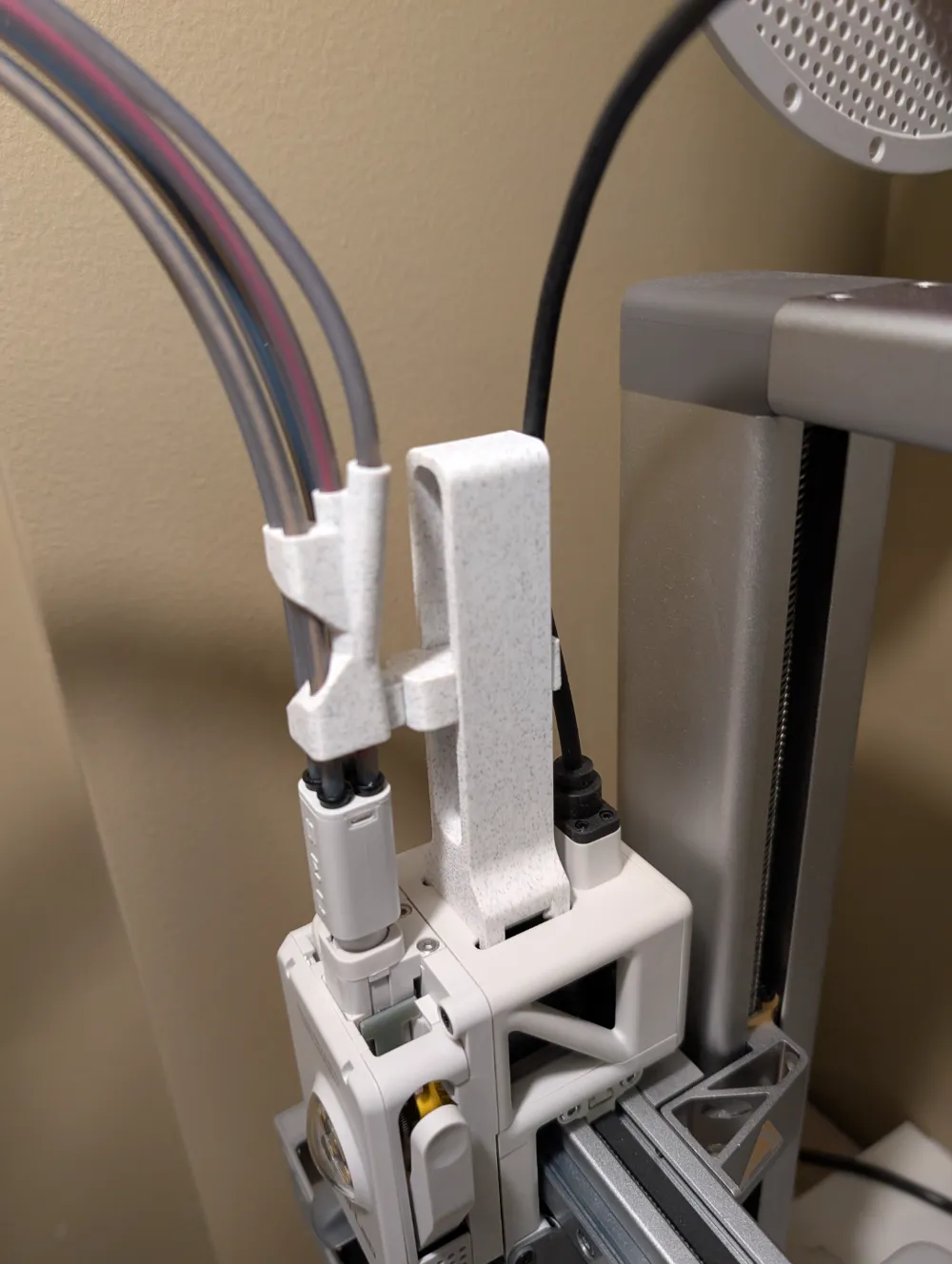

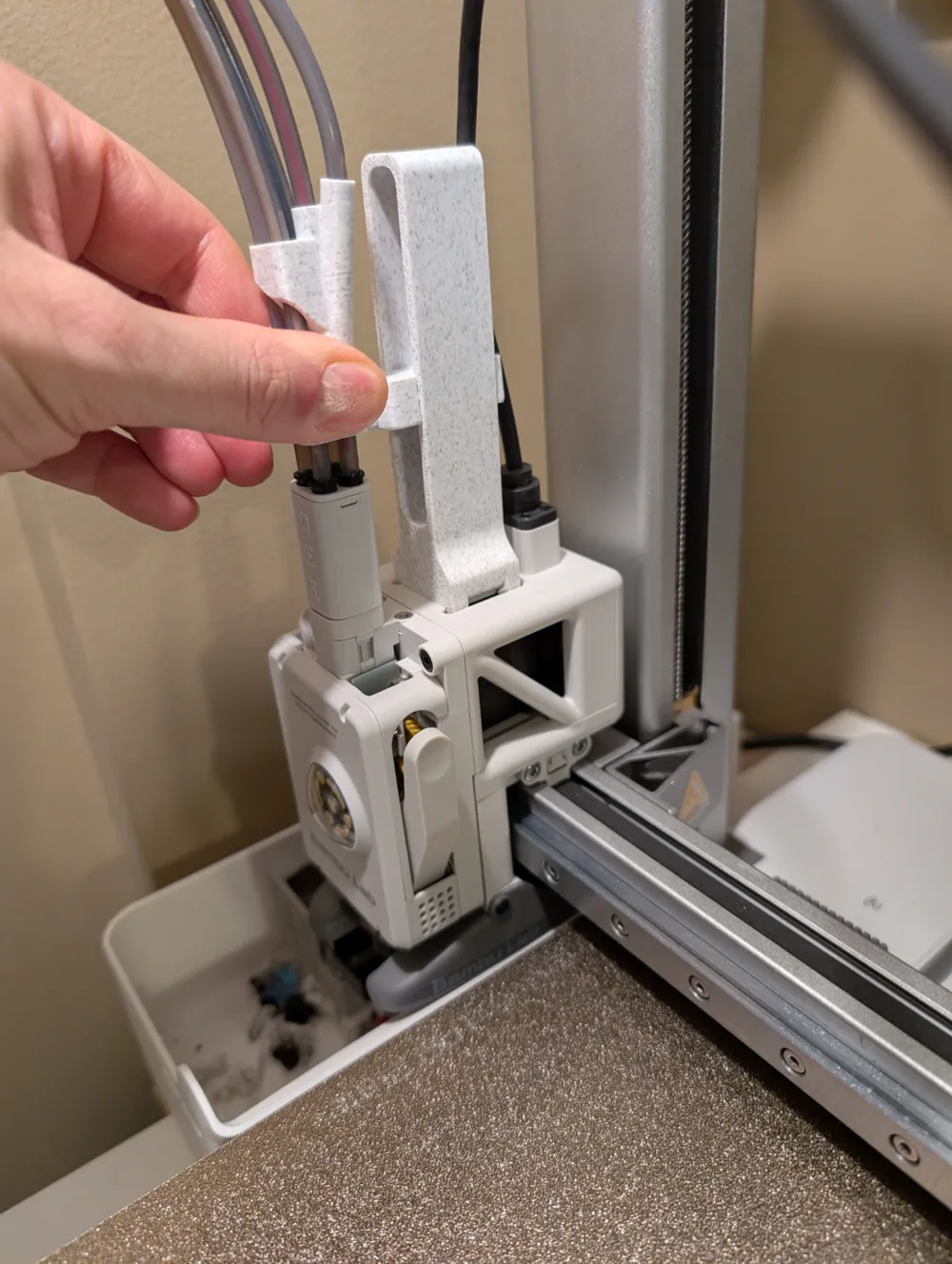

Give it a print, and install it like so.
Notes:
I took some ideas from this model, and improved on how it stands in to the top. Allowing for better ventilation, strength and easier install.
https://makerworld.com/en/models/731947#profileId-663539
