Canyon Frontlight Adapter for Speedmax
Print Profile(1)
Description
The Canyon Frontlight is a nice piece of kit, but doesn't fit on the Canyon Speedmax TT Bike.

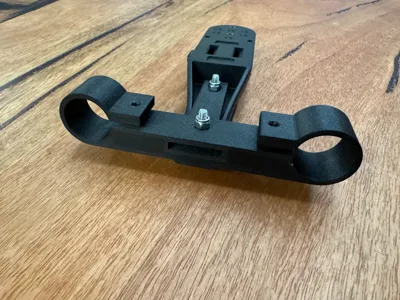

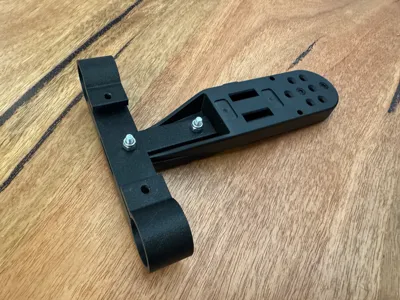

I developed this adapter so I could mount it between the aero bars. Would probably work on other TT bikes that share the same bar spacing.
Uses;
4x M4 Hex head bolts (I used stainless with lock nuts) of about 25mm.
Also has 10mm recess for a neodymium magnet (press-fit) if you would like to hold your hydration straw securely.
Printed in ABS-CF Bambu Filament with 0.2mm layer height, 3 wall loops and 50% infill density.
DO NOT TRY TO INSTALL IT WHILE THE AEROBARS ARE ON THE BIKE. Just loosen one off, and slip it through - the ABS isn't ductile enough to stretch around the bars with them in-place.
