Description
Content has been automatically translated.

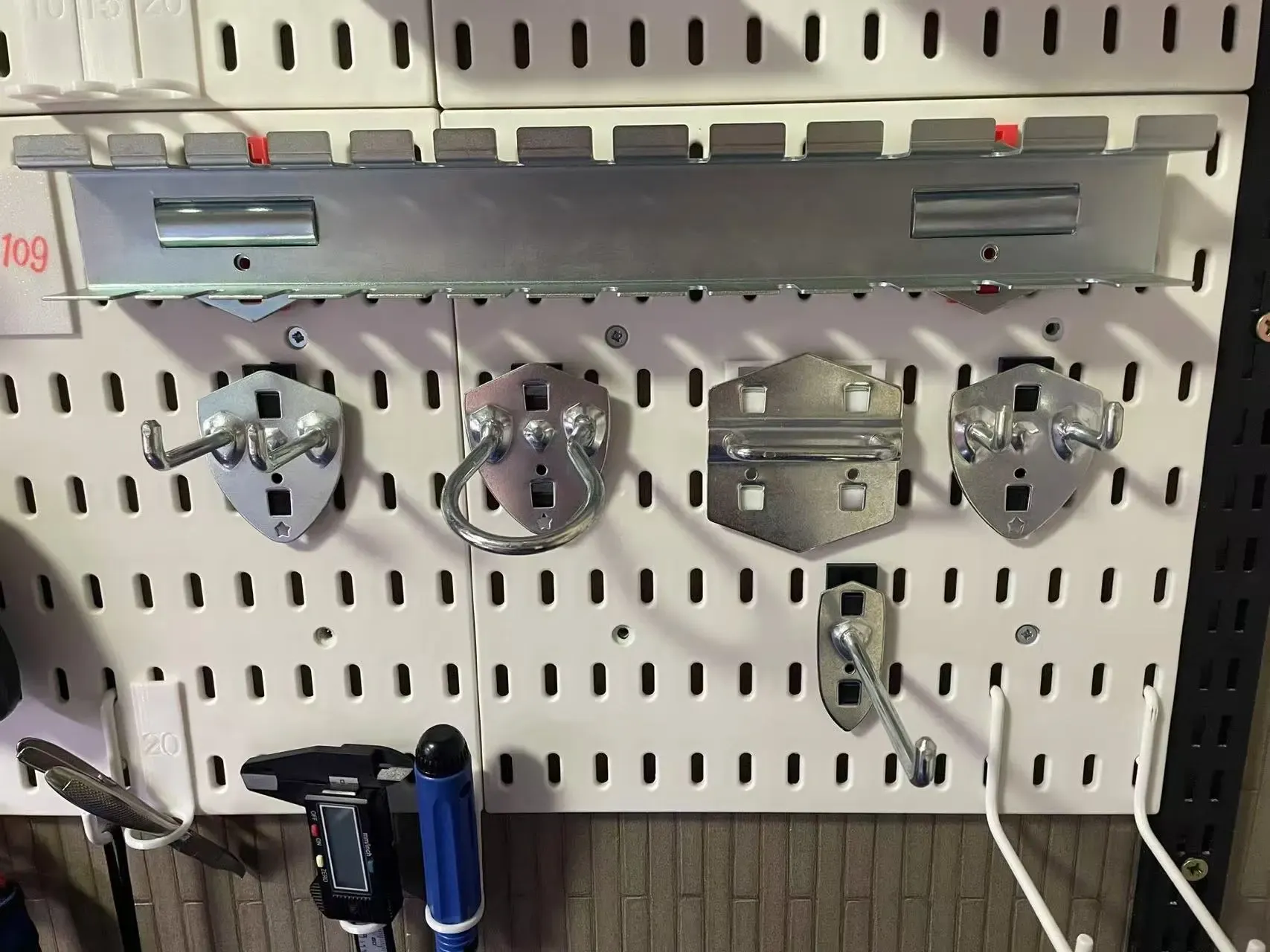

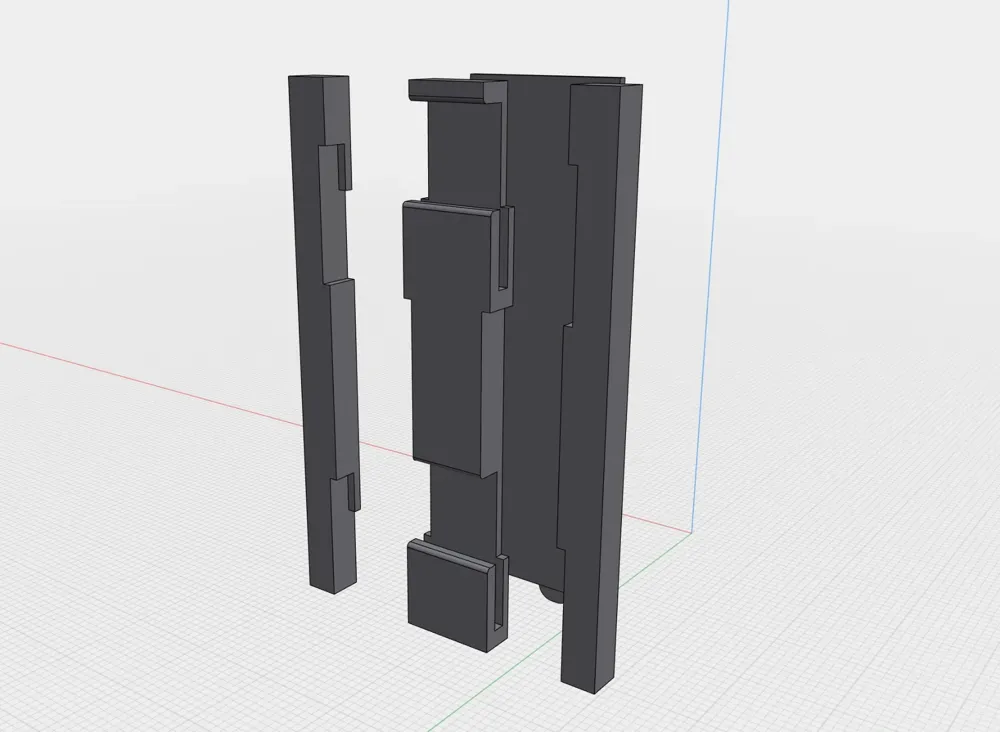

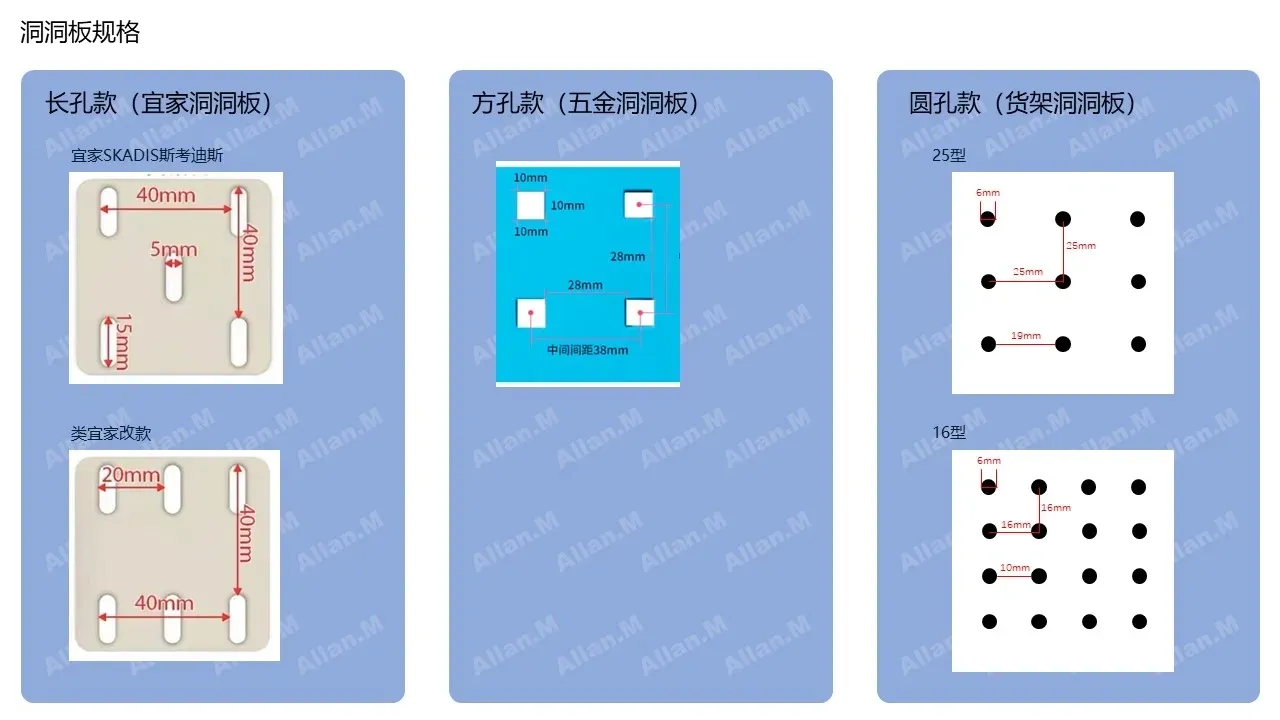

Transitioning from a square to a rectangular opening, the connector is narrower at the top and wider at the bottom, allowing for horizontal fine-tuning after insertion. The square holes are spaced 38mm apart, while the rectangular holes are 40mm apart, necessitating this adjustment.

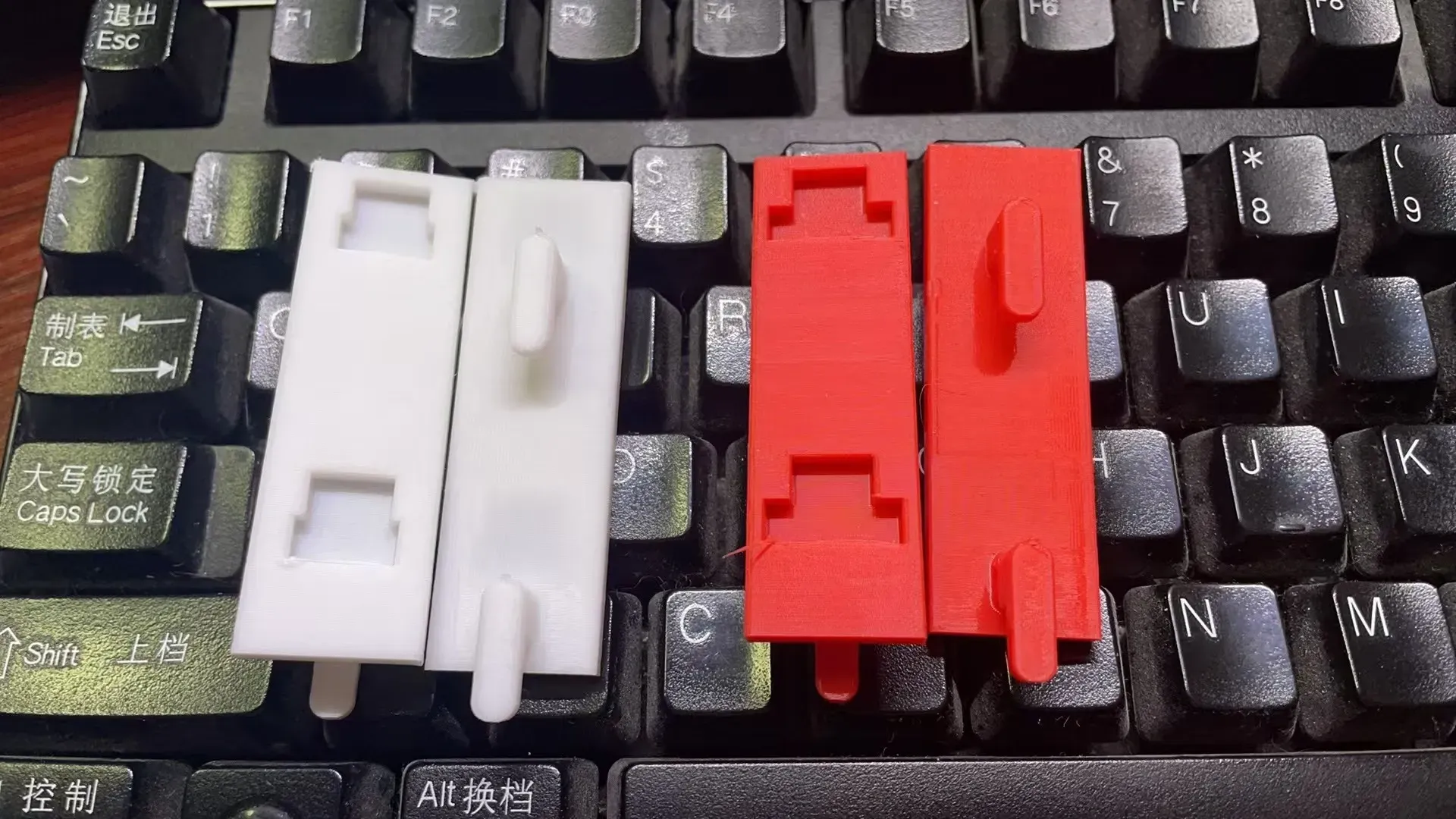

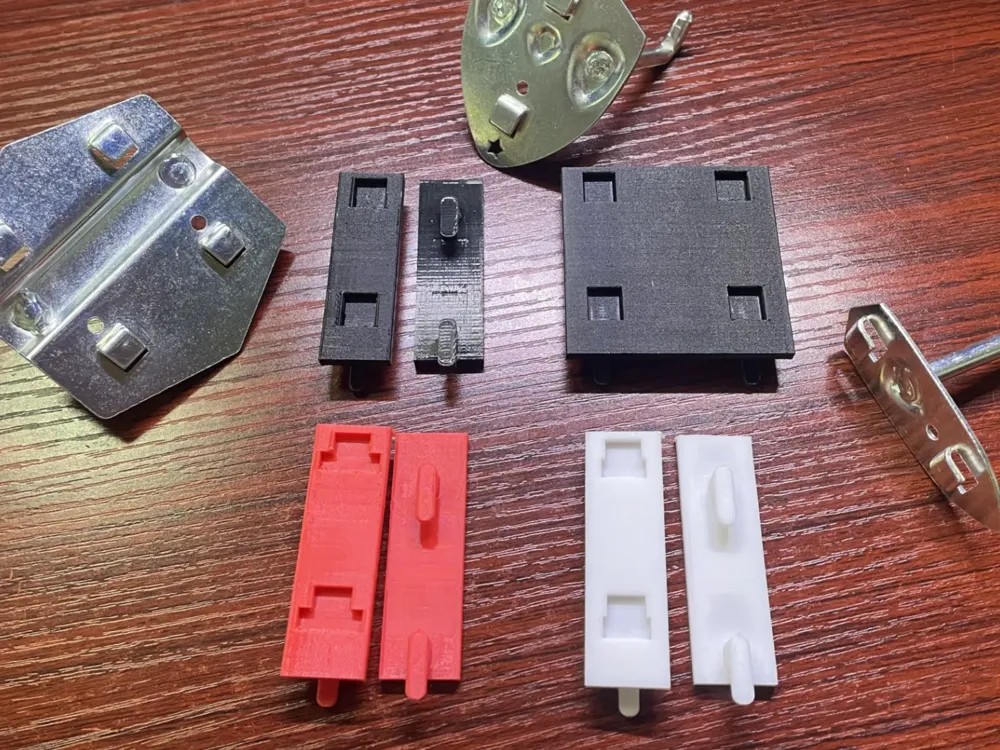

The white adjuster offers a smaller range of motion, suitable for square components secured at two or four points.

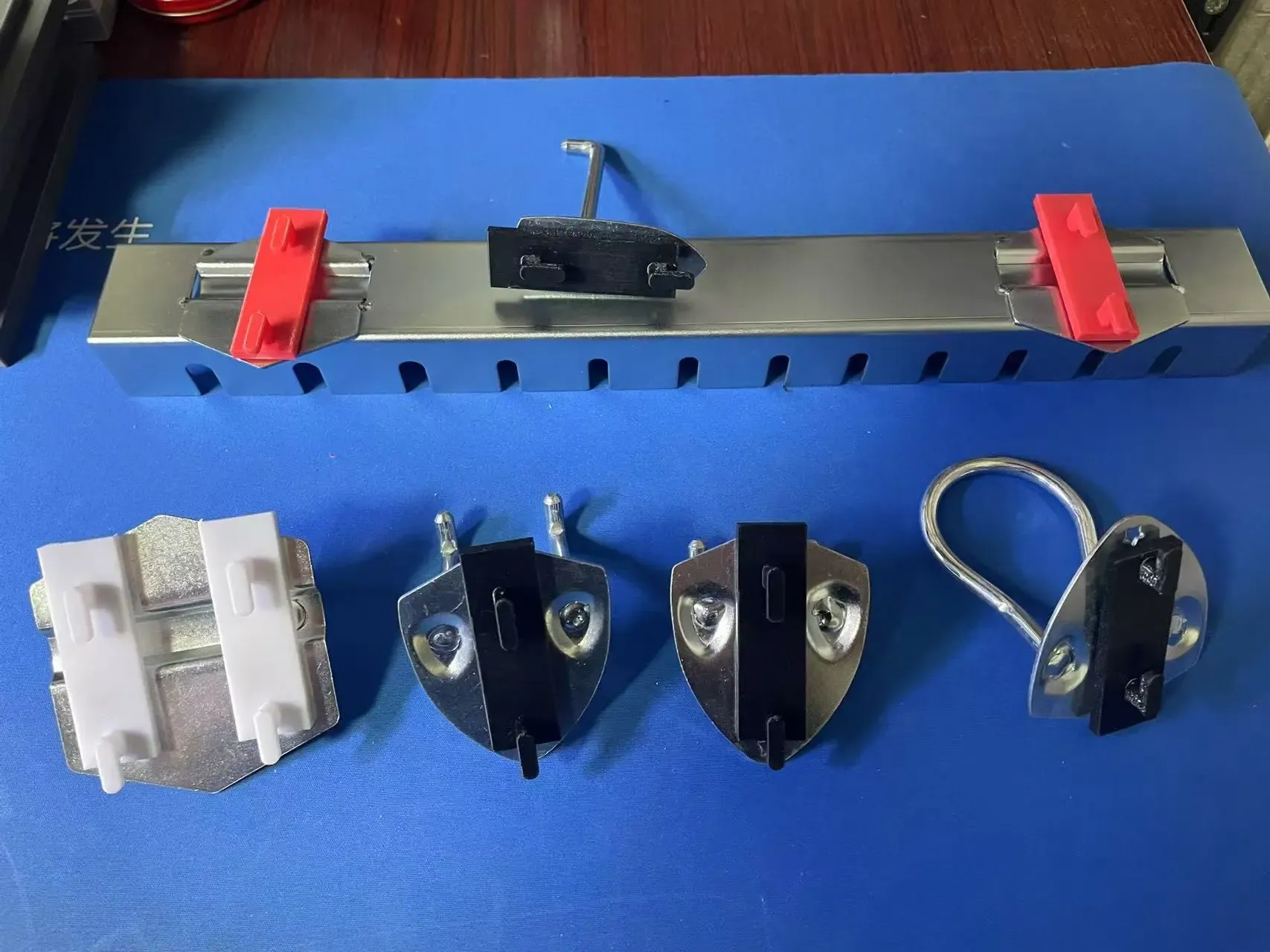

The red adjuster provides a wider range, ideal for larger square components.
Top plate configurations
