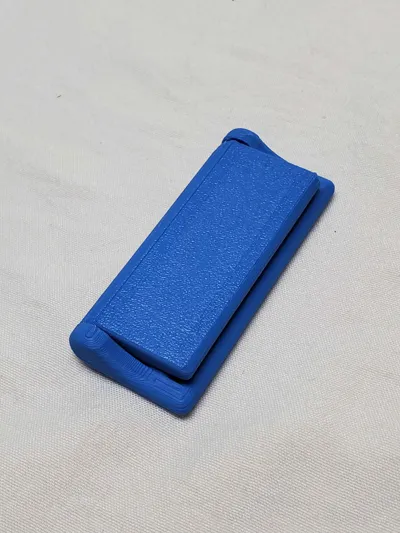

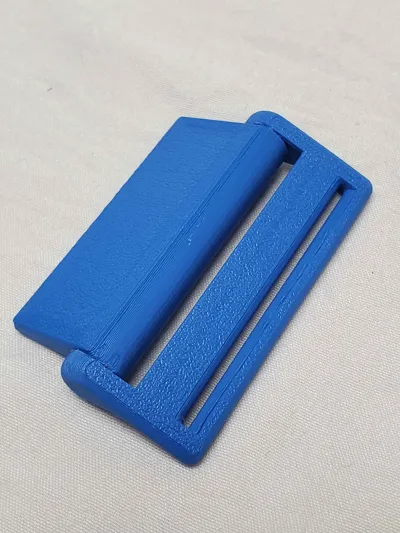

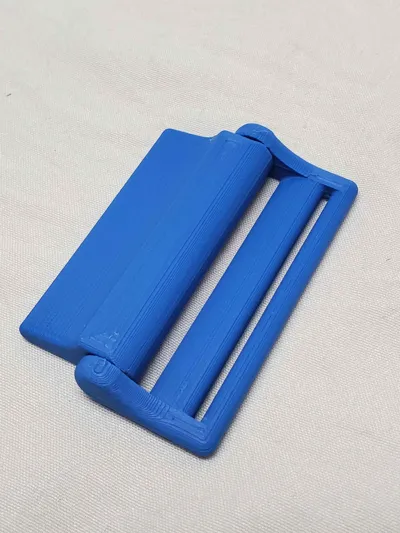

Cam Lock Print in Place for Straps (V2)

Cam lock V2 for straps and ropes. Held in place by pressure from the cam. For ~1mm thick straps or ropes.

The cam is bi-stable, it will not open when there is no pressure.

Does not need supports. Printer does not need to be capable of a very long bridge, but it will help it get a smooth rotation.

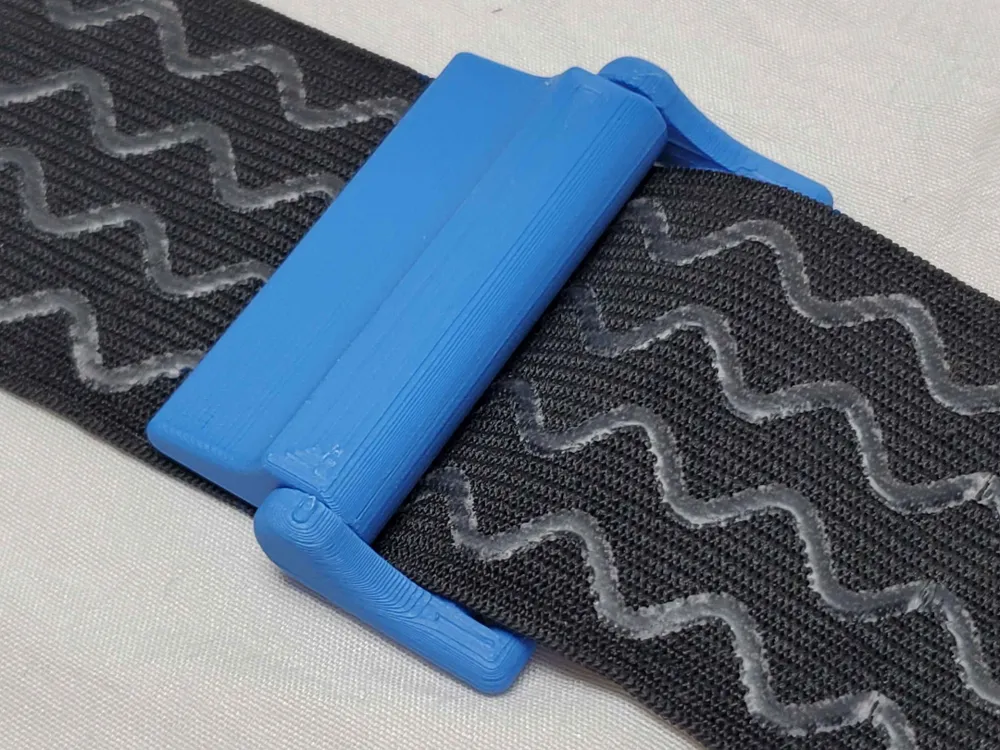

Originally designed for SlimeVR tracker straps, this is an alternative to velcro or conventional buckle.

Won't hold a huge amount of weight, but is strong enough to comfortably attach something light to a limb.

These work when printed on a Bambu Labs P1S, but I can't say it will on lower end printers.

Prints with relatively low tolerance for a print in place mechanism, you will likely need to place it upside-down on a flat surface and press down with your palm to break it free. Wait for it to cool down before you do that, or it could break.
