ProverGuard3030

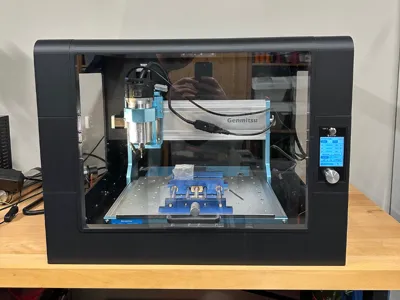

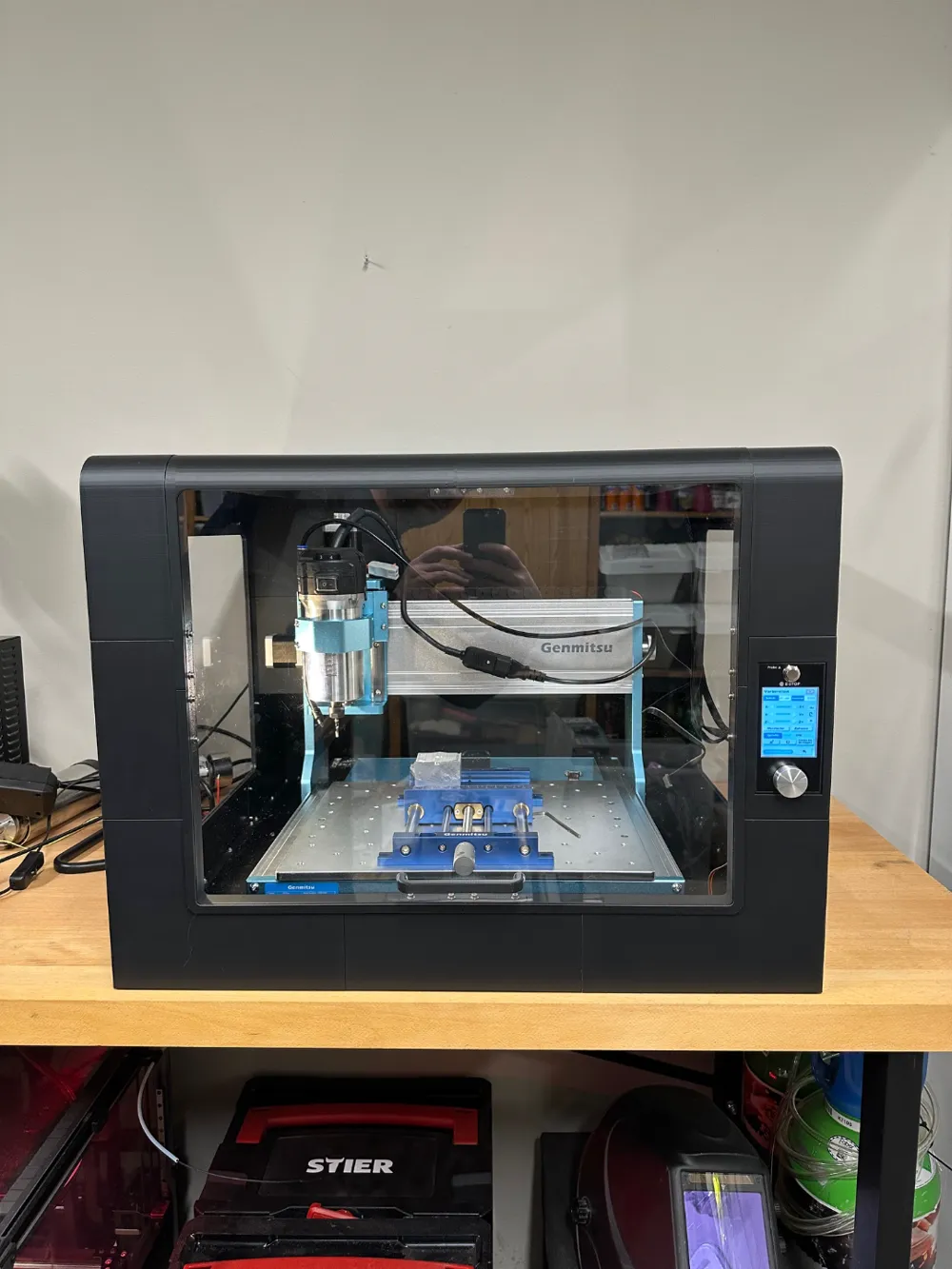

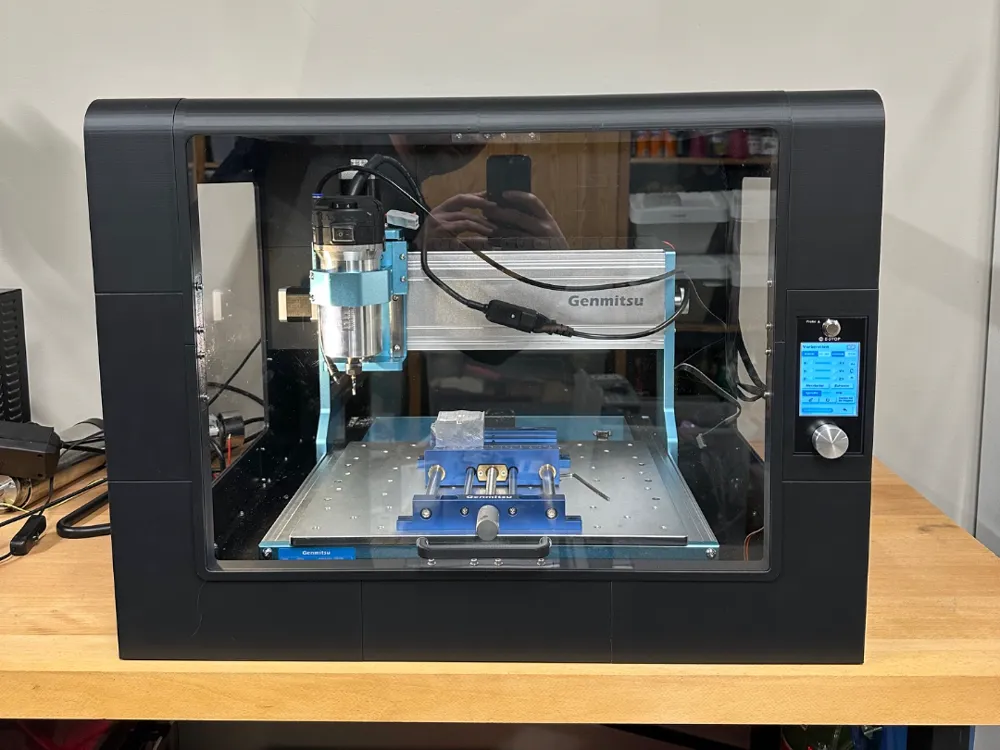

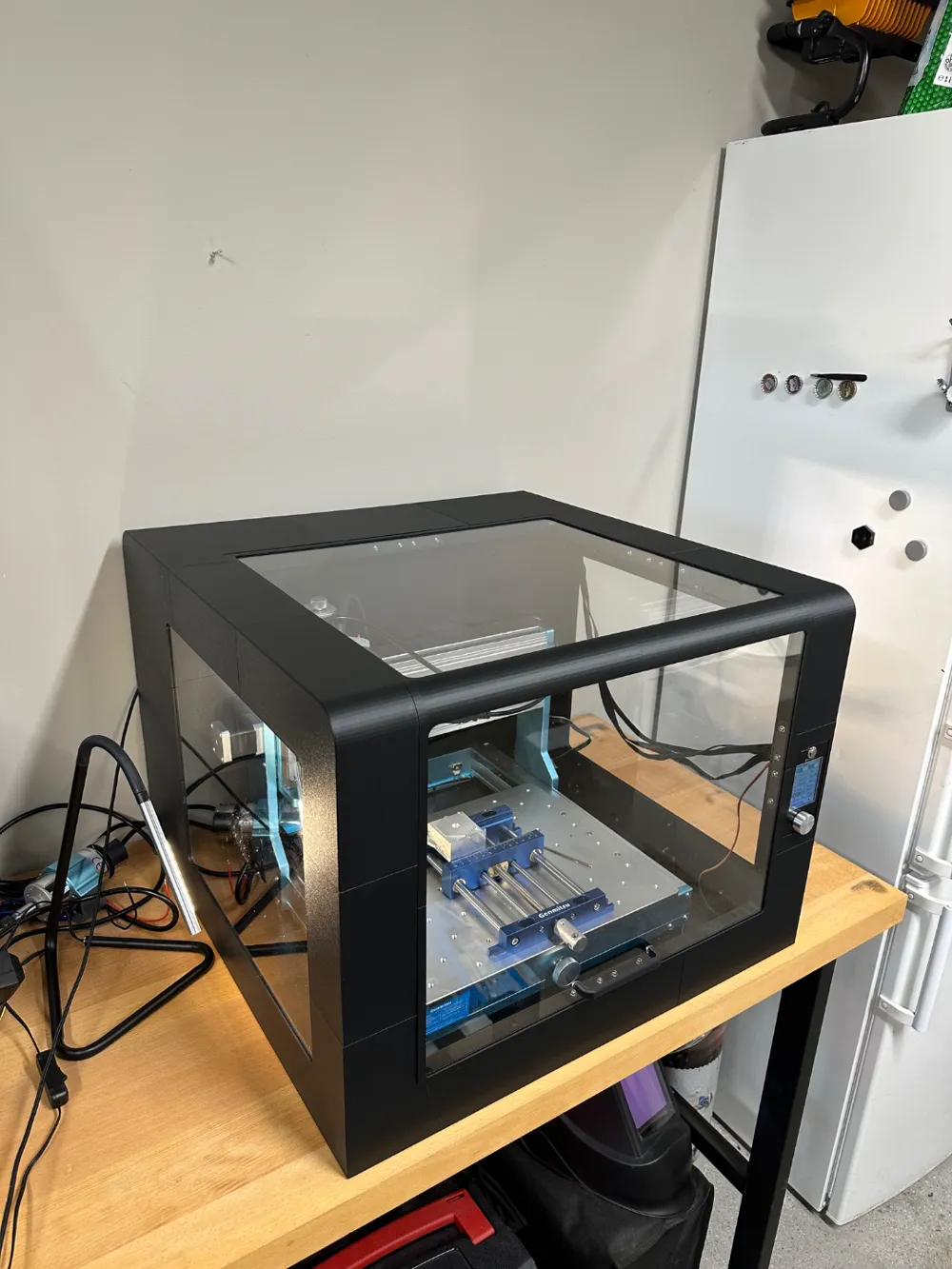

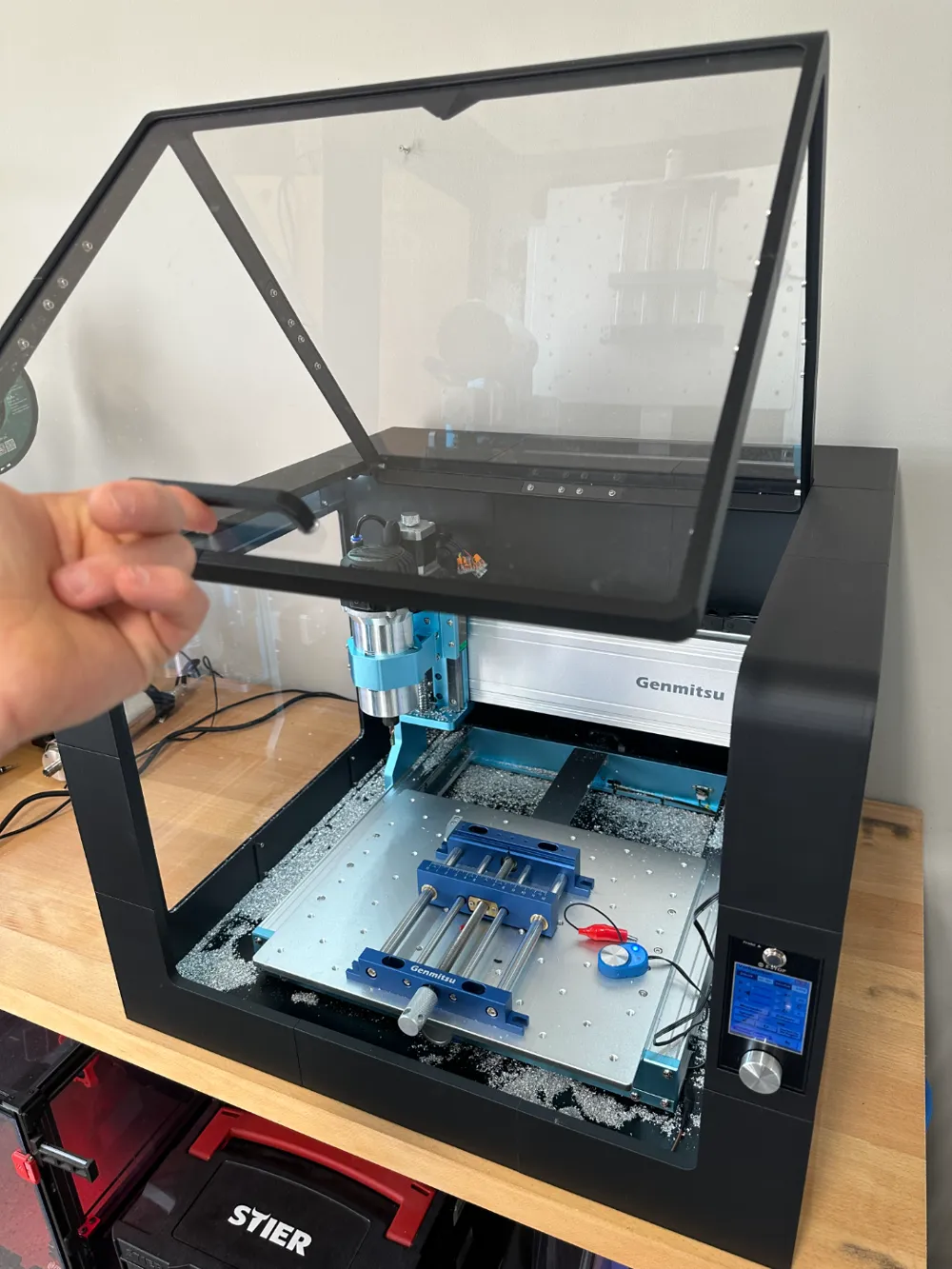

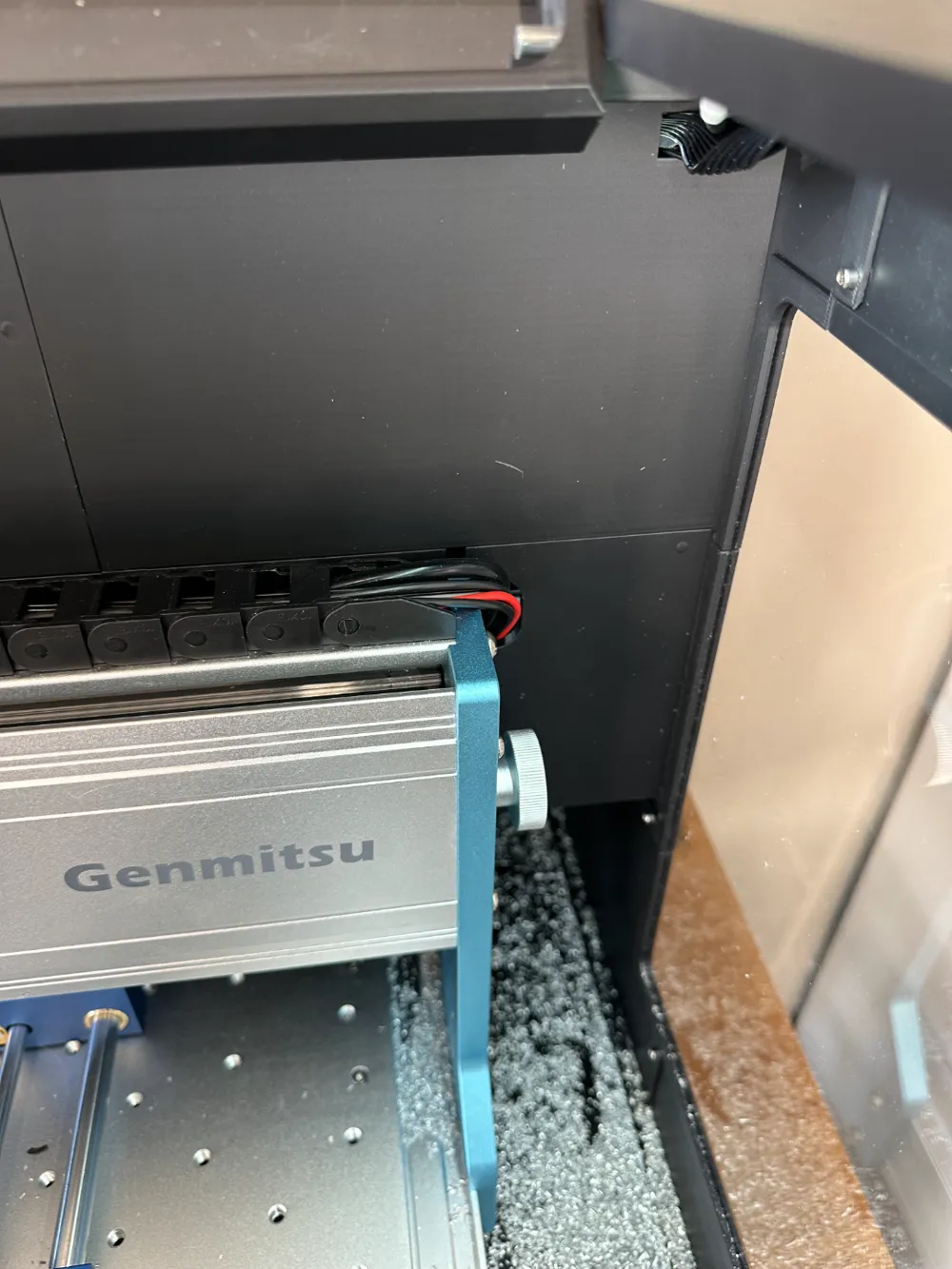

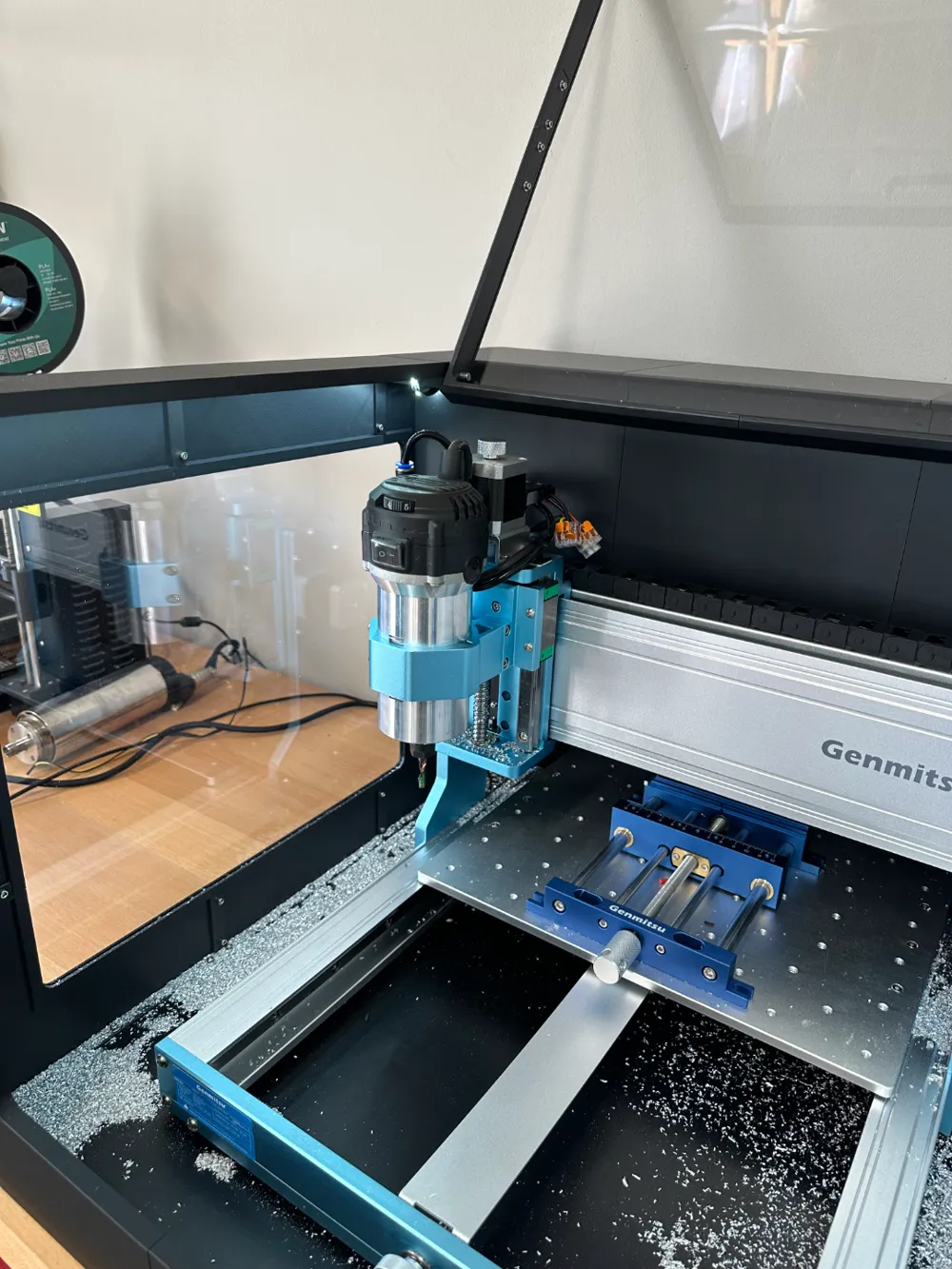

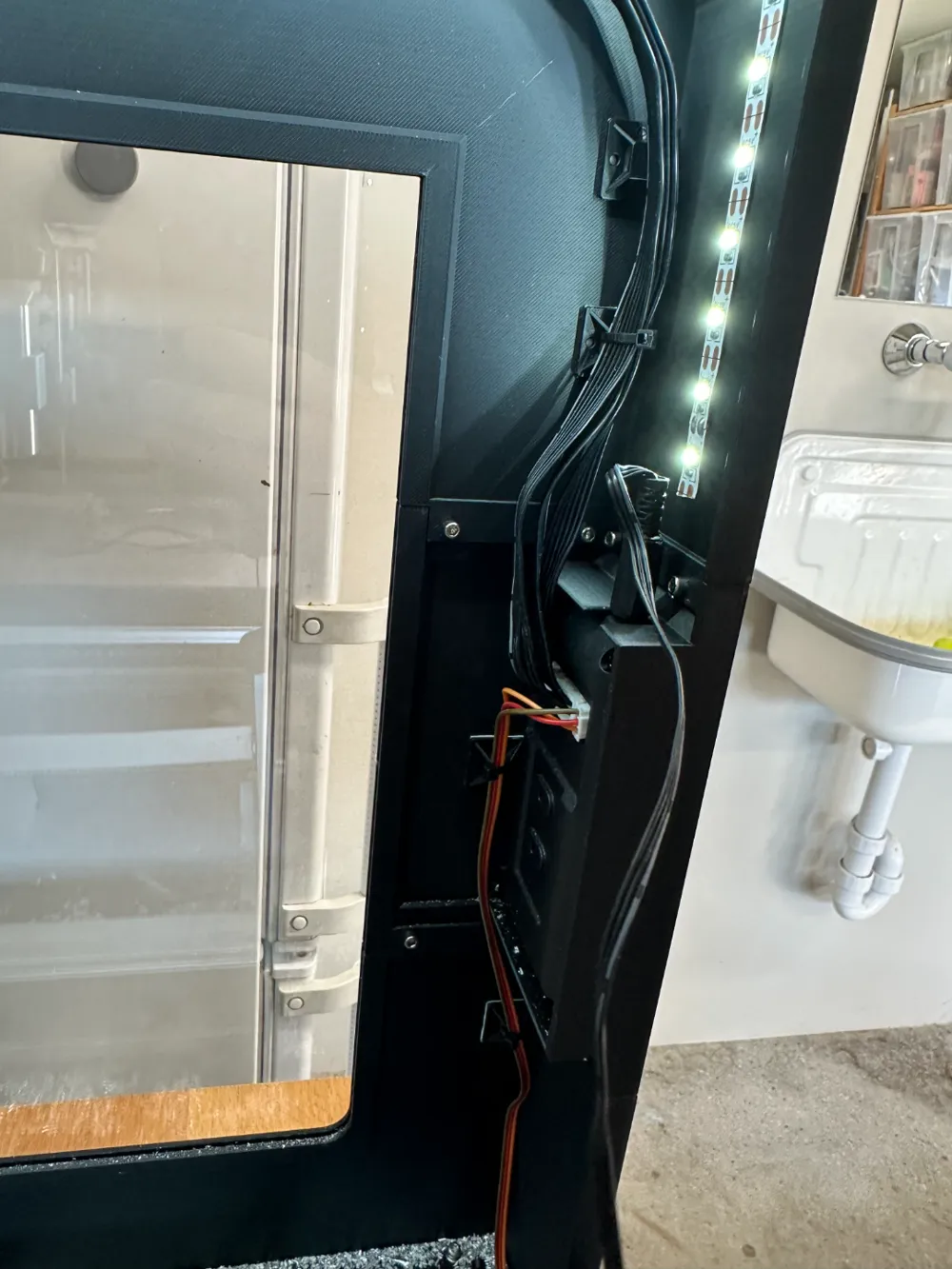

Protective Enclosure for the Genmitsu 3030 Prover Max – Modular, Functional, and 3D-Printable!

This high-quality protective enclosure is specifically designed for the Genmitsu 3030 Prover Max CNC machine, offering optimal protection from dust, noise, and other environmental factors. The modular components are perfectly optimized for 3D printing and can be easily and securely assembled using threaded inserts and screws. Flexible, user-friendly, and adaptable, this enclosure ensures a clean workspace and efficient operation of your CNC machine. Ideal for makers and DIY enthusiasts: some parts are printed once, others multiple times – providing maximum versatility and easy customization.

Outer dimensions: WxDxH: 612x630x460mm

All you need:

For the printed parts: approximately 3kg of PLA

*Honestly, the printer isn’t doing much most of the time anyway.

Baseplate: (Plywood)

618x600x10mm (or 8mm)

I recommend painting one side black.

Windows: (Acrylic Glass)

Front; 465x360x2,5mm

Top: 465x420x2,5mm

Side (2x): 388x327x2,5mm

Fasteners:

50x M3x4mm Threaded Inserts

50x M3x6mm Hexsocketsrew

36x 2,5x5mm Screw for Wood

40x M3 Washer

2x M3 Hexnut

2x Bolt 6x40mm

3D Printed Parts Bill of Materials (BOM):

Left Side: (Enclosure)

• Left_Corner_Front_Top: Front left top corner
• Left_Corner_Front_Bottom: Front left bottom corner
• Left_Corner_Back_Top: Back left top corner
• Left_Corner_Back_Bottom: Back left bottom corner
• Left_Mid_Front: Middle left front
• Left_Mid_Back: Middle left back
• Side_Common_Mid_Top: Middle left top
• Side_Common_Mid_Bottom: Middle left bottom

Right Side: (Enclosure)

• Right_Corner_Front_Top: Front right top corner
• Right_Corner_Front_Bottom: Front right bottom corner
• Right_Corner_Back_Top: Back right top corner
• Right_Corner_Back_Bottom: Back right bottom corner
• Right_Mid_Front: Middle right front
• Right_Mid_Back: Middle right back
• Side_Common_Mid_Top: Middle left top
• Side_Common_Mid_Bottom: Middle left bottom

Front Side: (Enclosure)

• Front_Mid_Bottom: Middle front bottom

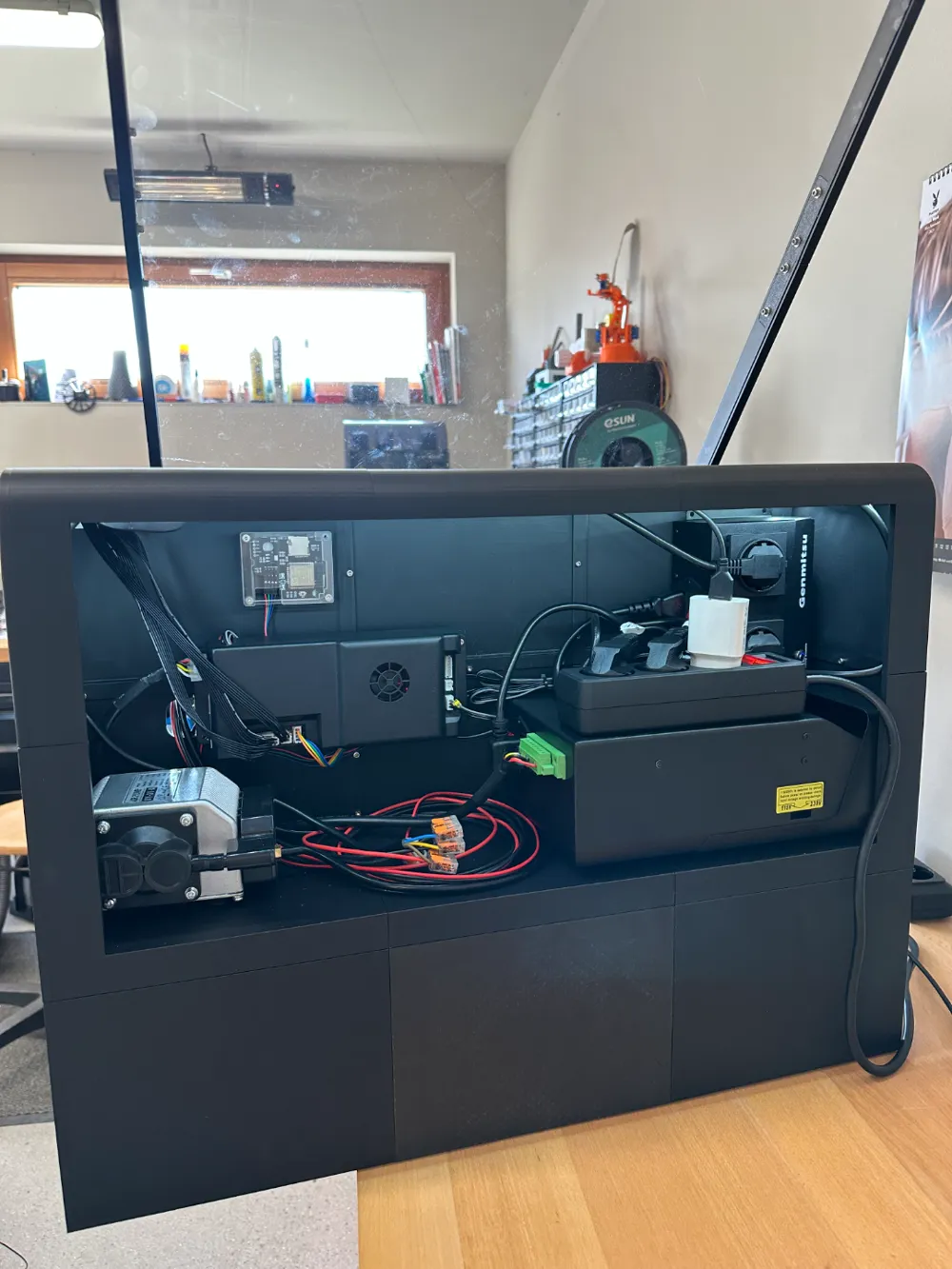

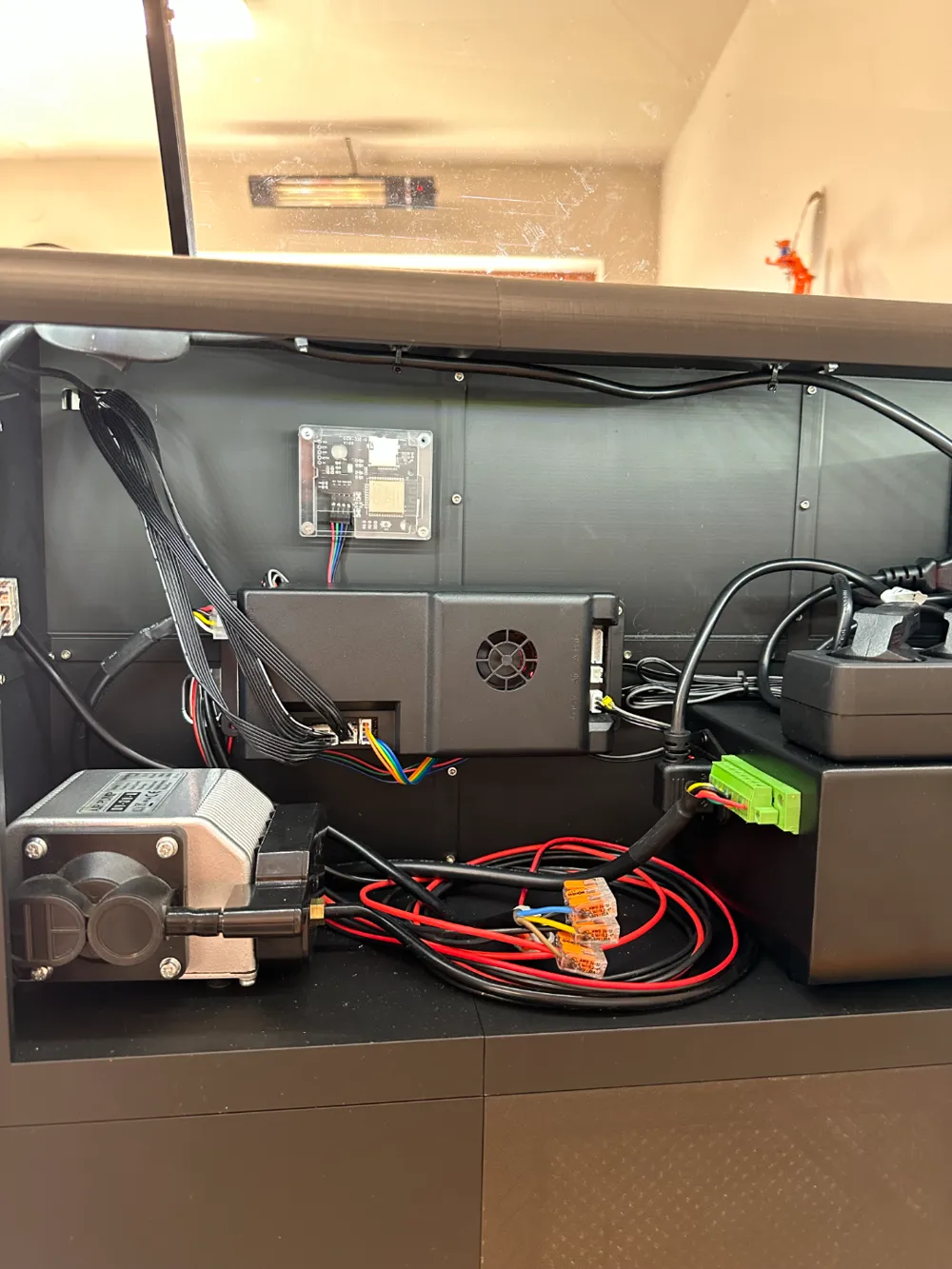

Back Side: (Enclosure)

• Back_Mid_Top: Middle back top
• Back_Mid_Bottom: Middle back bottom
• Back_Mid_Mid: Middle back middle

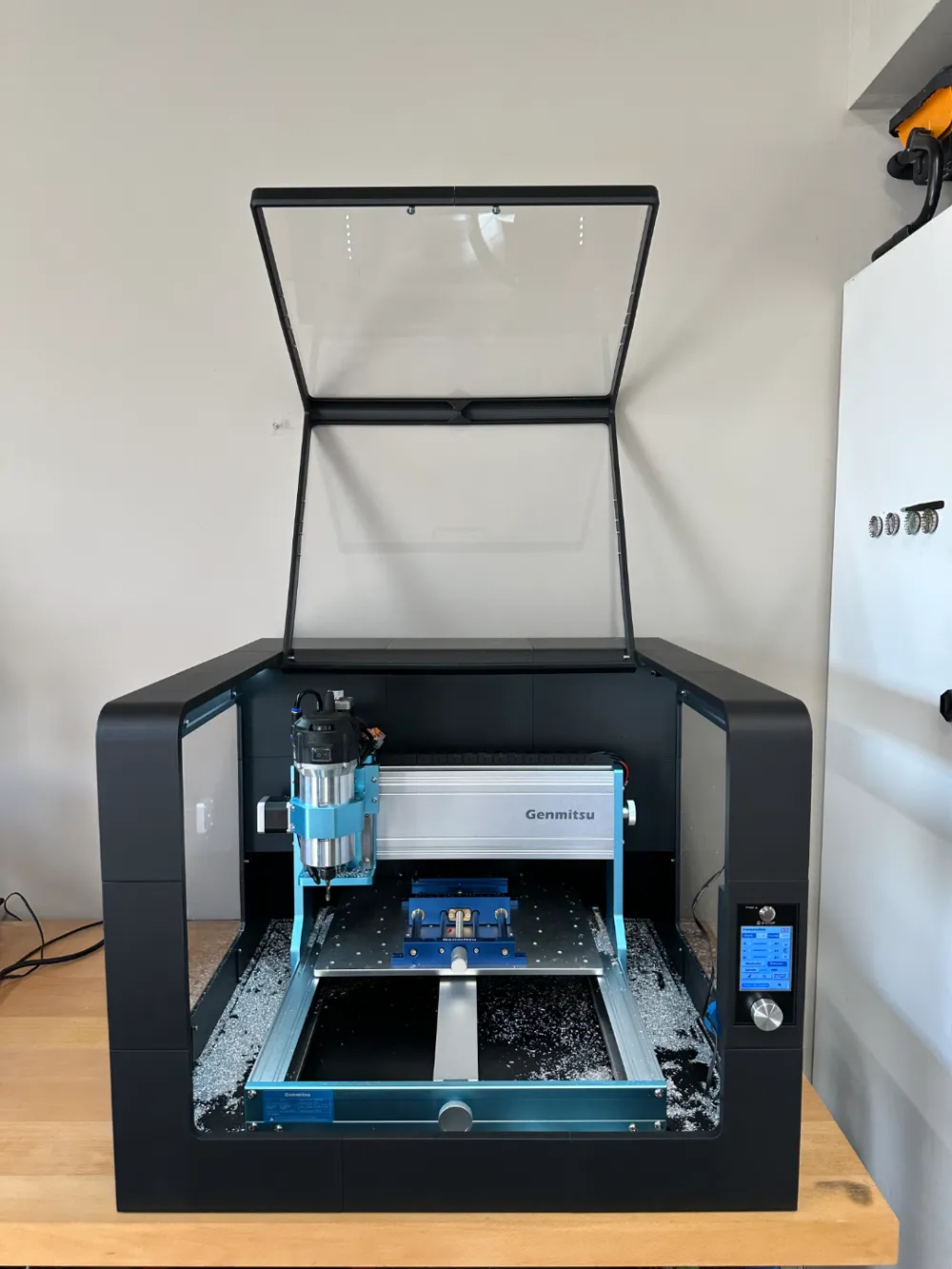

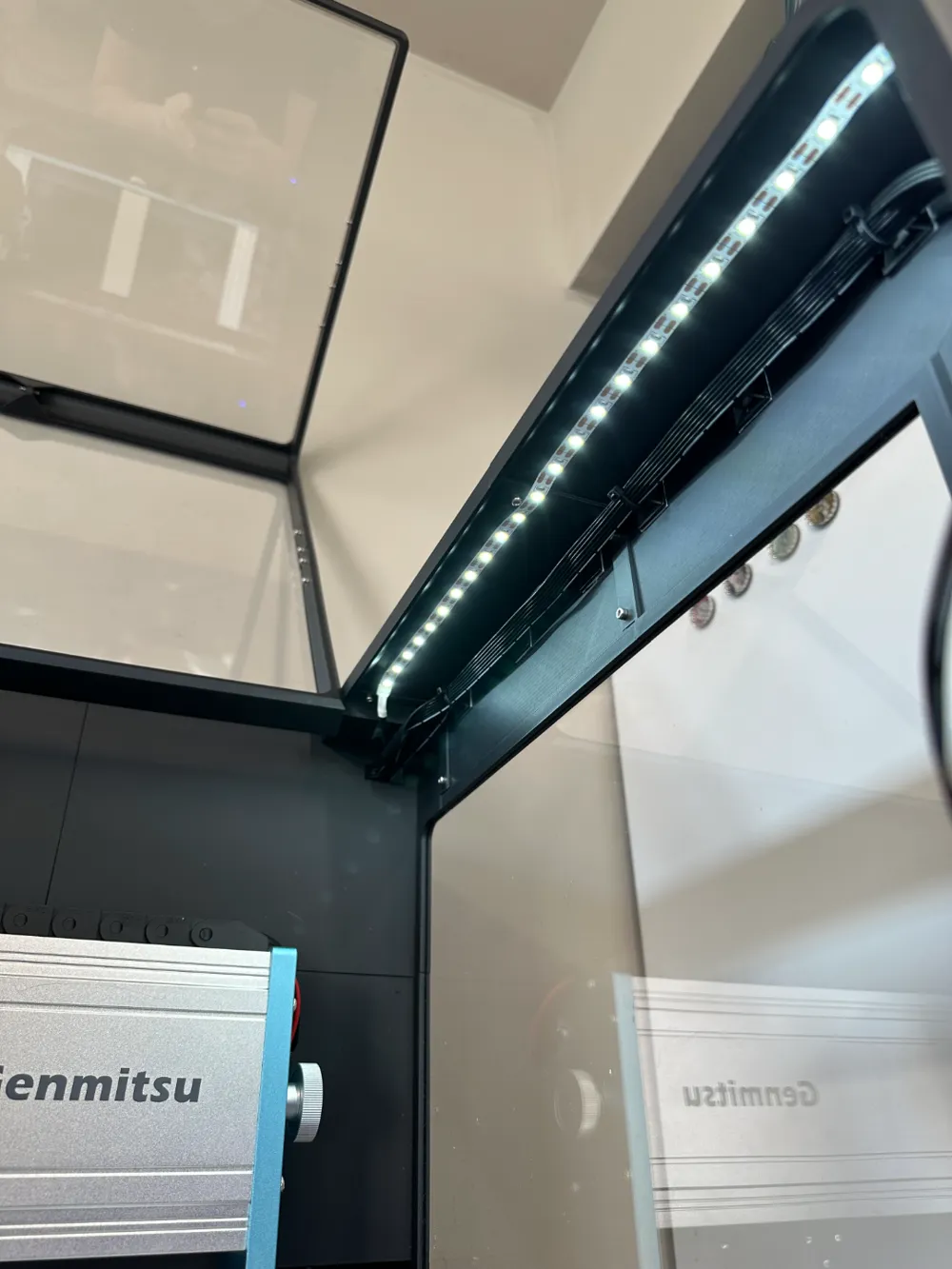

Top Components: (Door)

• Top_Front_Left: Front left top
• Top_Front_Right: Front right top
• Top_Cross_Left: Crossbeam left top
• Top_Cross_Right: Crossbeam right top
• Top_Back_Left: Back left top
• Top_Back_Right: Back right top

Connectors: (Door)

• Connector_6x: 6 connectors
